Page 11: Plumbing

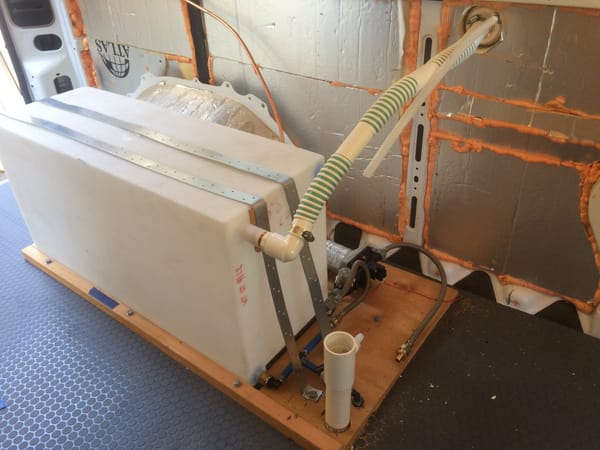

On to the plumbing. I chose a somewhat large 30 gallon freshwater tank, as we boondock a lot, and I just didn’t want to have to think too much about getting good fresh water often. It’s bigger than we really need, given that we don’t have a flush toilet anymore. But it means I can fill up with Eugene’s excellent drinking water and go almost a week. And it only cost $90 from Keith’s RV surplus, as it’s a standard RV size apparently. I mounted it next to the rear wheel well, and very securely, as completely full, it weighs 250 lbs.
The two big straps are heavy duty steel strapping used in residential construction, not just “plumber’s tape”. They are bolted through the floor with bolts and washers. and to help resist any forward movement, I slipped in a piece of angle iron under the rear edge of that 3/4″ plywood, which is also secured to the floor. I’m pretty confident it’s not going anywhere.
The drain line for the sink is in place. Its precise location was also determined by underfloor framing.
The fresh water fill hose location was also worked out to not conflict with the sink. It connects to a typical fill outlet mounted on the outside. The little hose is a vent for the water tank, to release air as it’s being filled up with water as well as to work in reverse.

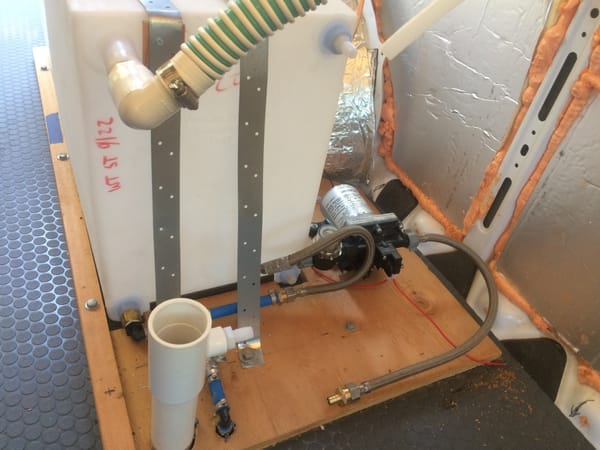

The Sureflo 12V pump mounts on the same base just behind the tank.

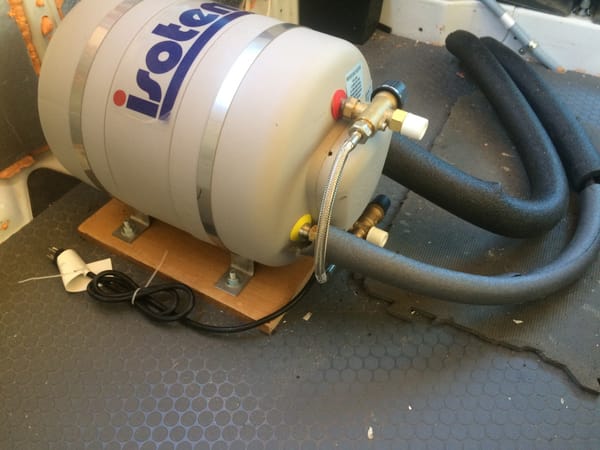

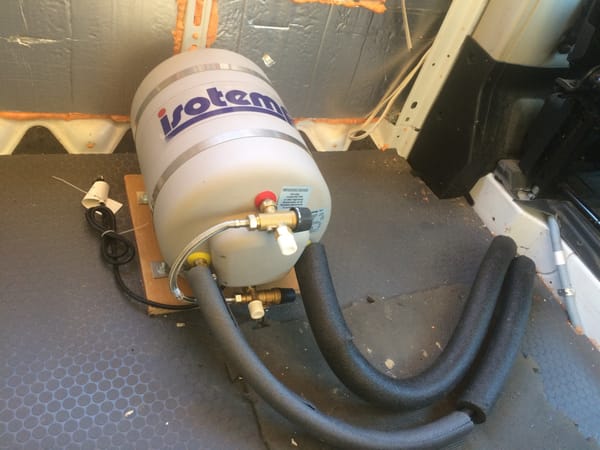

Before I hooked up the under-sink plumbing, I mounted the Isotemp Spa 4 water heater ($479). The choice to use this came after some deliberation as to the options: no water heater, something we were used to from the Chinook; whose unit had died, a typical propane RV heater, or the Isotemp. These units heat the water via a heat exchanger that circulates 195 degree hot coolant from the engine. They were originally designed for marine use, but have been showing up in more vans and RVs.
Given our history to not stay in one place very long, this made lots of sense. Even if we are camped at a national park or such, we typically drive to trailheads or such. It’s not cheap, but there’s no fuel cost, and it’s a well-made stainless steel unit. I picked a four gallon Spa 4, as the water is so hot that it can make double or more that amount of normal temperature hot water through its built in mixing valve, which keeps the scalding hot water from reaching the outlet.
I mounted it on a pedestal of 3/4″ plywood, and the bolts go through the floor.

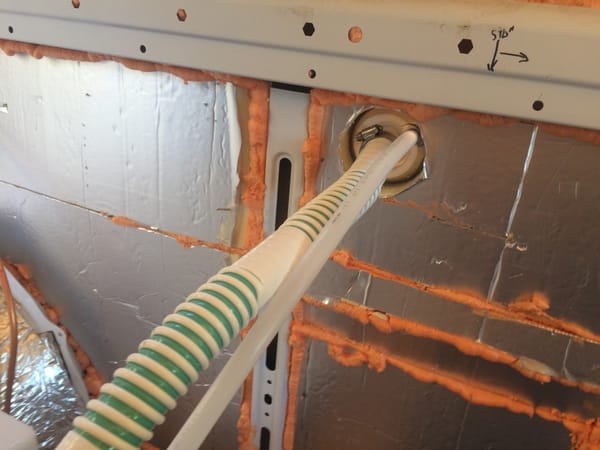

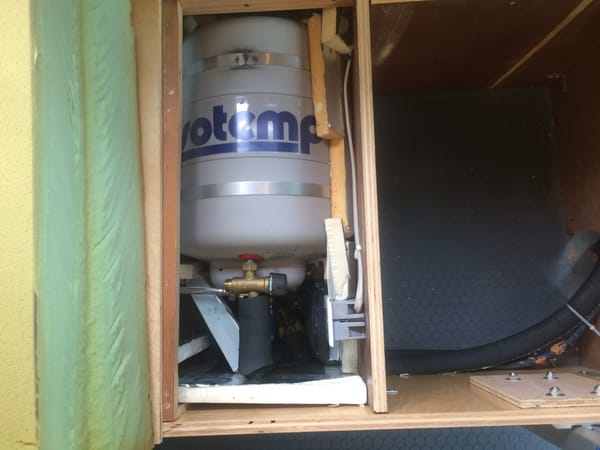

I was a bit intimidated by the need to run hoses out of the van, under the cab and into the engine compartment, but it was pretty easy as it turned out. Two holes take the 3/8″ heater hoses, here wrapped in pipe insulation, underfloor, where it was easy to cable-tie them to suitable anchors.
I built this section of Stephanie’s bed structure around it, and packed it with leftover rigid insulation. The water stays warm for some three days.

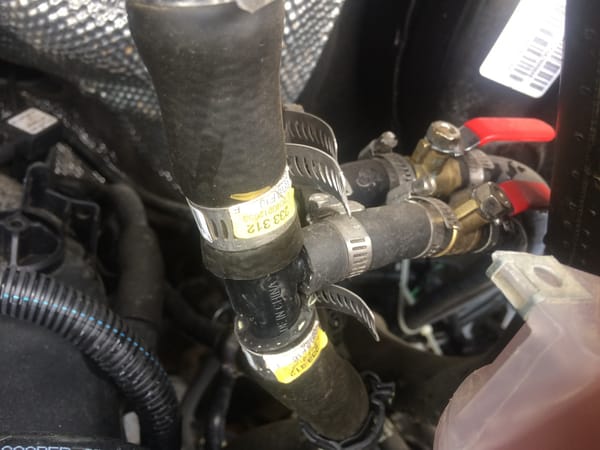

The hoses connect to tees in the heater hoses just outside the heater core in the engine compartment. I used 3/8″ hoses, which is apparently what the optional Promaster rear compartment heater uses. I second-guessed that choice, worried about whether the Isotemp would heat up quickly enough. I could have used 5/8 or 3/4″ hose. It’s turned out to be just fine. Two valves allow maintenance without disturbing the van heater lines.
I avoided almost all coolant loss when cutting into the lines by clamping them. I did have to add more coolant and bled the system via the bleed valve at the heater core.

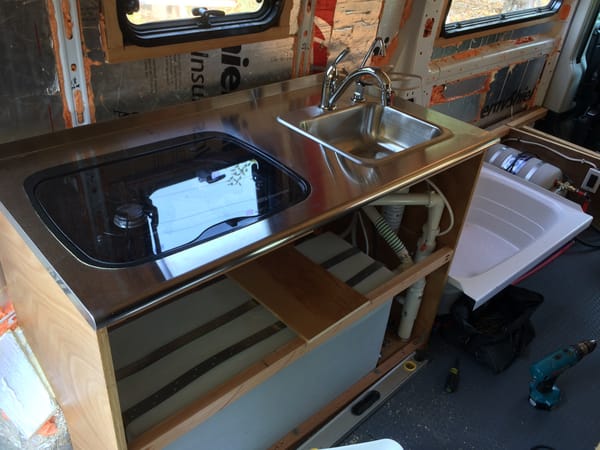

As noted in the tour, the galley top is from a cheap stainless steel prep table, 48″ x 24″. I built up the cabinet not as a unit, but by mounting the two ends to the wall with rivnuts and elbows, to enclose the already installed water tank and drain line. The sink is a bar-type unit.
I used blue and red 1/2″ Pex water lines that I already had on hand from a home building project. The two lines along the bath tub go to the water heater.

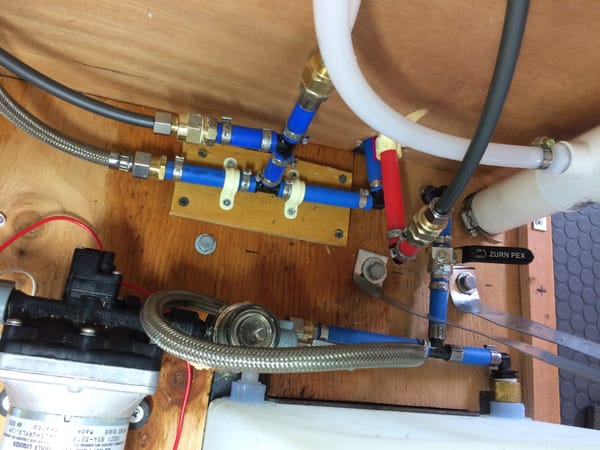

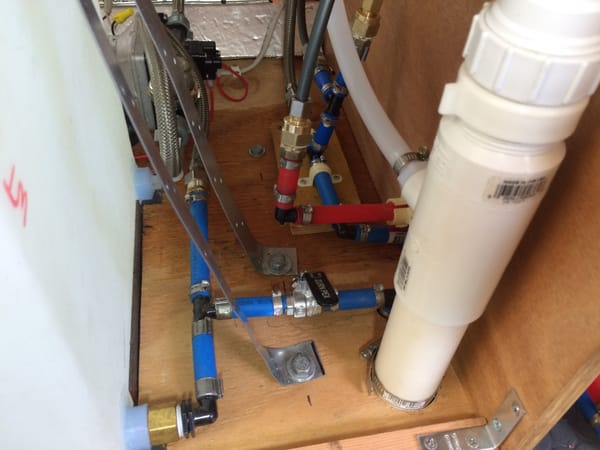

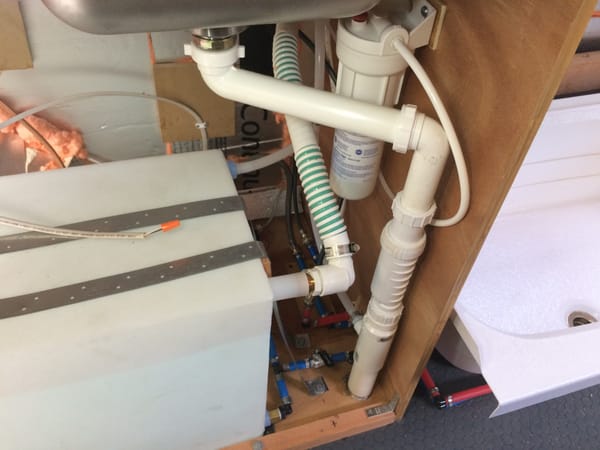

Here’s the big picture of what’s going on under the sink. The drain line form the sink includes a 1½” Hepvo waterless trap, that uses a self sealing soft plastic inner membrane to allow water to flow down but not allow gases to come up. It saves space by eliminating the need for a vent, and avoids the risk of a regular trap going dry over time.
I mounted and hooked up a basic water filter and separate faucet which allows us to enjoy the tank water for drinking and cooking.

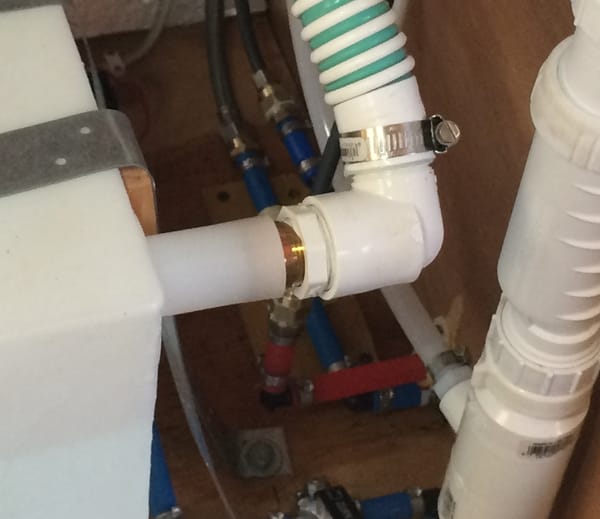

I had a bit of a challenge figuring out the fresh water intake, as it was pointed in an inconvenient direction. There wasn’t enough hose (I bought a short chunk) or room to bend a longer hose properly, so I had to cobble up a 90 degree turn. I bought a short threaded brass nipple that was just right to cut its own threads into the polyethylene tank inlet, although it took a big wrench to get it in that far. On the end I threaded on a PVC adapter to glue onto the PVC 90 degree turn. Fortunately, the hose fit the outside of the coupling snugly, and its held tight with a hose clamp.
The threaded nipple did leak a few drops when the tank was full and water sloshed forward during braking. I applied a bit of Lexel caulk around it (after this shot was taken), and it’s now perfectly dry.

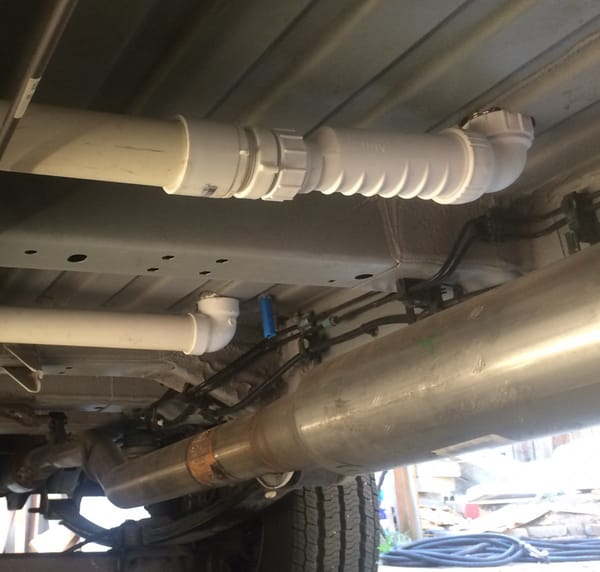

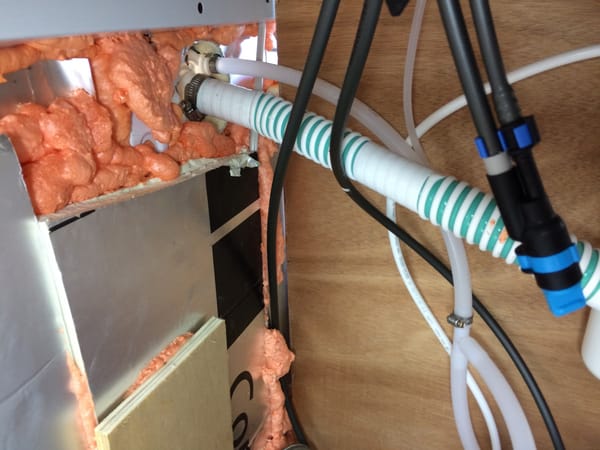

Although the drain didn’t need a vent, after I installed the gray water tank under floor (details coming shortly), I realized that it needed a vent, to allow the air to escape when being filled, and as well for air to replace the water when being drained. So I added a 1½”x 1½”x ½” PVC fitting below the trap, to which I adapted some ½” polyethylene pipe.
I cut a tee into the same size pipe for the existing water tank vent, and connected the gray water vent to that. That saved me having to run a separate vent pipe up and and out of the van. These are the kinds of challenges that commonly arise and it’s very satisfying to find an easy solution like this.

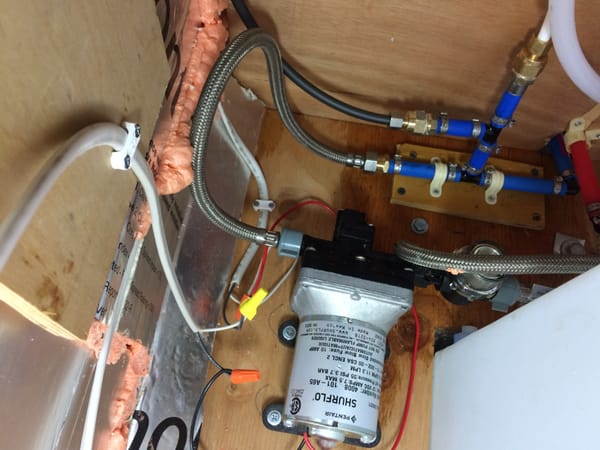

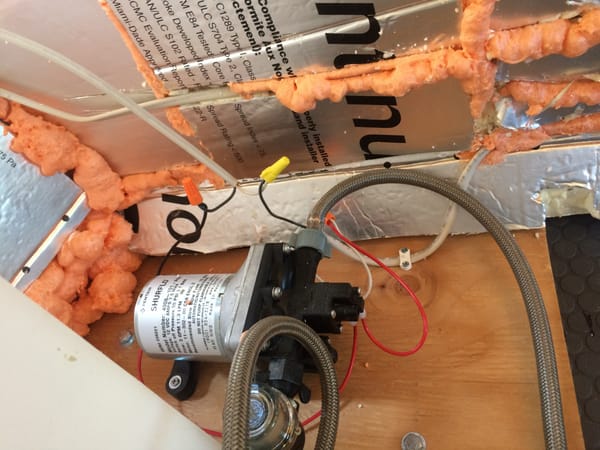

The Shurflo pump sits tucked in behind the tank. I did have some initial leaks from the threaded Pex to flex line adapters, which explains the darkened plywood base.
The cold water line coming out of the tank tees to a drain valve and line that goes down through a hole in the floor. The other side adapts to a flex line that had to loop in order to connect to the sediment filter and water pump inlet.
The system has been trouble/leak-free once I redid some of those threaded connectors.

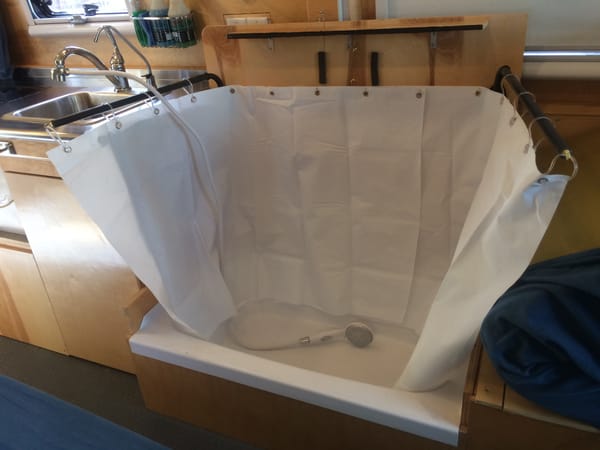

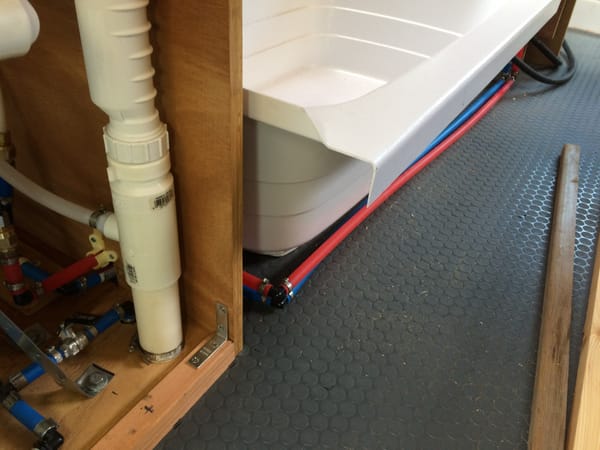

I already showed you how the bat/shower opens and is used. Draining it was the biggest challenge, as I had no idea how i was going to adapt it to the underfloor Hepva trap. The strainer basket it came with was very shallow, and I struggled to figure out a way to extend it. But then I stumbled into a bar sink deep strainer basket at my home supply store, and bough it as a long shot. When I set the tub on the floor, the deep threaded basket went down through the hole a ways. Far enough?
The Hepvo also comes with a screw-on 90 degree adapter, and when I tried screwing it on, it was absolutely perfect. It snugged right up without losing any critical clearance, which I would need to get enough flow to the gray water tank.
Further back is the glue-on fitting for the sink drain line, and the blue pipe is the water tank drain line. The water heater also has a drain line for the emergency expansion valve (not shown). I packed some pliable but removable butyl rubber tape around all of these underfloor perforations after this picture was taken.

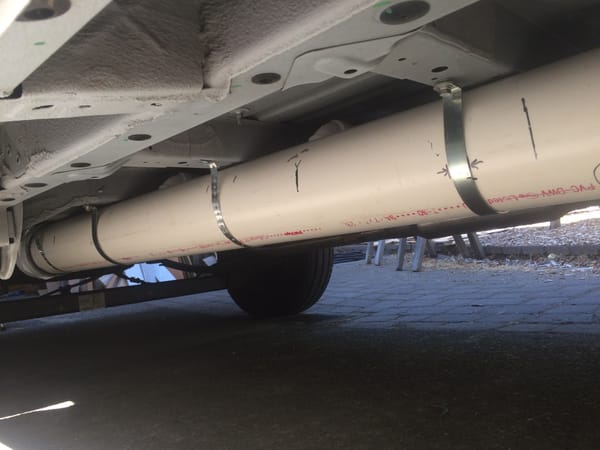

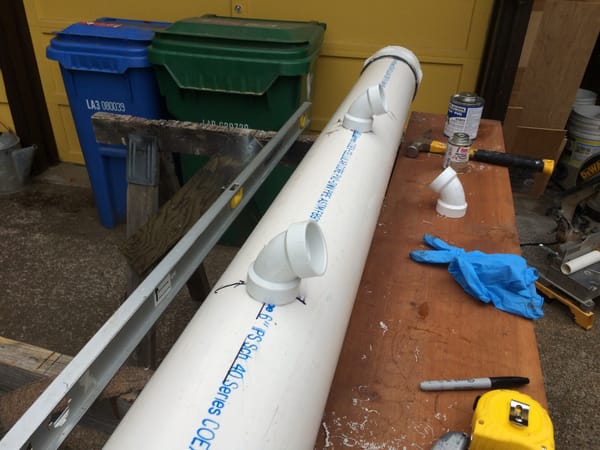

I had a 76″ long piece of 6″ PVC Schedule 40 sewer pipe in my shed from a project 20 years ago. Here was my reason I had saved it so long: to turn it into a gray water tank. If I could make it work. I propped it up under the van on the passenger side, and it was literally the perfect size! I calculated that it would hold about 9.5 gallons, which is a couple of days worth of gray (wash) water.
I did some Googling and found someone who had done something similar albeit smaller on a VW Westfalia. He managed to thread in a brass fitting into a hole in the pipe. I tried that but could not get it to work. I was a bit distraught. Then almost by accident, I found that I had a hole saw bit that was just about exactly the same size as the outside diameter of 1½” PVC pipe. The pipe would go into the hole very snugly. I figured out the angles I needed, and glued the angles with their pipes into the holes. The glued surface area would not be enough to work in a pressurized situation, but these were just the inlets, and they’ve worked just fine.

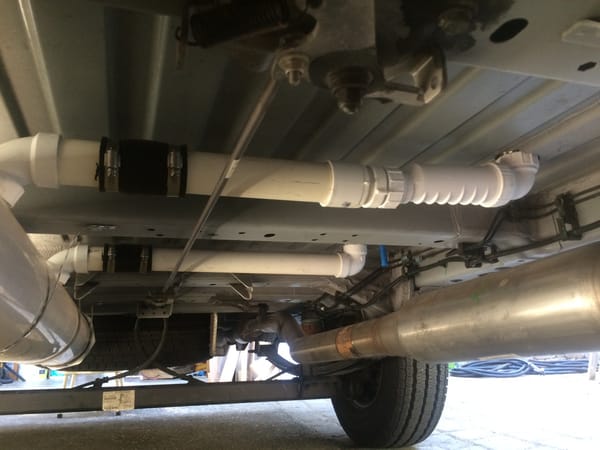

Here’s the whole setup mounted and connected to the two drain lines. The amount of space between the top of the tank that was securely mounted to the body frame rails was just barely enough to accommodate the 90 degree angles and the slope required to drain them into the tank. As it was, I had to mount the inlets on the tank a bit off the very top with hard to find 60 degree angles in order to make it work. I connected the two ends of the pipes with a rubber Fernco fitting so as to accommodate some movement and make it easy to take apart.

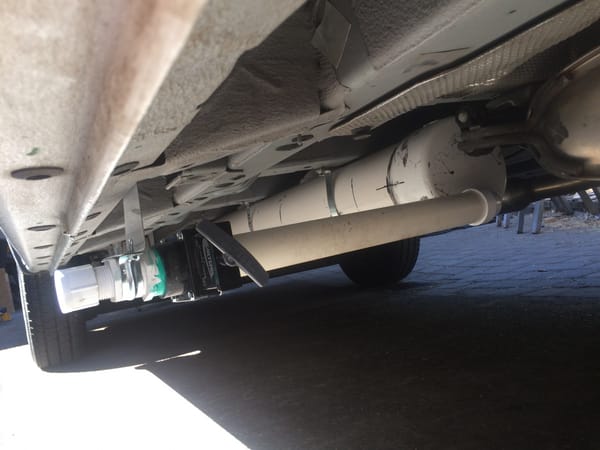

On the far (rear) end of the pipe I glued on a clean out adapter and screw-in plug just in case, but in retrospect that was surely unnecessary. In the front I glued on a cap, but not before gluing in an angle just as I had done for the inlets. I couldn’t think of another way, and it’s worked fine too.

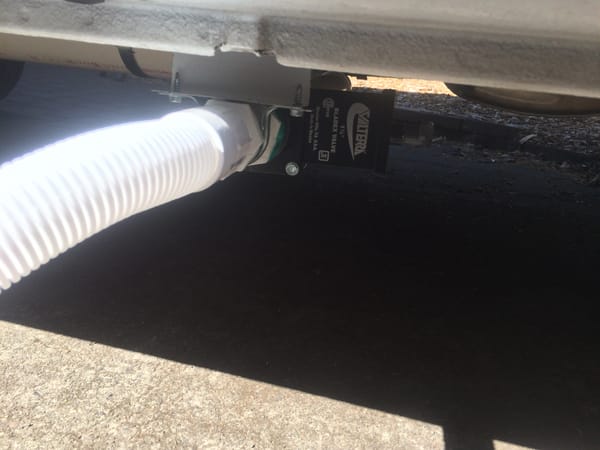

A Valterra blade valve was used, as the large PVC ball valves can be very hard to turn. The blade valve slides very easily, and is a standard RV unit.

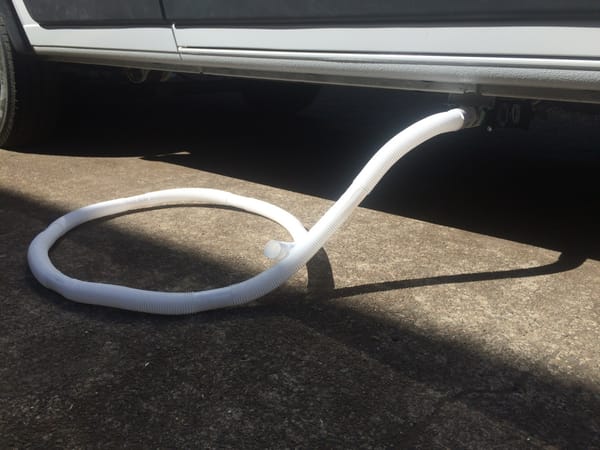

I bought some flexible plastic pipe and glued on an a crew-on adapter to the end.
I’ve actually never used the hose yet, as I’ve always just found a ditch or somewhere to drain the tank (when no one was looking). Why?
There’s an interesting legality about gray water: historically, campers/trailers/RVs didn’t have gray water tanks (only black water tanks), and their sinks and showers just drained directly down to the ground, as it was quite clean. VW Westfalias don’t have gray water tanks, as is the case with older Airstreams and many others. Technically, that’s still legal on all federal lands and many other jurisdictions, but curiously it’s not legal to “drain or empty any holding tank of any recreational vehicle”, even if its essentially clear wash water from the gray water tank. Classic Catch 22, and one to be aware of.
I got a warning for staying overnight on a pull-off in the Coronado National Memorial in Arizona (I thought we were on National Forest land), and the ranger said he did that instead of giving us a ticket in part because we hadn’t drained our gray water tank, and explained that technicality.
Continue to Page 12 for “Composting” Toilet”and total build costs
