Page 5: Installing Windows:
The first thing to be installed were the windows. It seems that most American windows available for vans have only a T-slider, which gives only a quite modest opening. I did a fair amount of researching, and decided that I wanted Seitz-type canopy windows. These are European style, and used widely there.

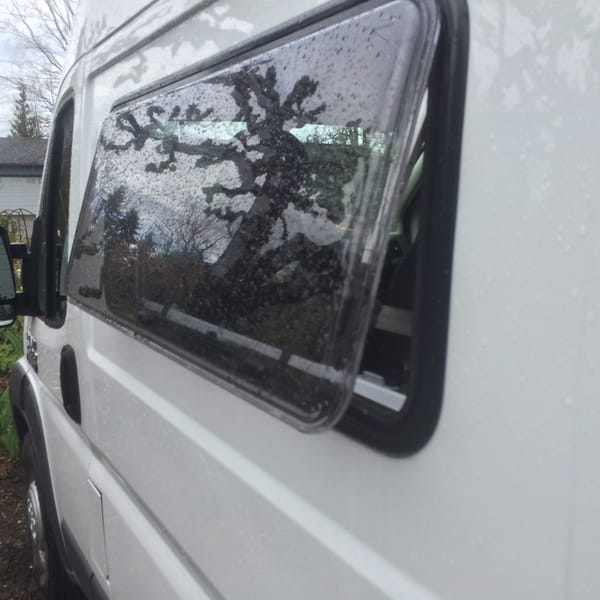

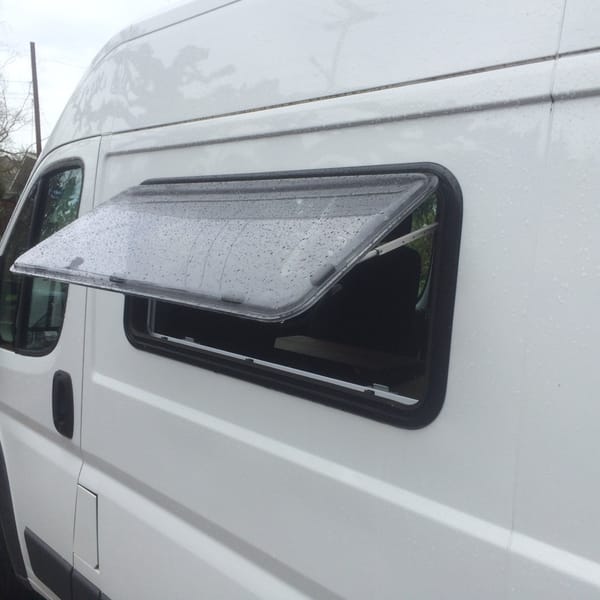

They allow the full size of the window to be used for ventilation, and act as a canopy if there is some rain.
And the panes are made with two layers of rugged poly-carbonate plastic, so they’re insulated, which keeps the van more comfortable in hot or cold conditions, and there’s no condensation on the insides on chilly mornings. Since we tend to mainly camp in the fall, winter and spring, that was appealing.

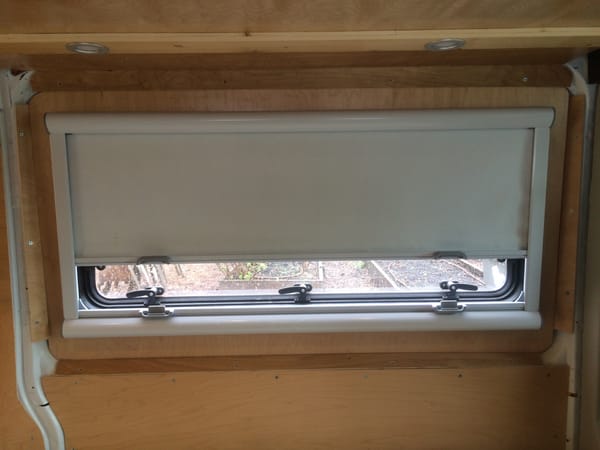

These windows also have a shade and screen built in, one at the top, the other at the bottom. They can be used in any combination. Very clever and handy.
At the time I decided to go with these windows, online research indicated that the only way to buy them was from Europe, with very expensive shipping, or from a Chinese manufacturer that required a minimum order of ten or so. But then I stumbled into Tern Overland, which had just become a distributor for these Chinese-made windows that are well made and used widely in Australian RVs.
I was the first person to order these from them (spring 2018), and there ended up being some major delays due to a shipping error in China. But as my project was majorly delayed, that turned out not to be a problem, and Tern Overland treated me very fairly with a partial refund. Our final cost for the three windows was $852. Their list prices may have since been adjusted down to to reduced shipping costs.
Mounting them involved some challenges. Obviously, the first step was to make a template from cardboard and cut out the window opening with a saber saw. The big challenge was the fact that the Promaster’s sides are slightly curved, and these windows are straight/flat, and do not bend to adjust to the curvature. On the driver’s side large window, there was enough free body steel skin to bend a bit and conform to the straight wood frame I first built and then glued (with polyurethane glue) to the inside of the opening. Yes, I bough some more cheap clamps to augment my collection.

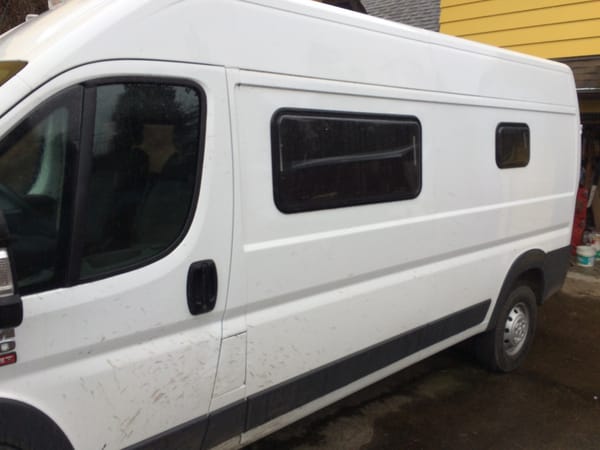

This is the small window over the galley. There was no issue with it in terms of curvature due to its small size.

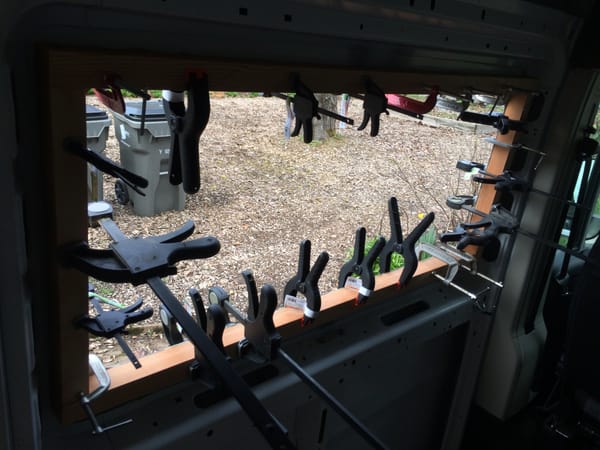

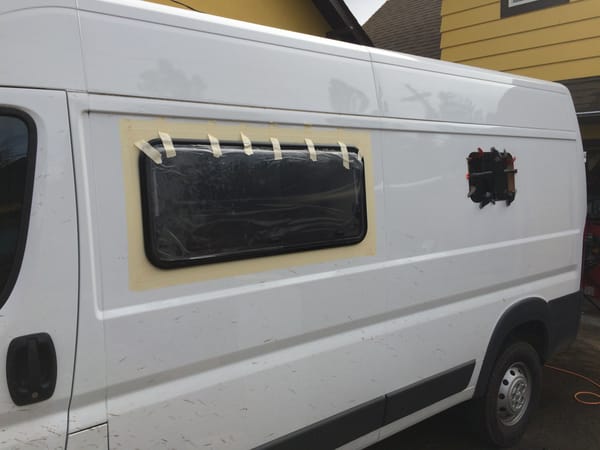

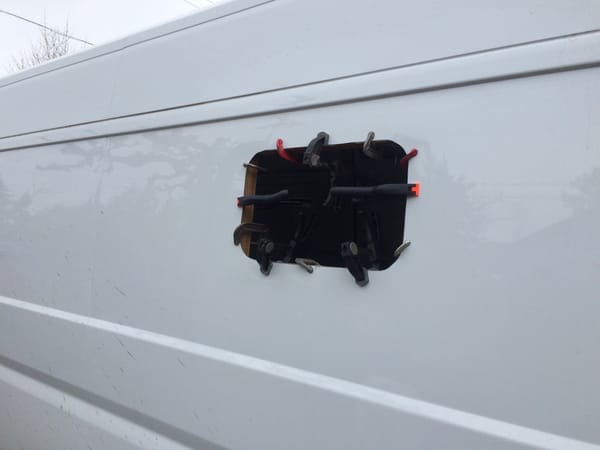

Here’s the large window being held in place temporarily. the masking tape around it is to protect the paint from the sabre saw.

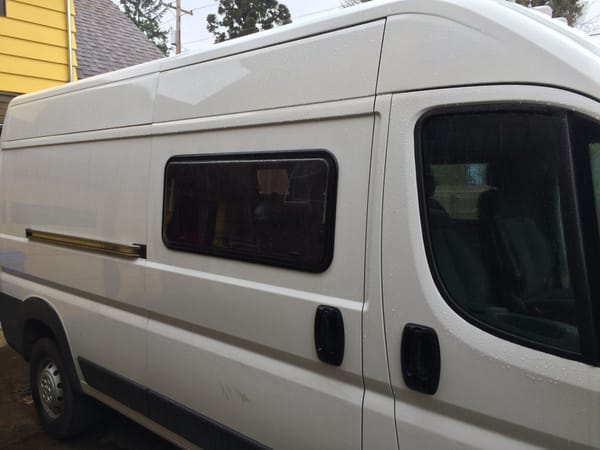

The driver’s side sliding door was more of a problem, as there was not enough free sheet metal to bend and conform to my straight frame on the inside due to more supporting structure close to the cut out area. I just did the best I could and hoped that the rubber gasket that goes between the frame and body on the outside would have enough give to compensate. It didn’t.
I ended up having to buy a slightly thicker rubber gasket material from the hardware store that did the trick, but not before having to remove all the screws that tighten the inner frame to the outer frame, thus clamping it in place, and replacing them with shorter screws as the longer ones bottomed out. And that happened with the other side too: I didn’t realize that when when my screwdriver suddenly wanted to stop turning it was because the screws had bottomed out, not because they were tight.
I bring this up in case anyone else uses these windows. I fought leaks on these large ones before I figured out the screw issues (with advice from Tern Overland) and replaced the gasket on this side, but they’ve been fine since then. Fortunately this was all before I started the rest of the conversion, so the leaks were not yet a real problem.

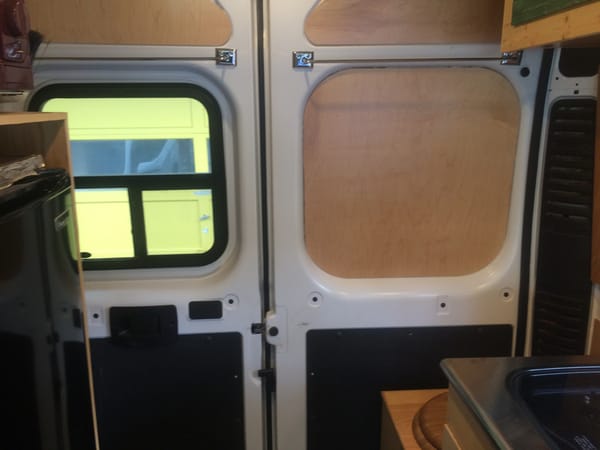

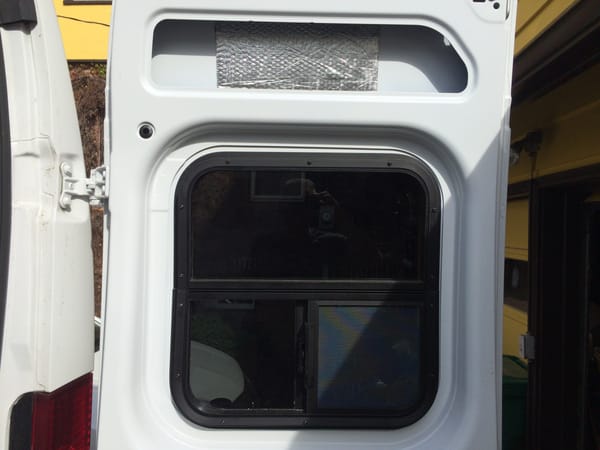

I decided I wanted a window on the right rear door, the entry. This is one from Motion Windows, and unlike the side windows, it’s custom designed for the Promaster, with a bit of a kink in the middle to compensate for the slight curvature. It was a straight-forward installation. Price: $195. Since there’s not really enough space around to to make it worth insulating there, it just clamps to the door skin on both sides.
In retrospect, it would have been smarter to install it in the other door, or a second one, as the sight line from the inside rear view mirror makes this one mostly useless. Not that I need to see out the back, given the rear view camera and I’m comfortable with outside mirrors, but it’s kind of nice to see who is behind one on the road, if it’s possible.
Continue to Page 6 for Insulation, ventilation and floor
