Page 7: Solar Panel

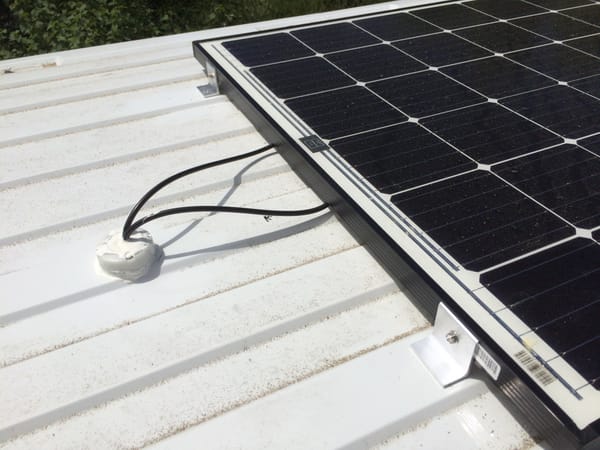

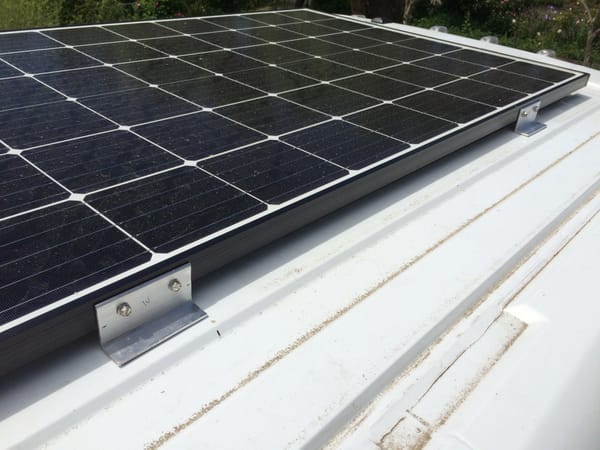

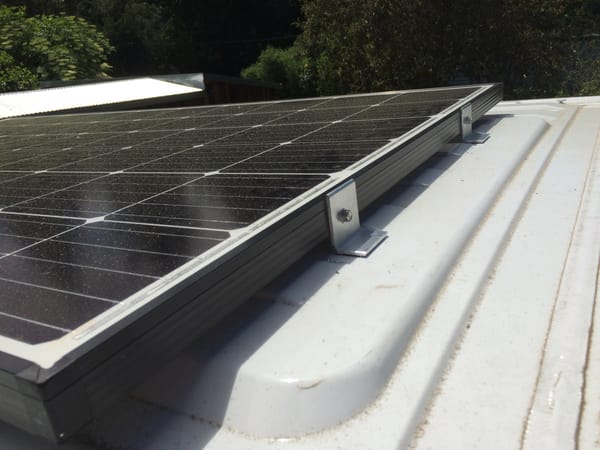

Next up was mounting the 300W Solar World solar panel ($295) that my local Platt Electric had in stock (a more detailed explanation of the complete electrical system follows later). After some research and deliberation, I decided to glue mine onto the roof close to the front of the van, using 3M VHB tape, which has very impressive holding ability and many others have used it in this way. I bought a 4′ length of aluminum channel, cut it into short lengths and screwed two of them onto each side of the panel. I decided the only way I could readily do this myself was by putting on the VHB tape and then just lowering the panel unto the roof. A bit awkward for a solo job. Unfortunately that resulted in less than perfect 100% contact, as one of the angles was not just right.
It was probably good enough, but to assuage any fears, I put two more narrower legs on the front and back. Why not? And they are removable, with some alcohol, a putty knife and the right technique. And presumably they would fit another standard size panel if I had to replace it. 10,000 miles later including lots of rough roads and some high winds and speeds, I have full confidence in the mounting tape.

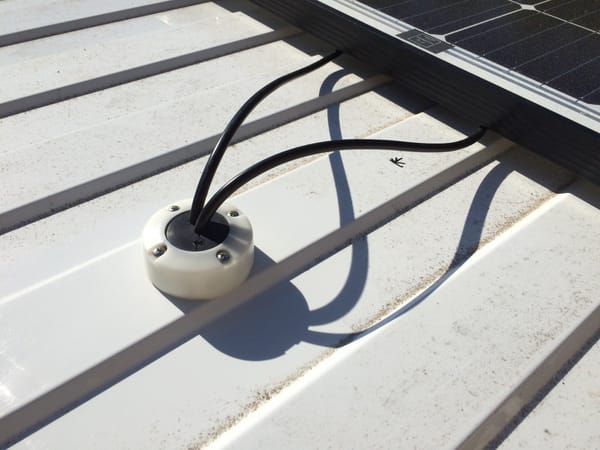

The next issue was how to bring the solar panel cables into the van. Since the panel is in the front, there’s not much of a choice other than to come in through a hole on the roof. Well, the fan has a much bigger hole, so it’s not really a big deal. I bought a Blue Sea cable clam ($18) which is a marine item for this purpose. It has a thick rubber disc in the middle with a hole sized for the cable. Tightening up the clam also tightens up the seal around the cable. I decided to use one for both cables, so I drilled a second hole in it.
It seemed to work just fine that way, bit I did cover it with some self-leveling Dicor roof sealant.

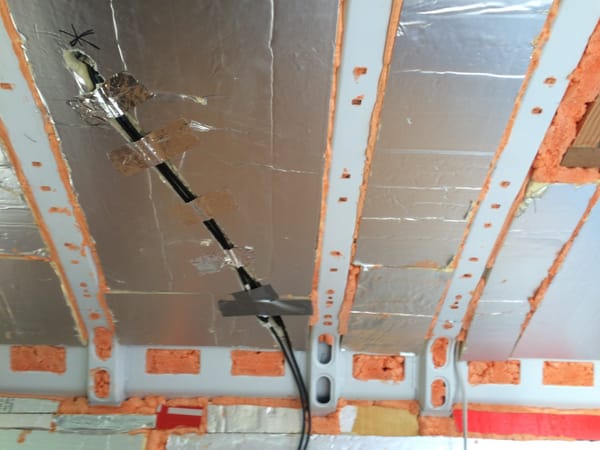

This where it comes in through the ceiling.

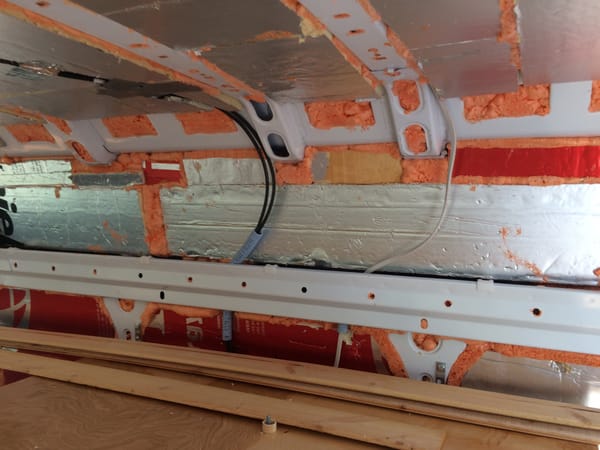

And this is where they come down to the side wall. The other Romex cable is for the fan. Where they go through the narrow openings in steel channels, there is some protective flexible conduit.
Continue to Page 8 – Cabinets, Paneling and Plumbing Mock up
