Chevrolet’s two-speed Powerglide automatic had a long and somewhat curious relationship with the Corvette—both the first and last Corvettes to use PG came with triple carburation. The first Corvette (1953) was only available with the PG but even after the new 3-speed (1955) and 4-speed (1957) manuals became available, PG was still chosen by over 10% of buyers. Powerglide wasn’t available with the new big block 396 V8 that arrived in mid-year 1965 and the 427 in ’66. But in 1967, the last year for the C2, the seemingly odd combination of 427 and PG was available, the ultimate version being the 400 hp version newly crowned with triple carburation. Chevy’s newest engine and oldest transmission were mated in a final blow-out tribute to the Powerglide.
Care to guess how fast one could go in Low gear? Oops; I already gave that away.

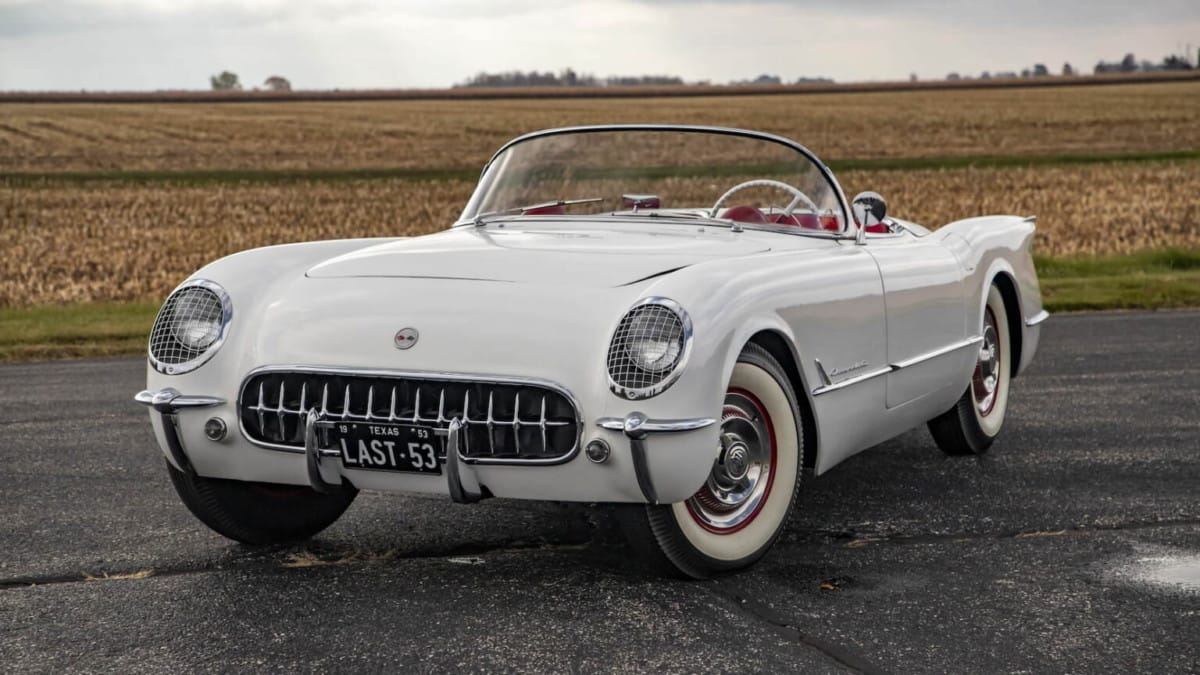

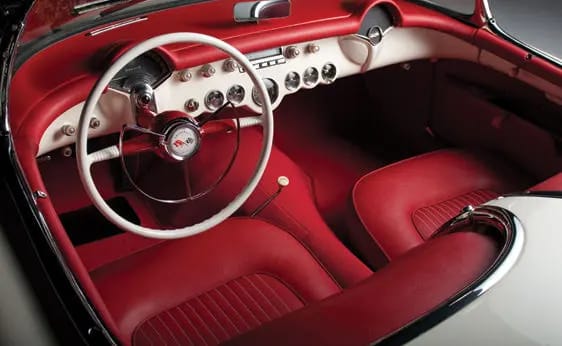

Before we take a stab at answering that, let’s also pay homage to the 1953 Corvette. It was the first production sports car to have an automatic transmission, something that was seen as both radical and heretical. It was a choice made out of necessity (lack of a suitable manual). Automatic transmissions was seen as futuristic at the time, seemingly suitable for a Motorama car that was put into production.

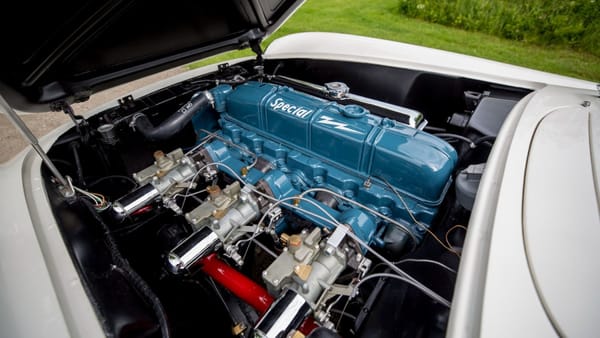

With its 150 hp tri-carb 235 cubic inch six and light fiberglass body it was no slouch, with a 11 second 0-60 time, the same as a ’55 V8 automatic Thunderbird.
Not only was the Corvette the first production sports car with an automatic, it was also the first car with a floor shifter for an automatic. It emerged directly out of the side of the transmission, undoubtedly an expedient way to add a lever to the Powerglide’s existing shift mechanism that exited there.

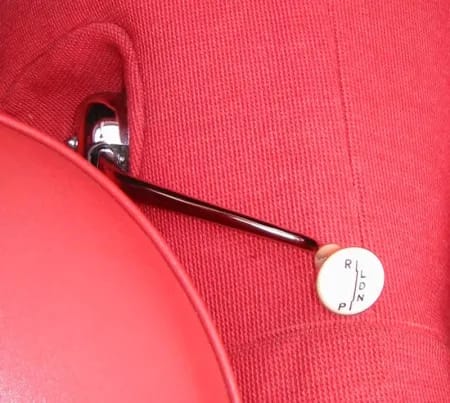

The gear markings were discretely labeled on the knob, which reflected the older PG shift pattern, and in this case, was also the reverse of the typical floor shift to come, with P at the bottom. The Corvette’s PG gear pattern went through several convoluted evolutions, but maybe that’s a story for another time.
Eventually it morphed into the familiar PRNDL, as seen here in this 1963. The Powerglide’s take rate dropped steadily through the years, and was available only with the mildest engines, the 250 hp and 300 hp 327, the latter being standard since 1966. It was 10.1% in 1967, overwhelmingly with the 300 hp 327.

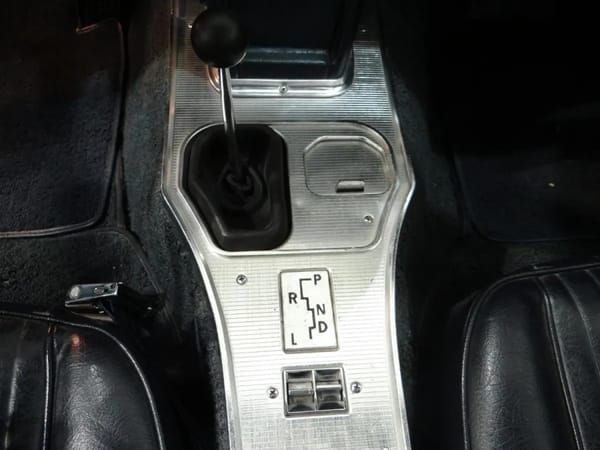

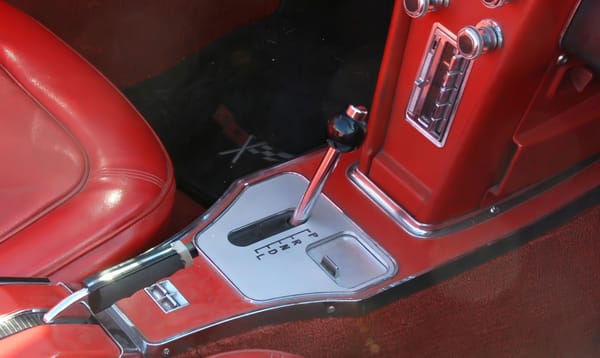

And in the last few years of the C2, the shifter ended up like this, as would also be used with the ’67 427 PG.

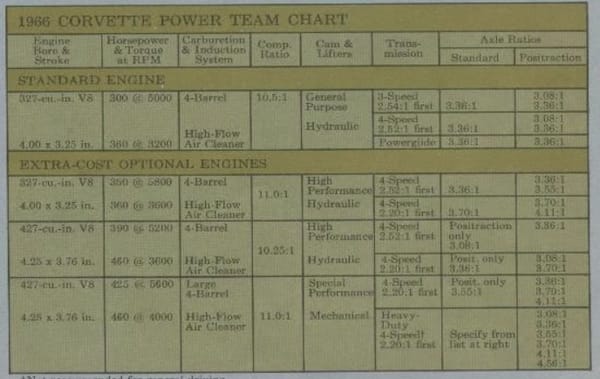

Although the big-block engines became available in 1965.5 (396) and 1966 (427), they were only offered with the four-speed manual in those first two years, even the hydraulic cam 390 hp version of the 427.

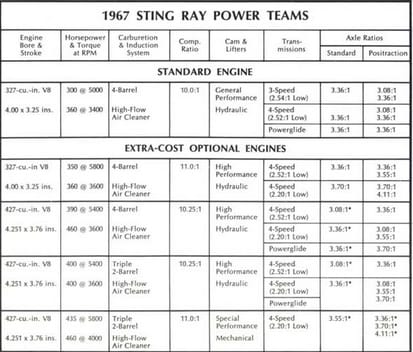

But in 1967, Chevrolet graced slush-box lovers with a one-year only offering: the Powerglide behind either the 390 hp four-barrel 427, or the 400 hp tri-power 427. The high-revving mechanical-lifter 435 hp engine was still off-limits, as was the 350 hp 327.
The question you’re undoubtedly asking is why didn’t they use the excellent THM-400, which had been in production for several years and was available on big-block Chevrolet sedans? Well, I didn’t have to Google for an answer: it obviously wouldn’t have fit under the C2’s rather petite fiberglass transmission-hump floor panel. The Powerglide was a pretty compact box. In 1968, the new C3 and its giant transmission tunnel and console finally played host to the THM.

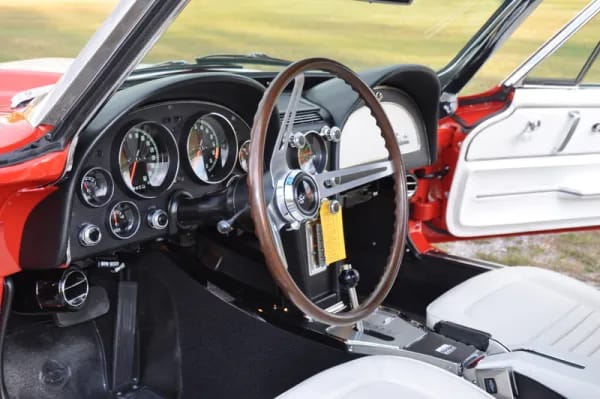

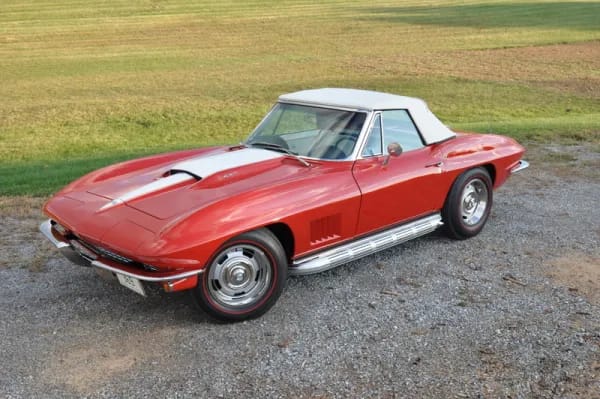

This restored red ’67 Corvette convertible I’m showing you is one of these rather unusual and rare cars, a 1967 427 with the 400 hp tri-power, Powerglide, and even air conditioning. How many of these unicorns were built in 1967? Exactly 207. Another 392 were built with the 427/390/PG combo. A true gentleman’s express.

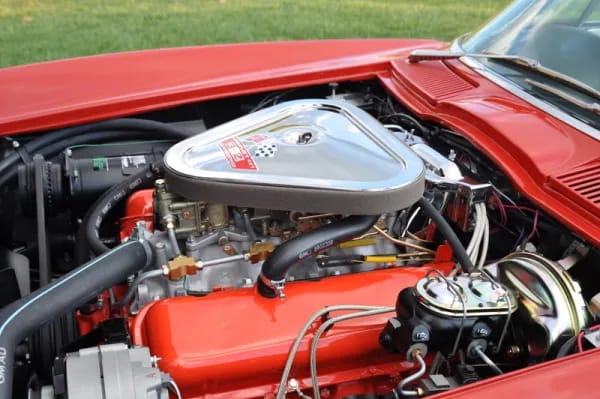

Here’s a look under its hood. The L68 had three Holley two-barrel carbs, set up to run on the middle one only until the vacuum-operated linkage opened the two secondary carbs.

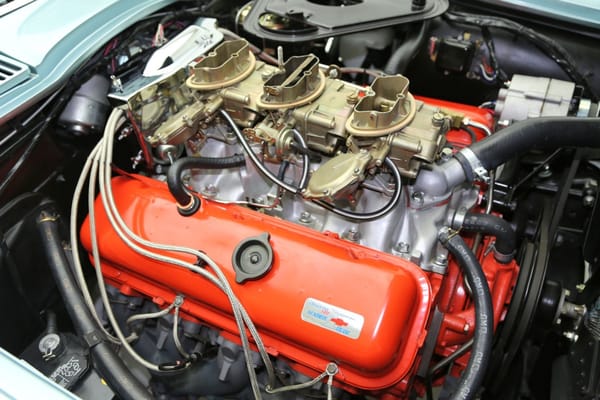

Here’s how that looks without the distinctive triangular air cleaner. We have some vintage reviews of these in our archives, links at bottom.
So let’s get back to how I answered the question of how fast one of these 427 Corvettes could go in Low gear. It took the tallest available rear axle ratio of 3.08:1, with the 427 spinning a bit over 6000 rpm. The 427/400 made its maximum hp at 5400 rpm, but as the tach here shows, red line for both the 390 and 400 hp 427 wasn’t until 6000 rpm. Peak power invariably is below safe maximum engine rpm. With an even taller axle ratio, it could have topped 100 mph in Low. Top speed (in High gear) was in excess of 140 mph.
We can safely assume that a 427 PG Corvette was the world’s fastest two-speed production gasoline-powered car. For that matter, the 427 Corvette had the kind of abundant torque that would have worked pretty well even if the Powerglide had still been in its original one-speed mode, prior to 1953, like the original Buick Dynaflow (these two transmissions were fundamentally quite similar). Now that’s something to mull over, at high speed.
