Mercedes Bionic (2005) Cd: 0.19
For most of the fifties, sixties and into the early seventies, automotive aerodynamicists were mostly non-existent, or hiding in their dust-collecting wind tunnels. The original promise and enthusiasm of aerodynamics was discarded as just another style fad, and gave way to less functional styling gimmicks tacked unto ever larger and squarer bricks. But the energy crisis of 1974 suddenly put the lost science in the spotlight again. And although a trough of historically low oil prices temporarily put them on the back burner, as boxy SUVs crashed through the air, it appears safe to say that the slippery science has finally found its permanent place in the forefront of automotive design.

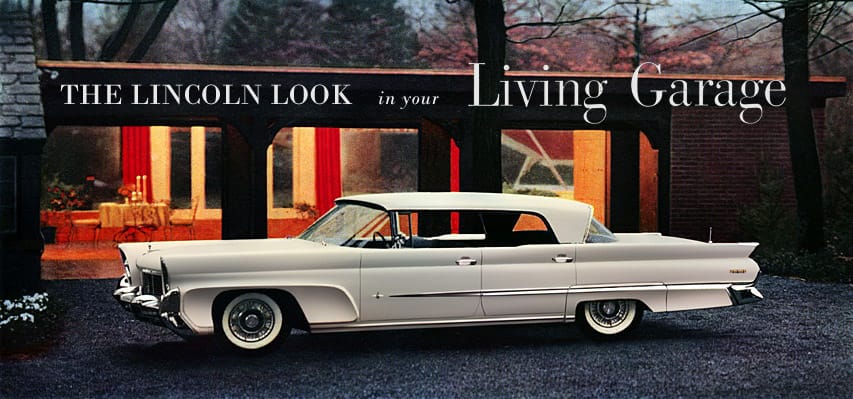

1958 Lincoln Premier image source: Plan59 Cd: never tested
During the fifties and sixties, with the exception of Citroen, Saab and a few other minor adherents, aerodynamics was largely left in the wake of increasingly ornate and boxy cars. The buying public was perceived or conditioned to need change, and the rounded pontoon gave way to ever-more dramatic and flamboyant but aerodynamically blunt designs.

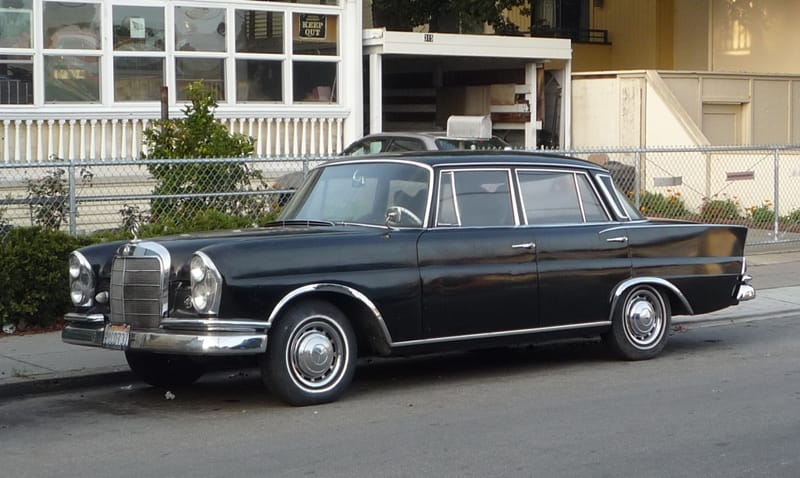

Even in Europe, the influence from America as well as the pursuit of design for its own end also largely pushed aerodynamics into the periphery. Although the 1959 Mercedes W111 had a Cd of 0.40, Daimler-Benz never fully stopped using aerodynamics, and utilized it to fine tune certain aspects, such as ventilation and even in keeping its rear taillight lenses clean from road splash. And they certainly didn’t make any spurious claims about the fins adding stability at high speed.
Unless I’ve overlooked something, there’s just no evidence of passenger cars manufacturers placing any significant priority on aerodynamics during the early sixties, except those already committed to it, like Citroen and Panhard, with their new 24 of 1964 (above). But by then, Panhard was essentially controlled by Citroen.
Aerodynamic progress was mostly relegated to the racing world. The value of reducing forward aerodynamic drag on race cars was understood from the earliest days. But what was not at all so well understood was the role of vertical aerodynamic forces, the tendency of most streamlined shapes to start acting like a wing, and want to take flight with increasing speed. This not only makes high-speed racers unstable, but also contributes to reduced cornering ability.
In 1957, British researcher G.E. Lind-Walker published the results of studies that opened the door to understanding the importance of generating downforce, particularly in racing cars. His work began a revolution in racing car design as down force played such a critical role in improving acceleration, cornering and braking, the three essential components of racing.
By the early sixties, front air dams and rear spoilers were appearing on racing cars, and no one exploited the possibilities more than Jim Hall with his highly successful Chaparral racers. The 2B above shows the first fully functional use of front and rear spoilers and fender vents, all specifically to generate down force. They made the Chaparral essentially unbeatable in 1964 and 1965.

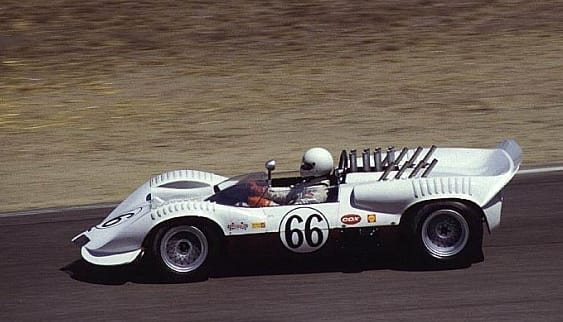

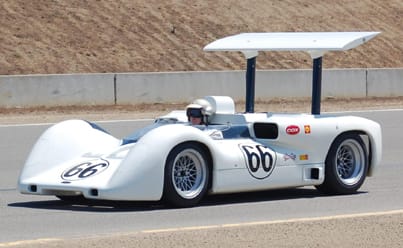

Two years later, Hall introduced the startling Chaparral 2E, which was the paradigm-shaping race car in terms of aerodynamics. In the the 2B, the aero aids were tacked on to a relatively typical sports racer of the time; the 2E was organically designed to maximize down force, including the adjustable rear wing. The 2E profoundly influenced the whole racing world, including NASCAR.

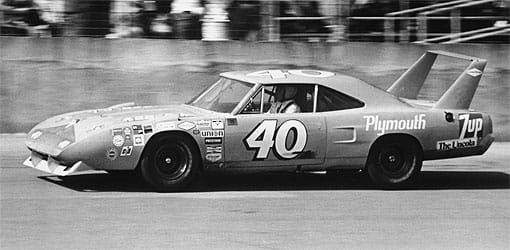

The Plymouth Superbird (and Charger Daytona) shows the extreme lengths taken by Chrysler to incorporate these on a production car for their aerodynamic benefits, although the actual racers did better when they had a much larger lip spoiler added like this one.
We’re not going to pursue the evolution of racing aerodynamics further in this limited survey, but it has become utterly paramount to the design and function of modern racing cars. But the Chaparrals’ influence would also quickly spill over into passenger cars. GM hired an aerodynamicist back in 1953 to assist with wind tunnel tests on its turbine concept cars, although he was grossly underutilized for years.

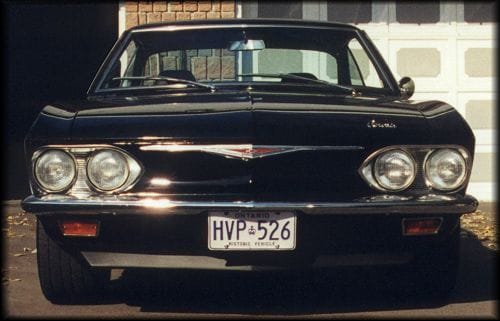

But GM’s technical assistance to the Chaparral team was a well-known fact. How much of that was aerodynamics is not clear, but the first mass production car to sport a chin spoiler like the 2B above was the 1966 Corvair. It was added in the second year of the Corvair’s 1965 re-style to reduce drag and to improve down force and cross-wind stability, particularly important in the relatively less-stable rear-engined Corvair.

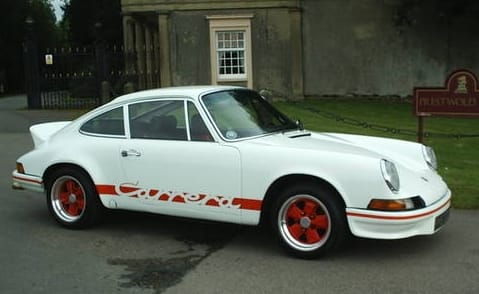

In Europe, Porsche also put its racing experience to good use, and its 1972 911 Carrera RS sported a full complement of spoilers to dramatically increase high speed stability and handling. And needless to say, Porsche wasn’t the only one.

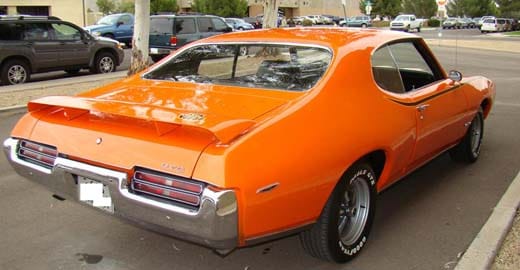

Spoilers became another huge fad, as manufacturers,
and the aftermarket quickly seized on them for their ability to convey speed and performance, no matter what the vehicle it was mounted on.

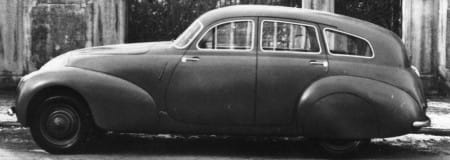

1938 Kamm-back BMW prototype Cd: 0.25
Perhaps we did an injustice to the groundbreaking work of the German aerodynamicists Baron Reinhard von Koenig-Fachsenfeld and Wunibald Kamm by not including it in Part 2 of this series. But since their work mostly came to fruition in the sixties and later, let’s acknowledge their highly significant contribution here. They proved that a long tapered tail, once considered a key component of any aerodynamic body, was not actually necessary for a low-drag body, especially if it wasn’t a truly long and gently tapered shape. They demonstrated that an abruptly ending squared-off tail was almost as beneficial, as the air flow tended to act as if the tail was actually still there.
Their 1938 BMW prototype (above) proved their experiments convincingly, with a stellar Cd of 0.25 as well as facilitating practical advantages such as a roomy passenger cabin.

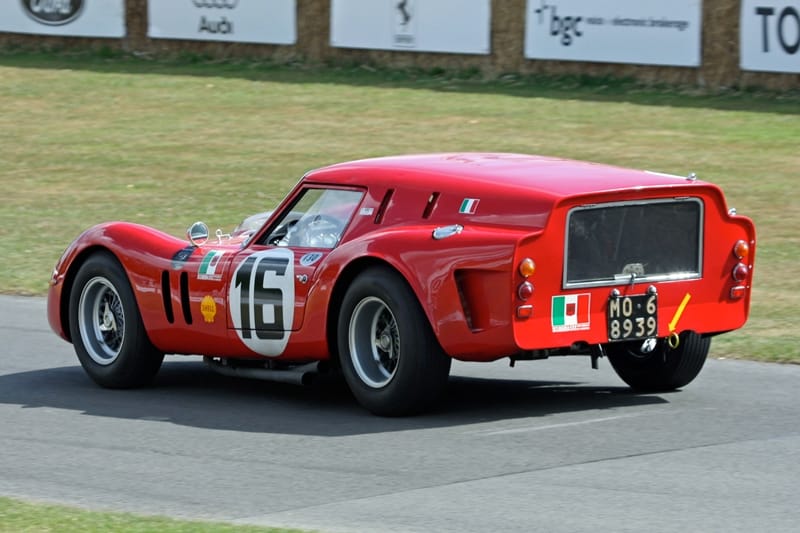

Probably because of stylistic reasons, the Kamm-back was not adopted to any significant extent in its most pure form, except in racing cars, such as this 1961 Ferrari 250 GT SWB “Breadvan”.

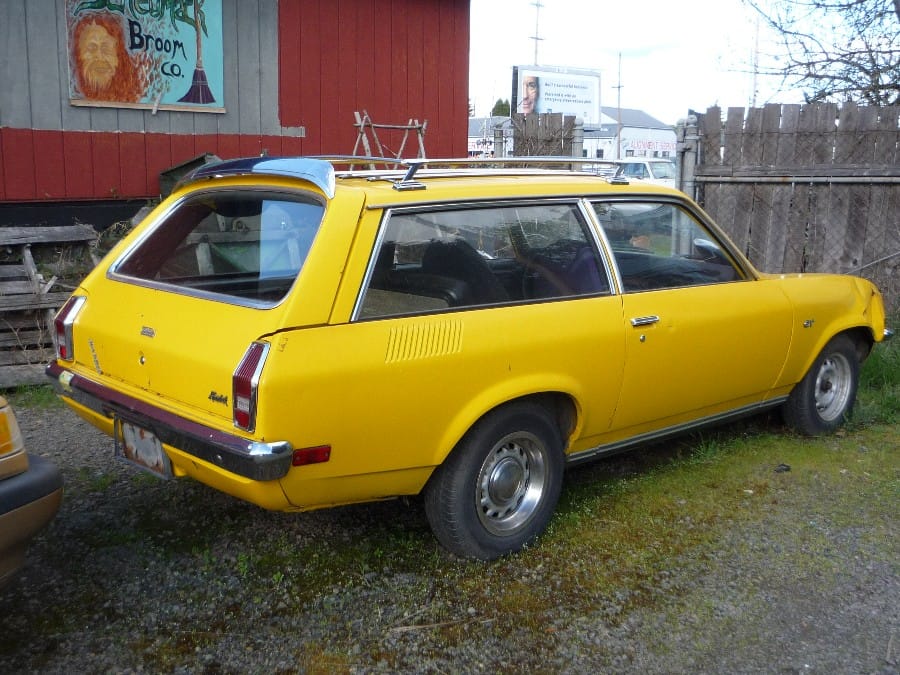

The “K” word entered the popular American lexicon when it was adopted for mainstream American cars such as the Vega Kammback wagon (above) and the AMC Spirit Kammback hatch. Given that the front of these cars showed no effort at reducing their drag, they exploited the name more than its potential benefit.
Although the 1955 Citroen DS was highly aerodynamic for its time, its influence was undeniably but rather limited, especially stylistically. It was so unique and uncompromising, that it didn’t lend itself well to “imitation”. But in 1967, Pininfarina showed the BMC 1800 Berlina Aerodinamica, designed by Leonardo Fioravanti. It was based on the ungainly BMC ADO17 “Landcrab“, whose body emphasized practical qualities over aerodynamics. Fioravanti was a student of Kamm’s design principles, and became the first to really put it to proper use in a practical passenger car. The influence of his Berlina Aerodynamica is vast; both in other cars that soon picked up its lines and design language, as well as still today. This car rightly is the mother of almost all modern automotive aerodynamic design.

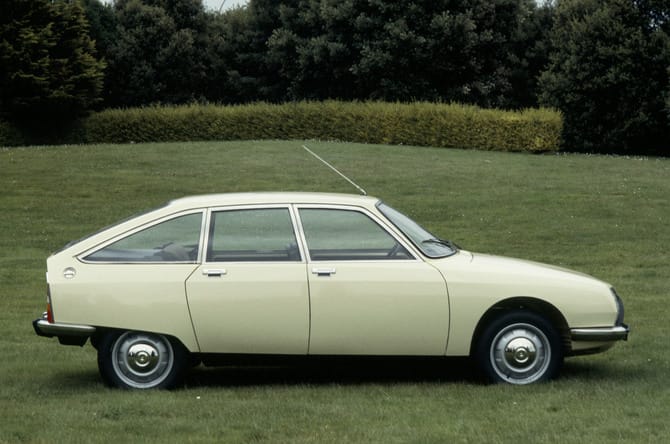

Citroen GS 1970 Cd: 0.31 (is that verified?)
In Europe, Citroen was the most diligent keeper of the aero flame for production cars. The compact GS arrived in 1970, with many of the design elements that now look so familiar now, thanks to cars such as the Prius. A sloping front end, fastback rear window, and an abbreviated Kamm-tail. It sported the lowest Cd in the world at the time, for a production car. Its debt to the Berlina Aerodynamica is substantial.

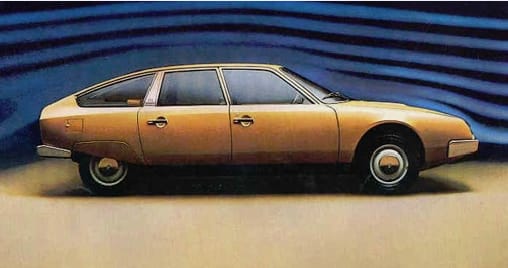

As is its bigger sibling. Curiously, despite its name being the nomenclature for Coefficient of drag (Cx), the large Citroen Cx arrived in 1974 with a Cd of 0.36. That’s counter-intuitive, because longer bodies tend to intrinsically have a lower relative drag. Still, it was a commendable number for a car that had a difficult birth, but went on to lead a long life. It certainly played an important role in acculturating the European public to highly aerodynamic design.

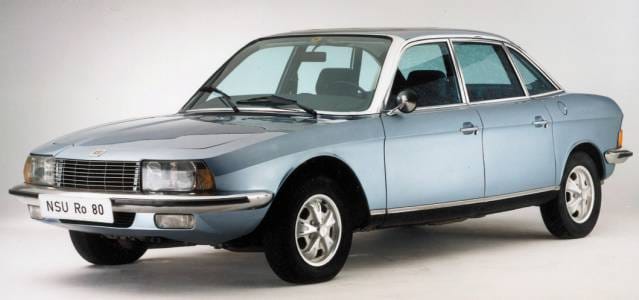

A truly pioneering car was the rotary engine-powered NSU Ro 80 from 1967. Its Cd of 0.355 set a low-air mark for sedans that would stand for some years. Other than its rotary engine, the NSU was a highly influential car, defining the modern idiom almost perfectly.

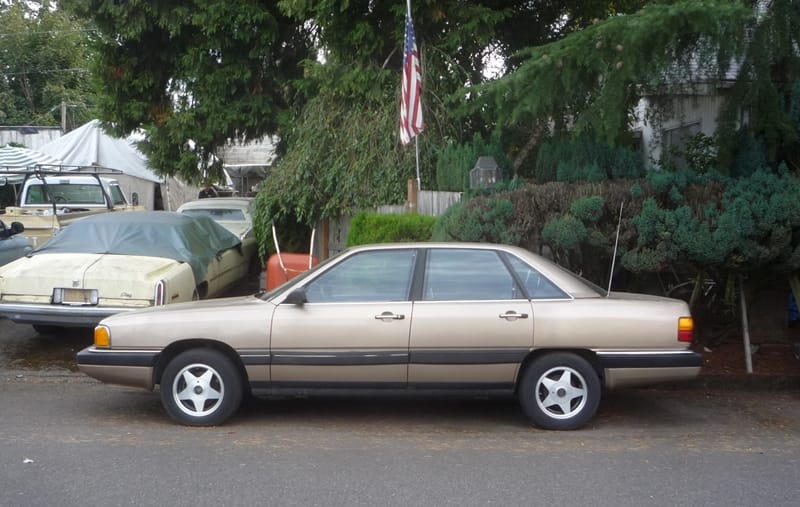

After NSU was bought by VW, Audi took up the work that had begun with the Ro 80. This resulted in an aerodynamic breakthrough and one of the most (if not the most) influential designs of the modern era, the Audi 100/5000 of 1982. With flush mounted windows and a modified wedge shape that paid tribute to the NSU, the Audi became the first mass-production sedan to achieve a Cd of .30. More than any other car, it launched the “aero era”, when manufacturers suddenly found themselves in a race for ever-lower numbers, or at least with cars that created that impression.

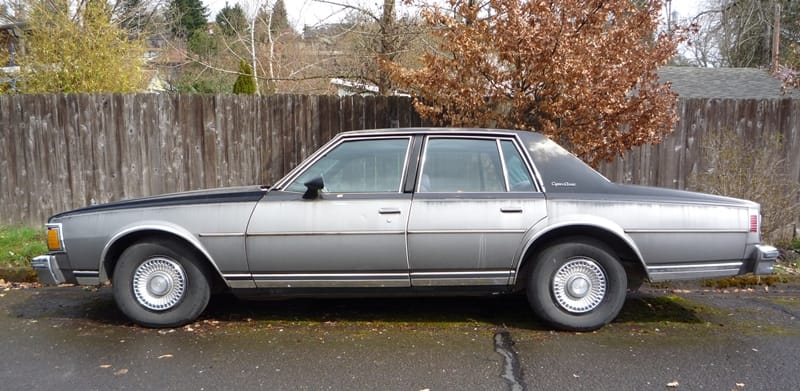

1977 Chevrolet Caprice Estimated Cd: 0.55 ? (Seems a bit high)
Backing up just a few years, in the USA, the energy crisis of 1974 suddenly thrust aerodynamics back into the mainstream, if not in the foreground. The long-neglected aerodynamicists were now finally embraced and integrated into the design process. GM’s downsized sedans of 1977 were the first to benefit from their knowledge, although it’s quite obvious that these cars like the Caprice below were relatively slow learners of the art. Although well behind Europe’s state of the art, even fine detailing for aerodynamic efficiency made an effective difference.

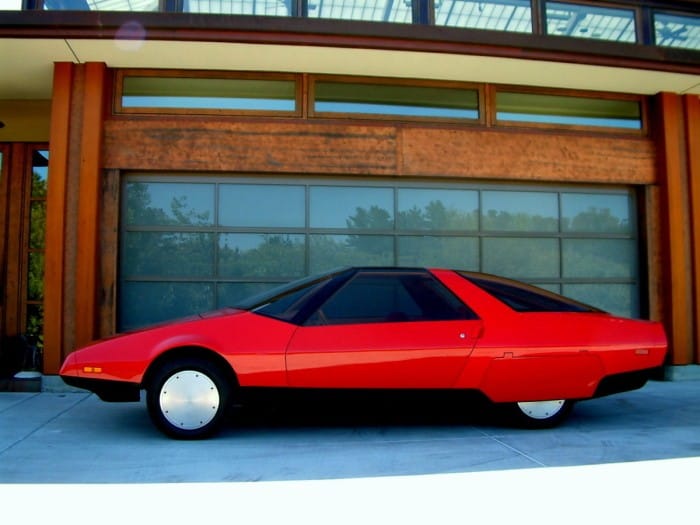

Ghia Ford Probe I 1979 Cd: 0.22
While GM was dipping their toes, Ford suddenly plunged wholly into the aerodynamic ether. Determined to jettison their boxy image after their near-death experience in 1979, Ford’s new management made a bold commitment to a complete embrace, and was determined to be the leader in the field. A series of ever-more aerodynamic Probe Concepts started with the Probe I,

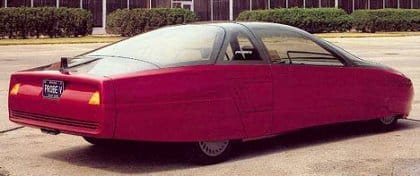

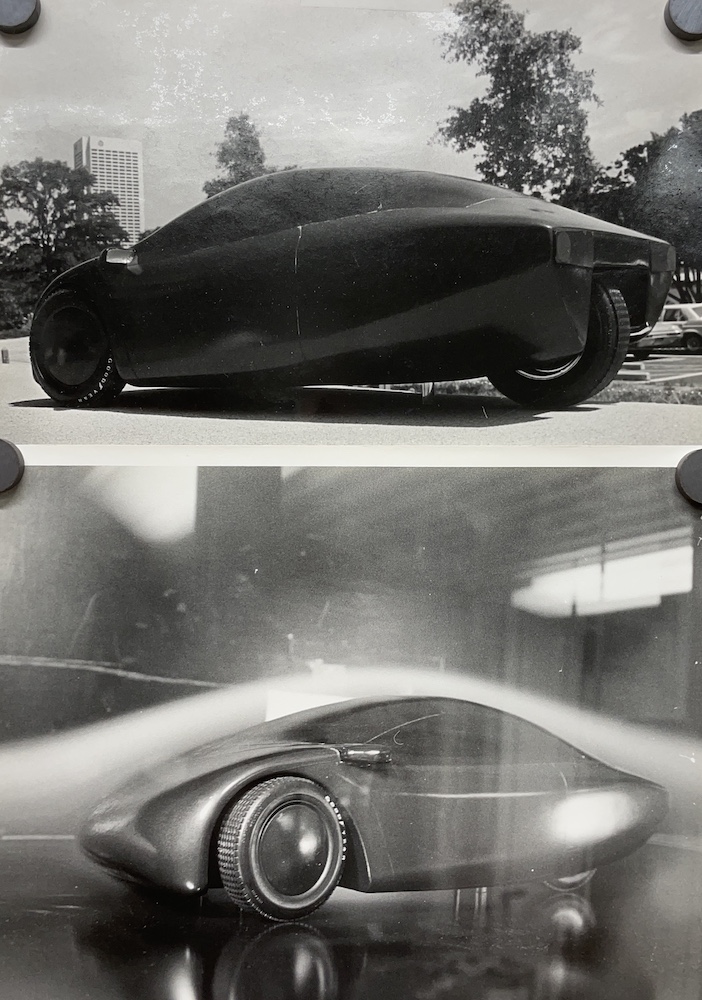

and ended with the Probe V of 1985, which held the world record Cd of 0.137 for some years.
The 1983 Thunderbird was the first volley, but the really bold gamble was the 1986 Taurus (above), and its Sable sibling. The Taurus and Sable were among the first US cars to use composite headlights, allowing for a smoother front end. And they came to define the American aero or jelly-bean era.

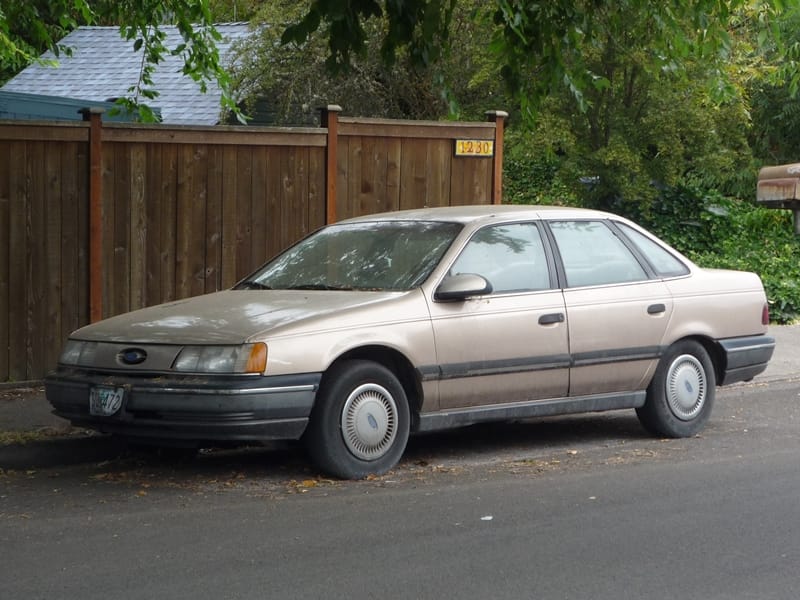

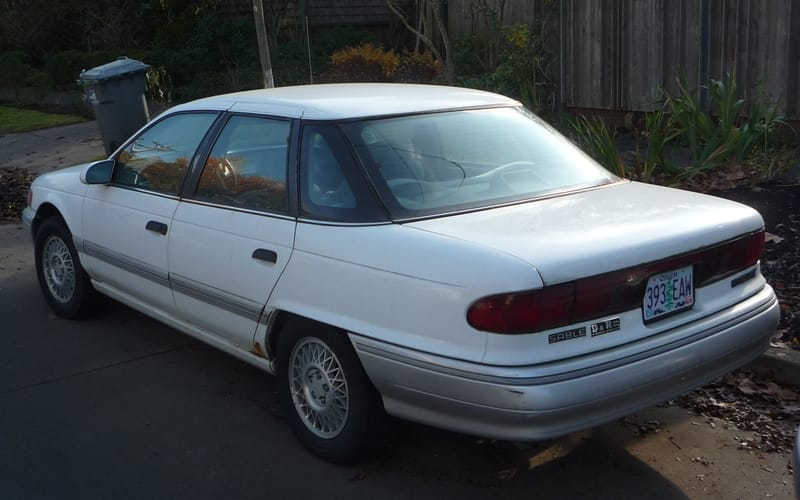

The Sable was slightly more aerodynamically optimized, and beat the Audi with a .29 Cd. The race was on, and within a few years, GM would also be fielding dramatically more aerodynamic cars.
Mercedes had been utilizing aerodynamics to fine tune their cars for decades but the W126 began a more aggressive push to stay on the leading edge. The highly influential W124 (above) achieved a Cd of .28 in its most slippery variant. From this point forward, there were continual improvements from the major global manufacturers, although total aero drag often rose because cars were generally getting wider and taller too.

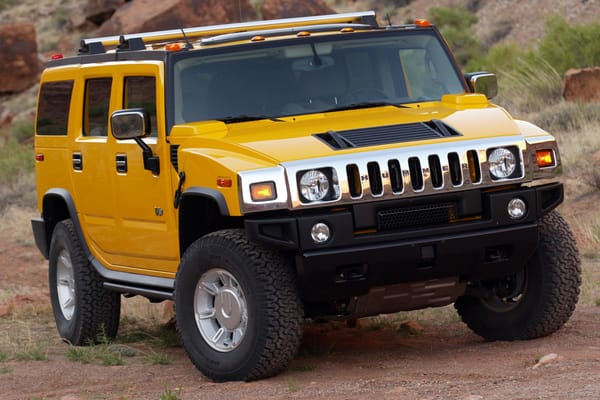

Needless to say, the SUV phase set aerodynamic influence in that segment back to the horse and buggy era. The ultimate wind-offender was the Hummer H2, which not only sported a .57 Cd, but its total aero drag of 26.5 sq. ft. is the highest on record for any modern vehicle listed. Wikipedia has nice charts of both Cd and total drag here.

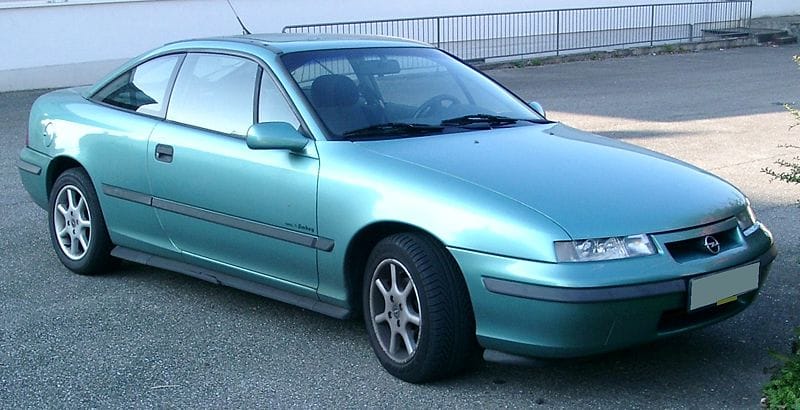

To give GM credit, the 1989 Opel Calibra coupe set a new record for its class, with a superb Cd of 0.26. Fine detailing, now including the vehicle under-belly, paid off without having to resort to extreme or stylistically unpalatable measures. It led the way into the mainstreaming of super-low Cd vehicles.

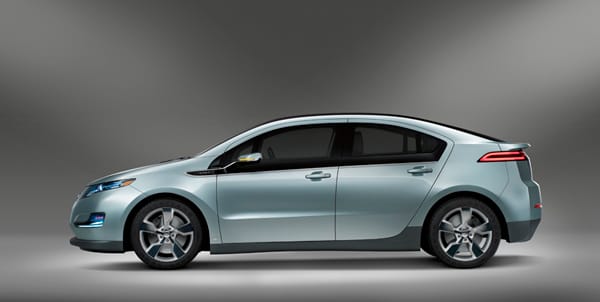

Incidentally, that 0.26 is less than the 0.28 attributed to the Chevy Volt. It should be noted that different labs achieve different results, so none of these numbers should be taken as an absolute.

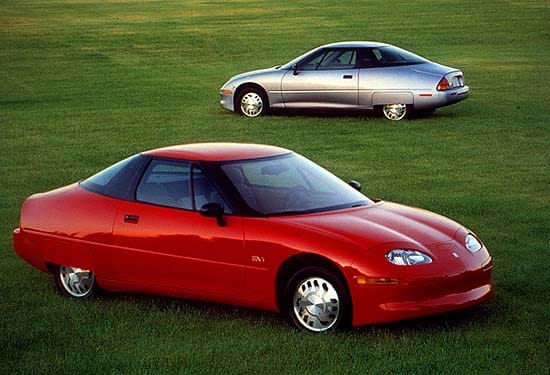

GM’s experience with the Calibra and long hours in the wind tunnel paid off dramatically with the EV1. Electric vehicles’ limited energy storage density necessitates optimized aerodynamics if the vehicle is to run at highway speeds. Thanks to its phenomenal Cd of 0.195, the EV1 had a semi-respectable range of 60-100 miles, despite its old-tech lead acid batteries.
The Cd 0.25 barrier for mass production cars was broken by the 1999 gen 1 Honda Insight, a serious accomplishment considering what a short car it is. Given that the Coefficient of Drag (Cd) is relative, its generally easier to attain a high number in a larger vehicle without having to resort to more drastic measures. The Insight shows plenty of those, including its rear wheel spats.

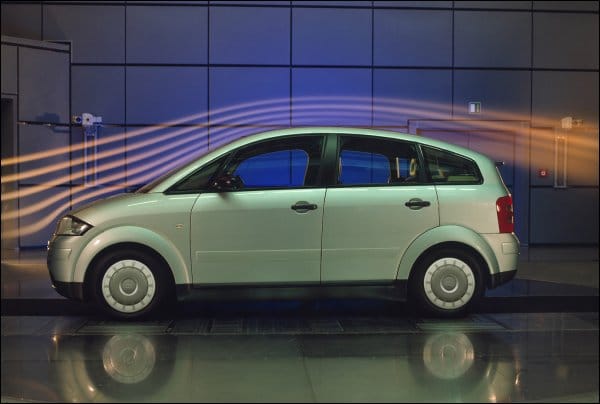

A more practical solution that also achieved a .25 Cd (in the specially optimized 3L version)was the advanced Audi A2 from 2001 (above). A lightweight four seater with aluminum construction, the TDI three-cylinder diesel powered A2 was the first four/five door car sold in Europe to be rated at less than 3 liters per 100 kilometers (78.4 US mpg). Surprisingly fun to drive too, it was not a sales success, likely due to its rather odd styling. It may well have suffered from Airflow syndrome, being just a tad too far ahead of mainstream styling acceptance. Note how similar its highly effective Kamm-influenced shape is to the 1938 Kamm prototype we looked at a bit earlier.

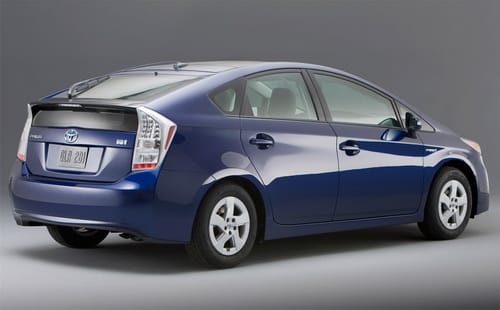

With a Cd of .25, the 2010 Toyota Prius has made highly aerodynamic cars an every-day reality, and on a very mass scale.

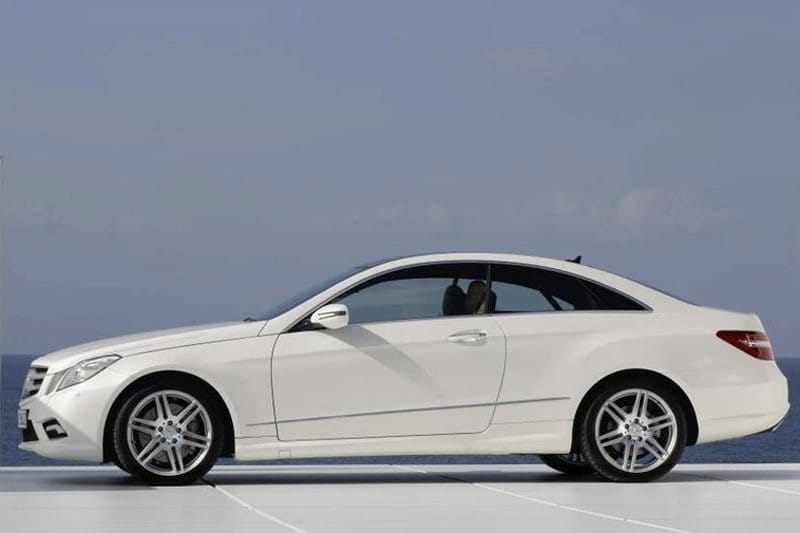

The current record holder for mass-production cars is the Mercedes E 220 CDI Blue Efficiency Coupe, with a Cd of 0.24. Undoubtedly, that will be broken before long. The Prius and Mercedes represents the current state-of-the-art for a production sedan without any compromises or additional tweaks. Undoubtedly, we’ve arrived in the full flowering of the aerodynamic age, even without the teardrop pointed tails and dorsal fins. That the aerodynamic frontier will continue to be cleft with ever less resistant vehicles is now an absolute given. We’re well beyond the point of no return, although the same sentiments were also widely held in the late thirties.
While continued refinement of the traditional automotive package will undoubtedly yield further reductions in the aerodynamic coefficient, to make a more dramatic jump requires extreme measures, like the still-born Aptera. Its Cd of .15 is stellar, but substantial compromises are involved. It’s highly unlikely that this represents the shape of mass-production cars in the foreseeable future.

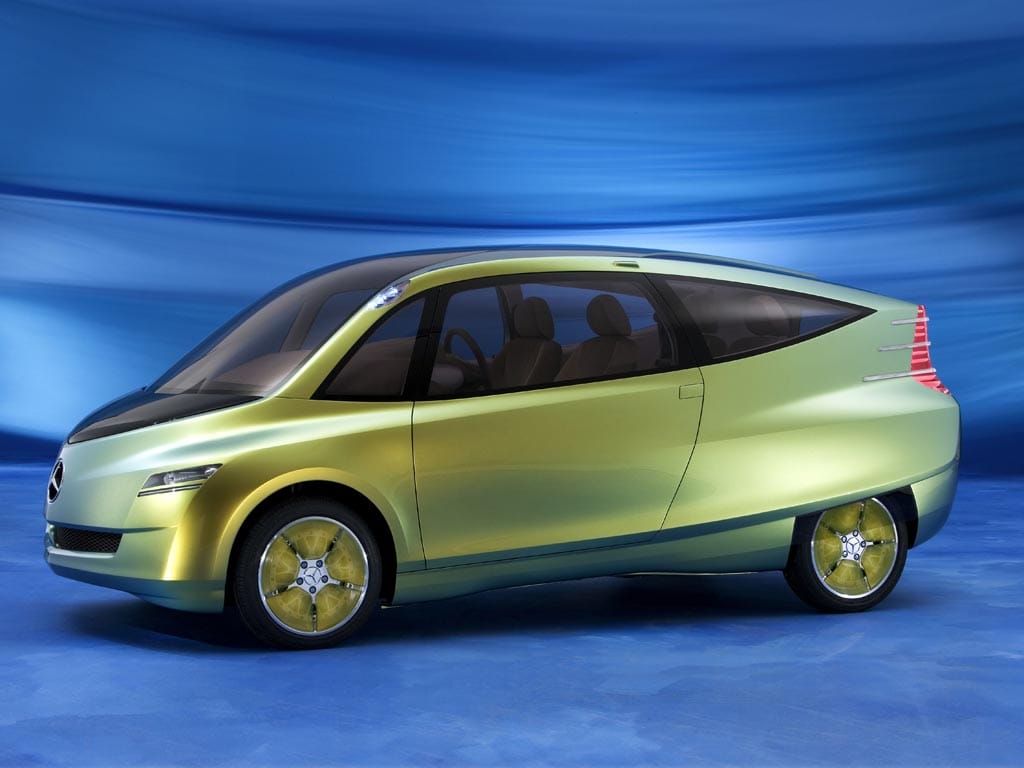

More likely, the Mercedes Bionic of 2005 shows the way forward. With a Cd of 0.19, it offers a more practical package than the uncompromising Aptera. But then the Aptera’s frontal area is also significantly lower, and its total aerodynamic drag is undoubtedly not easily beat.
Even if energy prices hold steady or moderate, it seems safe to say that the aero-era has returned, and is here to stay. Government mandates, environmental and social pressures assure that optimizing fuel consumption, or maximizing EV range, will be priorities in every category of vehicle. And aerodynamics plays one of the most crucial elements in facilitating that.
Postscript: This Three Part Survey in no way pretends to be comprehensive. My apologies if your favorite aero-hero has been left out. But if there’s been a serious omission, I’d love to hear about it, as this is a work in progress.
Part 1 here Part 2 here Related article on Total Aero Drag here
Ford’s aero efforts in the 80’s and 90’s were interesting.
When the aero T-bird arrivied it’s Mercury cousin received a header panel was about 2″ longer at the top to give it a traditional “upright” grille to go with it’s “formal” roof line.
The Tempaz twins arrived with the same nose profile but again the Merc got the “formal” roof line.
The first gen Taurbles reversed their positions with the Merc getting a more aero roof and other aero tweaks. Mercury getting the better aerodynamics was short lived however.
When the aero Panthers arrived Ford was once again getting a much more aero nose (though they received the quick nose job eliminating the Taurus style bottom breather reportedly due to customers crying “where’s my chrome grille”) and roof while the Merc got a upright grille and backlight. That aero nose and roof meant the Ford was rated for 1MPG more on the hwy, and my experience with my 92 Crown Vic and 93 Grand Marquis proved it out despite the CV having the HPP 3.23 gears and the GM being saddled with 3.08’s. For 98 they CV got the GM’s body shell and a more vertical grille.
This series is bliss for eighties children like me. I’d like to ad to this extensive writeup that the W124 Mercedes also has underside treatment to aid aerodynamics. The Benz was introduced some three years before the Opel Calibra was. (give or take)
BTW The Audi A2 did not sell well due to it’s huge pricetag. It was all aluminum I think and that cost a lot to produce. People did not want to drive a small car for the price of a basic Benz or Bimmer. Sound familiar does it not, a certain US major manufacterers’ electrical vehicle comes to mind. The people that did buy one still drive them today, there are two that I see regularly around town and they have been around since I was a teen. Still look new too.
I read that the AMC Pacer had a cd near .32. That was in 1975.
I had a ’75 Olds Starfire. I think they had that too, or maybe a .36…

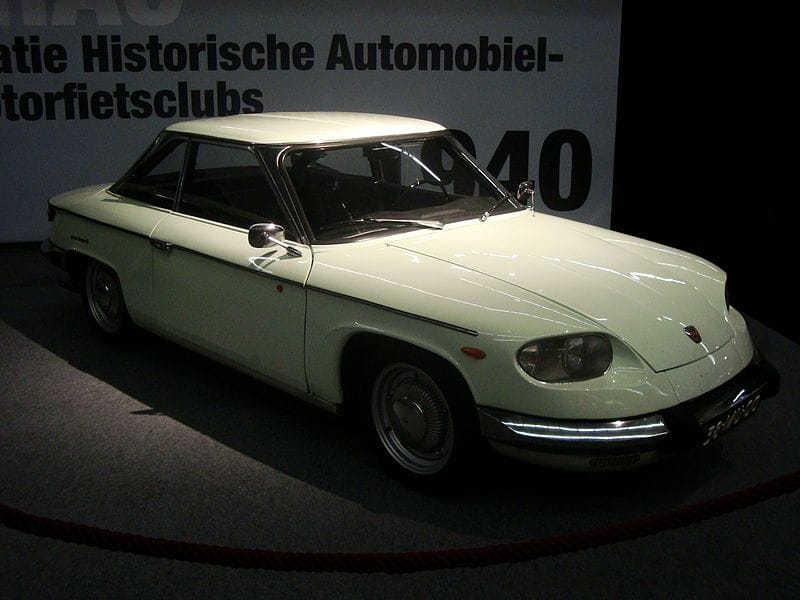

Ahhh…that delicious Panhard 24! Too bad it was basically a lawn tractor wrapped in that beautiful body!…The Mercedes? I love it for the obvious reason, but don’t have the resources to ever own one – but I’d sure like to…The Vega Kammback – I seriously considered buying one in metallic brown when I mulled over re-enlisting in the air force in spring, 1973. Fortunately a leave back home persuaded me to go to college instead!
I still think the Audi 5000 is one of the most beautiful cars ever built – it’s the flush, very expensive side glass. The thick black wrap-around rub strip, not so much anymore.
Now, I’d practically kill for a Chevelle version of that Pontiac!
The Ford twins – nah…I favored the 1992 update, but would never buy one – I was firmly in Chrysler’s camp at the time. Still mad at GM, too…
Great series of articles!
I wonder what the drag co-efficient would be for dad’s 1966 Impala sports sedan with all windows rolled down and the vents cranked out all the way…freshly waxed, too? Hmmm…add to that our 1990 Acclaim…
I drove a ’65 Impala, virtually identical to a ’66, and like the Corvair mentioned above it had a tendency to get very scary light in the front at high speed.
I’ve heard that the early Corvette Sting Rays suffered from aerodynamic lift at high speeds too.
The early Stingrays (1963-1967) did suffer from front end “lift”, but GM did extensively wind tunnel test during development of this series, and these were the first Corvettes tested in a wind tunnel during the design process. GM spent a lot of money for this wind tunnel testing, and did improve the drag coefficient of this car greatly, but the front end lift remained a problem through the 63-67 series. This “lift” was prevelant at illegal speeds, and perhaps was considered negligible in normal driving. That said, the 1963 Sting Rays had the lowest drag coefficient of any Corvette up to that date, but still was .53, according to designer Larry Shinoda. Wind tunnel technology was reportedly not as much of an exact science at GM in the late 1950’s and early 1960’s, but the front end lift problem was fixed in the next series (1968 – 1982)..
I had a 75 Celica GT. The chin spoiler was a bit too small and the steering got very light at 80 mph or so. Hmm, the 84 Ranger that replaced it actually was fairly well behaved at the same speed. I used a flush canopy/cap, and that probably helped the brick a bit.
I was surprised that the Citroen CX’s cd was so high. It certainly look very aerodynamic! A lot more so than the Prius, which turned out to have much lower cd. Even the much more blunt and stubby GS has lower cd.

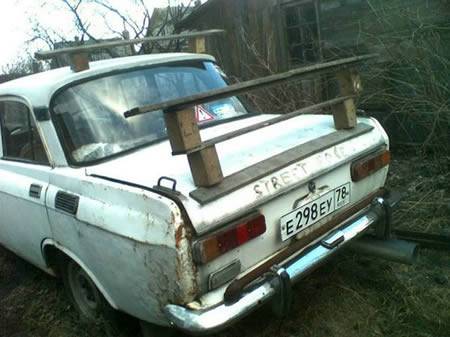

The spoiler on the moskvitch is most interesting. Are you sure it’s a spoiler and not a setup for martial art practitioners to break boards?
The link to the chart was interesting. A 92 Crown Victoria has the same Cd as a new Fusion. Maybe this is why my 93 Crown Vic missed qualification for Cash for Clunkers by one measley mpg.
I would also never have guessed that a Ford Aerostar was vastly more aerodynamic than a first generation Dodge Viper.
I am curious – does a vehicle’s Cd come into the EPA calculation for fuel mileage? I would imagine that it does, somehow, but I do not know. I recall reading that Ford dove into aerodynamics in a big way after realizing that the aero car can be vastly larger and more powerful and still get the same fuel efficiency. Basically, you could style your way to more size and power for free. Of course, by now I would imagine that all of the low hanging fruit has been plucked.
Why not have the same aerodynamics and make the cars a little narrower?
I remember some nascar driver in the seventies suddenly winning race after race after being in the mid-pack most of the season. They tried tech inspection after tech inspection and couldn’t figure out how he was doing it until someone was standing in front of it pondering and suddenly realized that the car was significantly narrower than it had any right to be! The car’s owner/team had cut a foot out of the width of the car and then seamlessly welded it back together with nary a ripple or mismatch! That’s when they started using templates to ensure the cars were (wiggles paired fingers on both hands) “stock” as if I could actually buy one of them at the dealer the next day.
Take six inches out of the middle of my Hyundai Accent, or a foot out of that Ford Crown Vic posted today. We won’t miss it and we’ll use a lot less gas.
By the way, I saw a classmate in high school using a Superbird to haul boards. They figured the wing and the roof were strong enough to stand the weight. That was so long ago they weren’t collectible yet.
Yes, I live in the South.

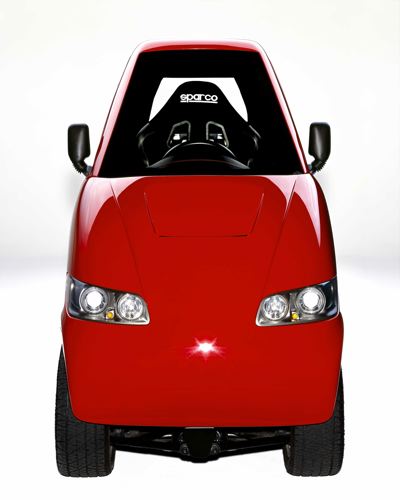

The Tango electric sports car is only 39″ wide. Don’t laugh, 0–60 mph in 4 sec, ¼ mile in 12 seconds @ over 120 mph, top speed 150 mph. 150 mile range with Lithiums. Excellent handling, since the batteries are mounted under the floor.
http://en.wikipedia.org/wiki/Commuter_Cars_Tango
(No jokes about a Tango Uniform model please.)

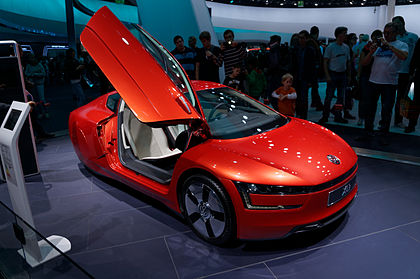

The one-liter / 100km VW is narrow too. If tandem seating is good enough for fighter planes, why not narrow sports cars?
Everyone talks about Cd, that is the hard thing to achieve all things being equal, but it’s Cd times frontal area that counts.
jpc: Undoubtedly, a vehicle’s total aero drag has to be part of the equation, as well as rolling drag, and any other (is there?). I’ve never read a really good description of just how the EPA test is done; maybe I’ll have to research that and write it up.
Please do. I’ve always (vaguely) wondered how they account for aerodynamic performance in EPA testing.

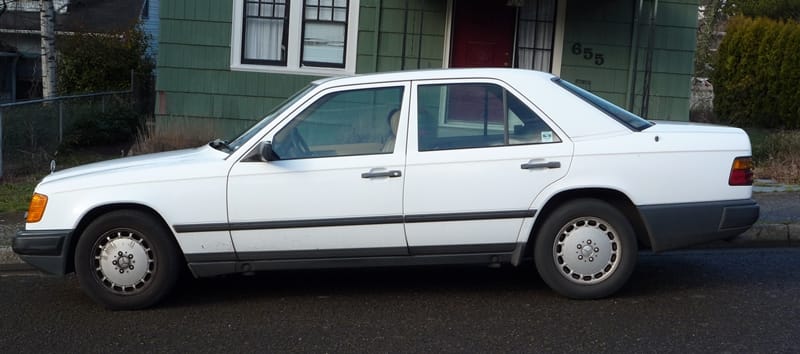

The W124’s cd being lower than the Taurus/Sable twins was a surprise to me. I figured that the jellybean Ford products would have had a much lower cd than the blocky-looking midsize Benz sedan.
As frenzic noted a few comments up, the W124 had extensive under-body optimization; most cars don’t. That cost extra, but can make a significant difference. Also, the shape, by just looking at it from the side, can be deceiving. One should also look at from above; the W124’s body had significantly more taper to it. And Mercedes had very big head start over Ford.

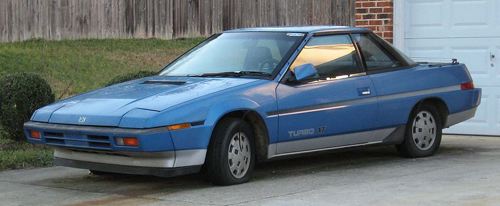

My father’s Subaru XT Turbo had an amazingly low cd of .29. I thought the styling was appropriate for the 80s.
Yes, the XT deserves honorable mention.
Its successor the SVX has a cd of 0.28. Looked the part too.
Excellent article. Wish I had that as a resource when I was doing my classes on the subject. The bionoc btw was the one I referenced in your last article’s comments as the car design that was taken from a fish. 40 years ago this would have seemed like voodoo.

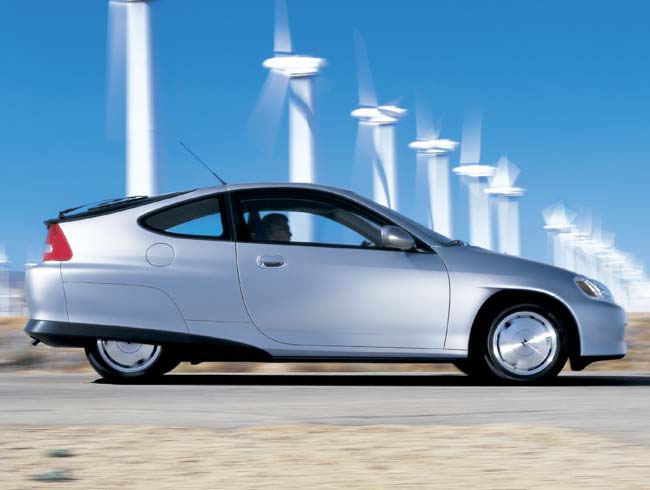

Before my gen 1 Insight, the last car I had with fender skirts (the word “spats” always reminds me of George Raft) was my 1969 Cadillac (which, come to think of it, is the kind of car that George Raft might have driven). They certainly didn’t do the mileage of that car much good.
BTW, since I’m so often asked in parking lots and at red lights, 47 city 64 hwy fully loaded.
Methinks fender skirts were first popularised by the first gen aero cars like the Tjaarda Zephyr concept and others, but they were used before that in many, many coachbuilt designs as aesthetic elements, to particularly striking effect by Figoni et Falaschi in Delahaye cars (these were the original `pontoon fenders’, used by Auburn, Cord et al). Needless to say those bodies were very heavy and as aerodynamic as an inverted bathtub. I’ve seen pictures of some such cars built for the Maharajas, and they look very, very royal. So fender skirts came to be associated with prestige and luxury, and came into Cadillac’s use. Even today I maintain that the fender-skirted look gives a dignified and composed luxury bearing to the car, if properly applied. However, the Gen1 Insight is not one of the proper applications, largely because it is too small, but I like its skirts anyway!
PS: I also find other types of skirts visually appealing, both in what they reveal and what they conceal.
I like them, too. I think that the skirts on the Insight are a proper application, but for a completely different reason than on Cadillacs and other luxury cars.
Manufacturers and designers would rather have dispensed with them altogether – they’re only there so the wheel can be close to the body (in other words, not Nash) and still be removed.
They don’t create a style, they make that style possible.
Nicely said. I love the looks and performance of that 1st-gen Insight. Too bad Honda didn’t stick with that formula, maybe adding 2+2 seating, instead of the current 4-door Insight, which was a flop, about to be destroyed by the Prius C. They did the same thing to the Insight they did to the CRX.
I have to wonder how things would have played out if the first gen Insight, instead of being sold as a “hybrid”, was released as a 3rd generation CRX. With a full range of engines, and the hybrid badged as the HF. Building an “Si” version might be an interesting engine swap project for someone with more talent in that direction than I have.
That’s a very good idea – I wonder if they considered it. The first-gen Insight was thrown together very quickly to beat Prius to the US market, and was built on the Acura NSX production line. Lots of aluminum. It might have been too expensive to scale it up to even CRX volume.
I’ve seen the ultimate “Si” version at our local club meet:
http://www.evalbum.com/461
Great conclusion (sort of)!
Is it the ugly lump called Bion*i*c or Bion*o*c? I sure hope this is the way forward for MB, because then they are doomed. An Aptera for me please. 🙂

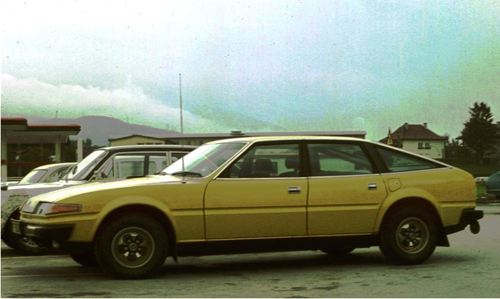

Oh, and by the way, an English Rover SD1 for your pleasure:

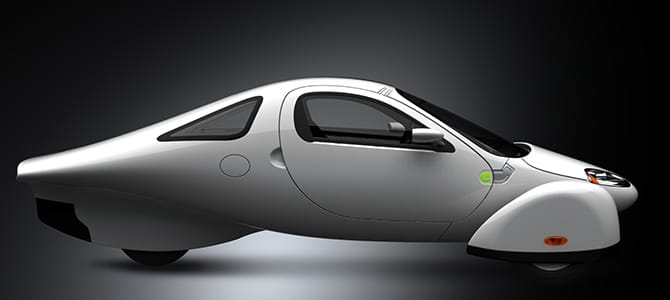

Aptera for me too please! It makes so much sense, and it looks so great. When my wife saw one she liked it, “now that’s a 21st century car”. If only the founders had gotten a chance to get that car out the door before the so-called investors destroyed it.
The Prius actually could exist quite well without the rear wiper on the hatch.
On my 2005, at any speed above 20 or so MPH the rain never even hits the upper hatch window. Fun to see aerodynamics in action. In fact, I only found it useful when creeping along in stop ‘n go traffic in the snow… while running totally on battery.
(Aside: Actually, in a Prius there is no “stop ‘n go” driving. Just let the electric drive power along… Like with manual transmissions, a lot of Prius drivers hate to come to a complete stop. Having the motor kick in is like having to shift gears… kinda annoying compared to creeping along like the big trucks. Another reason Prii are despised by Mr. and Ms. Happy-Brake-Light.)
My Citroen is the same the rear window doesnt get wet when its moving
This is a great article, but I think we made the right decision in the ’30s when everyone refused to buy an Airflow. There are very few “aerodynamic” cars (excluding true uncompromised shapes like some of the ones mentioned in the first article and the Probes in this article) that don’t look awful to me. Give me an upright, elegant design like the 1960 Continental Mark V or a 20 foot long teardrop from the cover of a 1930s Popular Science, anything in between tends to look wrong (there are of course a few exceptions, like the Opel Calibre, Audi 5000, and a few others).
By the way, I think it is pretty funny that the most aerodynamic car on the market is a hardtop. Test it with the windows down (which is how I would drive it) and let’s see how it holds up…
Also, I looked up my favorite “aero” car on the Wikipedia list, and it’s not very aerodynamic at all: 0.34, just .01 better than a Nissan Cube (though oddly exactly the same as a brand new Corvette).
You would think the fender skirts would help.
The Ford Probe 1 looks like the cockpit of a stealth fighter! Esp the F-117 Nighthawk. Can it evade radar too?
great series, paul. i learn so much from this site. i always thought the production ford probe was an interesting design. i knew that it was based on the mazda 626 but i didn’t know about the probe concept cars. don’t think it had that great of a cd but it sure looks aero.
Noticed someone above mentioned undercarriage improvements. Ran across this guy a couple years ago and he did a batch including to the undercarriage. Hope you enjoy. http://www.evworld.com/article.cfm?storyid=870
The only car I would add to this section would be the Lotus Elite, although maybe it should be added to part 2 since it debuted in the late ’50s. When it came out, it was very smooth looking, and had very advanced chassis design as well.
I’ve had REAL VWs + SAAB 96s; I don’t recall which did which, but one of them would have one river of rain running down the back window & the other would have two.
This article made me curious to see what some of the 70s “aero” cars had for Cd. I always thought of the 75 slant nose Laguna as a fairly slippery shape but at .47 it’s kind of Meh…
The 77 Impala was .48 (depending on sources) and it was much boxier. I can’t find too much on other cars though, I’d assume the Colonade A bodies all ran in the same .47-.49 range.
Apparently a Triumph TR7 gets a .40. I would have thought it better than that. Must be the giant rubber bumpers.

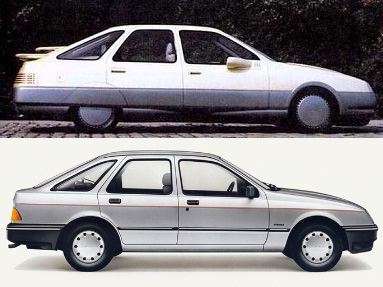

What? No mention of one of my favourite cars ever, the Ford Sierra with its Cd of 0.34 in 1982. Most of the automotive design articles/books/magazines I’ve read rate the Sierra right up there with the Audi. Some commentators rate it as more significant due to the its complete and utter stylistic break from its Cortina/Taunus predecessor, and its bringing aerodynamic design within affordable reach of everyday folks (as opposed to the premium-priced Audi). Admittedly though, my 80s car influences were mainly European/Australasian rather than American, I learnt to drive in a Sierra and later owned 3, so I may be slightly biased lol! The way the Probe III became the Sierra is surely a study in transferring revolutionary aerodynamic design to the showroom. The car was so revolutionary in NZ at the time anyway! Pics below from your TTAC CC on the ’86 Tempo Paul.
