I started looking on Craigslist for a Schwinn Super Sport as I was working on the other two bikes. Located one 60 miles north but was unable to get there before it sold. Wouldn’t you know it in that it was opaque blue like the one I had. Then I saw this Sports Tourer located 2 miles away from me and it was $75 less so I arranged a meet up in a grocery store parking lot.
The name Sports Tourer didn’t ring a bell. I knew of the Varsity, Continental and Super Sport but that was it. Some research expanded the line upwards to Sports Tourer and the highly desirable Paramount. When the seller arrived she had a helpful neighbor get the bike out for her. This was in June and I could see that she had medical issues so I stayed a little farther away as she could not afford to get the virus. This was strongly reinforced the Thanksgiving weekend when my wife tested positive because of an outbreak at work and a few days later I did. While my wife had noticeable symptoms I had absolutely no outward symptoms of any kind.

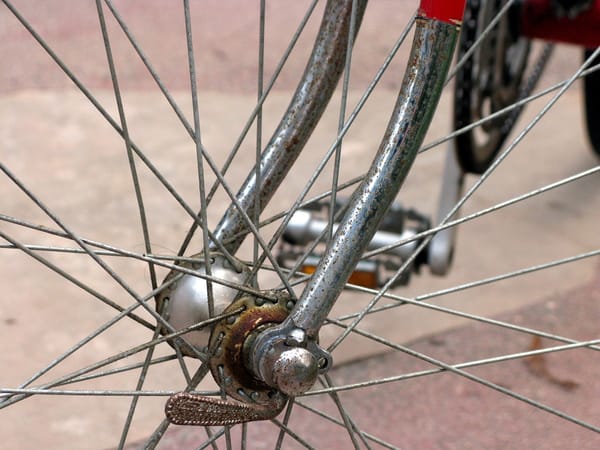

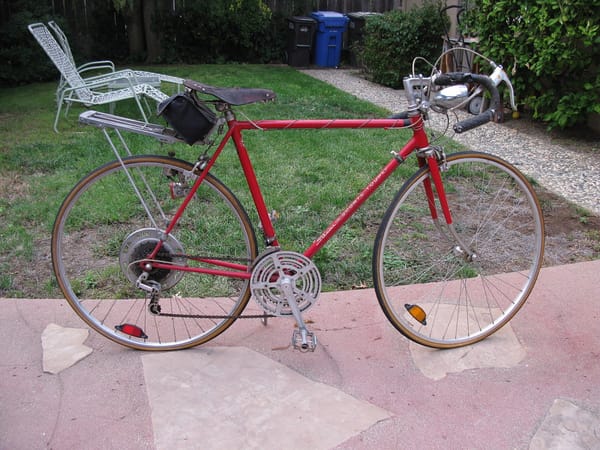

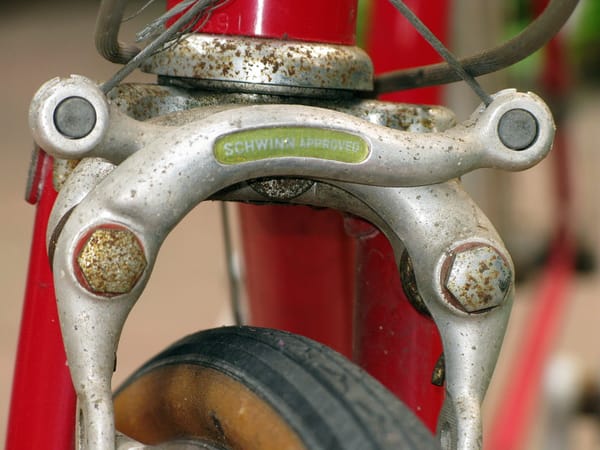

I noticed right away that the Schwinn was a 22″ frame. Close examination showed that this was the project I was looking for. Every system needed restoration and cleaning of the noticeable corrosion on the chrome everywhere.

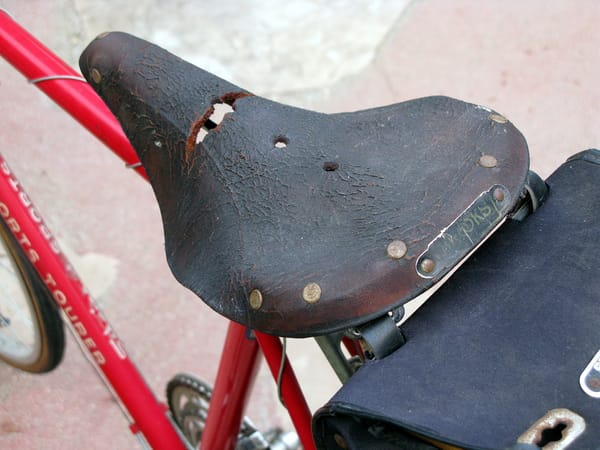

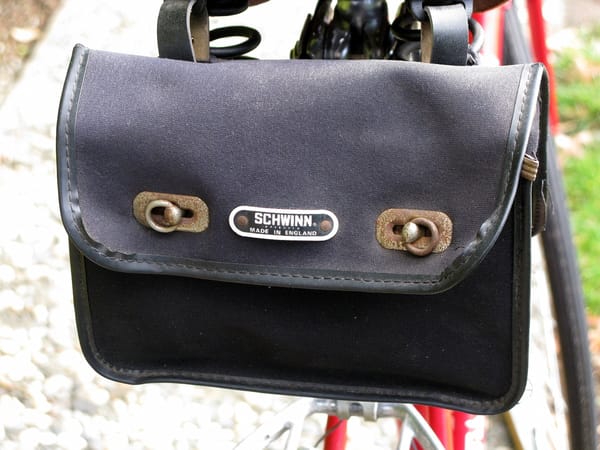

This original Brooks saddle has seen better days. Both from England.

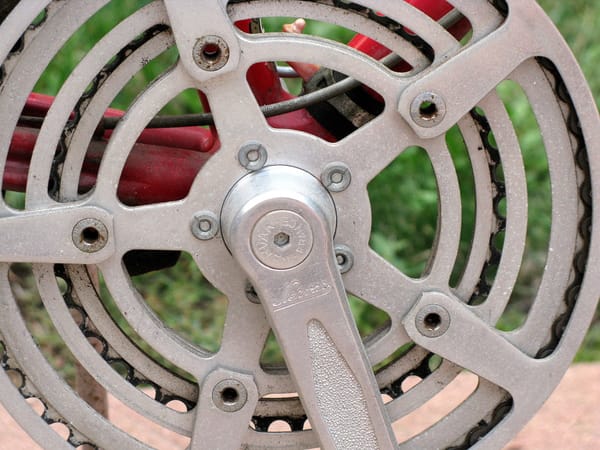

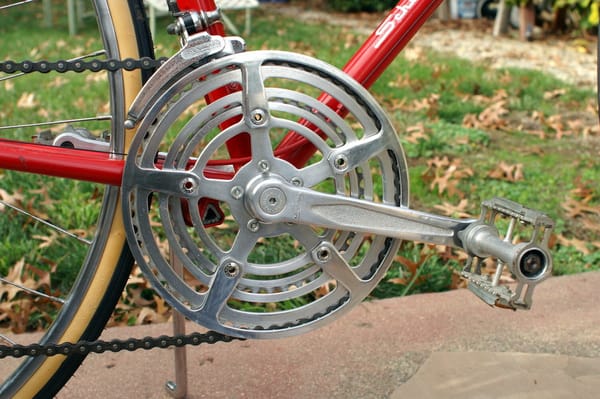

Crank set from France

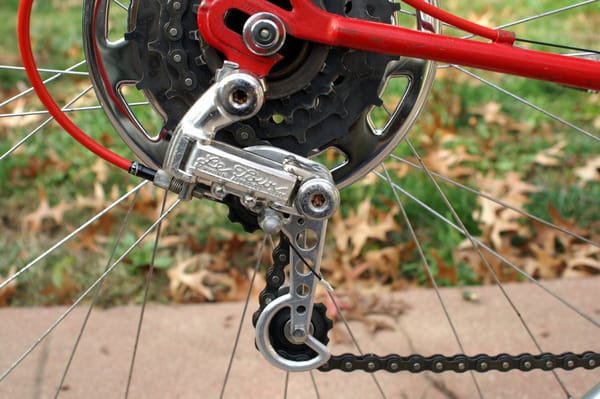

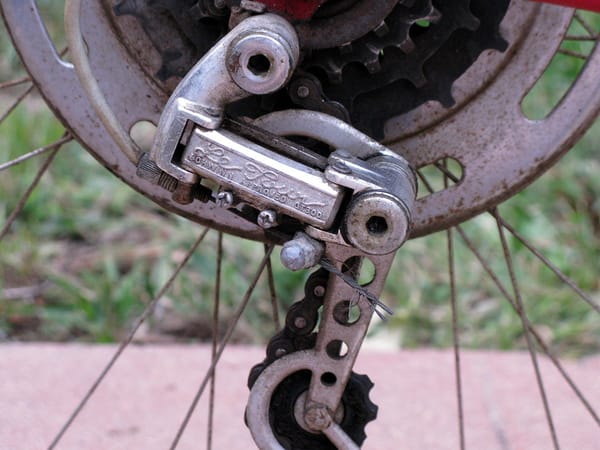

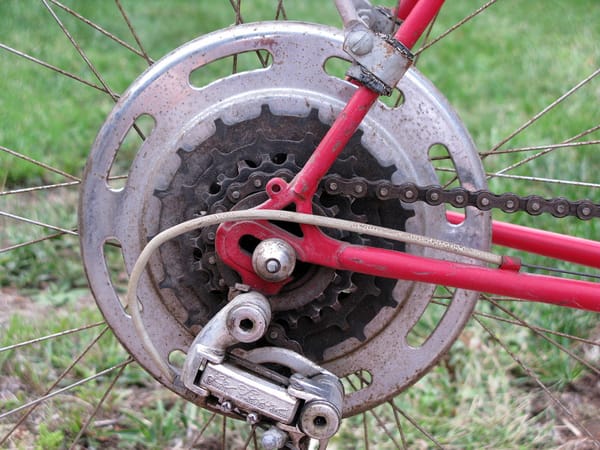

Derailleur by Shimano out of Japan

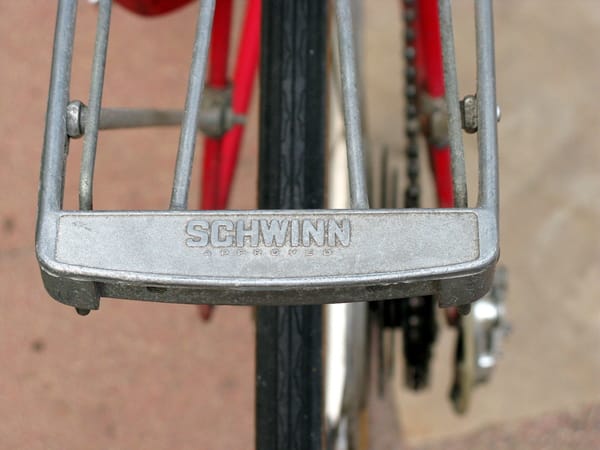

Schwinn approved bike rack stays

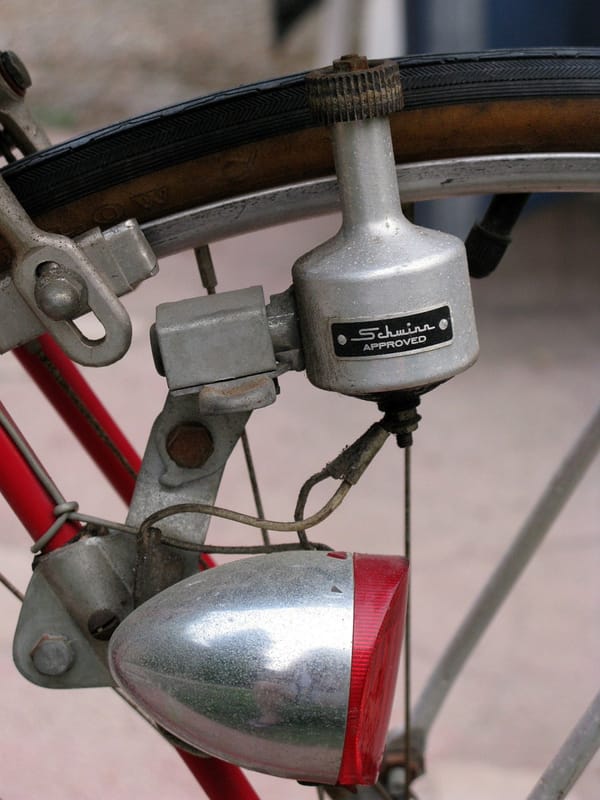

Schwinn approved lights and generator will be boxed and not re-installed

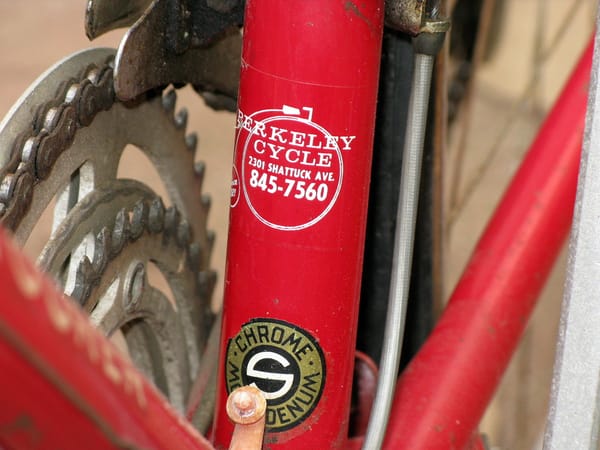

My favorite part of the bike is this decal for Berkeley Cycle now long gone

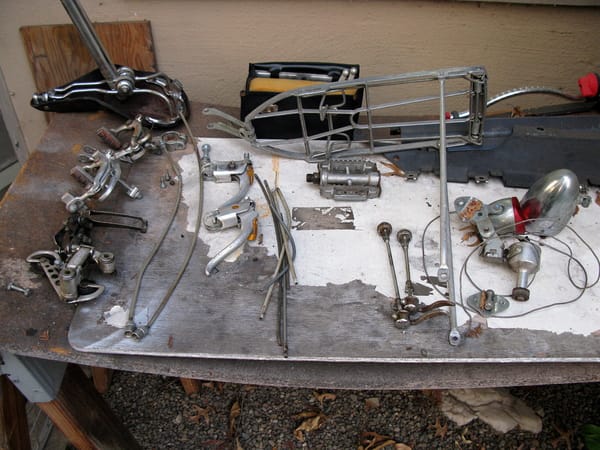

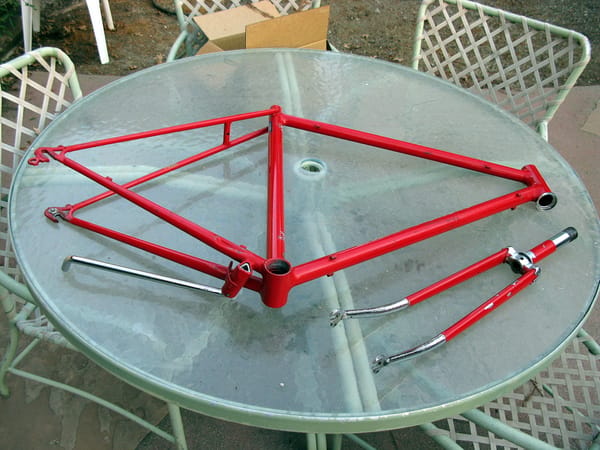

Now time to dis-assemble the entire bike

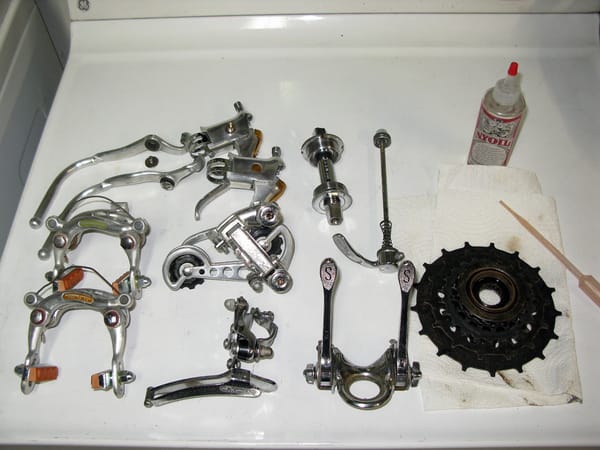

Here are the small chrome parts cleaned up. The Schwinn freewheel of course needed another special tool to remove so now I have three different removal tools. I was told by those in the know at the Schwinn Bike Forum that one didn’t disassemble it but instead soaked it in lacquer thinner and then drained to remove old oils, grease, and debris. After that was done one was to oil the inside by letting oil leak inside by placing it on the outside perimeter. That is where the Nyoil, I use on fine moving parts as in a camera, came in handy.

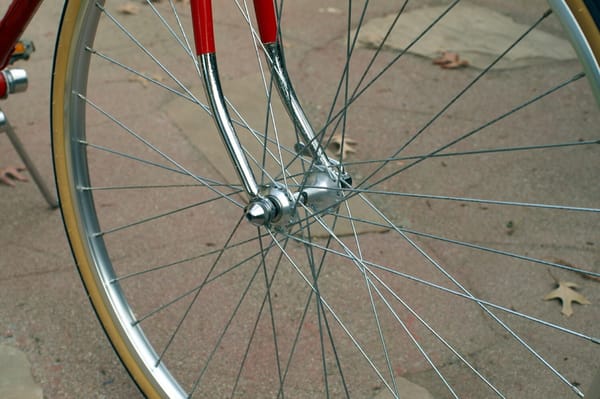

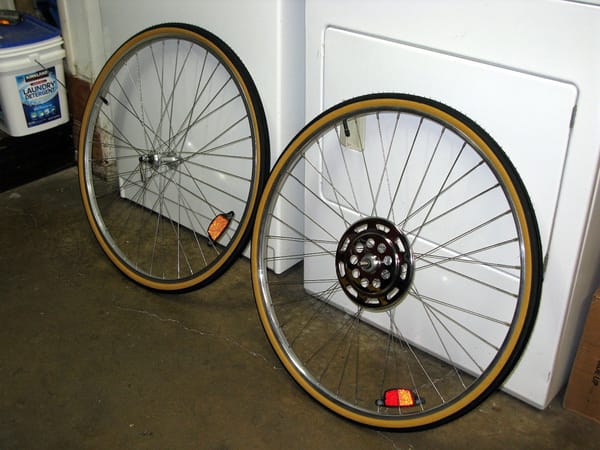

The rims, and especially the spokes, needed a lot of work to clean up. First 0 steel wool, followed by 000 steel wool, and lastly my special auto metal polish. The spoke protector was replaced by an OEM one off eBay whose cost out weighed working on the old one. Exact same tires here as on my Univega. Hub bearings all cleaned and re-greased as seen previously.

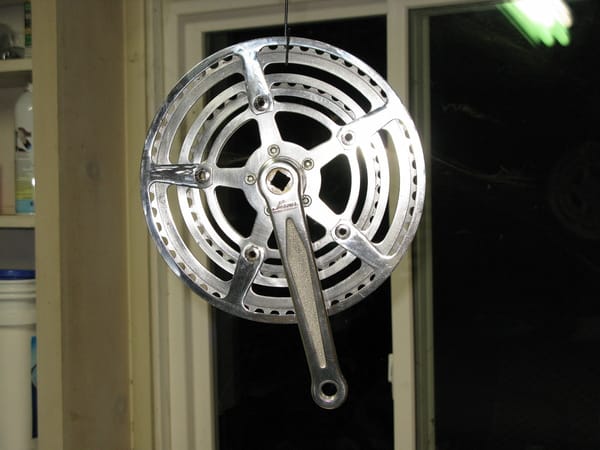

Crank disassembled into separate pieces in order to clean. The crank bearings inside numbered seven in a plastic cage which was cracked on one side. I decided to ditch them all and used new loose bearings which now numbering eleven giving me a very smooth crank.

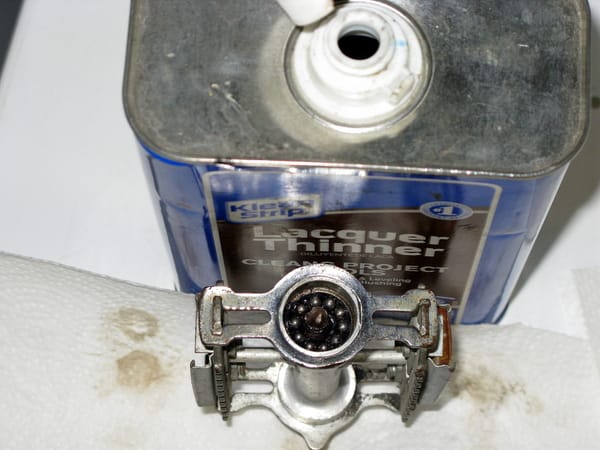

Bearings cleaned and re-greased in the pedals

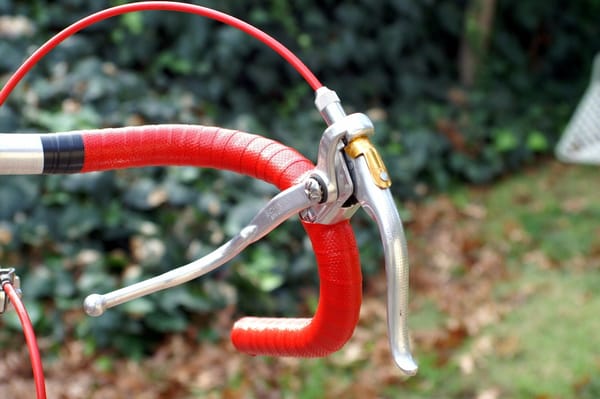

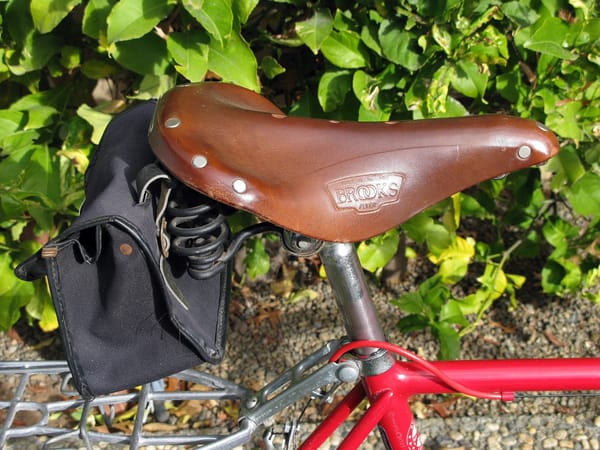

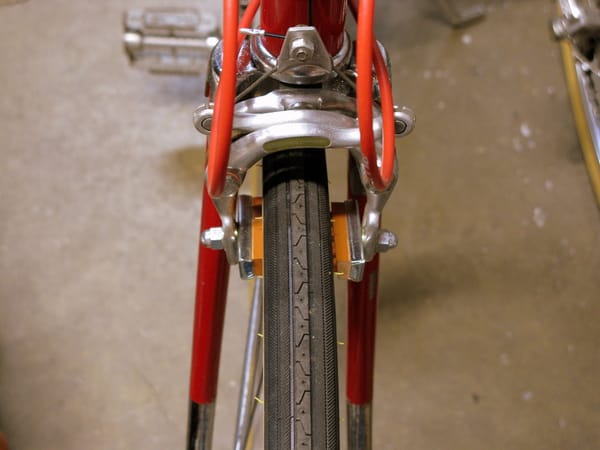

Time to re-assemble the bike and lay out the new cables. Decided not to replace the gray cable housings with correct gray cable housings but instead high quality red cable housings and coated cable. Ebay helped again by having correct Schwinn red handlebar tape, brake pads, and a Brooks saddle in brown.
Didn’t try to clean the metal rings given the more delicate nature of the plastic like material surrounding them

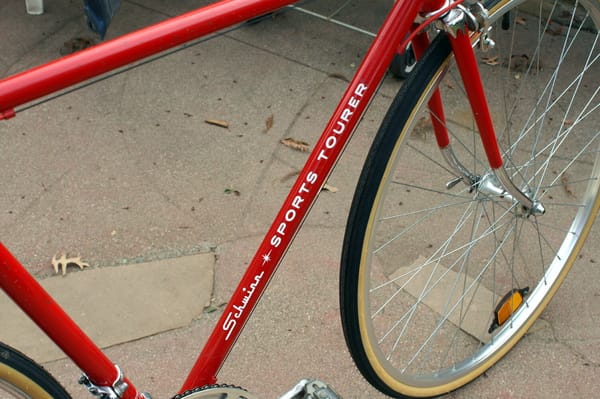

New Schwinn decal

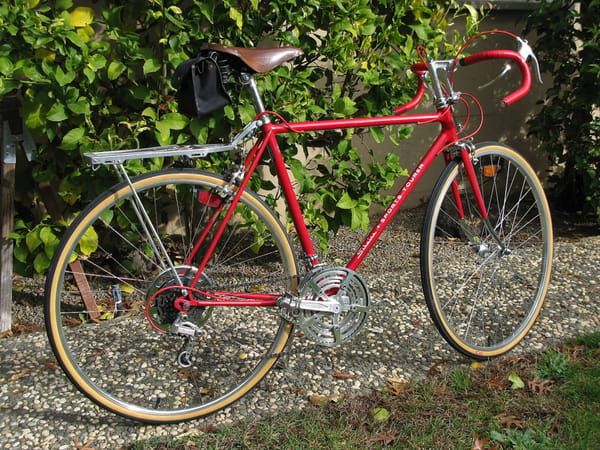

Have only been able to take the bike on one 20 mile ride when I had the free time. It is without a doubt a very smooth riding bike as some have said. When stopped in Walnut Creek along the bike trail it garnered some attention. Must be the “resale” red color of the bike which is very striking in person. One person even offered to buy the bike while there but it will never be for sale. My 11 year old is not quite able to get on the bike and when he tried the result was not pretty so he will stick with something smaller for now.
Great to see the Schwinn love here. Been a big fan and collector since ’03. Had a few Paramounts but never the lovely and rare Sports Tourer…
Superb! I had the 1973 Schwinn catalog but recently sold it. I looked for it in my 1976 Schwinn catalog but no luck.
I had one of these back in the 1980s. Mine was the Varsity I think. Rode the wheels off of it.
I don’t remember what I did with it. A few years ago, I bought another a few years ago. Tough bike.
I divide my time between it and my ebike (Lunacycle Bafang BBSHD 1500W middrive). We live in a hilly part of the country.
The pedal bike is fun but a pain to ride very far. The ebike is a transportation tool.
Wow! Berkeley Cycle (which I remember as Berkeley Cycle and Toy, and my memories were confirmed with a quick Google search) was one of the local shops which sold Schwinn and other all-American stuff, as opposed to the fancier shops which sold European and British bikes. It may even be the shop from which my parents got me my unloved Schwinn Racer in 1964. I got my own Schwinn 10 speed, a Varsity, in 1969, at Red’s Cyclery, on the other side of town, which also sold and service lawnmowers. I started at Cal in 1973 and soon thereafter reconditioned the Varsity, using parts and know how from the campus bike coop, The Missing Link, which is still in business after 50 years, as a worker-owned coop, though now off campus. My 1973 rebuild was primarily intended to disguise its Schwinn-ness; little did I know that 50 years later it would be collectible in all its metallic paint, chrome and Ashtabula crank goodness.
Great article. I think these bike postings are a great addition to CC. I’ve done some light refurbishings of vintage bikes but hope someday to find the time to get into full restorations like this. Finished product looks fantastic.
Cars and Schwinns. Add vintage Tonka trucks, Matchbox cars, and Hot Wheels postings, and you will have covered my entire lifetime of wheeled obsessions. Children of the ’60s into the ’70s were, unknowingly, living in a wheeled golden age of sorts.
I am a 60s child and absolutely agree with your assessment. I commute with my sports tourer everyday, but, it needs some tlc
Ah! Craigslist Parking Lot Commerce! Nothing like it… just bought a used, mint Taylor GS mini in a parking lot for a birthday present. Beauty job on the Schwinn. Don’t know much about bikes, but they have wheels and old ones look great when spruced up. Nice!
Great looking bike! I’ve made the decision to use loose ball bearings when Schwinn cages were broken a few times. This is my favorite era for Schwinns – mid-’60s to mid-’70s. The colors were interesting and the bikes were built well; I ride mostly old Schwinns all summer with the exception of my ’72 Raleigh Sports. Nice job getting this one back on the road.

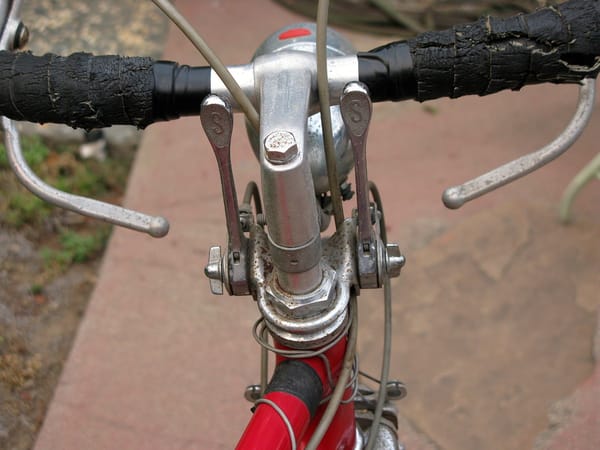

Excellent post! Did you have to do any reconditioning of the handlebars? I didn’t see that aspect in your feature. The results are eye popping!
