Atlas, Effer, Fassi, Hiab, HMF and Palfinger belong to the genus of knuckle boom cranes. They are not only used to load and unload freight, but also for hoisting jobs, both outside and inside buildings. Thanks to multiple steering axles, the carriers -either a truck chassis or a tractor- can turn on a dime.

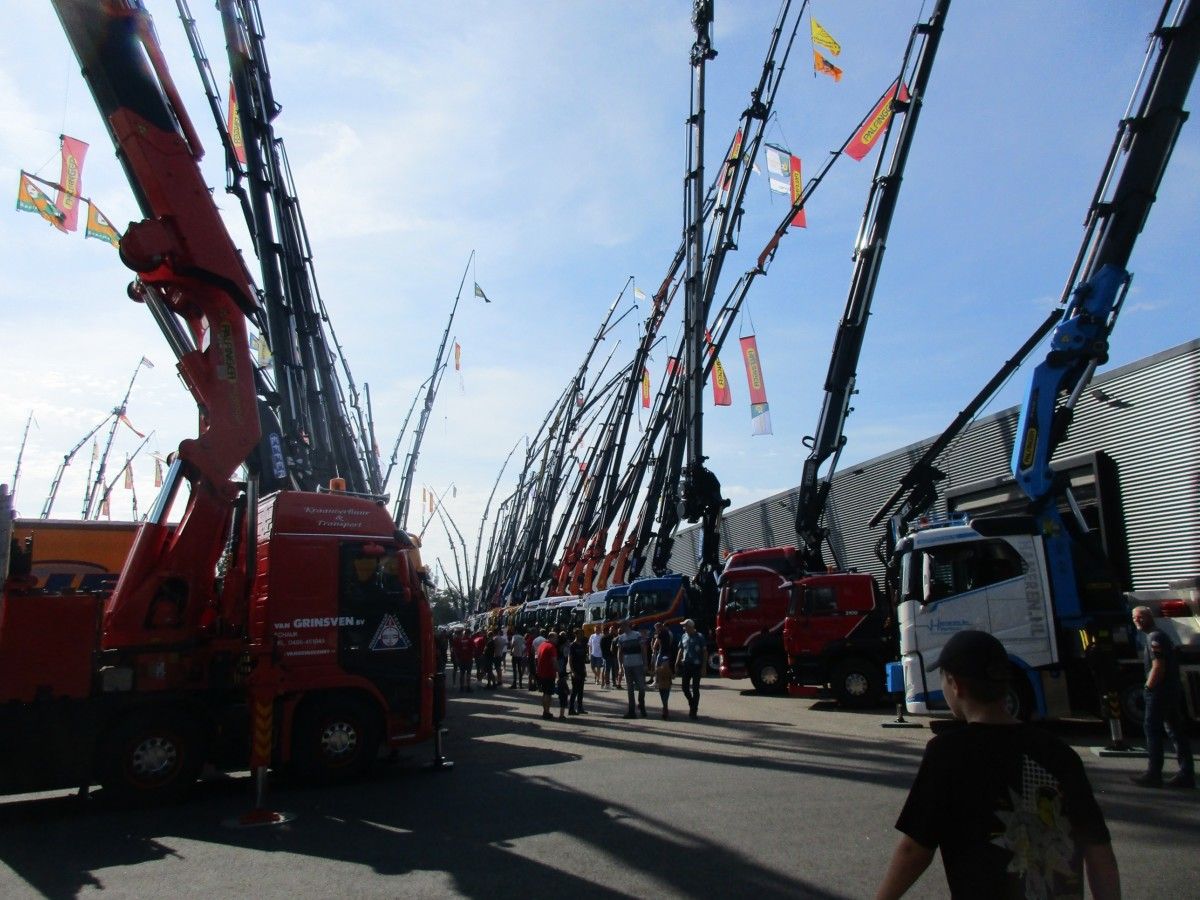

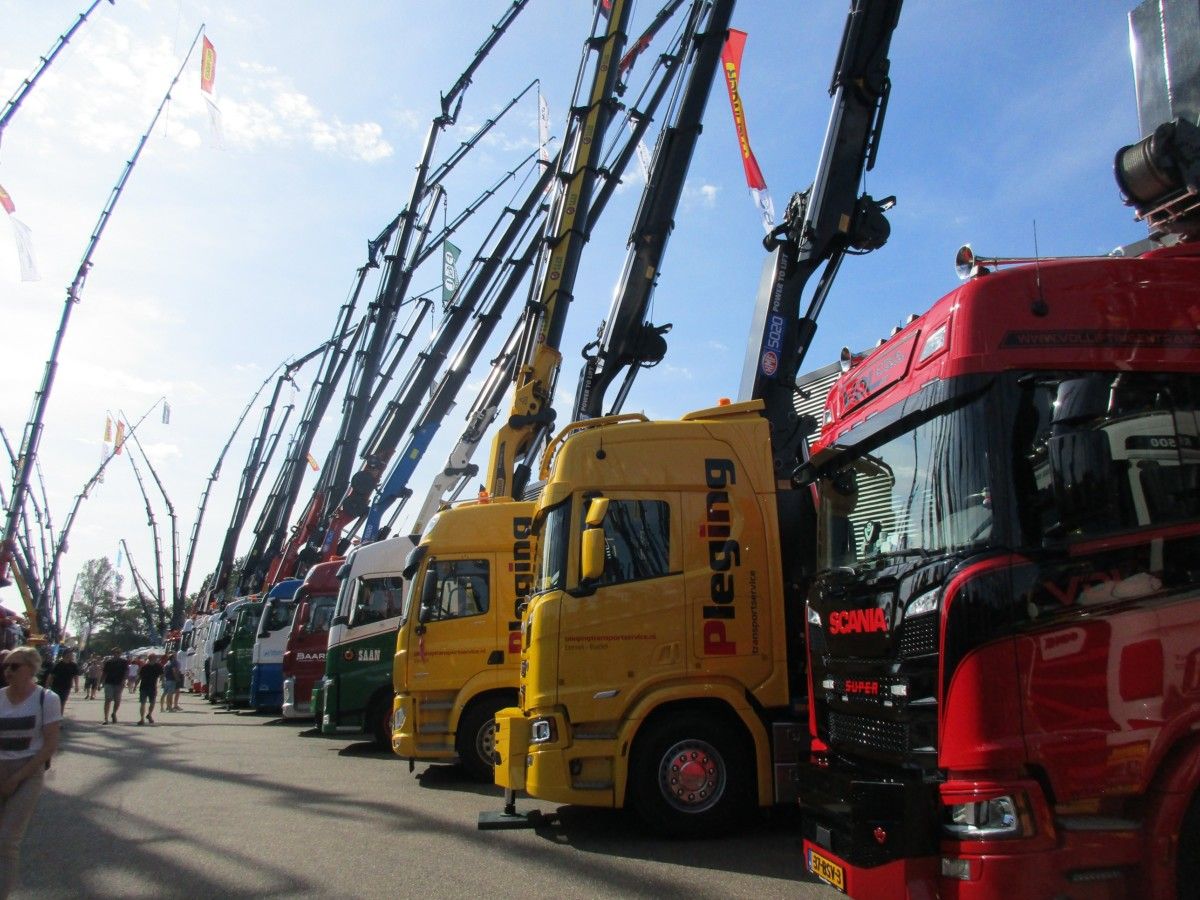

The Dutch Lift ‘n’ Load event, this year held on September 16, is dedicated to this booming business. Let’s zoom in.

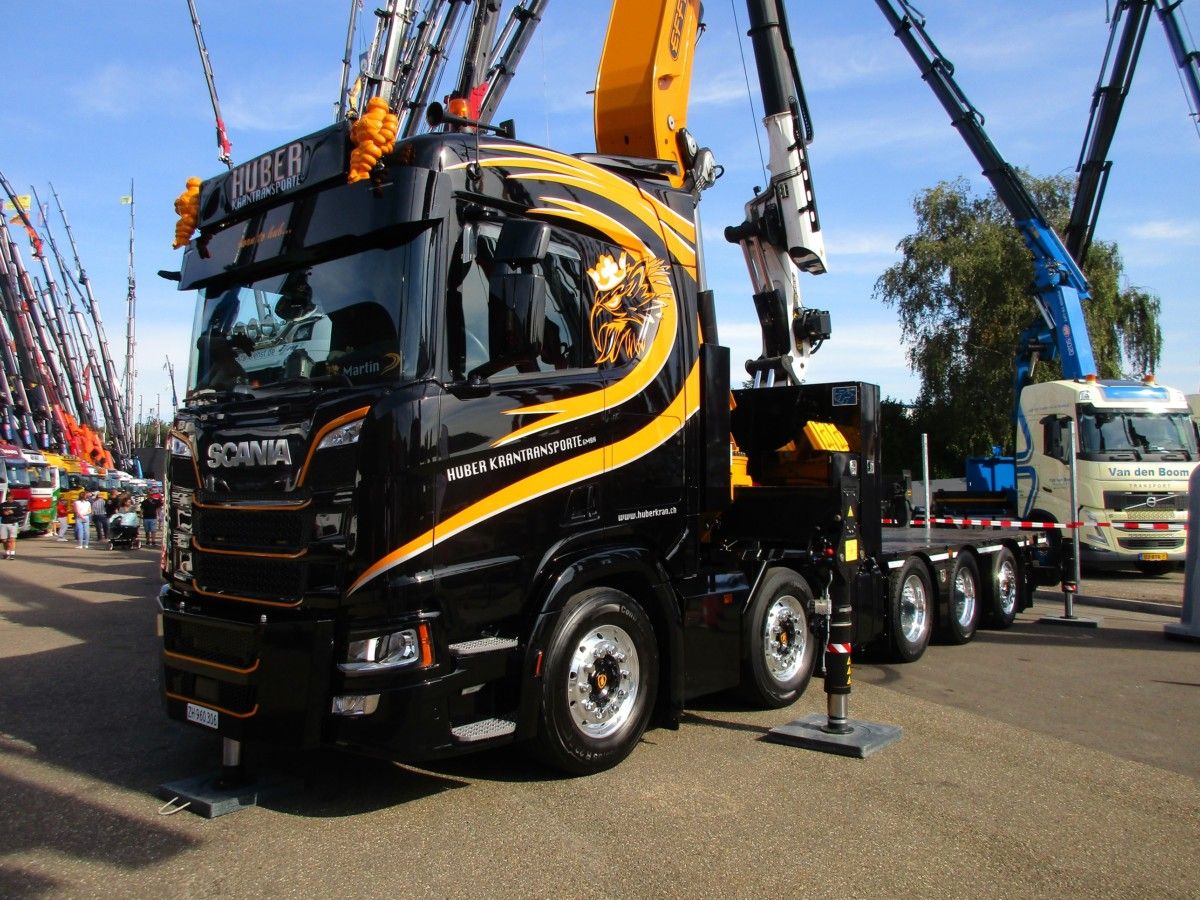

Herr Martin Huber from Switzerland arrived in his new Scania R660 V8 10×4*6.

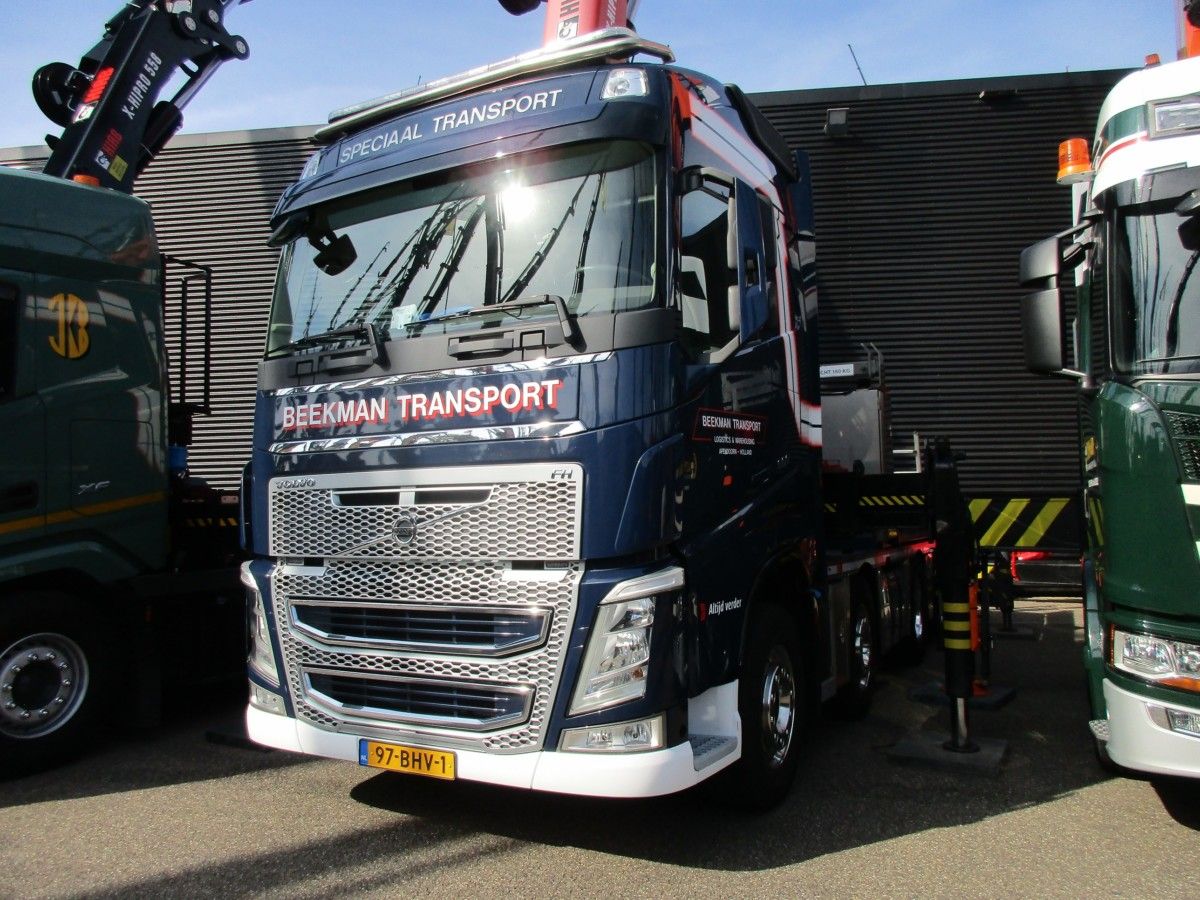

2017 Volvo FH 8×2*6.

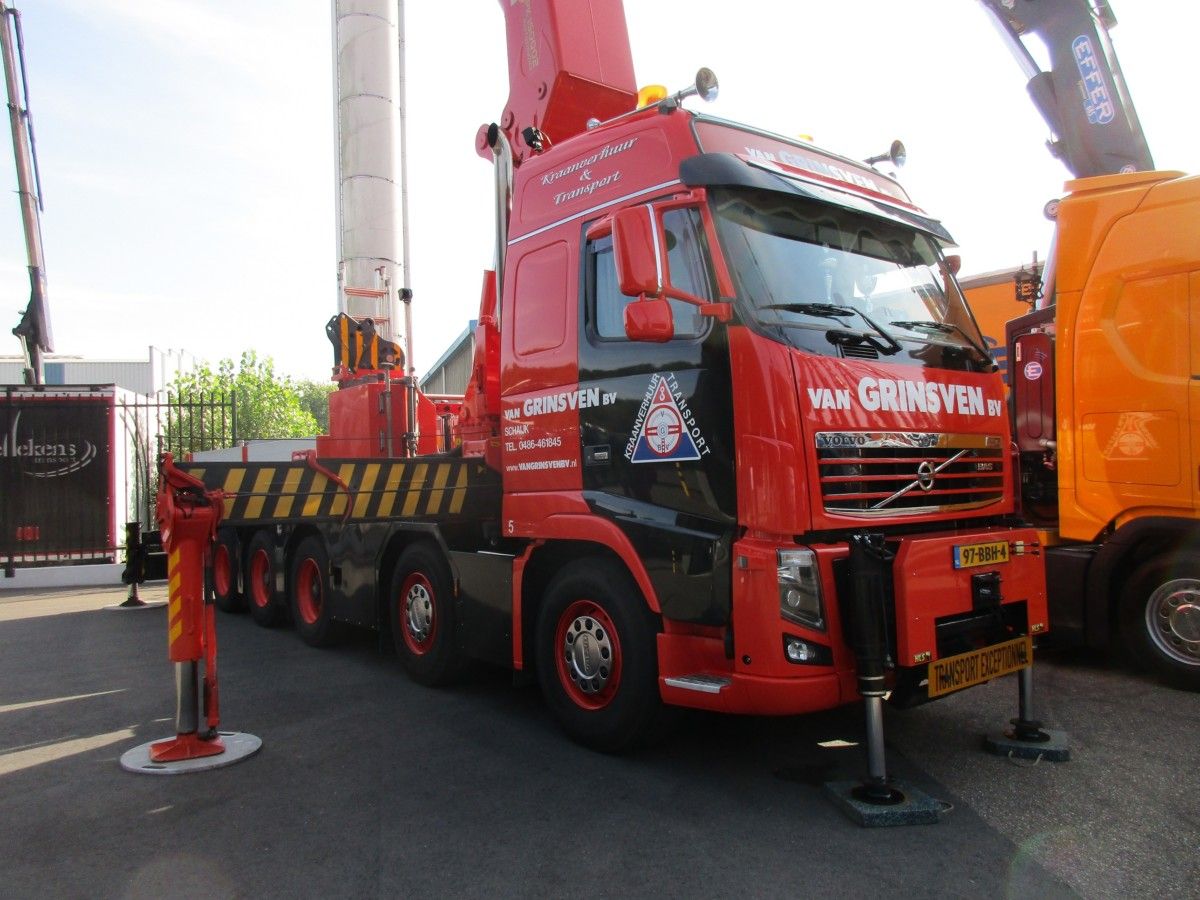

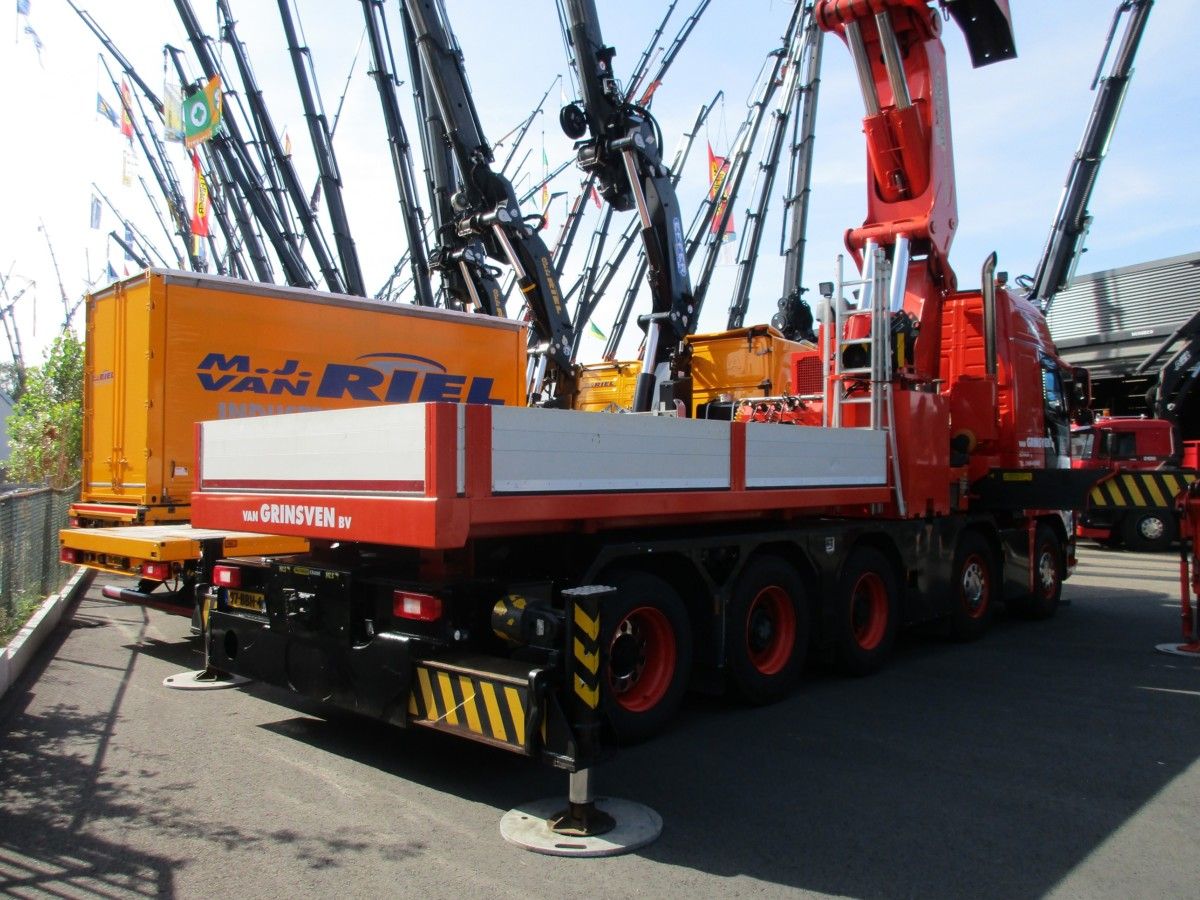

2012 Volvo FH16 10×4*6 tractor with a small, detachable flatbed over its fifth-wheel coupling. A common set-up in this branch.

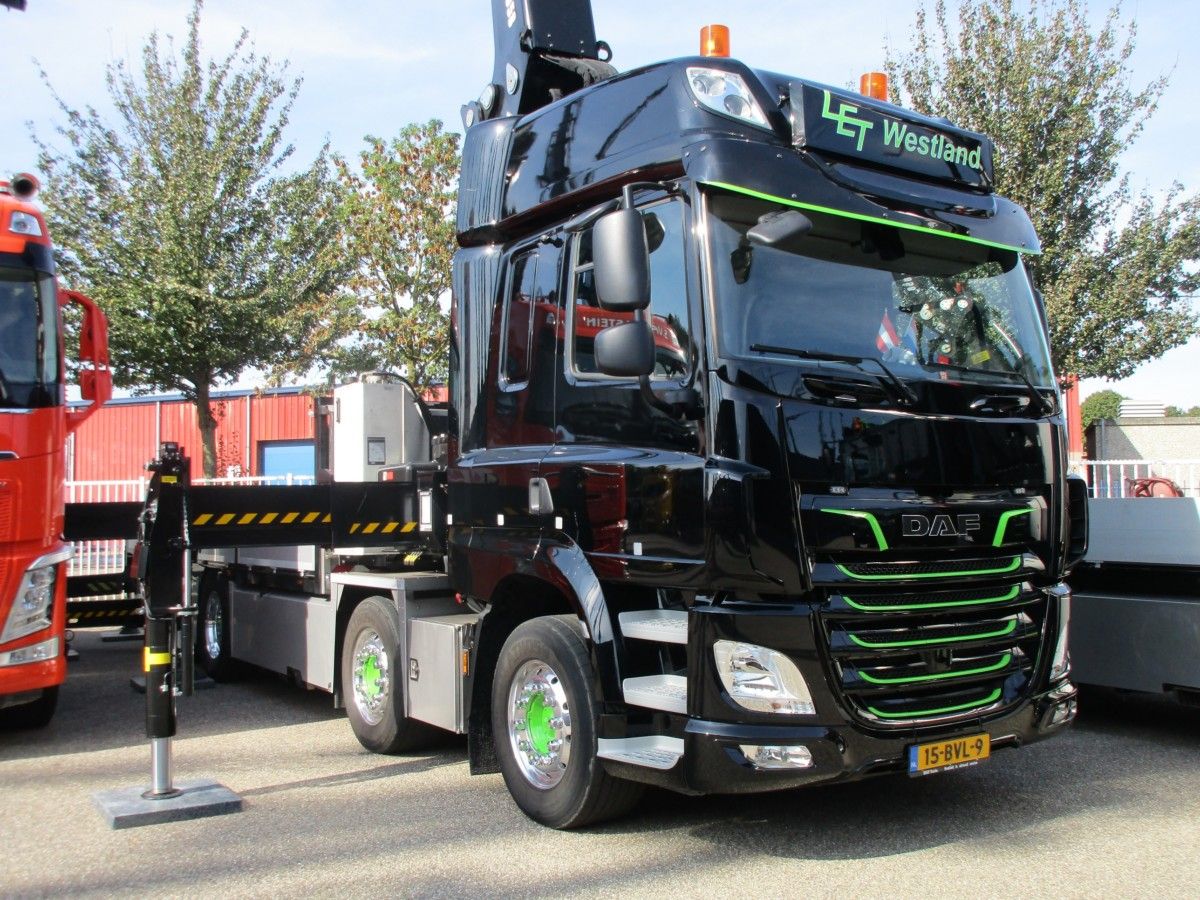

2023 DAF CF 8×2*6.

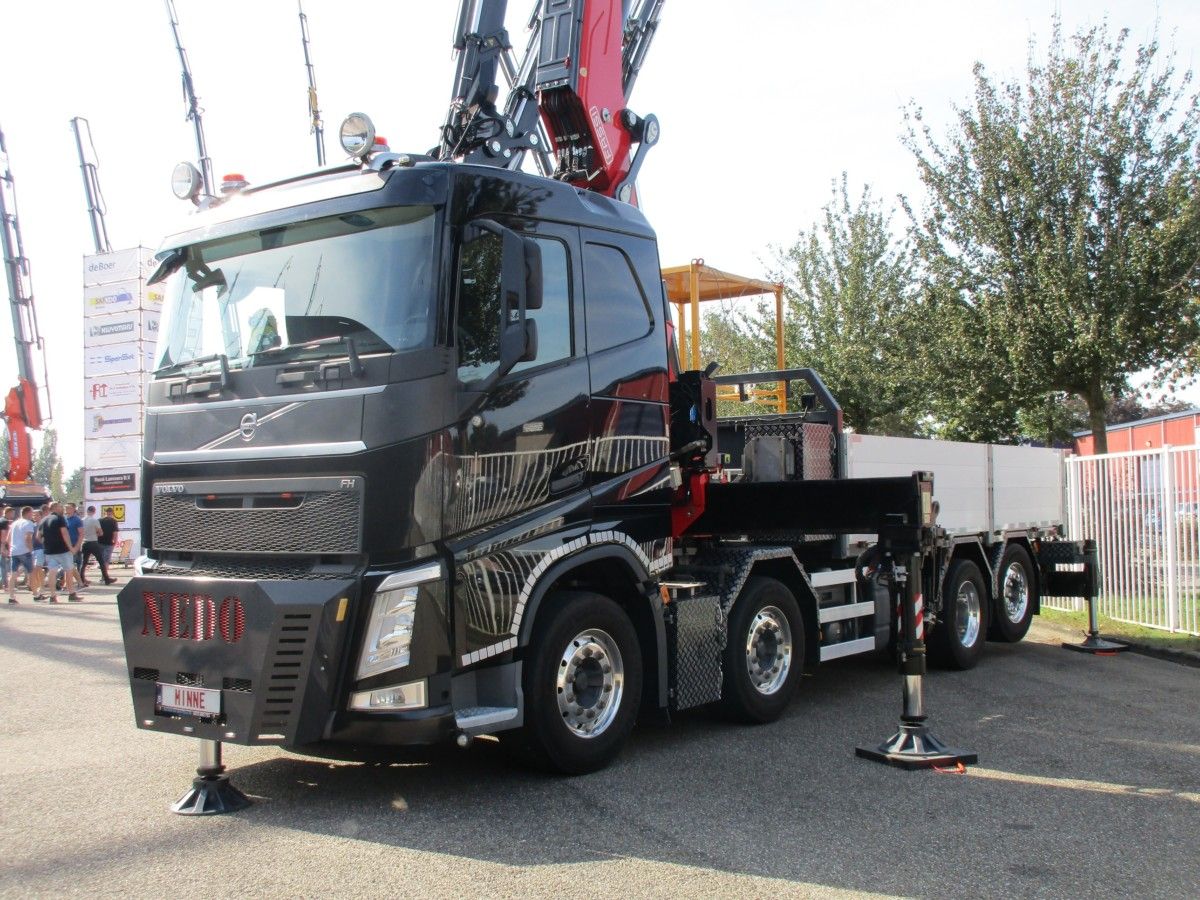

From Belgium, a Volvo FH 8×2*6.

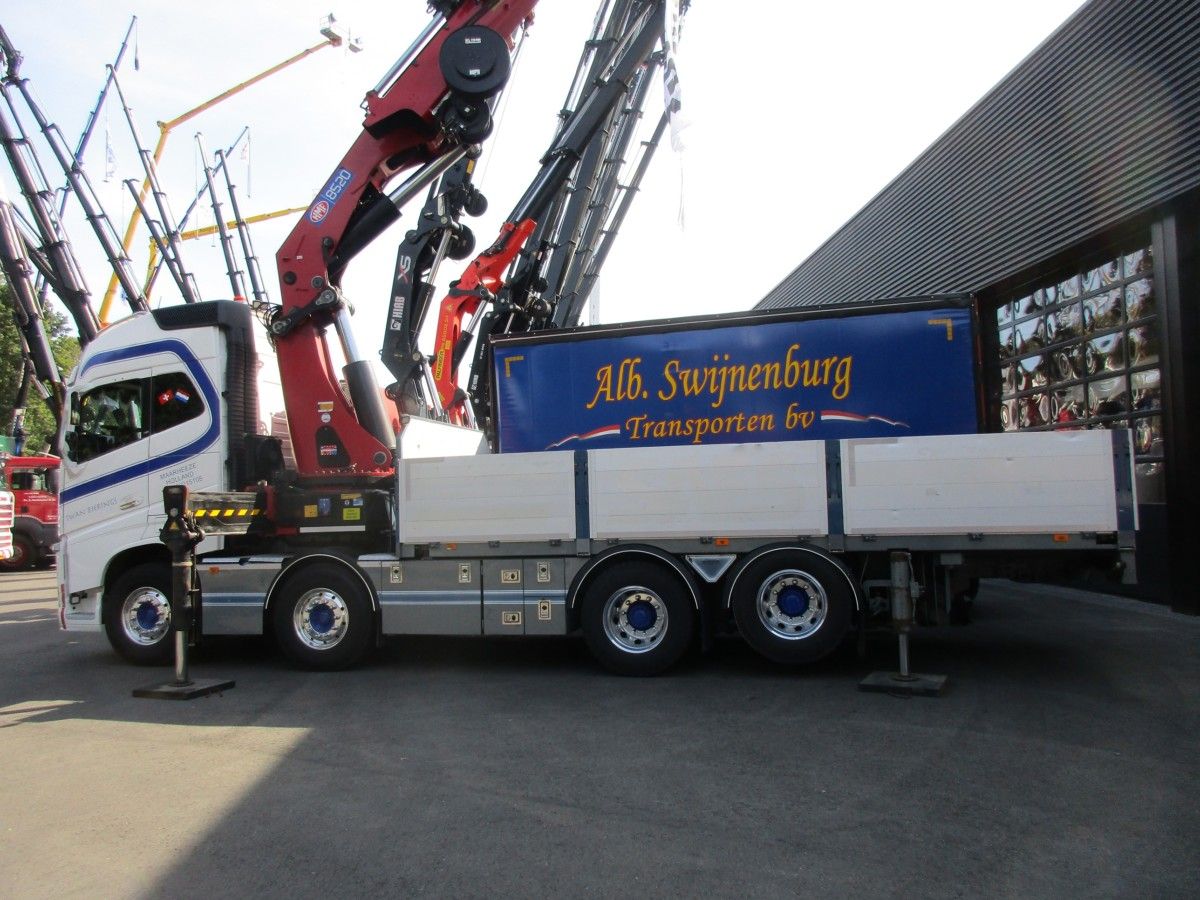

2017 Volvo FH 8×4 with a liftable rearmost drive axle (optional since 2015).

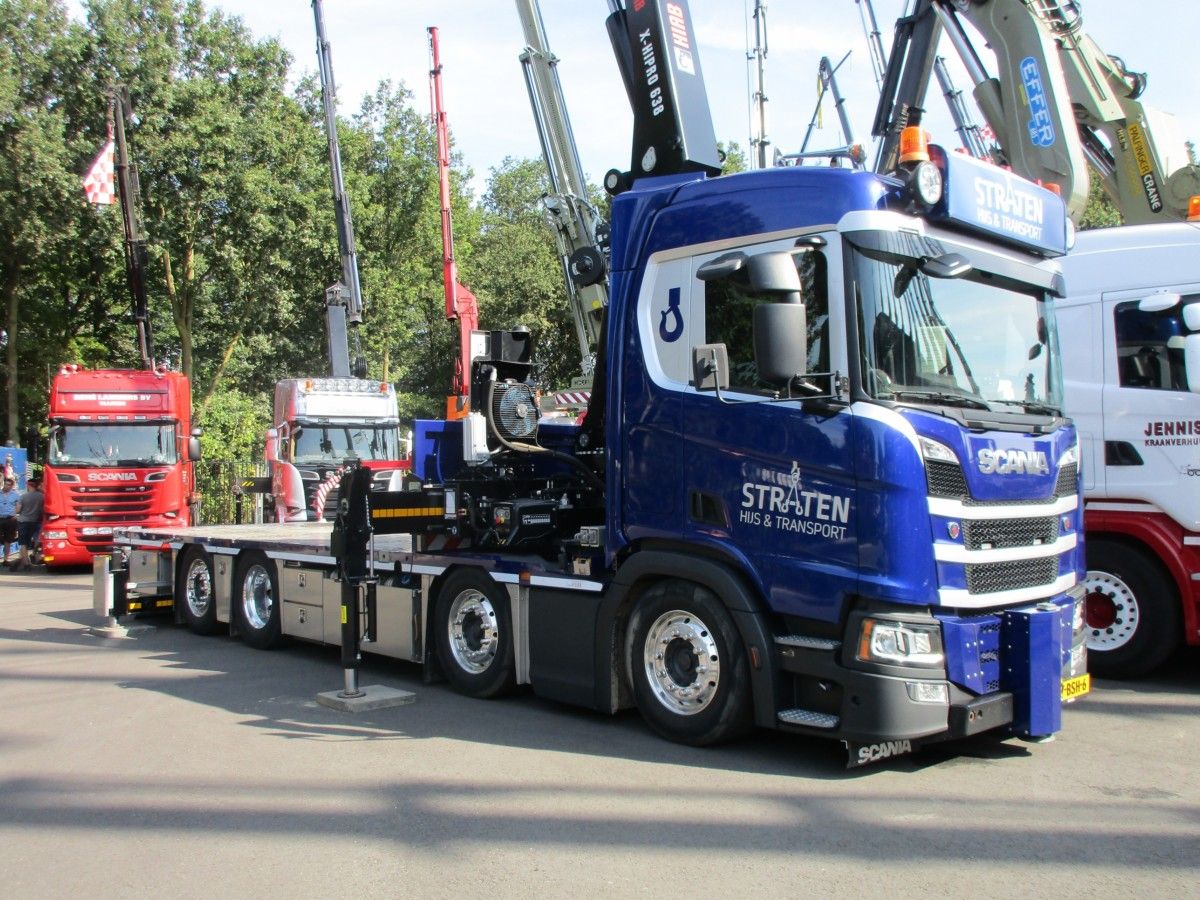

2021 Scania R450 8×2*6.

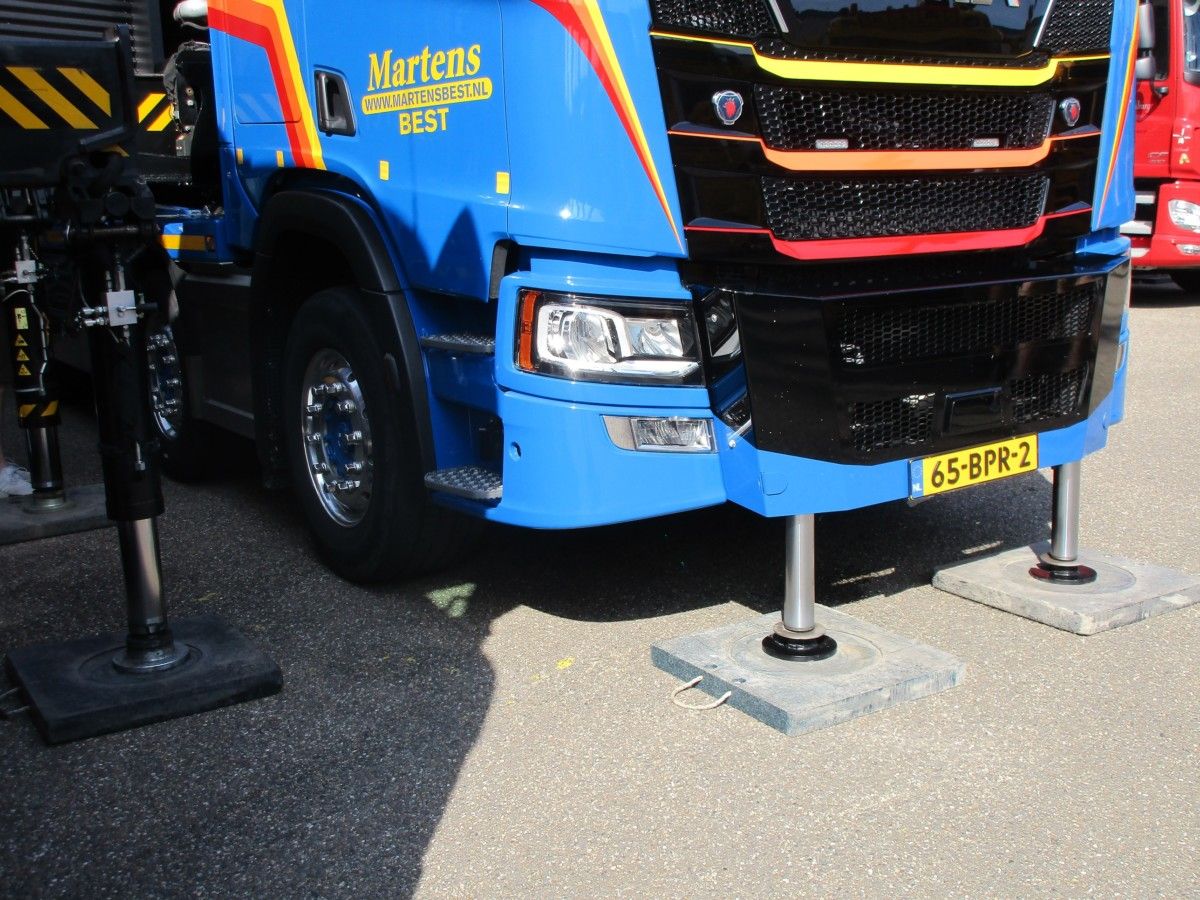

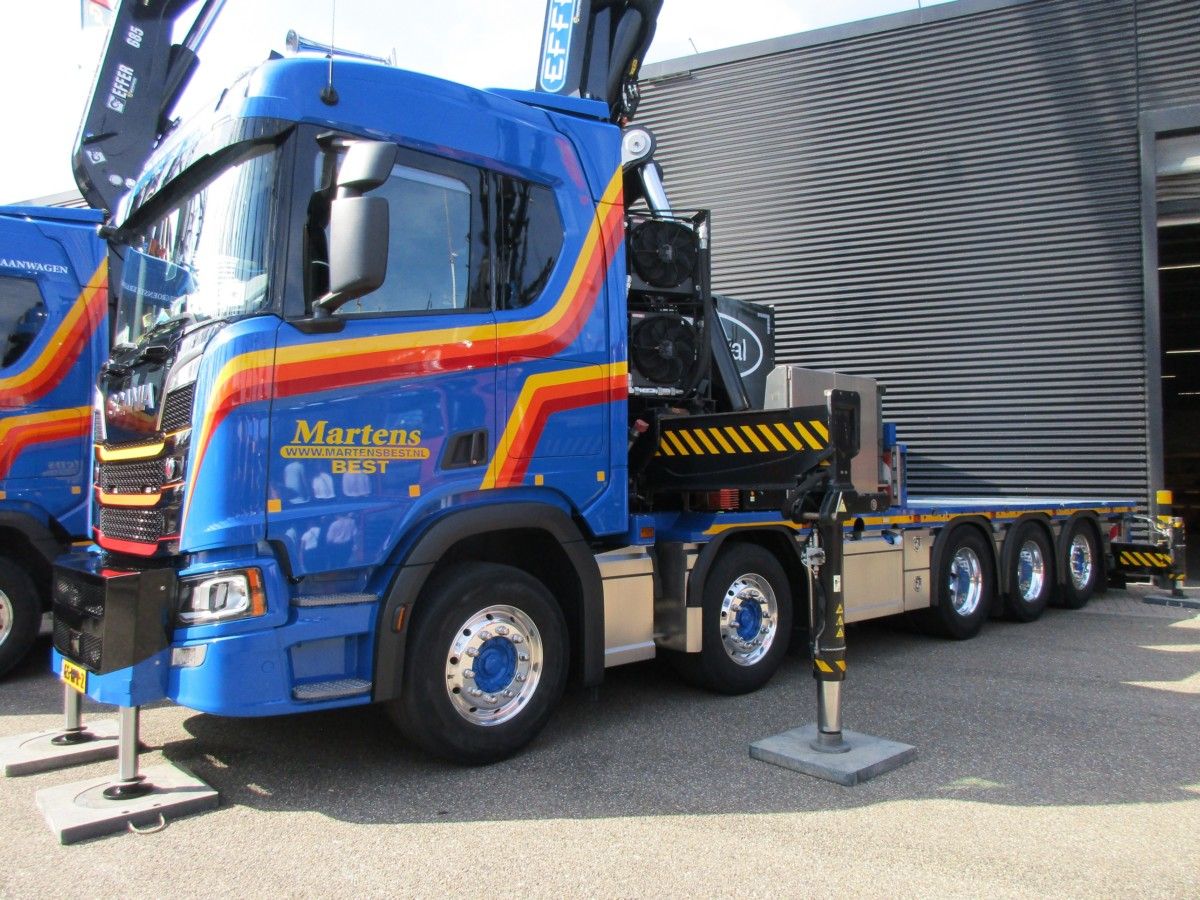

2020 Scania R500 10×4*6.

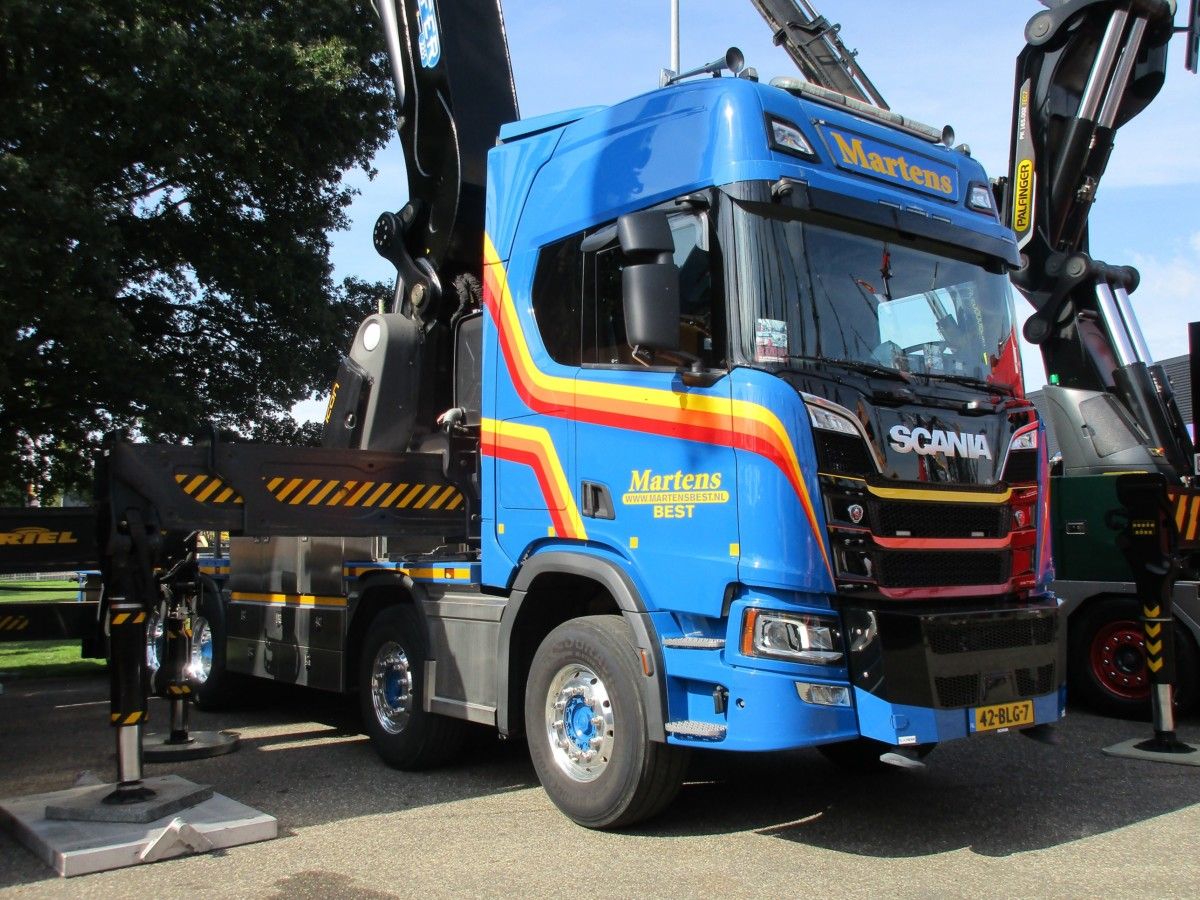

Another Martens Scania, same configuration, yet two years older.

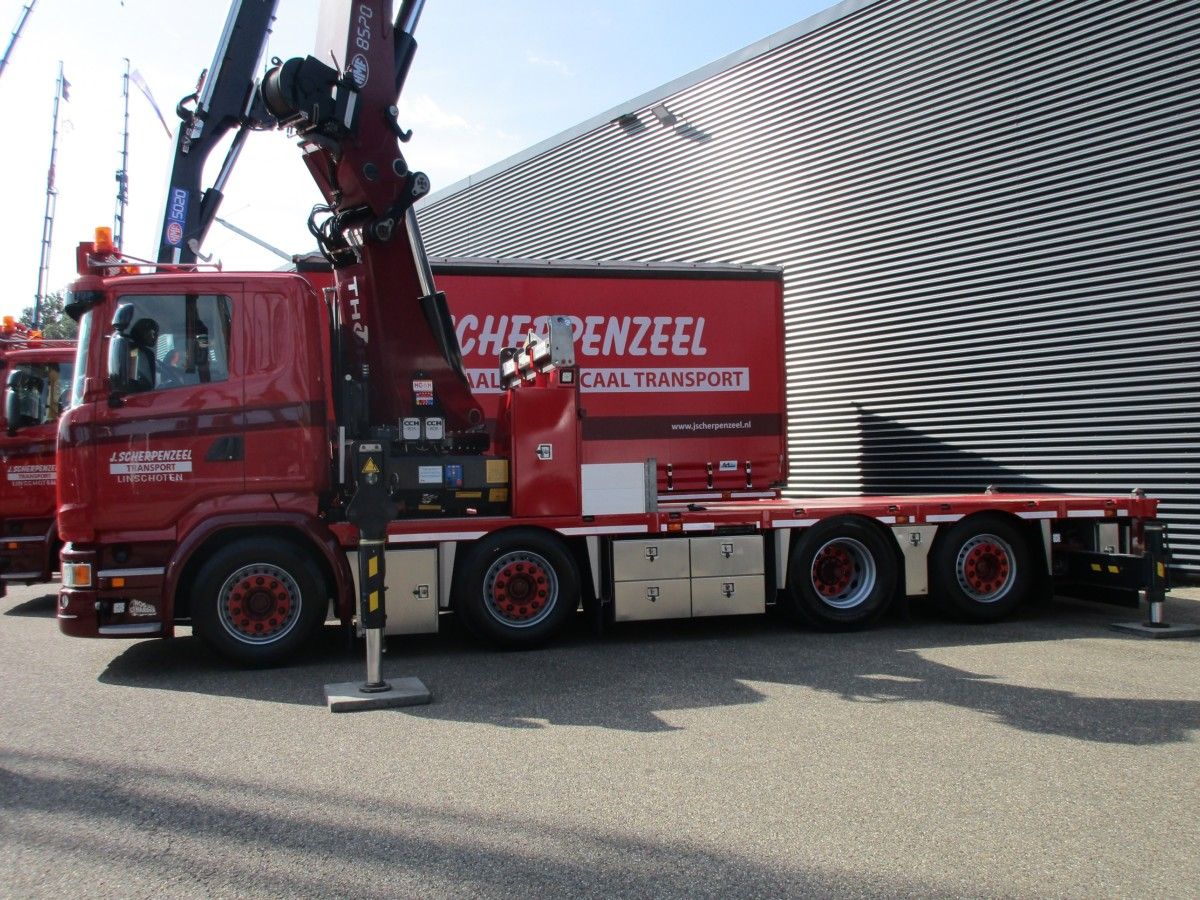

2015 Scania R410 8×2*6.

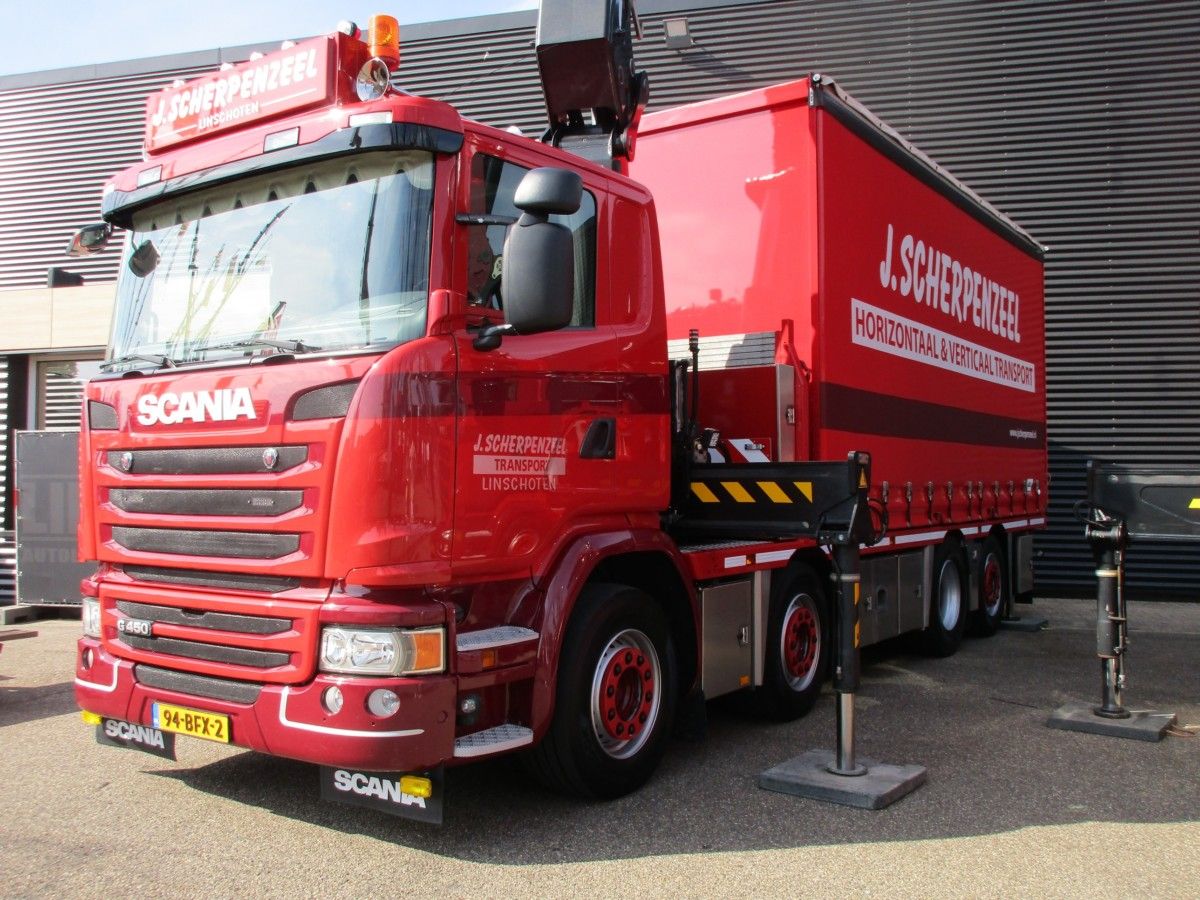

2015 Scania G450 8×2*6.

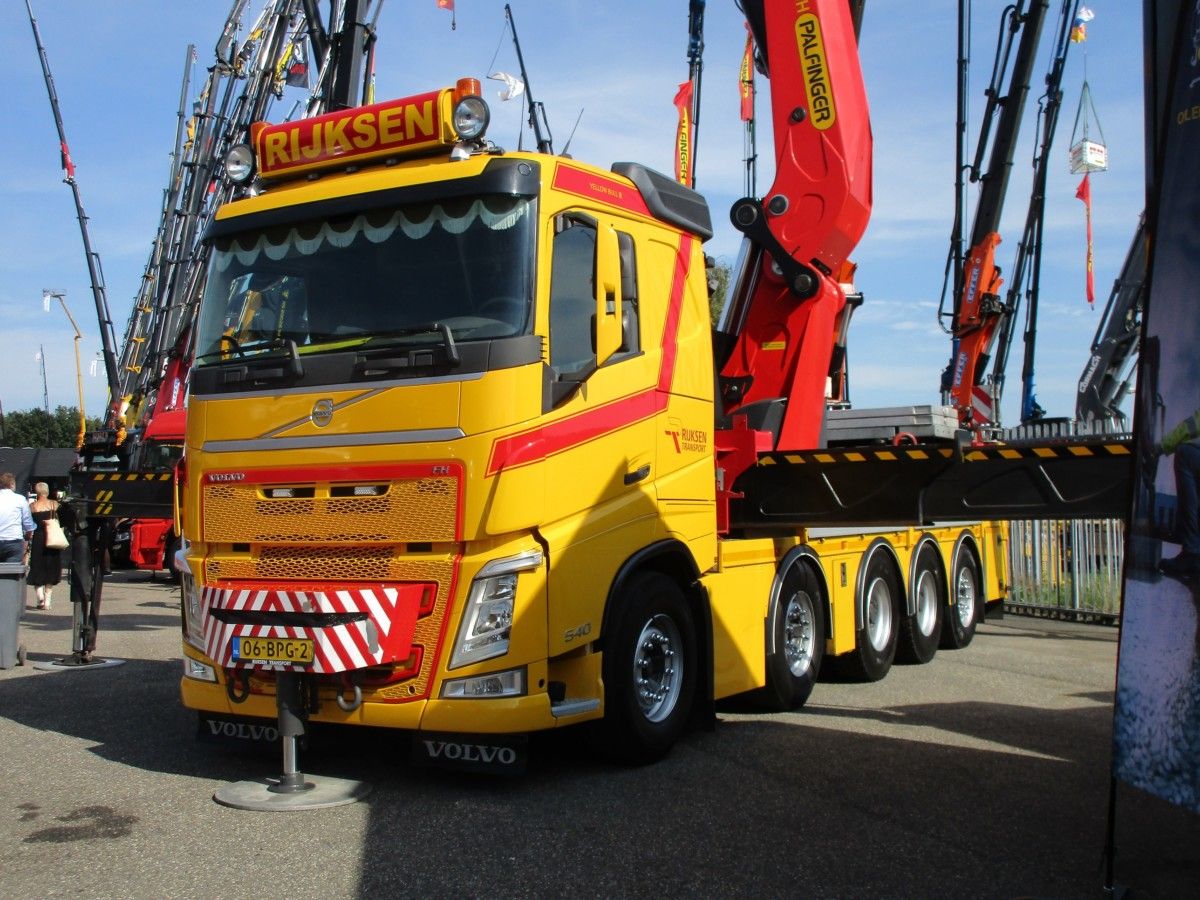

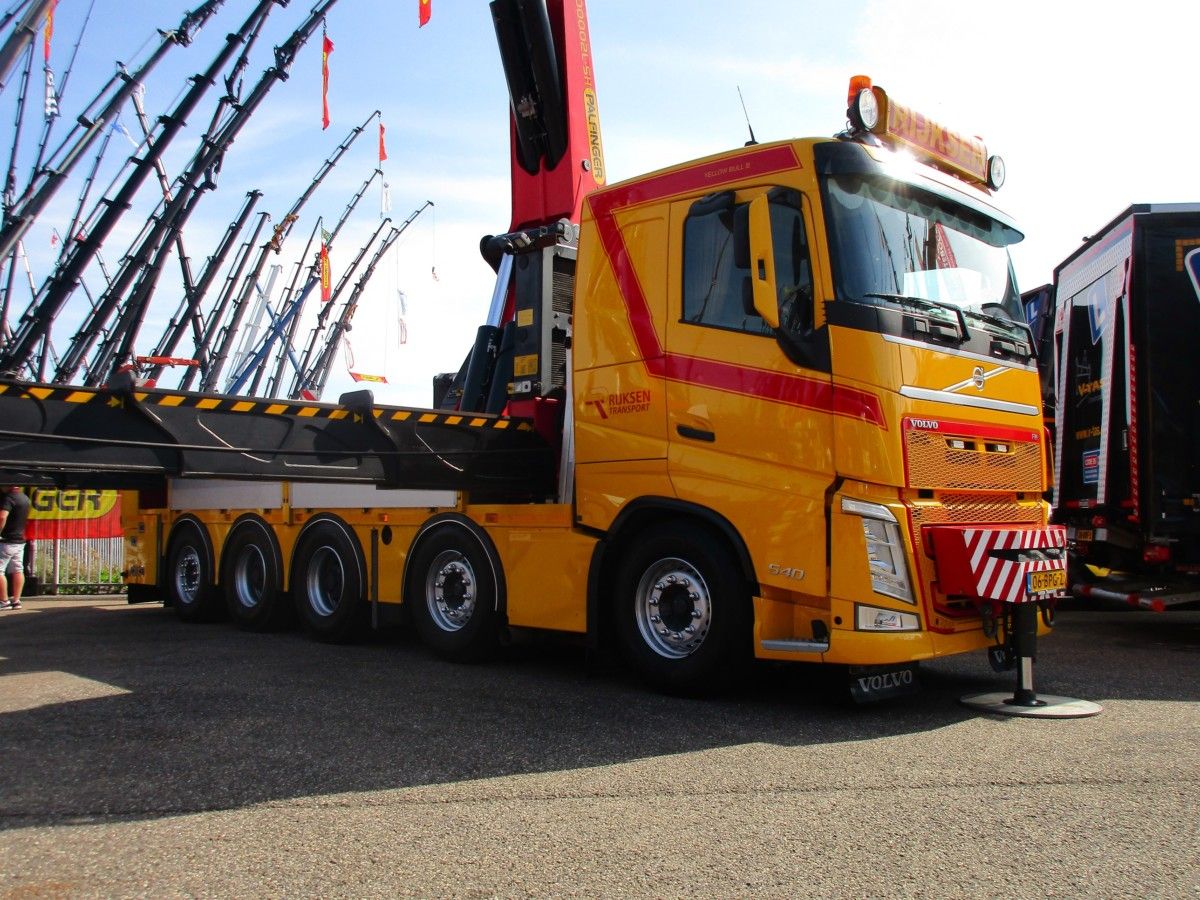

2015 Volvo FH 10×4*6 with a mighty Palfinger crane. Born a weightlifter, this baby’s birth weight was 43,900 kg (96,783 lbs).

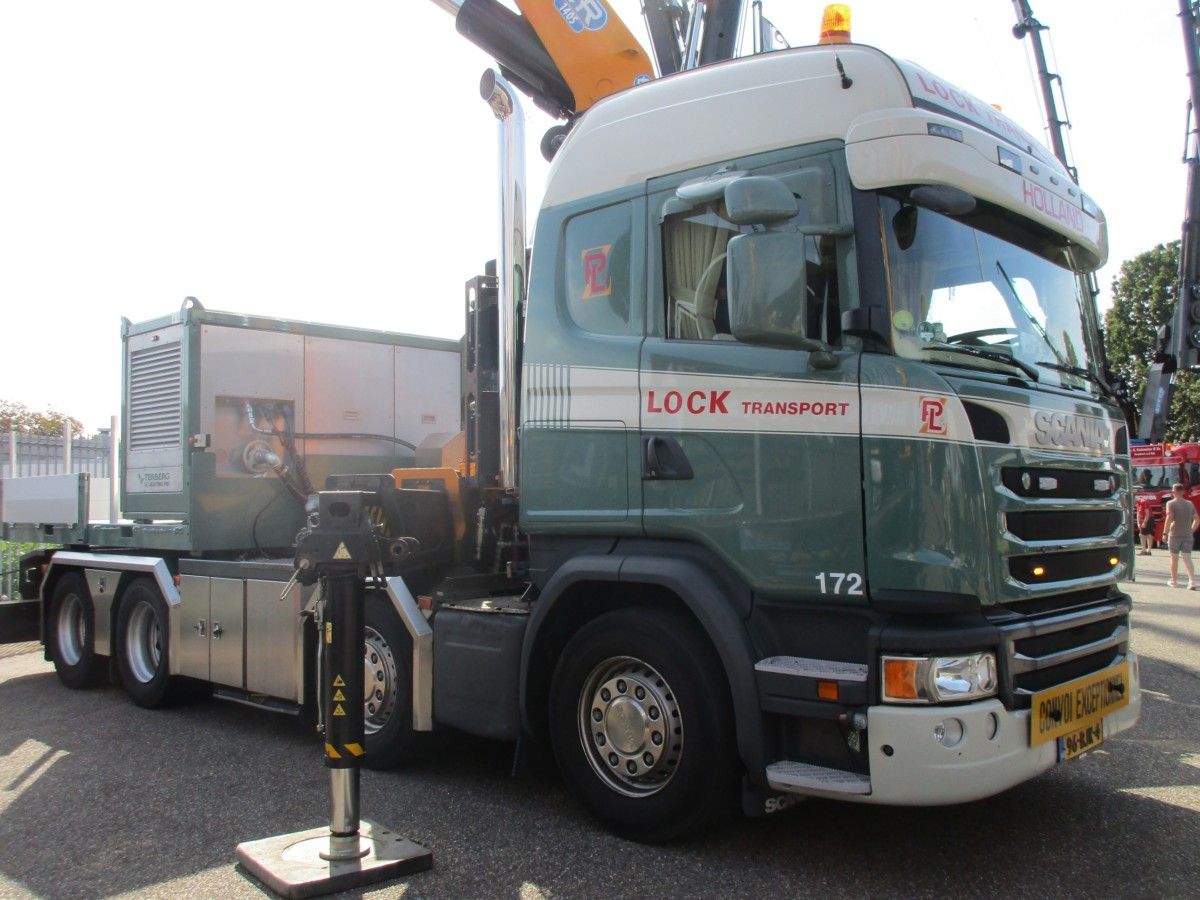

2017 Scania G450 8×4, another tractor unit with a detachable flatbed.

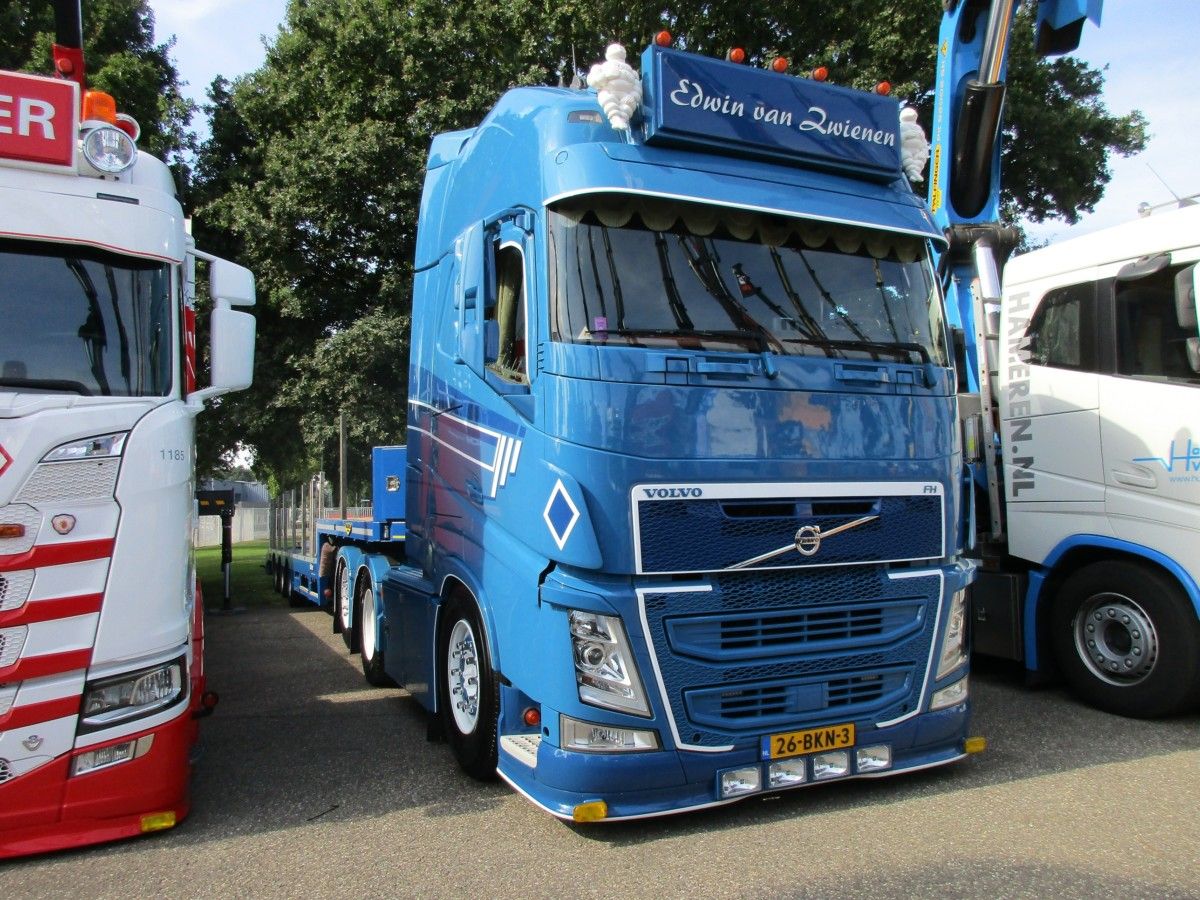

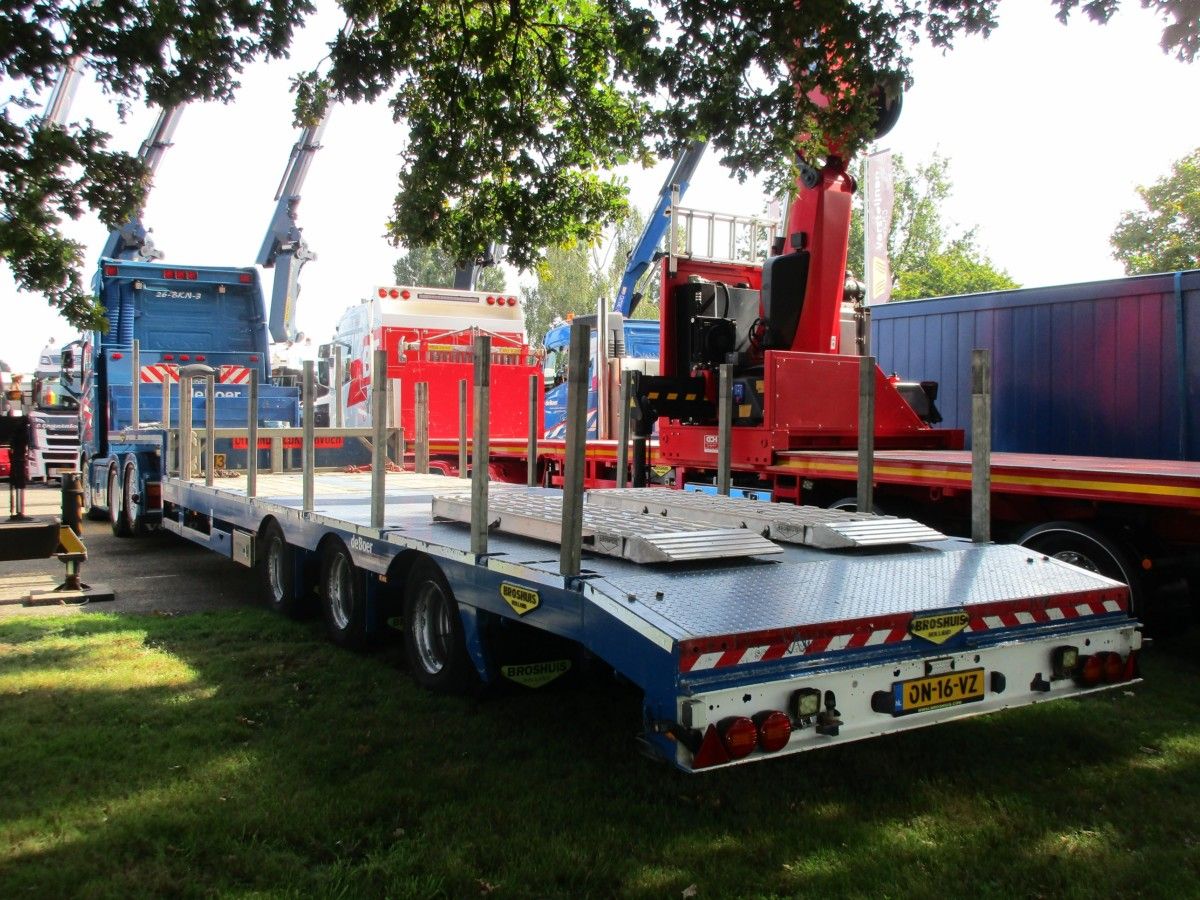

2018 Volvo FH 6×2*4 tractor and a 2015 Broshuis tridem axle semi-low loader (‘semi’ as in the bed on top of the wheels).

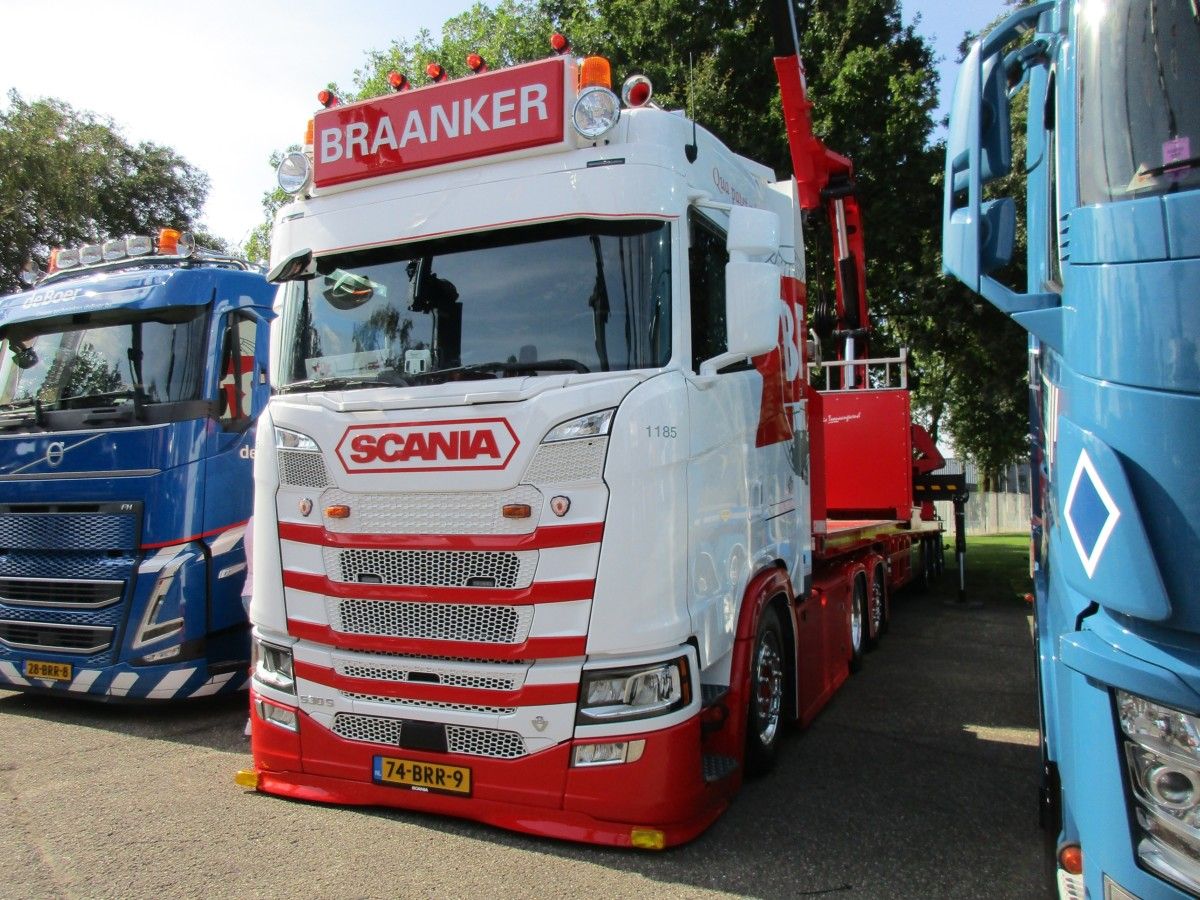

2021 Scania S530 V8 6×2*4 tractor and a Broshuis tridem axle semi-trailer with two cranes, the one in the center is a rolloader.

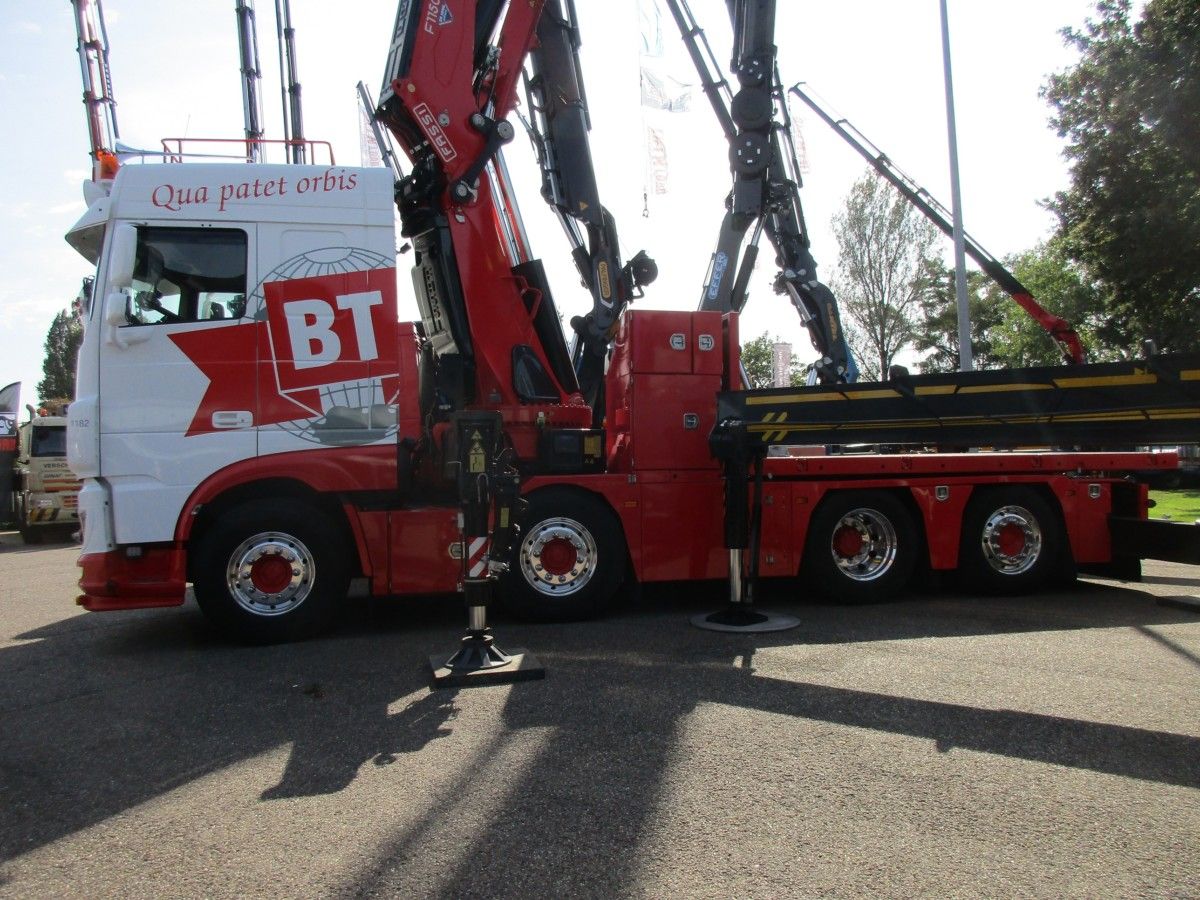

2021 DAF XF 530 8×2*6. ‘Qua patet orbis’ is Latin for ‘As far as the world extends’, which is also the motto of our Marine Corps.

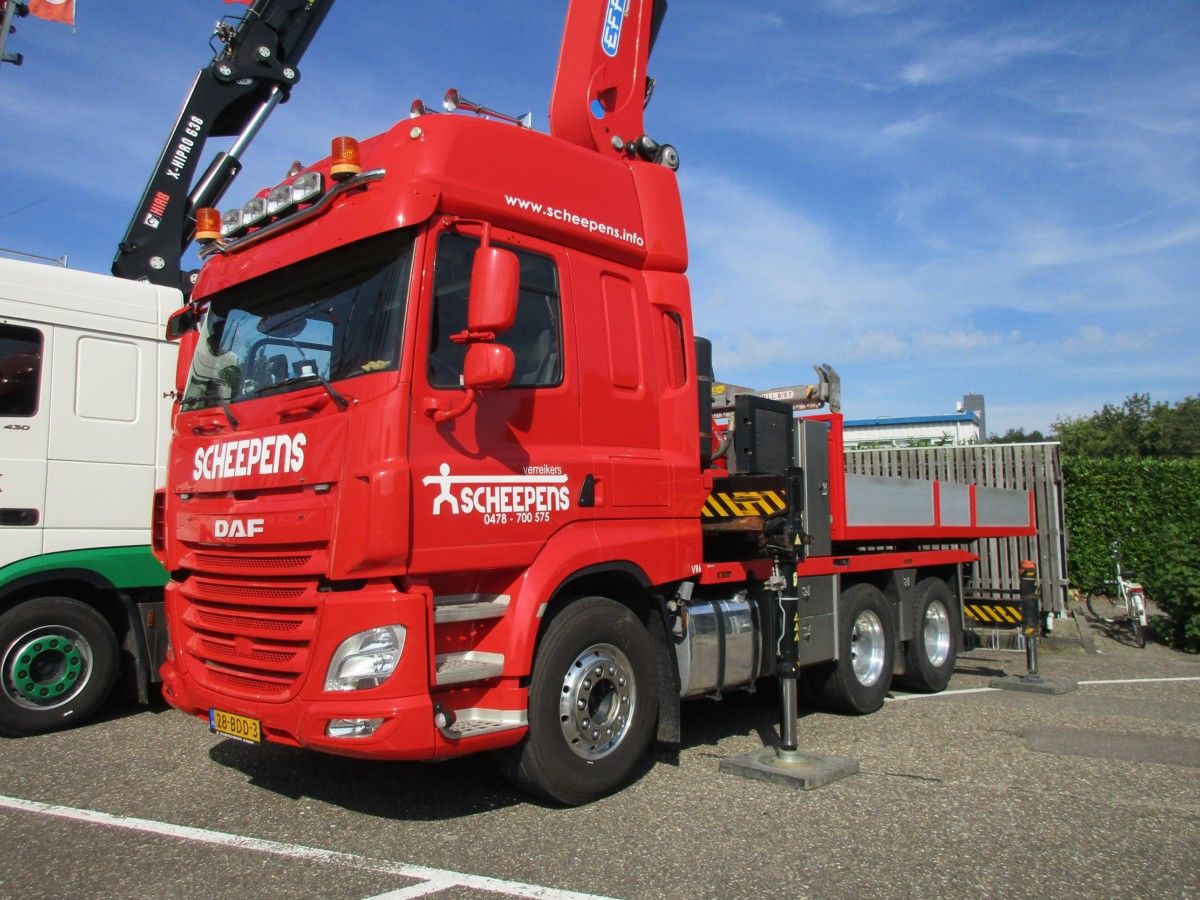

2013 DAF CF 510 6×4.
An appropriate company name for sure.

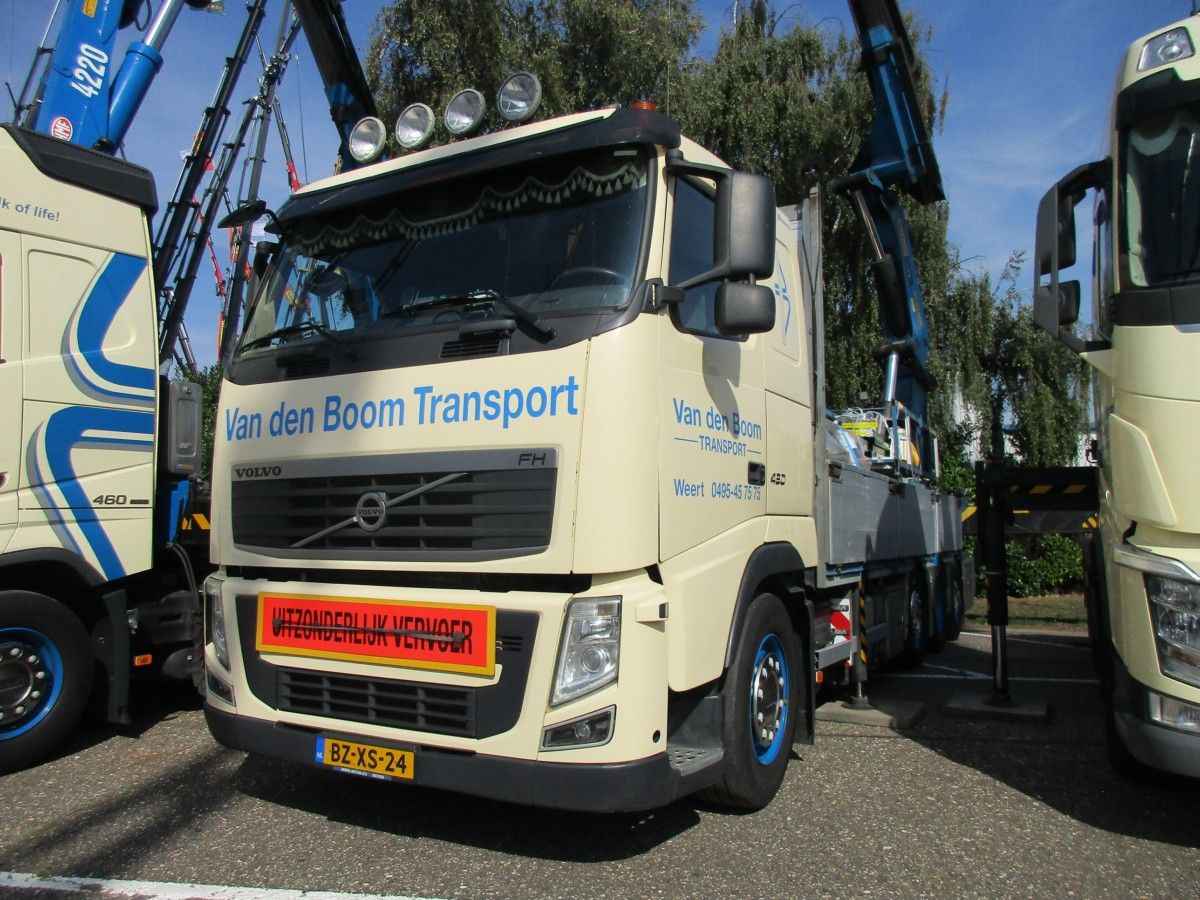

2012 Volvo FH 8×2 tridem.

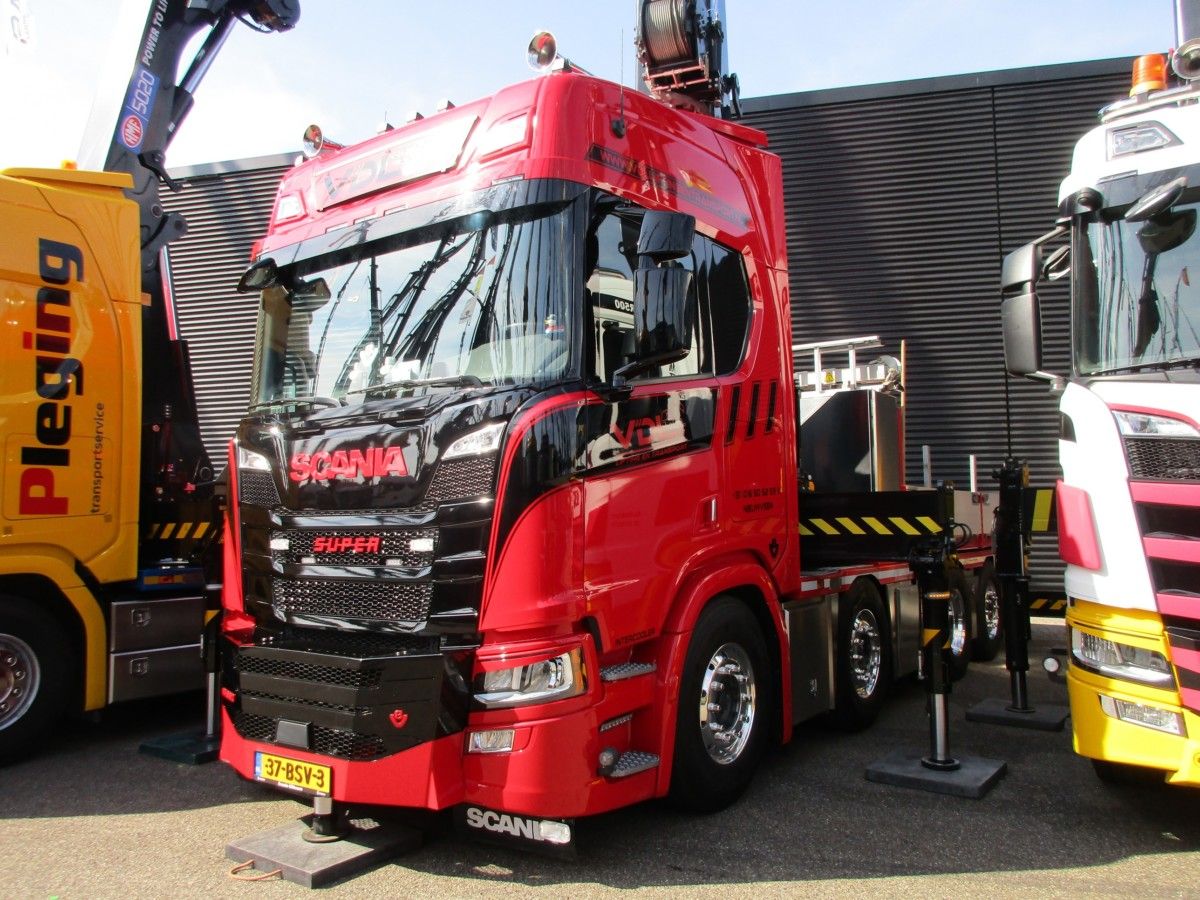

2022 Scania R660 V8 8×2*6.

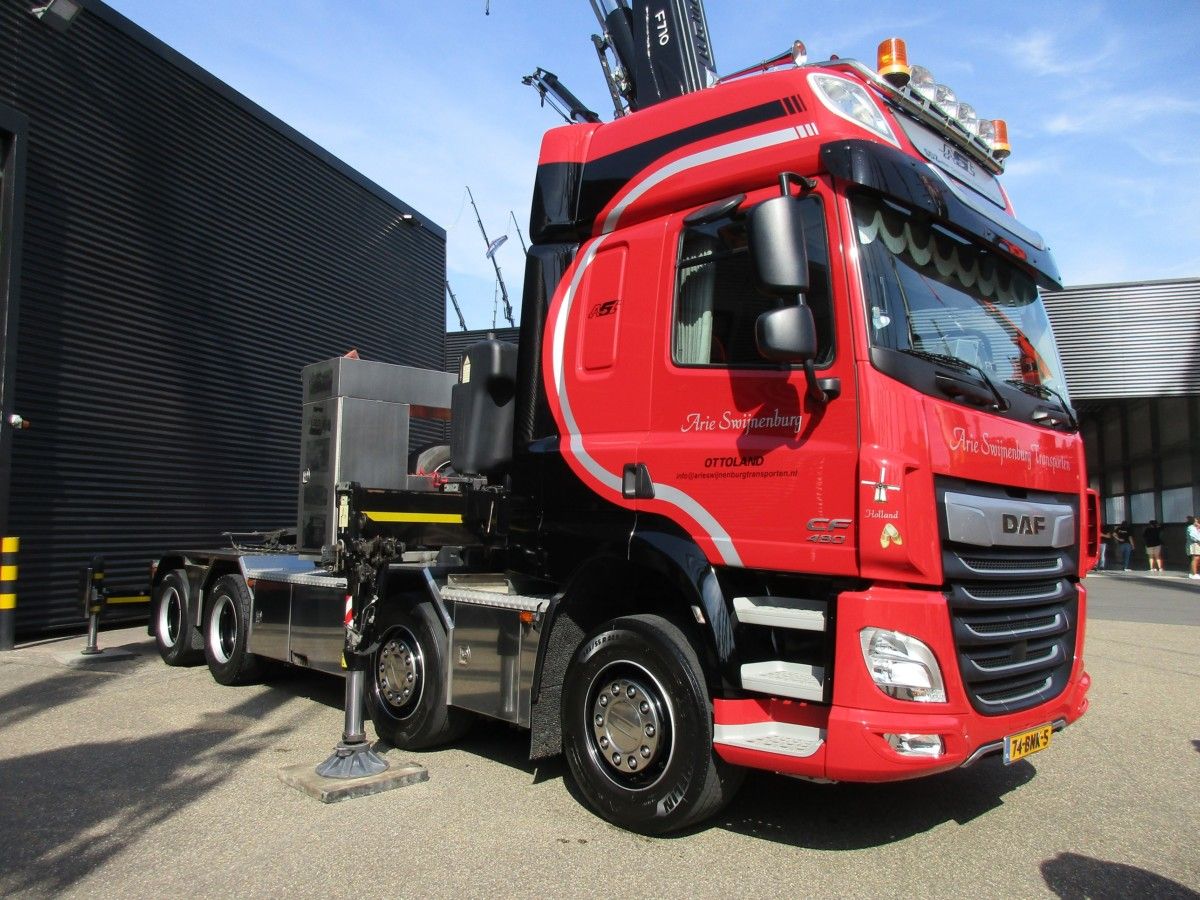

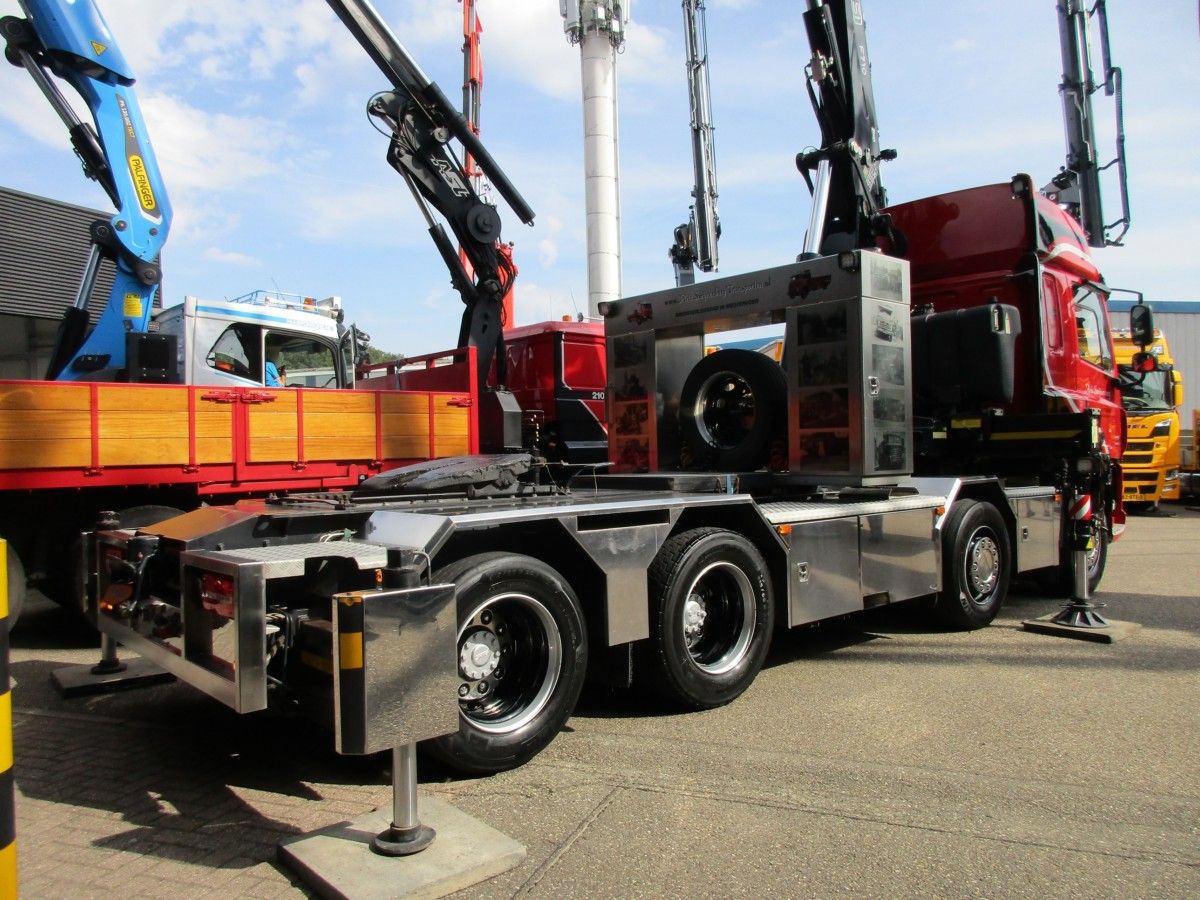

2019 DAF CF 480 8×2.

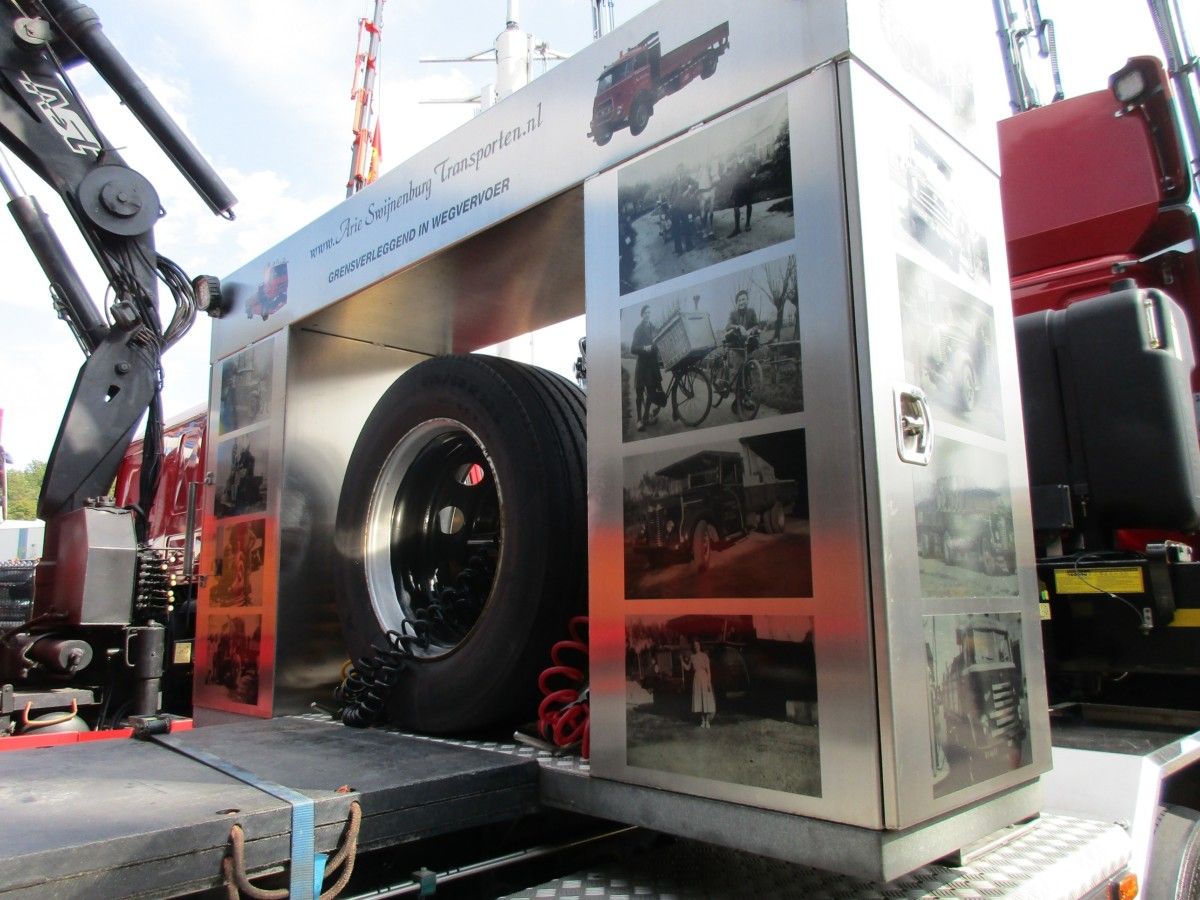

A pictorial overview of the company history.

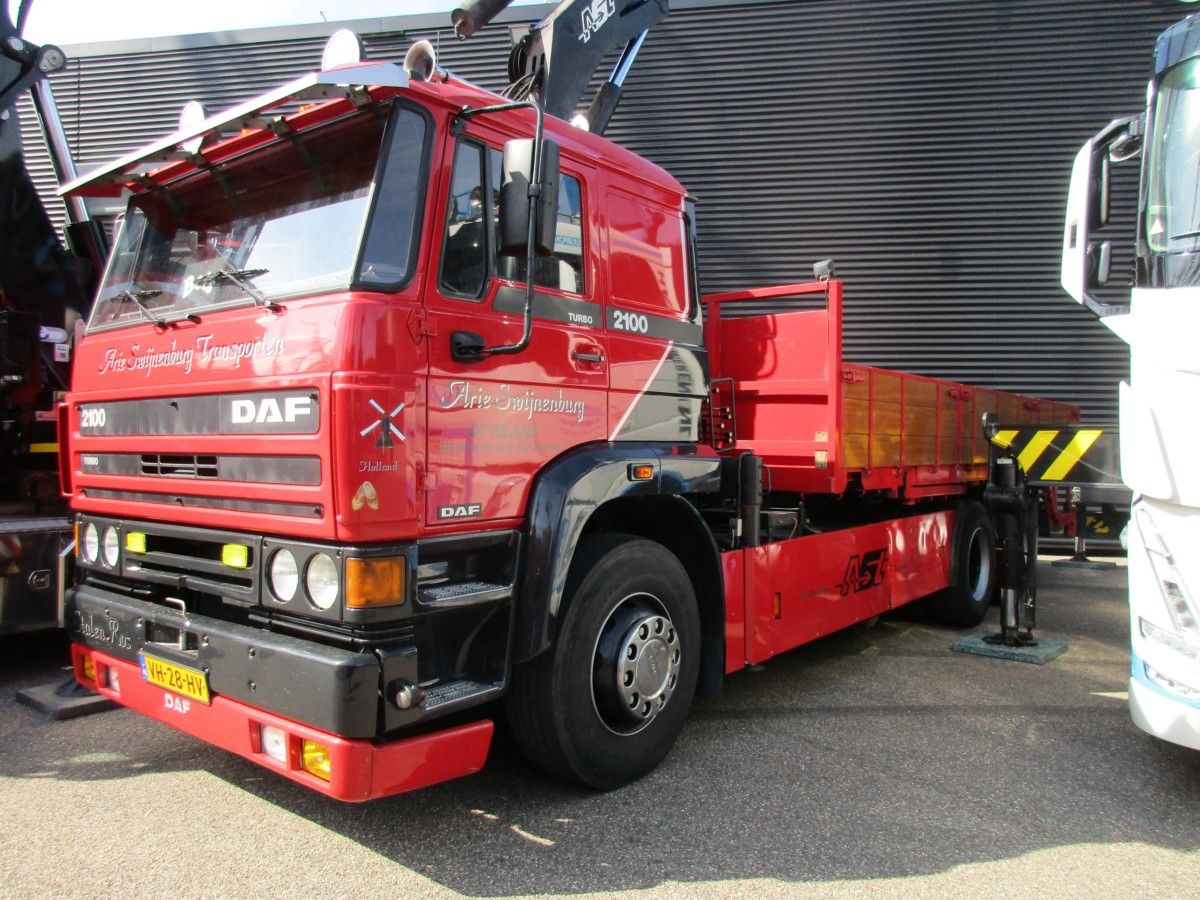

1990 DAF 2100 Turbo 6×2.

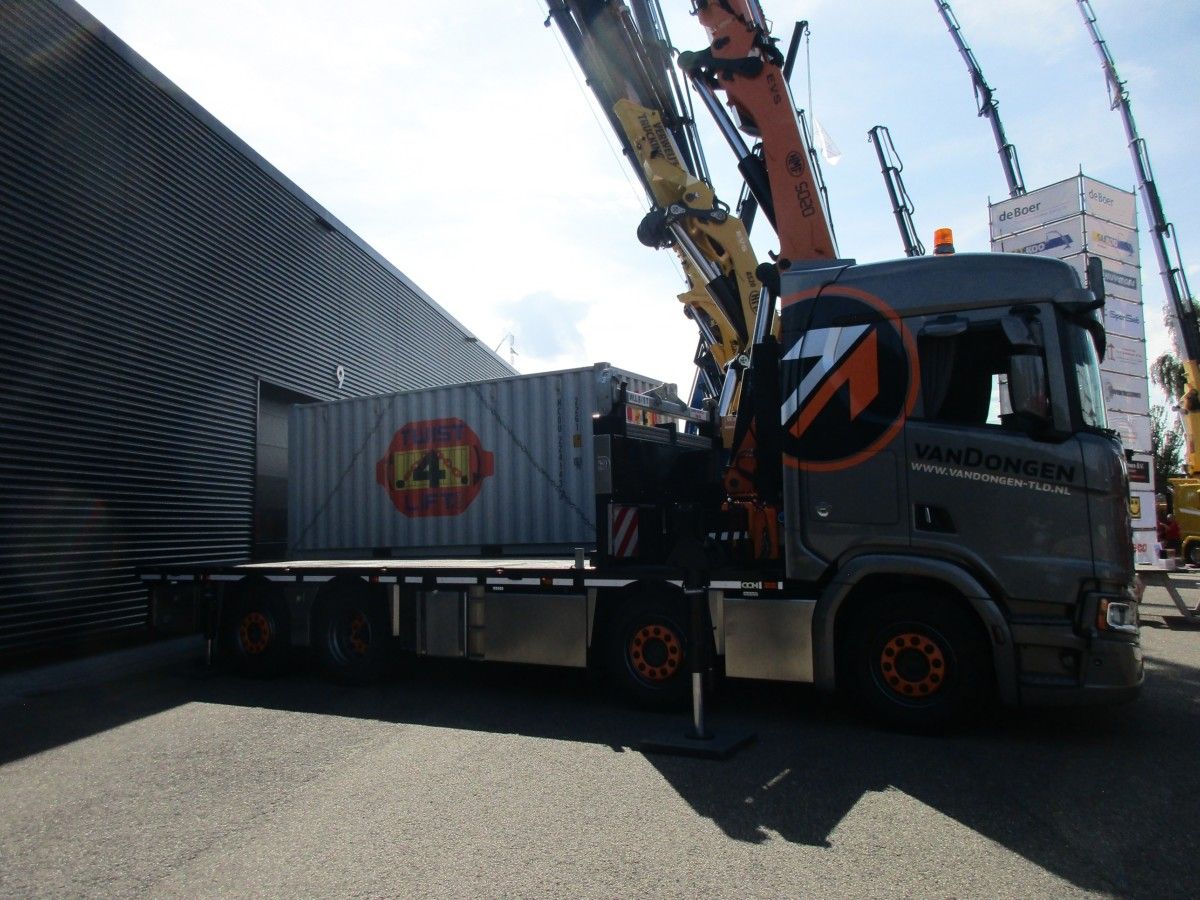

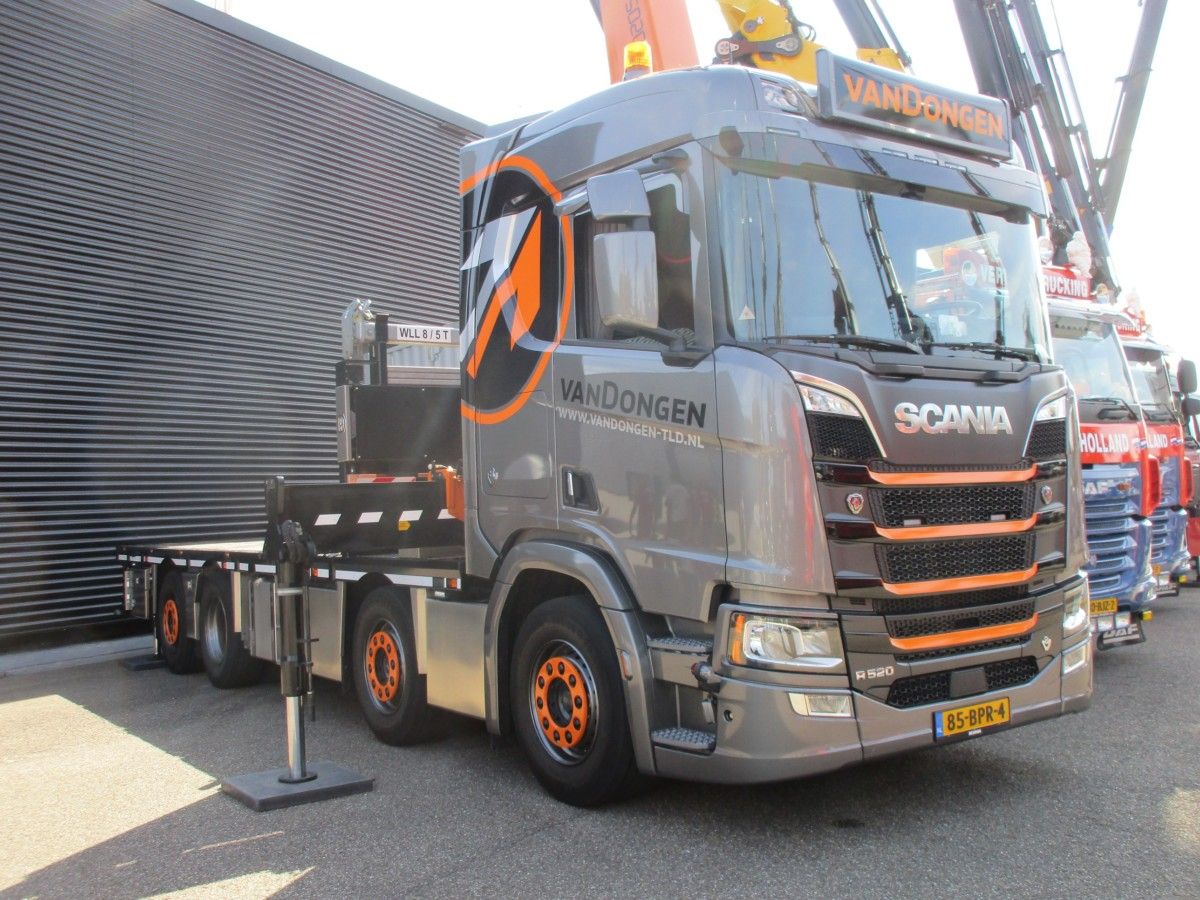

2020 Scania R520 V8 8×2*6.

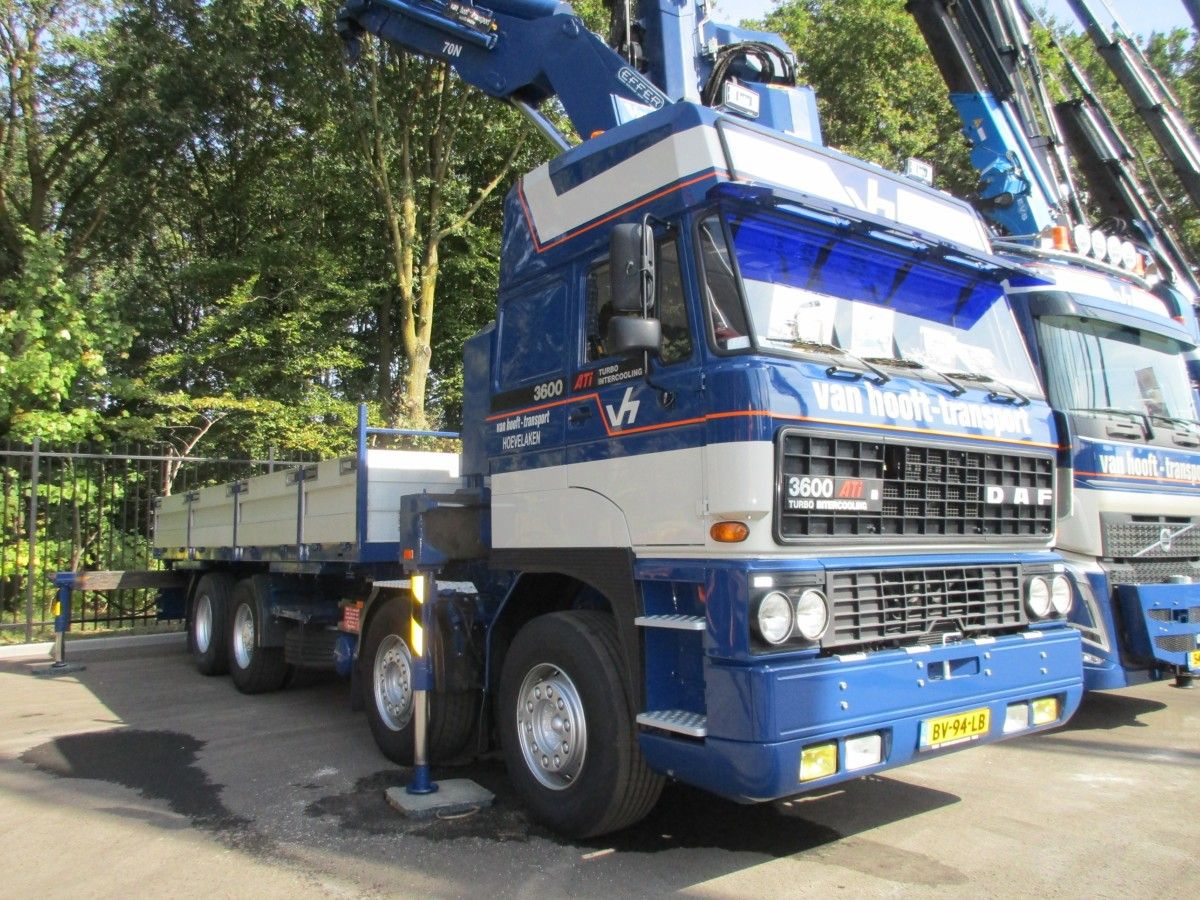

1987 DAF 3600 ATi 8×2.

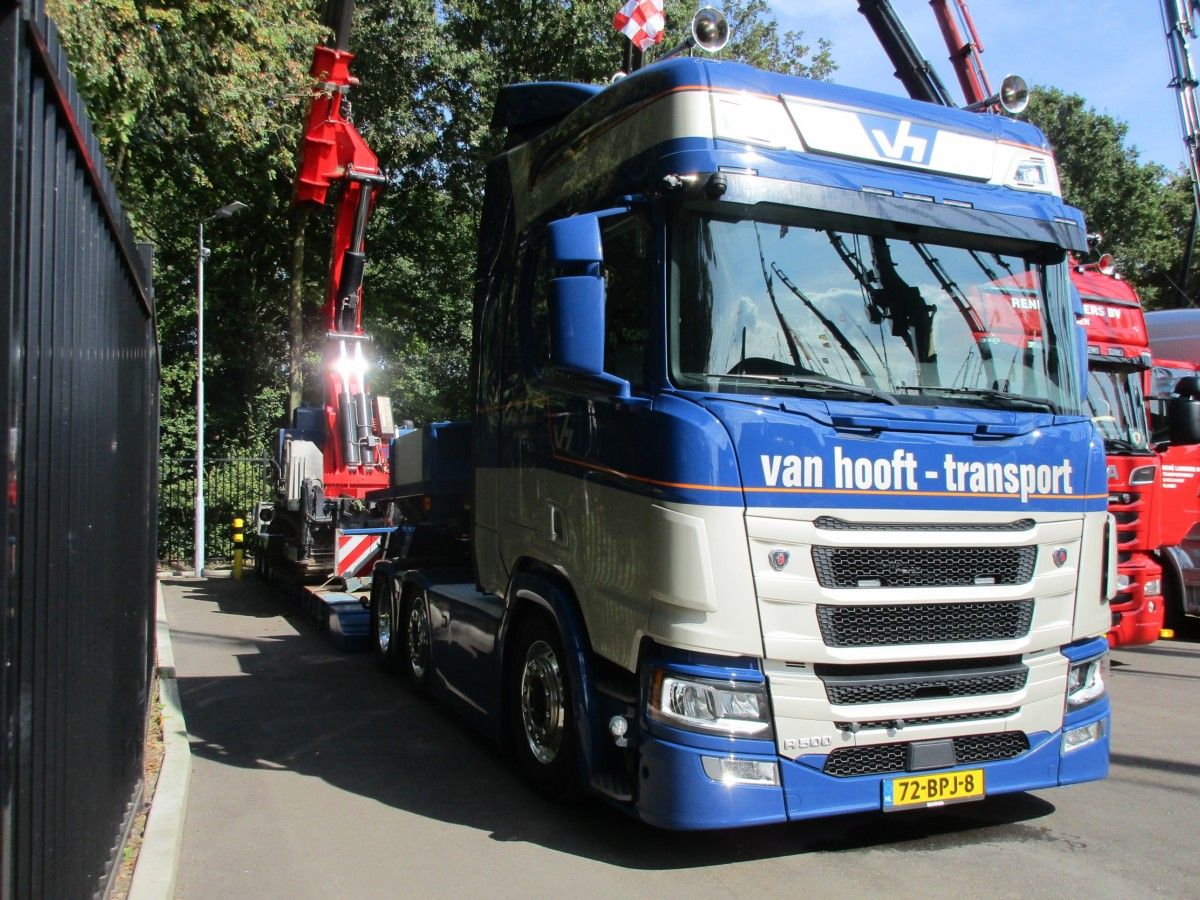

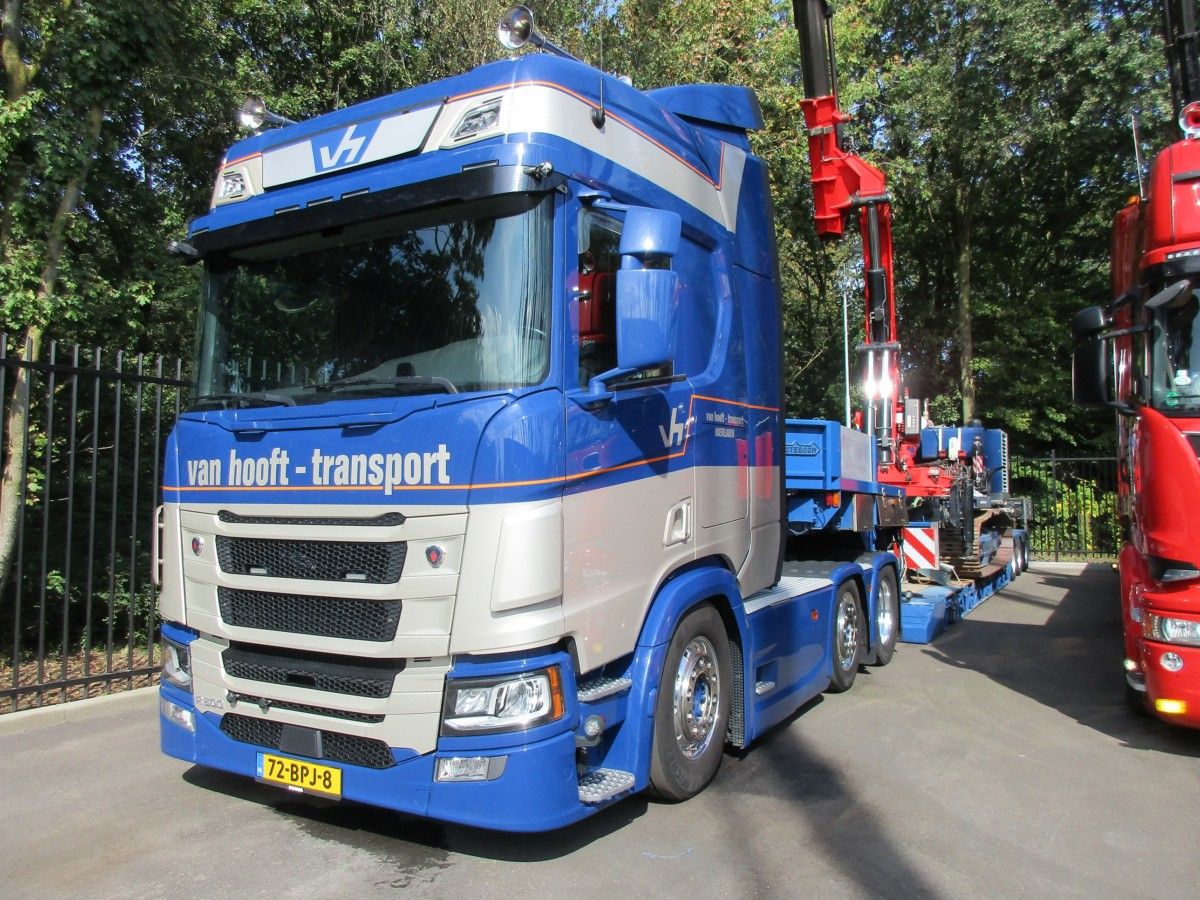

2020 Scania R500 6×2/4 tractor and a Nooteboom tridem axle low loader.

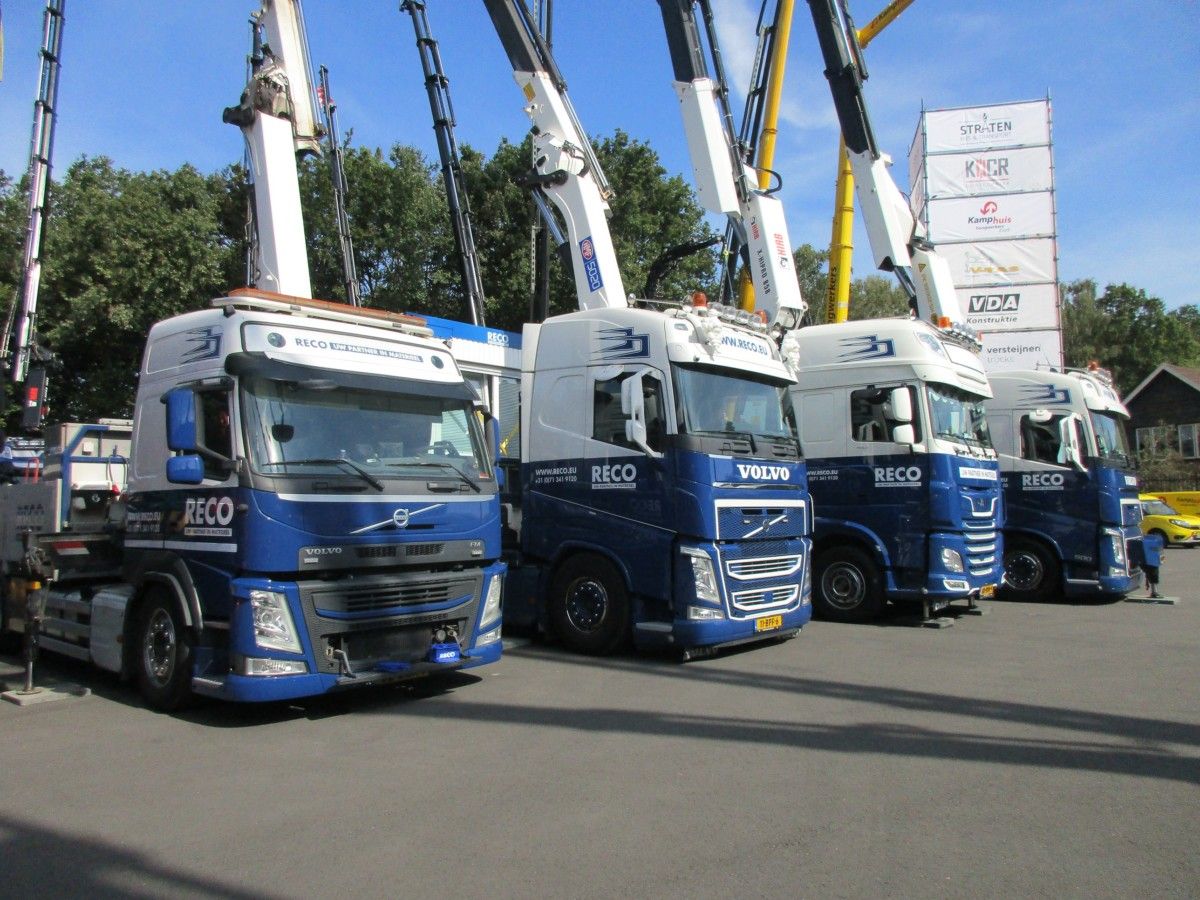

Some members of the Reco family, from left to right: Volvo FM, Volvo FH, DAF XF, Volvo FH.

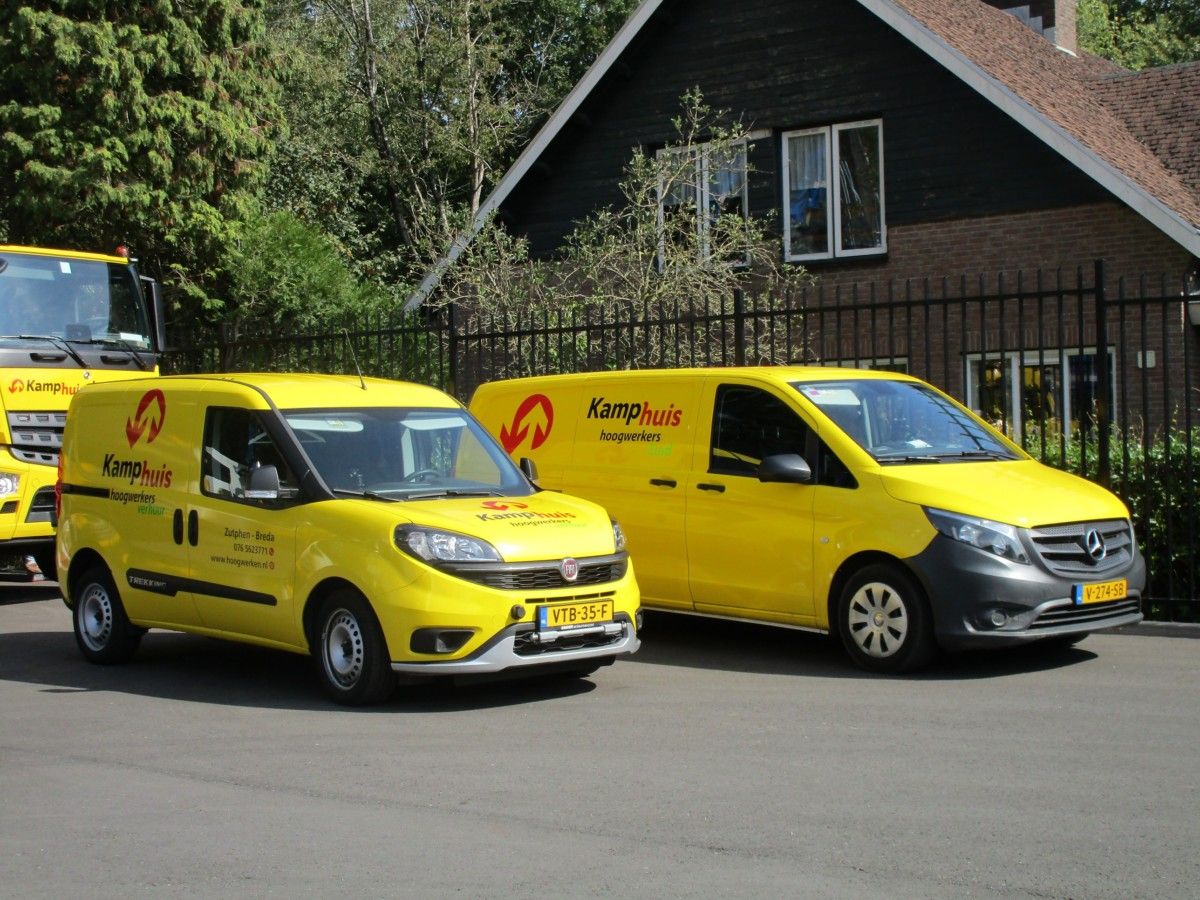

Two Kamphuis service vans, a 2022 Fiat Doblò 1.6 MultiJet 105 and a 2018 Mercedes-Benz Vito 1.6 CDI (Renault powered, FWD).

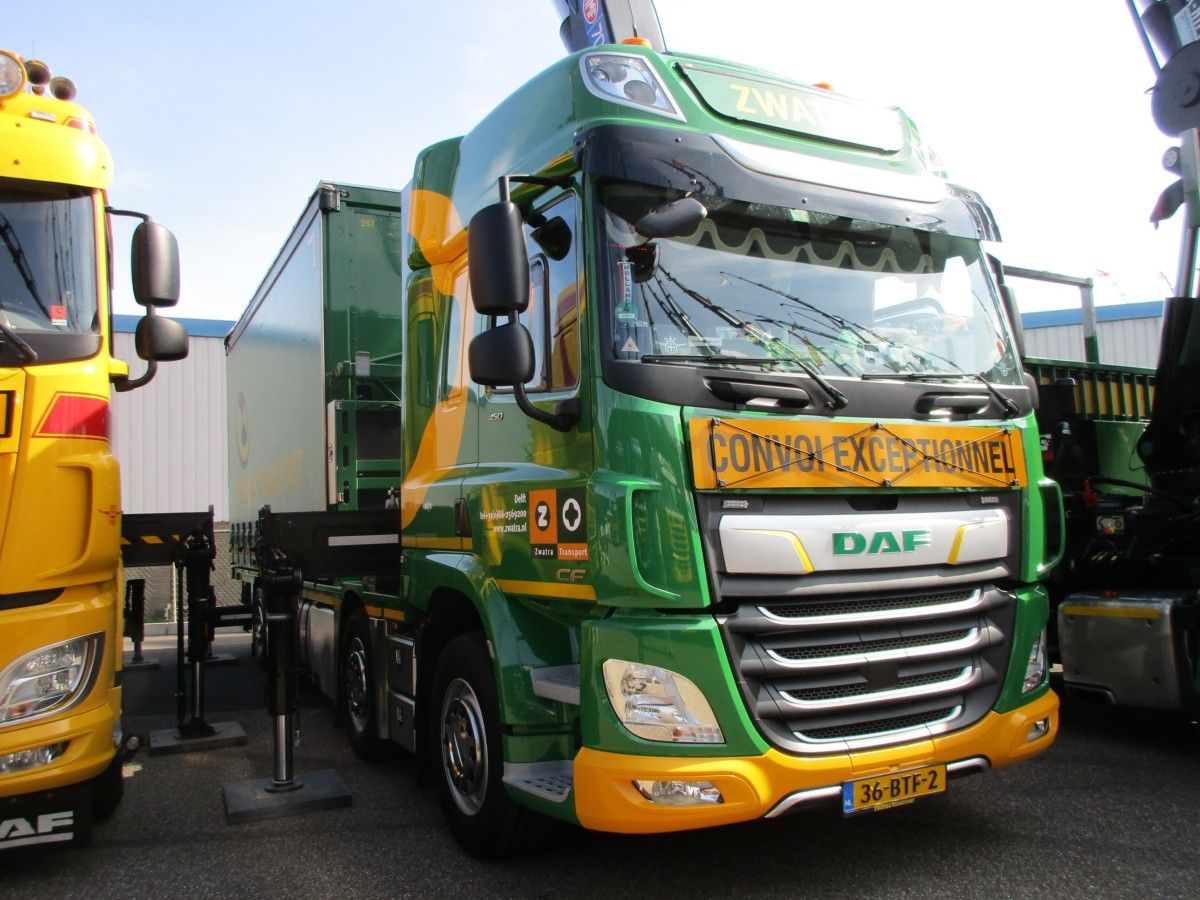

2022 DAF CF 450 8×2*6.
A Swedish couple.

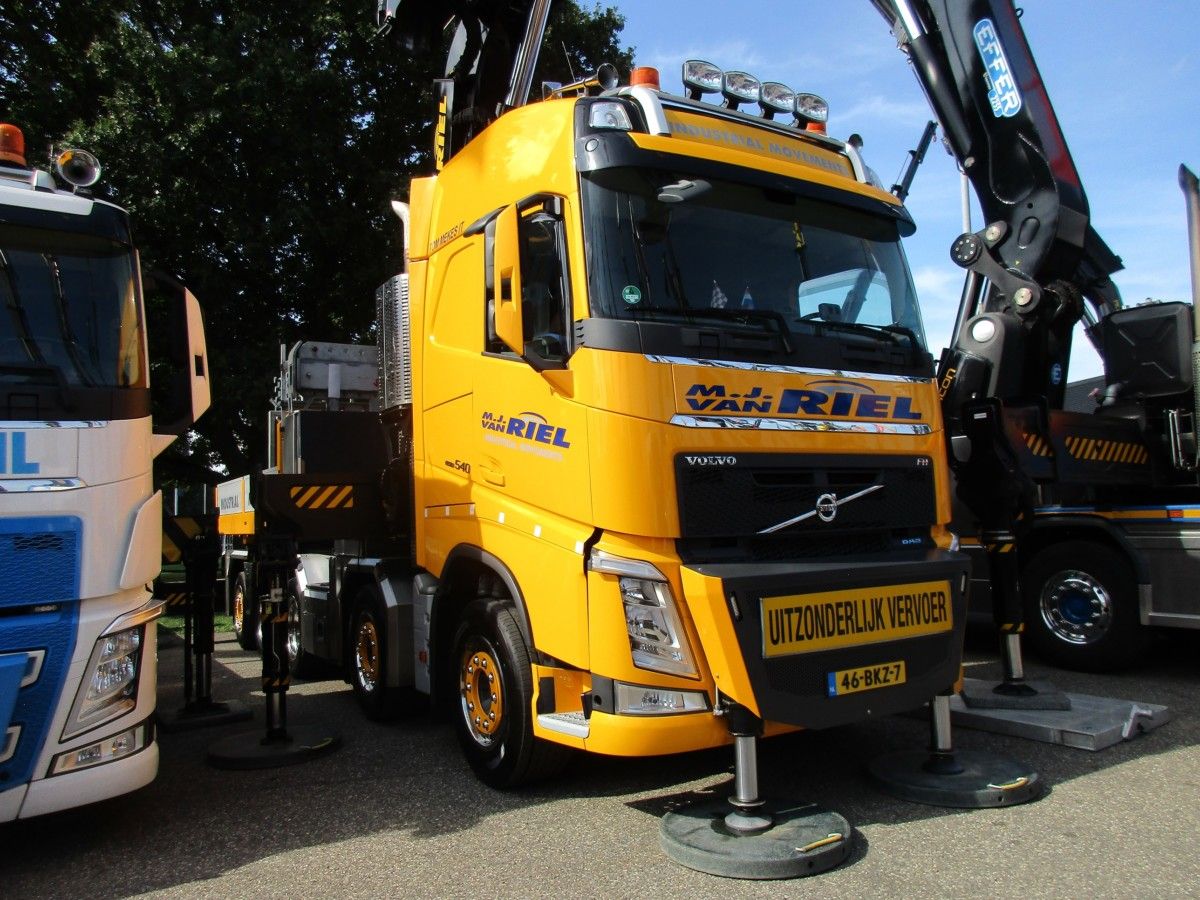

2018 Volvo FH 10×4*6.

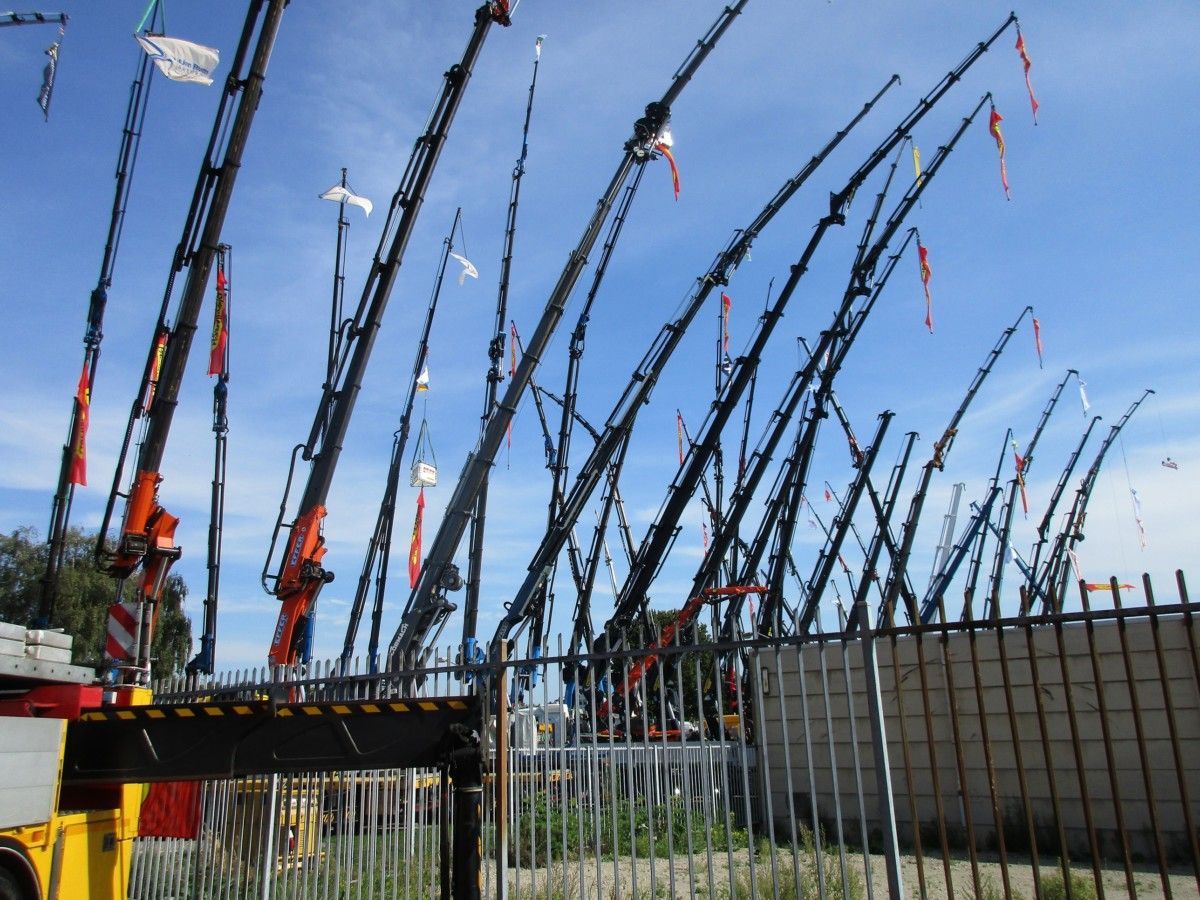

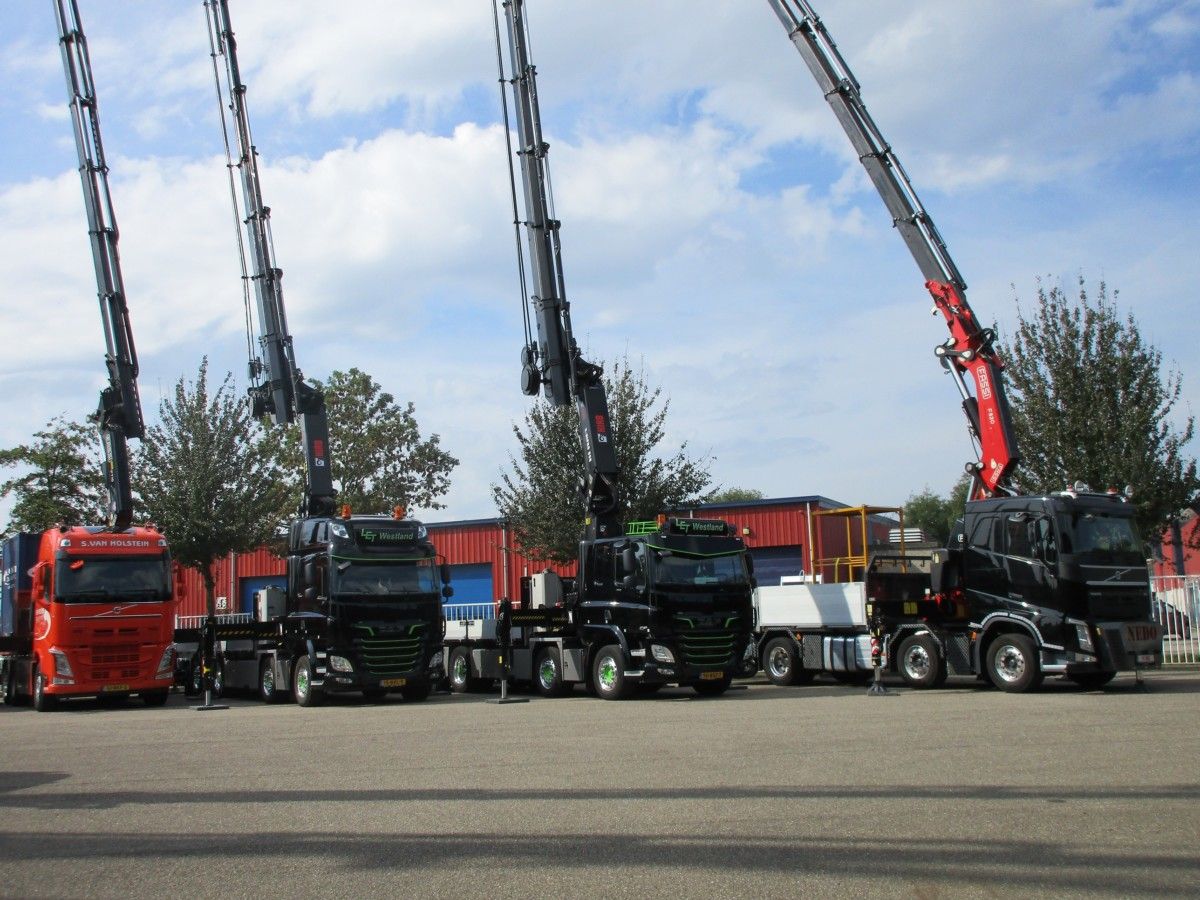

Taking some distance for a moment.

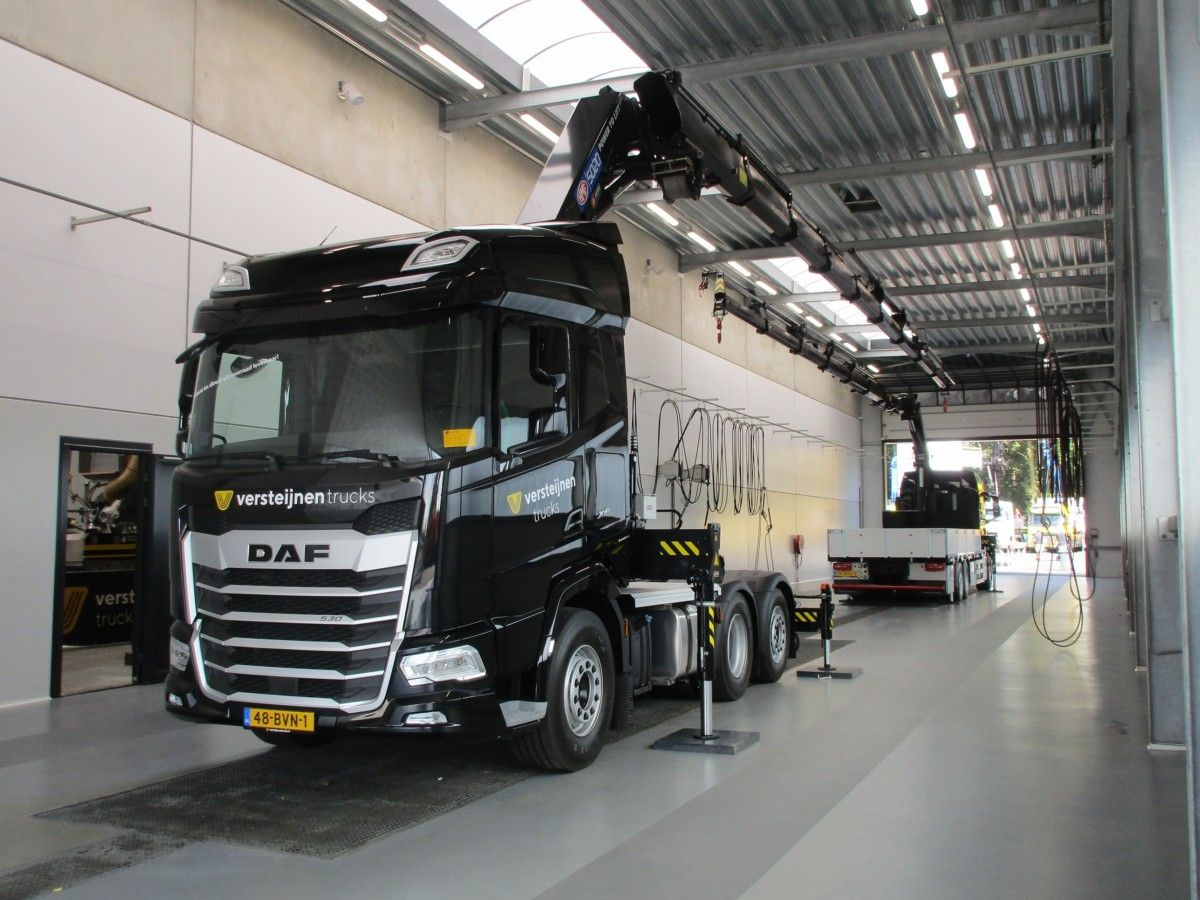

2023 DAF XF 530 6×2*4 tractor. Versteijnen Trucks hosted the show. Better keep those cranes in a more horizontal position here.

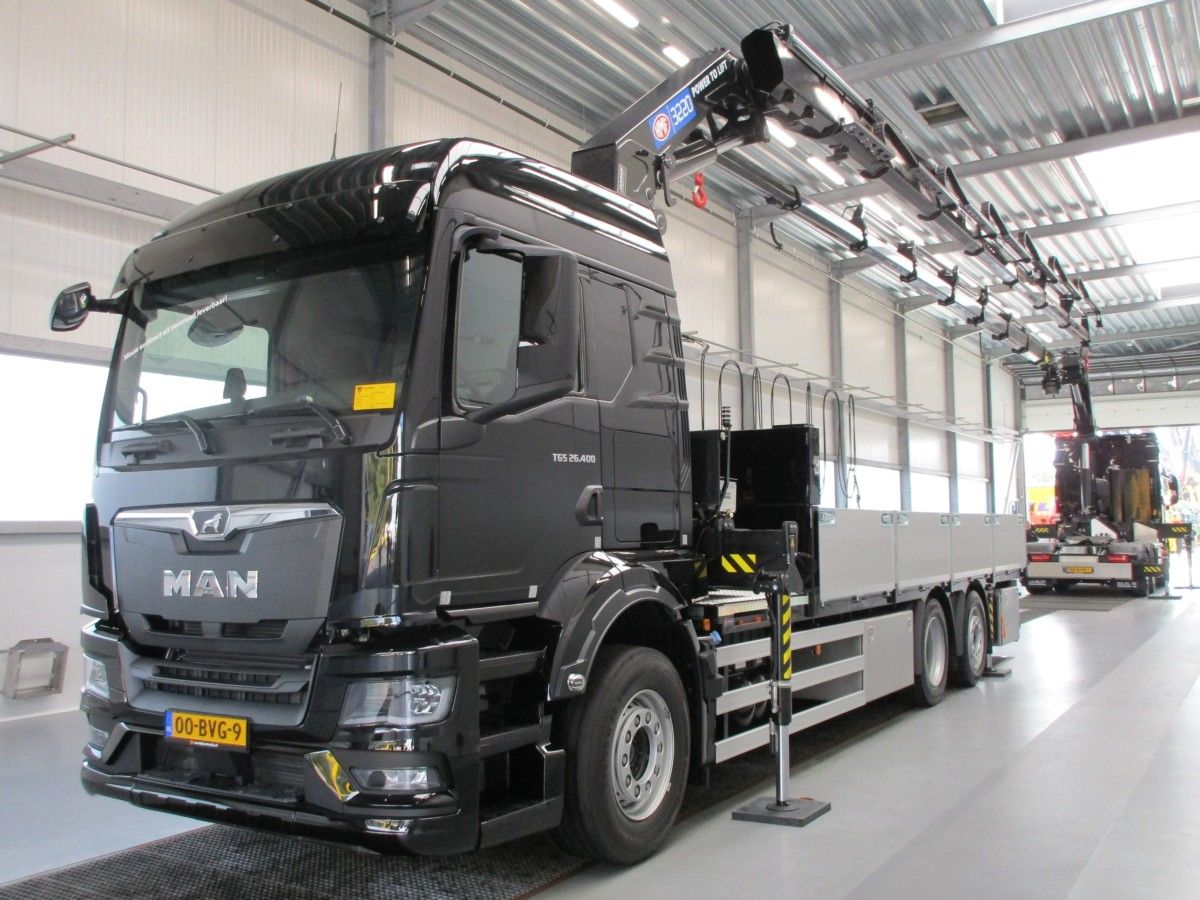

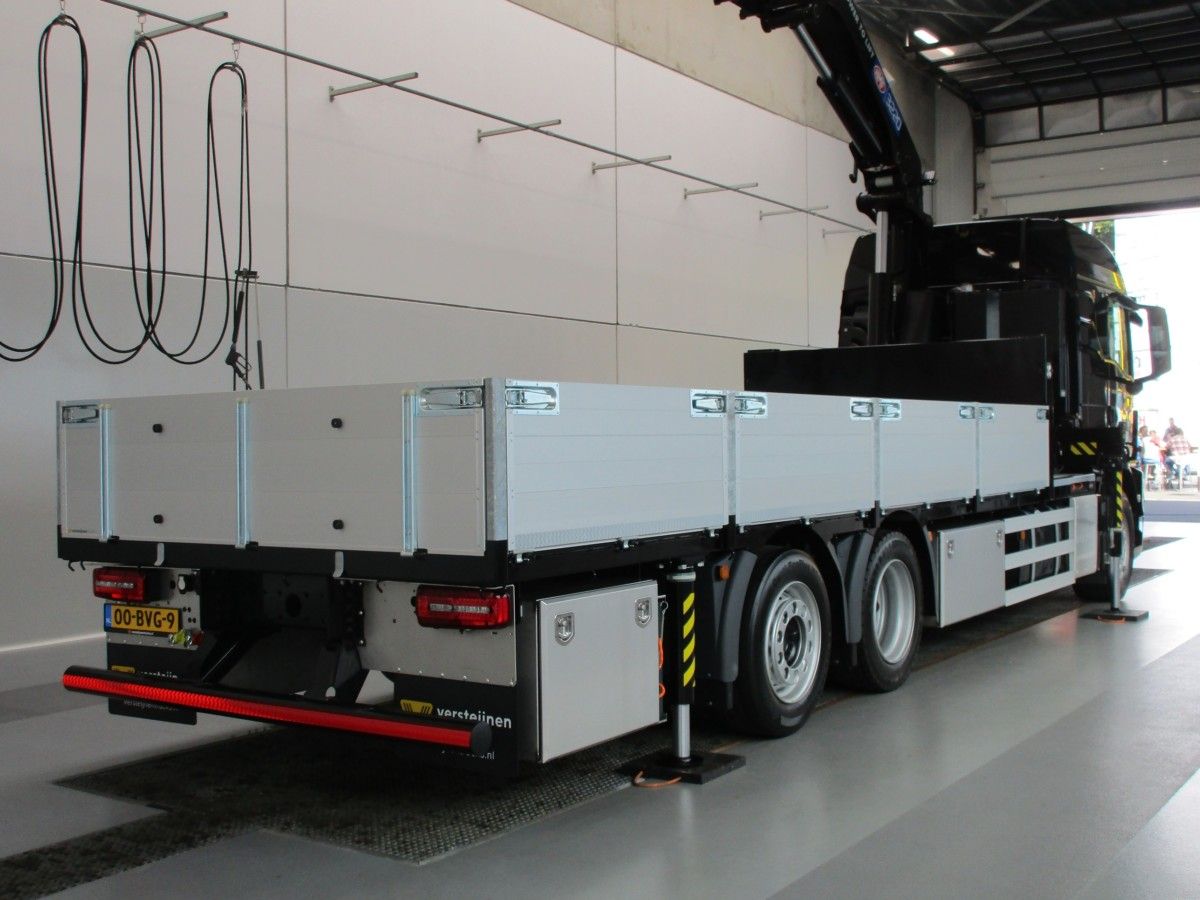

2023 MAN TGS 26.400 6×2*4 flatbed truck.
There were many other goodies in Versteijnen’s main building, more than enough for an upcoming report.
