While the illustration above might look a lot like Chevrolet’s ubiquitous aluminum Powerglide, it’s actually a completely different transmission: the Buick-built two-speed Super Turbine 300 automatic transmission, which went into millions of Buick, Oldsmobile, and Pontiac A-body intermediates (and not a few Firebirds) from 1964 through about 1972. A Powerglide by another name? Not exactly — the Super Turbine 300 had some important differences as well as its obvious similarities.
The Persistence of Two-Speed Automatics
Although it remains a controversial point for GM fans and critics alike, the evidence suggests that from at least the late 1950s until the early 1970s, GM engineers were legitimately convinced that two-speed automatic transmissions were the best choice for smaller vehicles with smaller engines. This seems completely counterintuitive: With a smaller, less-torquey engine, wouldn’t you want more speeds rather than fewer, and a transmission with an intermediate speed suitable for highway passing? You would think so, but GM also believed there were tradeoffs with three- and four-speed automatics, including the greater size and weight of the transmission and the greater frictional losses of the more complex internal components, which smaller engines could more ill afford.
I don’t have any behind-the-scenes insights to offer here, but I’m convinced that the persistence of two-speed automatics at GM was what we’d now call a “data-driven decision,” prompted not (only) by cost considerations, but also by proving grounds test results showing acceleration times and fuel consumption that contradicted subjective impressions and conventional wisdom.
Imagine you evaluate two competing cars in the same size and price class back to back on a proving grounds test track. Car A feels decisively faster, with a transmission that readily kicks down for passing. Car B feels undergeared and often seems to be straining, and its passing gear is useless above about 45 mph. Yet, when you run the numbers, the slower-feeling Car B car turns out to be quicker. Which car is better? If you’re an engineer for the world’s biggest automaker, the answer is almost certainly going to be Car B, and if Car B is also cheaper to build, it’s likely to be a slam dunk.
There’s some real-world evidence of this (consider for example this 1966 Car Life comparison of six-cylinder full-size cars), and I’m pretty certain that this was the logic behind both the continued development of Powerglide, and also of its BOP cousin, which Buick called the Super Turbine 300, or ST-300.
1964 Pontiac GTO convertible with two-speed automatic / Mecum Auctions
(Oldsmobile, which bought this transmission from Buick, called it Jetaway, while Pontiac, which installed it in the A-body Tempest/Le Mans and later the Firebird/Trans Am, didn’t call it anything in particular. Since Buick built the transmission, and since Oldsmobile previously applied the Jetaway name to Hydra-Matic transmissions, it’s most convenient to use the Buick moniker.)
ST-300 vs. Powerglide
If you compare section views of the Super Turbine 300 and aluminum Powerglide, they don’t look much different. For 1962 to 1966 Powerglide transmissions, the giveaway is the rear oil pump, which the Super Turbine 300 didn’t have, but Powerglide deleted the rear pump for 1967, making the two transmissions look even more similar. (Separate front and real oil pumps were common on early automatic transmissions as a concession for push-starting or tow-starting a stalled car, but as that became less common, rear pumps were gradually omitted to save weight and cost. Powerglide was one of the last holdouts.)

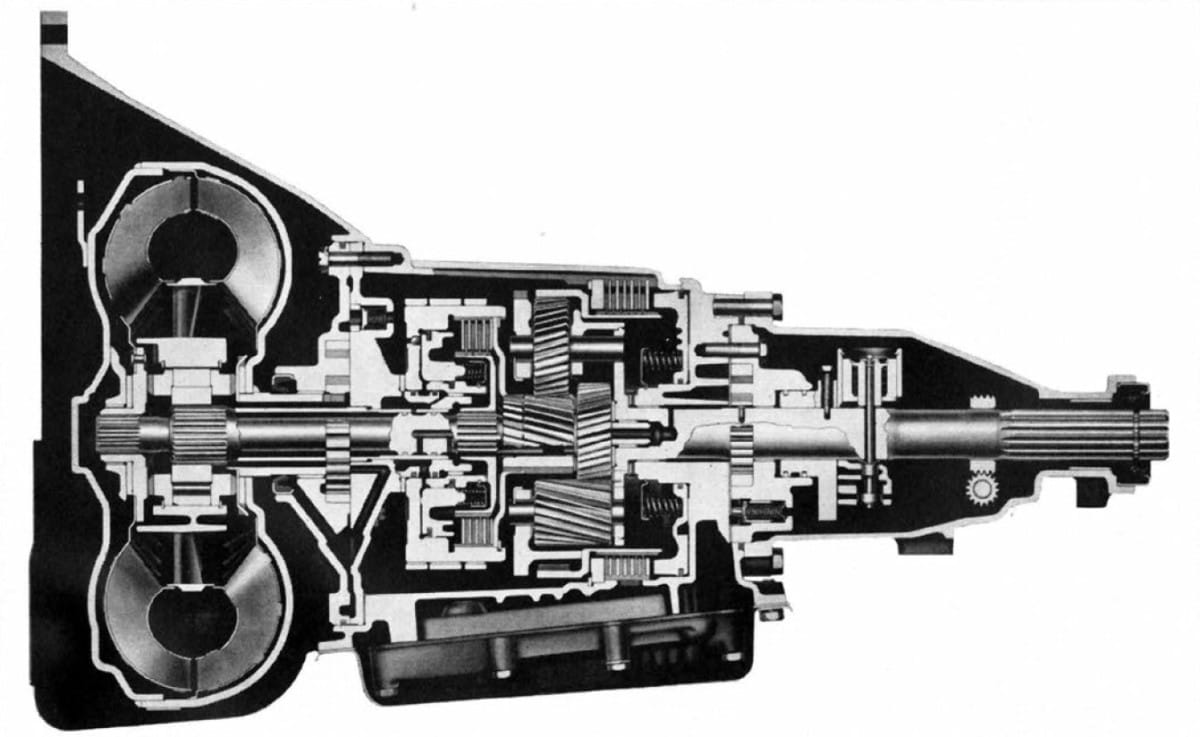

1962–1966 aluminum Powerglide

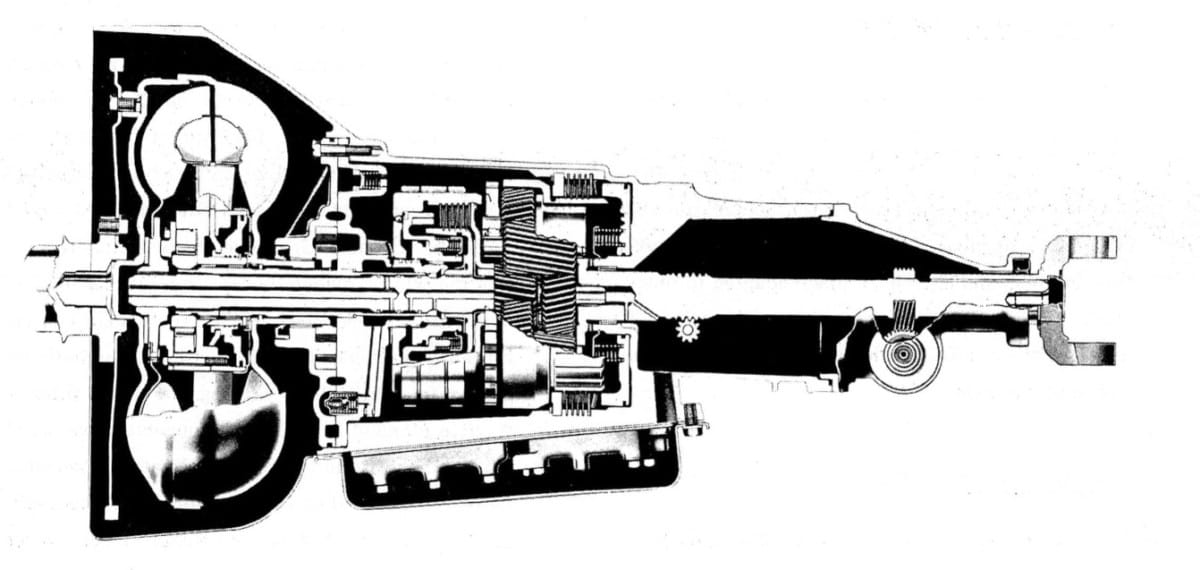

1964–1967 Buick Super Turbine 300
The gear ratios are the same, too — 1.765:1 in low and reverse — and the gears are shifted in the same way mechanically. Both transmissions also have a vacuum modulator that adjusts line pressure based on engine load.
Where these transmissions most differ is in their controls. A non-electronic hydraulically controlled automatic needs at least two hydraulic control signals: governor pressure to measure the speed of the output shaft, and some way to measure driver torque demand so that the transmission will hold a lower gear for longer or shift down more readily for acceleration, hills, or pulling a heavy load. Powerglide does this with a throttle valve, mechanically connected to the throttle linkage. The Super Turbine 300 is controlled by the vacuum modulator, as on the Turbo Hydra-Matic.

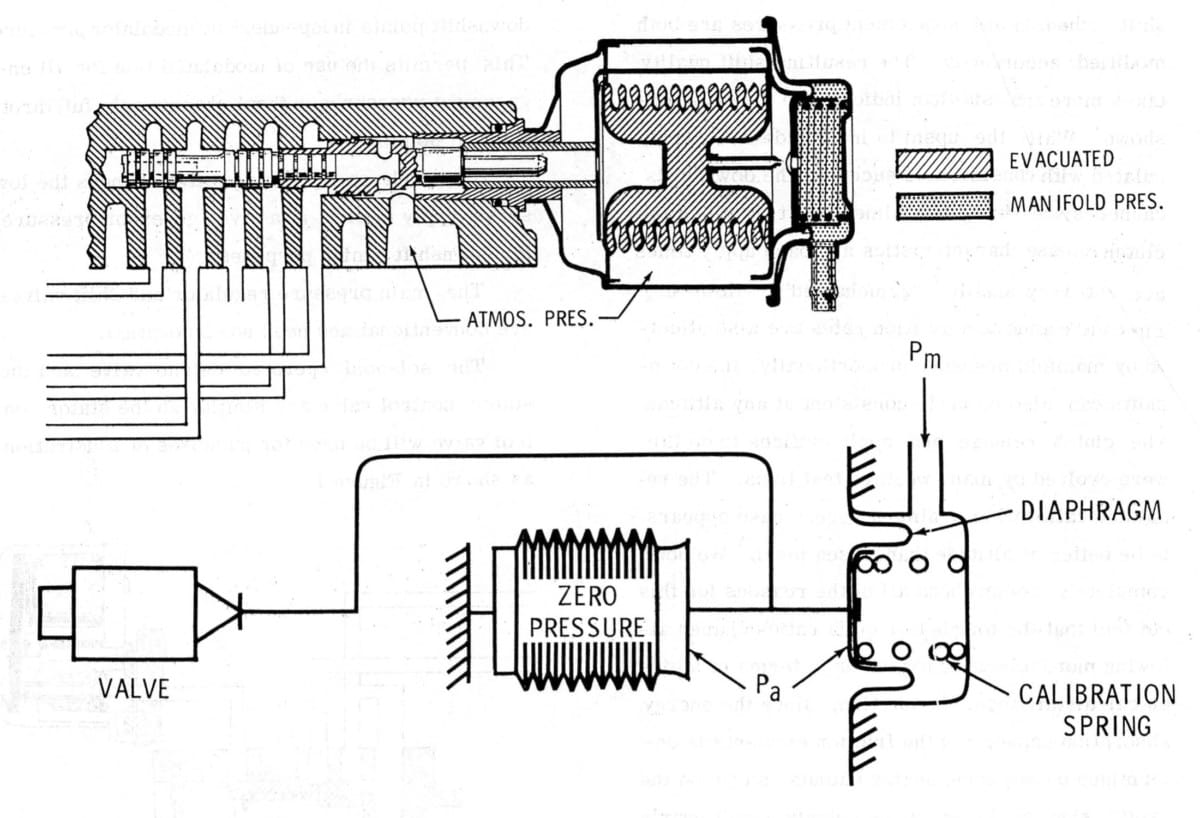

The ST-300 modulator incorporates a spring-loaded rubber diaphragm that’s exposed to manifold vacuum and can move back and forth in response to changes in intake manifold, with an additional evacuated bellows that corrects the movement of the diaphragm for differences in atmospheric pressure. Here are two contemporary Buick diagrams illustrating the modulator arrangement:
In the bottom diagram, “Pm” stands for “manifold pressure” while “Pa” stands for “atmospheric pressure.” Atmospheric pressure acts against a spring-loaded aneroid bellows (whose internal pressure is zero) to compensate for variations in atmospheric pressure, such as at high altitude.
The modulator valve also adjusts the transmission line pressure based on manifold vacuum, and there’s a separate modulator limit valve (not shown above) that keeps the full-throttle shift points consistent, independent of manifold pressure.
So, you get earlier, gentler shifts in gentler driving, but higher-rpm shifts and firmer brake/clutch engagement when you’re driving hard, with both tailored to the engine’s actual intake manifold absolute pressure. Besides that, a vacuum modulator doesn’t need to be adjusted like a mechanical throttle valve linkage does, and it compensates automatically for altitude. I think these vacuum controls were more expensive than a mechanical linkage, but that was partially offset by simpler assembly — not a bad tradeoff.
Switch-Pitch Stator
Buick was once very big on switch-pitch torque converter stators, which they’d added to Dynaflow in the ’50s to improve passing response. The blades of the stator could actually be cranked between two different positions, making it possible to combine the characteristics of a “loose” and “tight” converter in single unit. The switch-pitch feature provided two different stall ratios, depending on whether the blades were at high or low angle.
Buick hadn’t used a variable-pitch stator on the lightweight Dual Path Turbine Drive used on the Y-body Buick Special from 1961–1963, but they adopted it for some early versions of the Super Turbine 300. (Pontiac never used the switch-pitch converter — I assume they didn’t want to pay for it — but Buick and Oldsmobile did from 1964 to 1967.) Here are the torque converter ratios:
| Stator Blade Angle | V-6 | V-8 |
|---|---|---|
| Low Angle | 2.75 | 2.50 |
| High Angle | 1.98 | 1.82 |
On older Dynaflow and Twin Turbine transmission, stator position was changed using a hydraulic servo controlled by the accelerator linkage, but for the Super Turbine 300 version, Buick decided to use an solenoid-controlled valve instead. The reason for switching to electric control was to eliminate the mechanical linkage, and also to make it possible to have the stator blades switch twice: The stator blades would stay in “high” position at idle, switch to “low” position for acceleration, and then switch back to “high” for cruising. Using the high angle at idle reduced the “creep” you normally get when you release he brake with the transmission in gear.

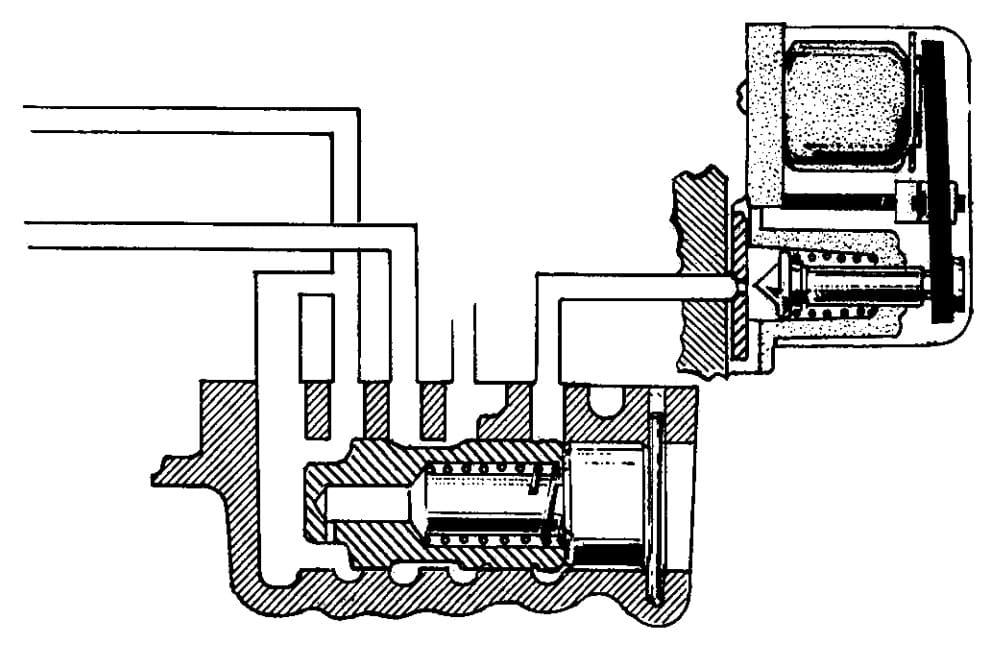

Stator blade control valve and solenoid for Super Turbine 300 transmissions with a variable-pitch stator
The switch-pitch feature gave you a kind of half-speed step between the transmission’s low and high gears, so the switch-pitch ST-300 is sometimes described as a “2.5-speed” transmission. The stator pitch would switch back to “low” angle if you opened the throttle more than about two-thirds, even if the transmission didn’t or couldn’t kick down from high to low gear, giving a little extra dig for passing.
Both Buick and Oldsmobile dropped this feature for 1968 and went to fixed-pitch stators like Pontiac. (There’s an article about the change in the July 1968 Motor Trend (pages 94–96).)
1964 Buick Skylark V-6 with two-speed Super Turbine 300 automatic / Mecum Auctions
Built by Buick
The other important and obvious difference between Powerglide and Super Turbine 300 was that Powerglide was built by Chevrolet, while the ST-300 was built by Buick. Buick had been building its own automatics since 1948, so their transmission plant had a pretty substantial capacity. Since most full-size Buicks were switching to Turbo Hydra-Matic for 1964, Buick could retool their own plant to build the new two-speed for the A-body Special/Skylark (and some B-body LeSabres and smaller-engine Oldsmobile 88s) and recoup the cost by also selling automatics to Oldsmobile and Pontiac.
1964 Oldsmobile F-85 convertible with two-speed Jetaway automatic / Mecum Auctions
This undoubtedly made more financial sense than Chevrolet having to add yet more Powerglide capacity to supply the B-O-P cars, and it gave Buick an opportunity to build what they thought was a better transmission, albeit still along similar lines. (This was more or less the same reason GM divisions usually got to build their own engines: Design was cheap compared to tooling and production capacity, so if the divisions had to establish separate manufacturing facilities anyway, producing a different design in each was not much more expensive than everyone using the same design.)
1964 Pontiac GTO convertible with two-speed automatic and Tri-Power engine / Mecum Auctions
I think what finally persuaded GM to kick the two-speed habit in the seventies was that it was becoming too big of a competitive disadvantage. Given their checkered record with some of the later light-duty Turbo Hydra-Matic derivatives, though, the engineers who insisted on clinging for so long to the older but sturdier two-speeds might have had a point after all.
