I’ve been enthralled with the legendary Hall-Scott high-power gas engines ever since I first saw one in a vintage Kenworth fire engine pumper like this one at an open house at the neighborhood fire station in Los Gatos, in about 1988. The hood was open and I was impressed at its polished cam cover and hemi-head configuration. Later, as we were walking home, it pulled out of the station and accelerated with surprising alacrity and a splendid exhaust chat. I was in love.
I’ve posted about the Hall-Scott several times here, culminating in my history of the company this past January. Meanwhile, I’ve been driving by this derelict old Kenworth pumper sitting alongside the Highway 38 in the tiny hamlet of Scottsburg, OR on my many drives to and from our place in Port Orford. I kept wondering if it had a Hall-Scott under the hood. So on my most recent trip I finally decided to stop and find out. Yes it does!
Can I buy it?

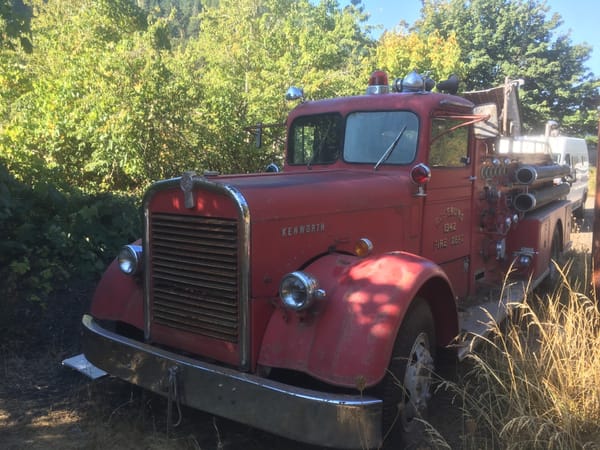

I couldn’t readily get a profile shot of this fine old pumper as it sits right on the edge of the highway. It’s showing its age, but it seems to be pretty intact, at least superficially.

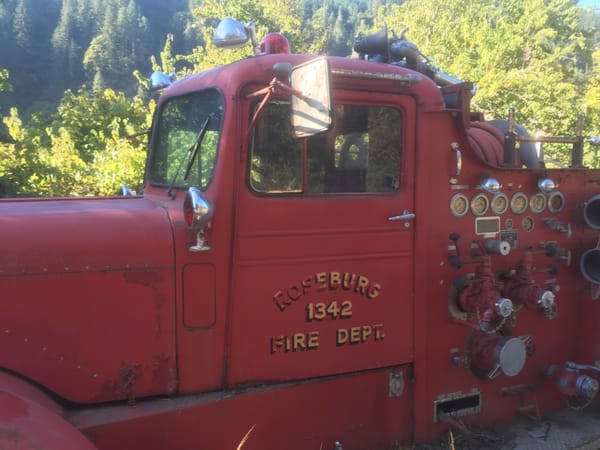

It obviously spent its life working for the Roseburg, OR Fire Department. I’m not 100% sure of its year, but there were some minor changes to the badging and grille that strongly suggests 1951.

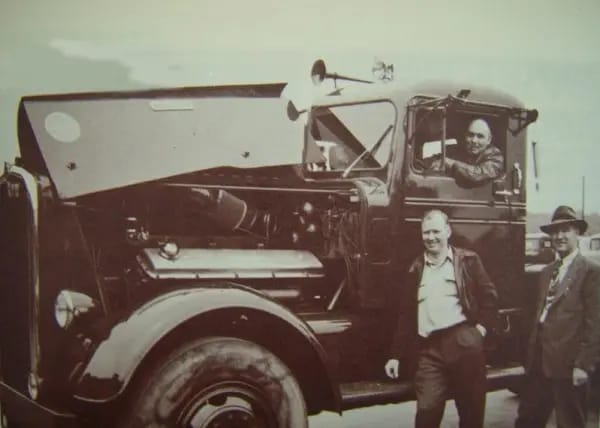

That’s the same year a 600 hp V12 version of the H-S engine, with 2181 cubic inches, was installed in this Kenworth truck, used to haul petroleum products in the mountainous West at high speed. Sadly, this very hot rig went up in flames, literally. Too hot to handle. One can only imagine the blue flames that shot out of its exhaust at full chat, roaring up long mountain grades, passing all the other trucks (and most of cars too, quite likely).

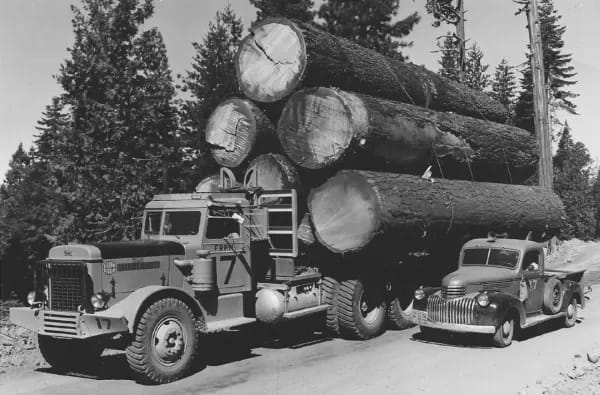

That V12 was a one-off. The six cylinder version (400 series), with 855 or 1091 cubic inches, was already the most powerful truck engine of its time, making 250-325 hp and up to 1000 lb.ft of torque, back when diesel engines struggled to churn out more than 150 hp. These engines, built in Berkeley, CA., were favored for the kind of huge loads or long grades found in the West, like this log hauler. Buses that could keep up rigorous schedules also favored Hall-Scotts.
Three supercharged 1000 hp V-12s powered the legendary Higgins PT boats in WW2.

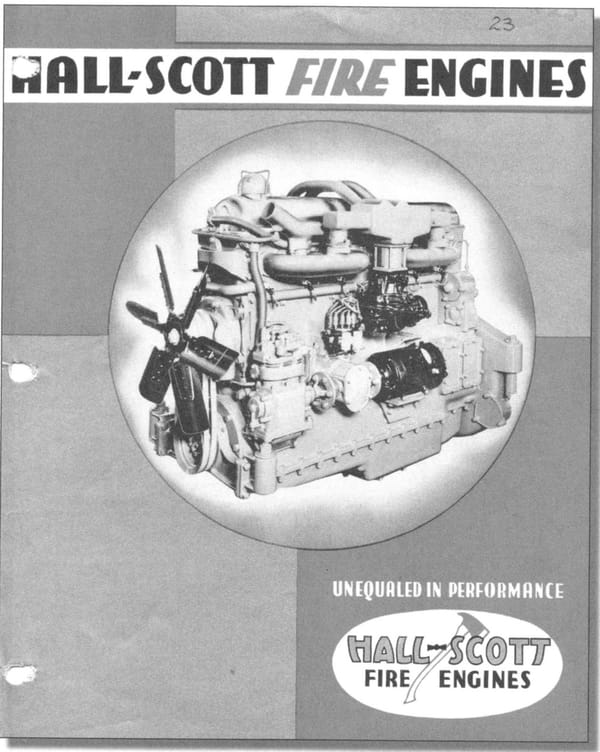

But no one loved Hall-Scotts more than West Coast fire departments, for their unparalleled power and durability. Although most other truck and bus operators drifted to the more economical diesels throughout the ’50s and ’60s, fire departments kept buying Hall-Scotts, including the very last ones built in 1970. Fuel economy was not an issue with them, but its rapid acceleration, speed and massive pumping power was, very much so.
As soon as I lifted one of the engine covers, it was instantly obvious that this was a Hall-Scott, with its distinctive polished alloy cam and valve cover, under which operated the big valves in its hemi head, the source of its excellent breathing and the key to its prodigious power. This is the exhaust side; those pipes running over the top are presumably to provide some heat to the big carburetor on the other side. That short bit of rubber hose and clamps look fairly newish. I do wonder if this runs; I strongly suspect so.

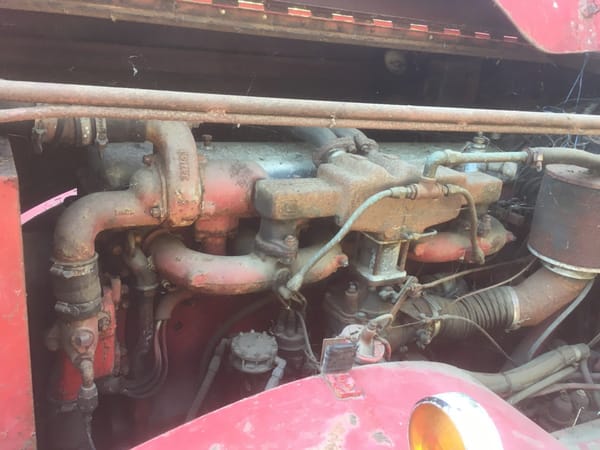

Here’s the intake side; yes, those tubes are providing heat to the intake plenum. The single carb is a giant updraft Zenith.

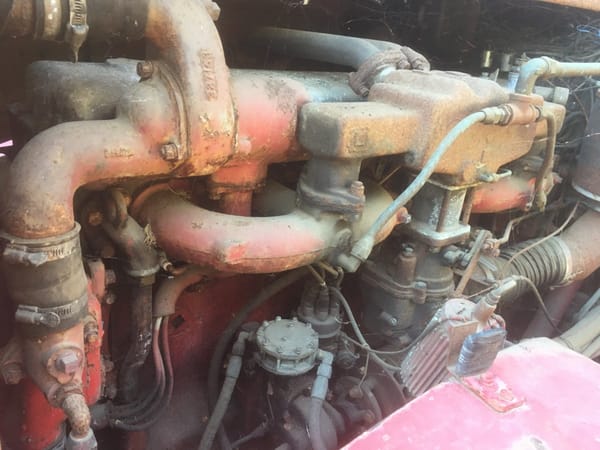

Here’s a somewhat closer look. There’s two intake manifolds being fed by the plenum. I can only imagine how big the venturi on that carb is.
The engine plate tells us this is a Model 470, one of the 400 family of engines that began life before the war as the Invader marine engine. It was too big for trucks in the 1930s, but after the war H-S began offering it for the increased demands of larger loads and faster schedules. The 470 has a 5.5″ bore and 6″ stroke, resulting in 855 cubic inches (14 liters). Horsepower ratings for the 470 were between 250-300 hp. The larger 1091 cubic inch version made up to 325 hp, and even more in a small number of them that were turbocharged.
If you want to know what an 855 cubic inch OHC hemi-head six sounds like, this video of a 1951 Kenworth 4×4 pumper gives a taste, as it’s not nearly at full chat. It’s a bit like the purring of a lion.
Yes, I want this. Maybe I could justify it as a work truck, or as a private fire engine for my rentals? Or to water the trees? Or?

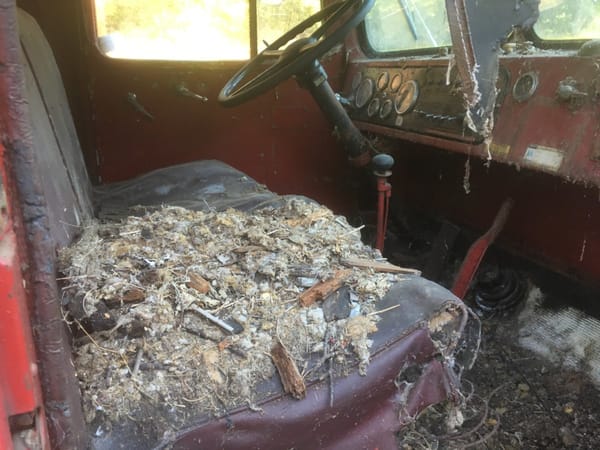

But when I opened the door, I instantly recoiled. The mice or rats have made it their home, which wouldn’t bother me so much except that I’m highly allergic to them, their dander and feces and anything they’ve touched. It’s a real problem, as I have had to battle rats in my rentals; I’ve won the war so far, but it’s resulted in several asthma attacks and breaking out in red welts.

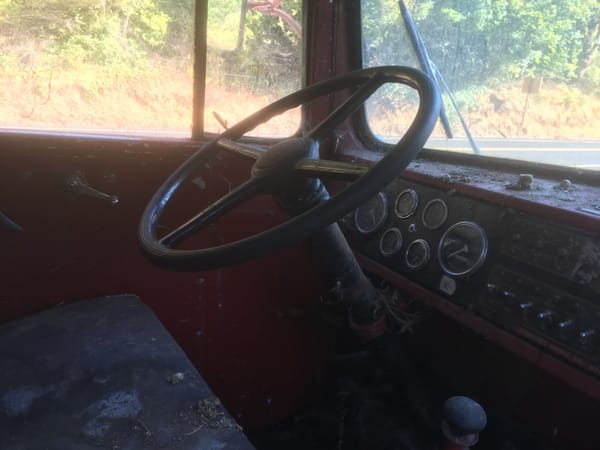

I would have liked to hop in and imagine driving this back home to Eugene, listening to the deep-throated purr (or roar) of that big Hall-Scott six. Looks like it’s going to have to stay in my fantasy garage.
More on Hall-Scott:
Vintage Films: “Hall-Scott Power” (Parts 1-4) and “Success Story–Hall Scott”
I too love these motors, having only discovered them through CC. There’s just something really appealing about the quality of the engineering.
They must have stonking amounts of fuel, though. In my direct experience of old-school petrol and diesel engines of same size and non-turbo (in Nissan Patrols), the real-world difference for the diesel was all-but double the mileage.
I wonder if a really big petrol tank – as opposed to diesel – in a fire engine was later considered a problem?
Presumably not, at the time. But of course eventually they did switch to diesels, for all the obvious reasons.
You just about made an offer then you opened the door. Very interesting motors. The geography demands the ability to get up and go. The 3 mounted on the torpedo boat rock. Someone on the west coast must’ve marinized H-S engines for their pleasure boats.
No need to “marinise” them, as H-S sold lots of marine engines. In fact, this series (400) of truck engines started life in the 1930s as the Invader marine engine, so it had to be “de-marinized”. 🙂
Thanks for clearing that up.
Impressive engine. Well worth it.
Very neat! It’s probably this truck pictured below – purchased by the Roseburg Fire Department in 1951 to replace the Department’s existing 1924 Stutz. I wonder how long it remained in service?
Thanks. They look very happy. And the old Stutz may well have ended up in the city park, like the old fire engine in the park in Iowa City that I played on.
I grew up near Pasadena, in San Marino, Ca. a small bedroom community with a couple fire trucks. My folk’s house was several blocks from our fire station. We moved there in 1956 and the engines were a Seagrave and a Mack. These Fire engines were active through the 60’s, the Mack through the 70’s when the town increased its budget and bought a new Crown truck with the venerable Detroit 8V-71. I’m betting the Mack had its own proprietary engine which was a big straight 6 cylinder gas. The Seagrave I wonder if it had a Hall-Scott.
Seagrave had its own big flathead V12 engine.
Yes, most older Seagraves were powered by Seagrave’s Pierce-Arrow based gasoline V-12’s. However, Los Angeles City F.D. purchased a number of Seagrave pumpers with Hall-Scott power, and a few aerials with LeRoi V-8’s.
Hi, I’m old, when I was young (12 or 13) I witnessed a truck that looked like the one here, roll over after the driver made an off camber turn with a large diameter pipe on the trailer. Anyway my dad pointed out the Hall-Scott and was giving me all the details of it, cu in, hp, etc, man I was impressed. Anyway I ended up years later working 935’s and 1091’s in fire trucks. Crown fire engines that only weighted about 28,000 lbs absolutely FLEW with a 1091 365 HP dual down draft carbs Hall Scotts. The firefighters were really upset when they started getting 250 HP Cummins! The Hall Scotts would start pavement fires when stationary pumping so they added what we called “pavement coolers”, supplied by a water line from the fire pump. I still have a valve cover from one.
Unleaded gas really hurt these big boys!
Wow what a sweetie .
H-S engines are indeed legendary .
San Marino is where Lacy Park is, they put an old pumper in the sand box for children to play on .
-Nate
Hi Paul, I’m a Hall-Scott historian and just came across this article. Myself, and some other historians have been researching Hall-Scott and cataloging engine serial numbers. Thanks to Kenworth build records we have this one on the list. If you are interested in seeing our research and being a part of recording this awesome companies history, please feel free to email me.
In the mid-late 50`s my Dad had me hauling cotton bales off of gin yards in the San Joaquin Valley with a flat bed twin screw pulling a three axel trailer. The rig was a International Farmall long nose with a 1091, Spicer five speed with a three speed Browning OD. Macks were the Hot Sxxx but could not hold a candle to that rig. I was 17/18 @ 120# and KNEW that I was King of the World , now in my 80’s it was an experience that I would not trade for anything.
Count me as another fan. As much as I understand the case for the diesel, there is something special about those old gasoline monster engines.
Great find. Sure hope someone comes along and rescues the whole truck or at least the engine. It deserves to be in a collection or museum.
The hose body of the kenworth pumper was likely built by the Howard Cooper Co. of Portland Ore. It looks the same as the three pumpers the city of Aberdeen ordered in 1951. Two of them were 1000GPM like the one in the photo and the third was a special high pressure fog unit that had a 1000 gallon water tank. The pump was likely the Hale 1000 GPM capacity. It has the same single hose reel as the Aberdeen FD units. The high pressure unit however had double hose reels with special pistol grip nozzles.
