(first posted 9/14/2015) In the battle between the Chevrolet Lumina and the Ford Taurus, the latter not only sold better, it was almost universally considered to be the superior car. The Lumina wasn’t a bad offering, per se: the basic platform was sound, the styling was contemporary, the prices low and the powertrains mostly reliable. But there was one reason the Lumina’s inferiority against its crosstown rival was so disappointing: GM didn’t launch the Lumina until 1990. The Taurus had been on sale for four years, and GM’s much-touted Lumina couldn’t best it.
The Lumina was arguably the least compelling of the four GM-10 (1st generation W-Body) cars. The GM-10 program represented a $7 billion dollar investment in seven factories that were supposed to produce enough sedans and coupes to account for 21% of the American auto market. The Lumina range was also the last to arrive: the Buick Regal, Oldsmobile Cutlass Supreme and Pontiac Grand Prix coupes were launched in 1988, although their sedan models arrived in 1990.
The Lumina replaced Chevrolet’s aging Celebrity, which had launched in 1982. It was a bigger car overall: 10 inches longer with a 2.6 inch longer wheelbase, and 350 lbs heavier. It was a more modern car, too: the W-Body platform had four-wheel disc brakes and four-wheel independent suspension. Up front were McPherson struts, coil springs and a stabilizer bar, while the rear had McPherson struts, a stabilizer bar and a plastic transverse leaf spring à la the Corvette. There was no wagon version, unlike the rival Taurus: the Celebrity wagon was replaced by the Lumina APV minivan.
The Lumina’s aerodynamic design didn’t shake up the mid-size sector like the slick Taurus had in 1986. This was because the design had actually been penned seven years earlier, according to the late head of design at GM, Chuck Jordan. It also had some odd elements to it, like squared off wheel arches and a lengthy front overhang.
Of the GM-10s, the Lumina was targeted at families and value-conscious buyers: there were promotional tie-ins with Disney, including TV commercials with Disney characters jumping around the Lumina, and Chevrolet general manager Jim Perkins had declared Chevrolet a “value” brand. To support this, Lumina MSRPs were below those of the Taurus.
The engine lineup started with the venerable Tech IV 2.5 four, with 105 hp and 135 ft-lbs. This was the only W-Body application of the engine: Grand Prix and Cutlass Supreme were available with four-cylinder power for two years (1990-91), but used the much more powerful Quad 4. For 1993, Chevy replaced the Tech IV with the 2.2 four (110 hp, 130 ft-lbs) used in the Cavalier, Beretta and Corsica, before dropping that for the Lumina’s final year. Neither four-banger was especially refined or powerful, and this underscored GM’s lack of enthusiasm for creating competitive four-cylinder engines in the 1980s and early 1990s (the Quad 4 was more modern, sure, but flaky and unrefined.)
The ubiquitous 60-degree Chevrolet V6, now displacing 3.1 liters, was available throughout the Lumina’s run. It had 135 hp and 175 ft-lbs, and 0-60 was accomplished in 10.5 seconds. This was a far superior choice to the four-cylinder, as a four-speed automatic was optional; as with the Cavalier, Corsica and Beretta, the four-cylinder Lumina was saddled with a three-speed automatic. This meant fuel economy was scarcely better in the I-4: gas mileage was 21/28 mpg, while a 3.1/4-spd achieved 19/29 mpg. The bigger engine was standard in the mid-range Euro, which for an extra $2000 over a base four offered a firmer suspension tune, larger 15-inch wheels, standard air-conditioning and an attractive monochromatic exterior treatment.
A standard four-speed automatic wasn’t the only unfortunate omission. During the Lumina’s run, a driver’s airbag was never available despite the increasing number of cars so equipped. Instead, GM used frustrating door-mounted seatbelts.
For 1991, Chevrolet added GM’s first double overhead cam V6, the Twin Dual Cam 3.4 V6. Based on the 60 degree Chevy V6, aluminum heads with belt-driven twin camshafts were grafted onto the old cast iron block. Performance was impressive, with 210 hp and 215 ft-lbs (200hp with the automatic); in contrast, the Taurus SHO’s Yamaha V6 had 220 hp and 200 ft-lbs. Allegedly, the Dual Twin Cam was capable of a lot more power – potentially 275 hp – but GM’s transmission division wasn’t able to engineer a tough enough transmission for a FWD car, or so the rumor goes. Incidentally, the W-Body would eventually receive an engine that had 300 hp – the 5.3 V8-equipped models of the 2000s – but their transmission couldn’t handle that much power, either.

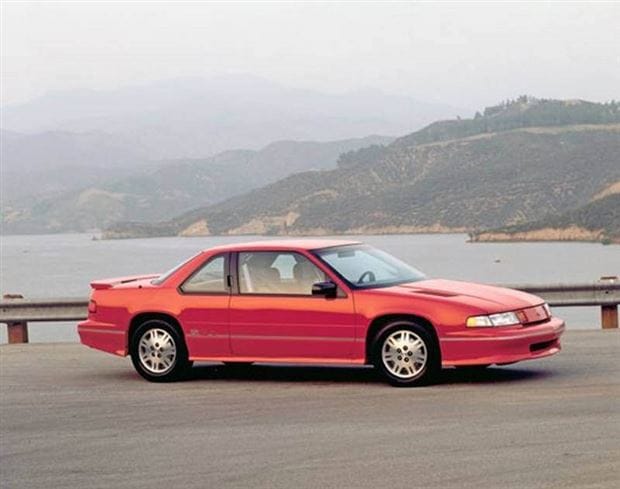

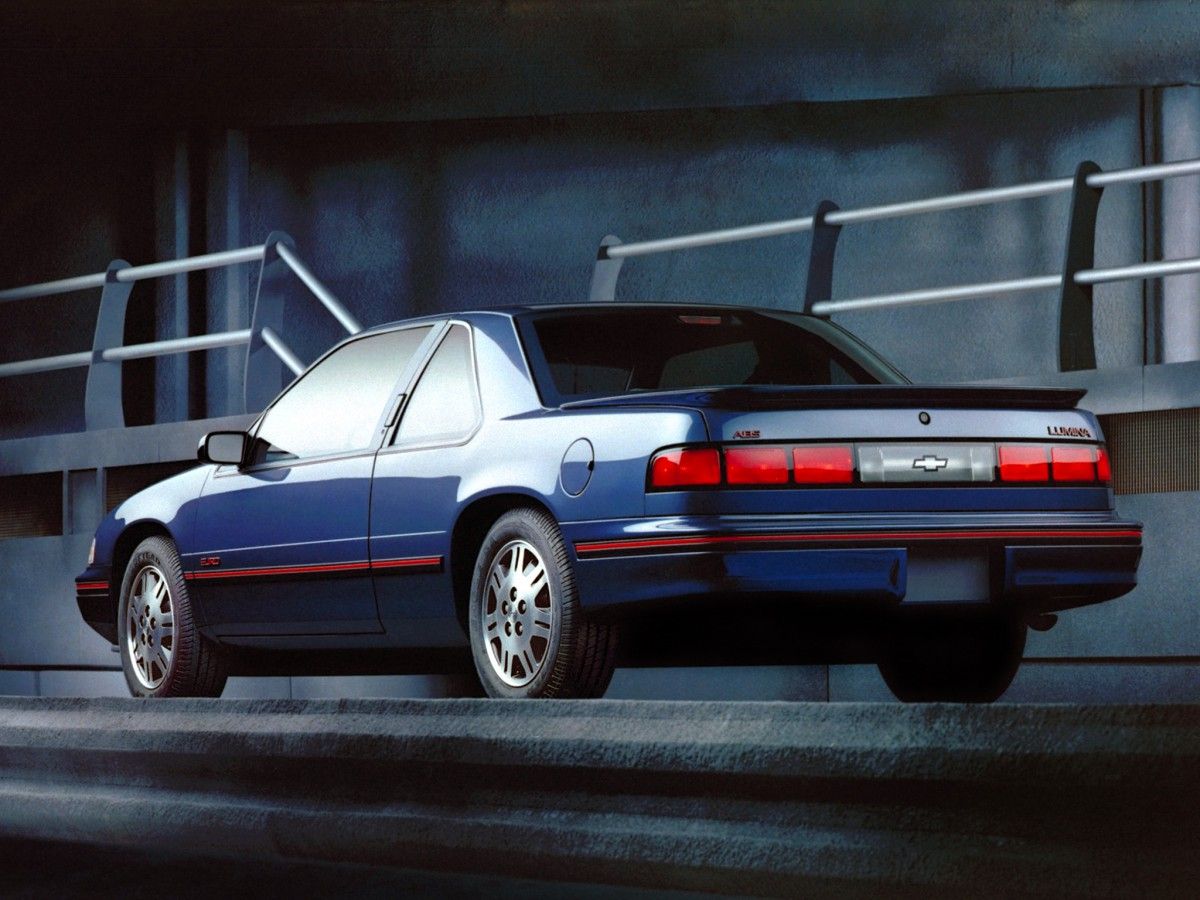

The 3.4 was available in flashy Z34 coupe form, replete with sporty visual additions like ground effects, a unique grille, 16-inch alloy wheels and a louvered hood. Transmissions were a standard five-speed Getrag manual or an optional four-speed automatic. From 1992, an automatic-only Euro 3.4 trim was available for those who preferred a more subtle appearance.
The Z34 was pitted against the Taurus SHO, naturally, in various magazine comparison tests. The results? The Chevy was generally said to be slightly less refined and rev-hungry than the Ford, but with a better stickshift and more low-end torque. The 3.4 revved smoothly up to its 7000rpm redline, but 0-60 times were slightly slower than the SHO (7.1 seconds vs 6.6). The Lumina 3.4 did have a few tricks up its sleeve, though: it ran on regular unleaded, an automatic transmission was optional (the SHO didn’t get one until 1993), and the price was lower. A Z34 coupe retailed for around $17k, while the SHO started at $22k.
Although GM had apparently ordered a detuning of the engine to avoid warranty claims on failed transmissions, they still did not engineer enough durability into the engine itself. It was a shame, as both the engine and the sporty Luminas that featured it were generally better-received by critics than lesser models, although Z34 and Euro 3.4 model sales represented only a fraction of Lumina volume. The Twin Dual Cam V6 was axed from the entire GM lineup in 1997, as GM had a much sturdier engine in its stable that could be fettled for higher performance (the 3800 V6).
Dynamically, lesser Luminas were a mixed bag. Torque steer had been nicely quelled and the W-Body platform was praised for its rigidity and handling ability, but some criticized the poor bump absorption in Euro models. The Chevy was also noisier than its rivals, which contributed to the overall feeling of lower quality and refinement.

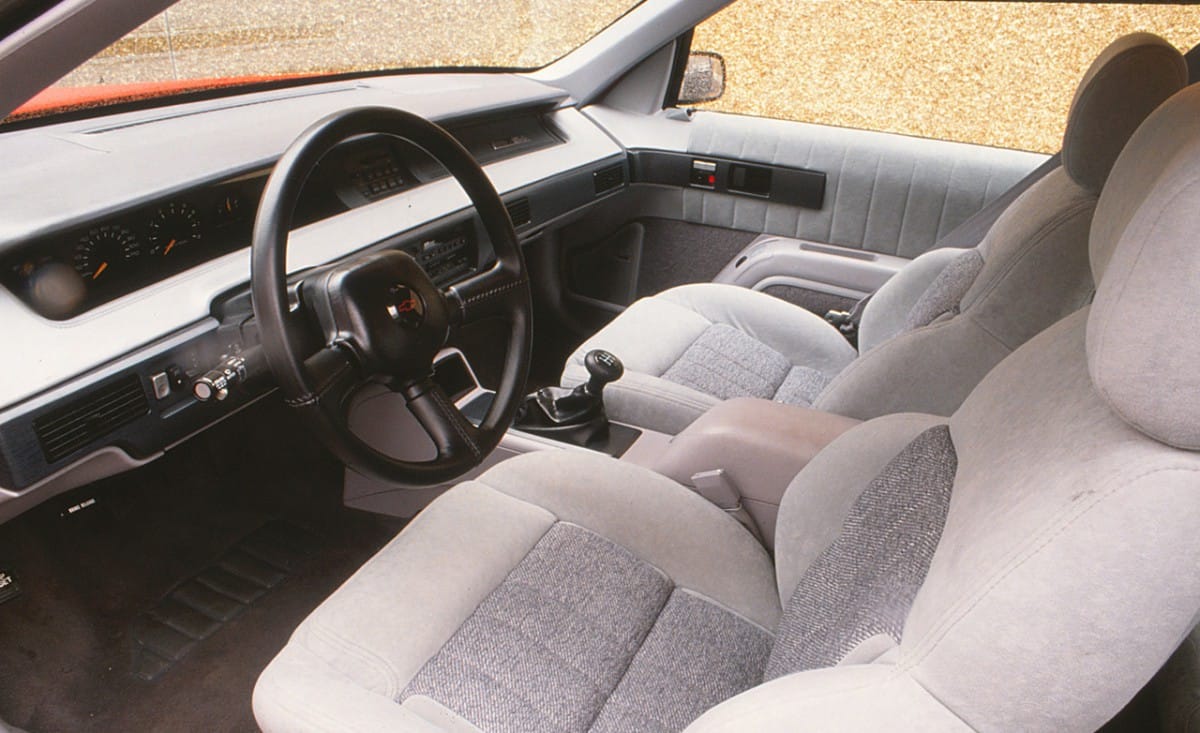

Perhaps the Lumina’s greatest flaw was its interior. The dashboard was very horizontally-oriented, making it much less ergonomic than the Taurus’ neat center stack, angled towards the driver. The Lumina’s instrument cluster was oddly scooped out and somewhat hard to read, and the seats were regularly met with criticism for being too flat, firm and unsupportive. Like many other GM sedans, the rear bench was positioned quite low to the floor. There was a nice, low belt line and a low cowl, but forward visibility was hindered by chunky A-pillars. Despite being 9.2 inches longer (1.5 inches in the wheelbase alone) than the Taurus, the Lumina was scarcely more spacious.
Perhaps Car & Driver’s Phil Berg put it best in the launch review of the 1990 Chevrolet Lumina Euro. He said: “What bothers me is that the Lumina performs only slightly better than a Celebrity – a car that was introduced more than 6 years ago. That’s a long time to wait for such an uninspired automobile.”

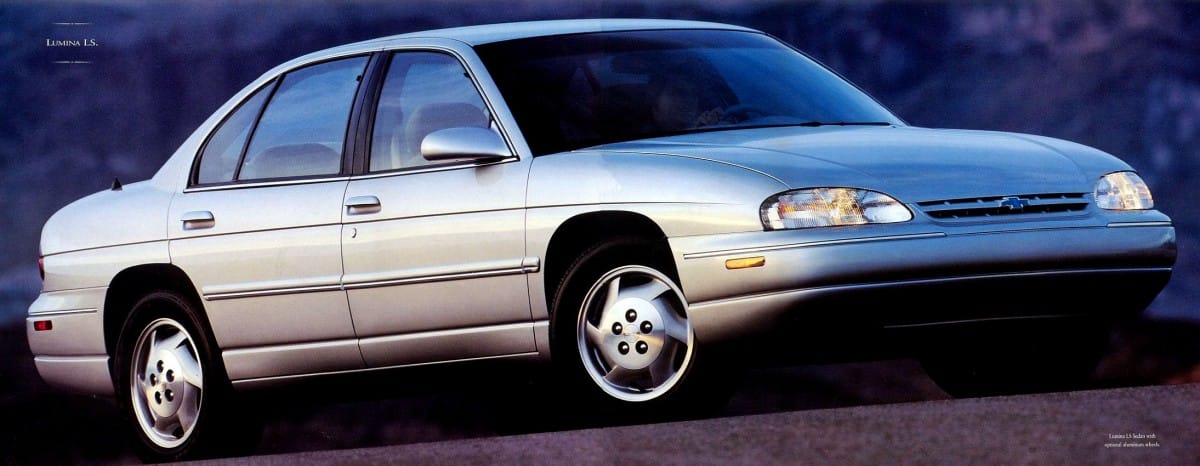

Despite its late arrival, the Lumina clearly still needed some more work. Buyers agreed. The Lumina may have entered the top 10, but it couldn’t topple the Taurus. Rather than leaving it to linger until 1996 like the other W-Bodies, a completely restyled Lumina on the same platform arrived mid-1994 as a 1995 model.
While Ford extensively and exhaustively benchmarked the Camry and Accord for its new Taurus, Chevy took the budget route. There were low list prices, but rear disc brakes became an option. There was plenty of standard equipment, but the interior was even uglier and scarcely better built. Chevrolet would end up refocusing on the slightly smaller 1997 Malibu, which although riding on the “compact” N-Body platform, was more size appropriate for the segment. The next Chevy W-Body was the 2000 Impala, positioned as more of a full-size offering.
GM had bungled the launch of its first new mid-size Chevy of the 1990s, and despite lengthy delays, the end result wasn’t terribly impressive. It wasn’t a bad car, per se, but it lacked the finesse of a Taurus. The subsequent Lumina was even more of a disappointment because it resolutely showed that Chevrolet wasn’t aspiring to have the best mid-size sedan on the market. It’s no wonder that after two disappointing generations, Chevrolet retired the Lumina nameplate in North America.

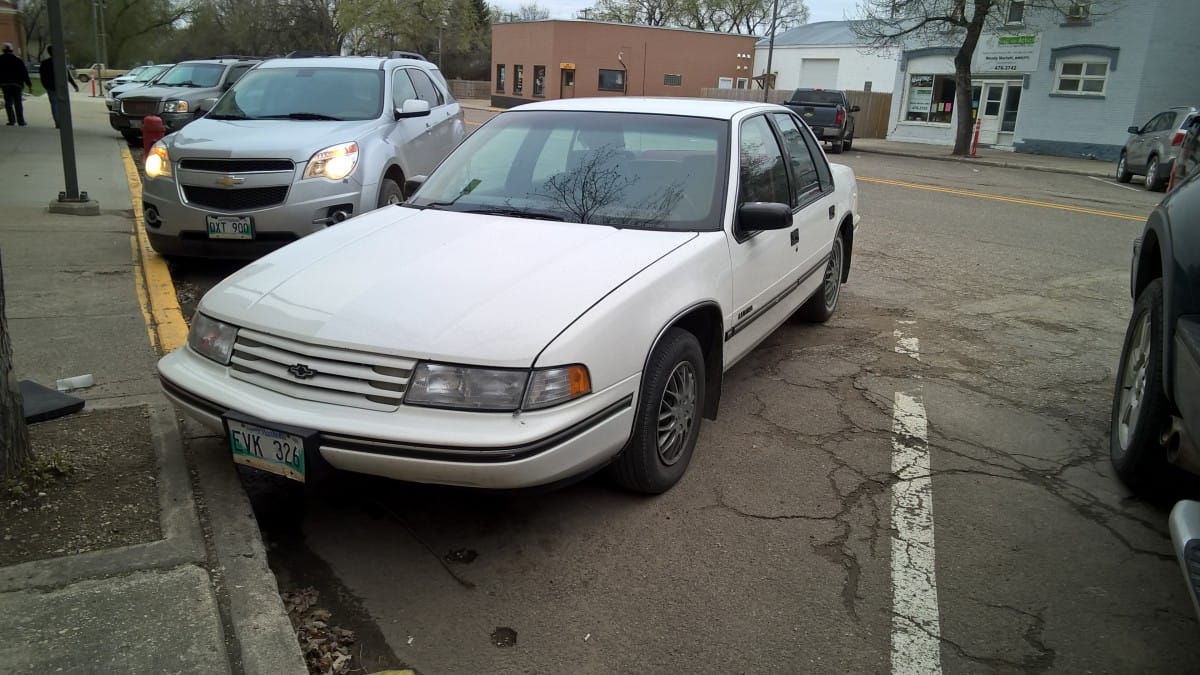

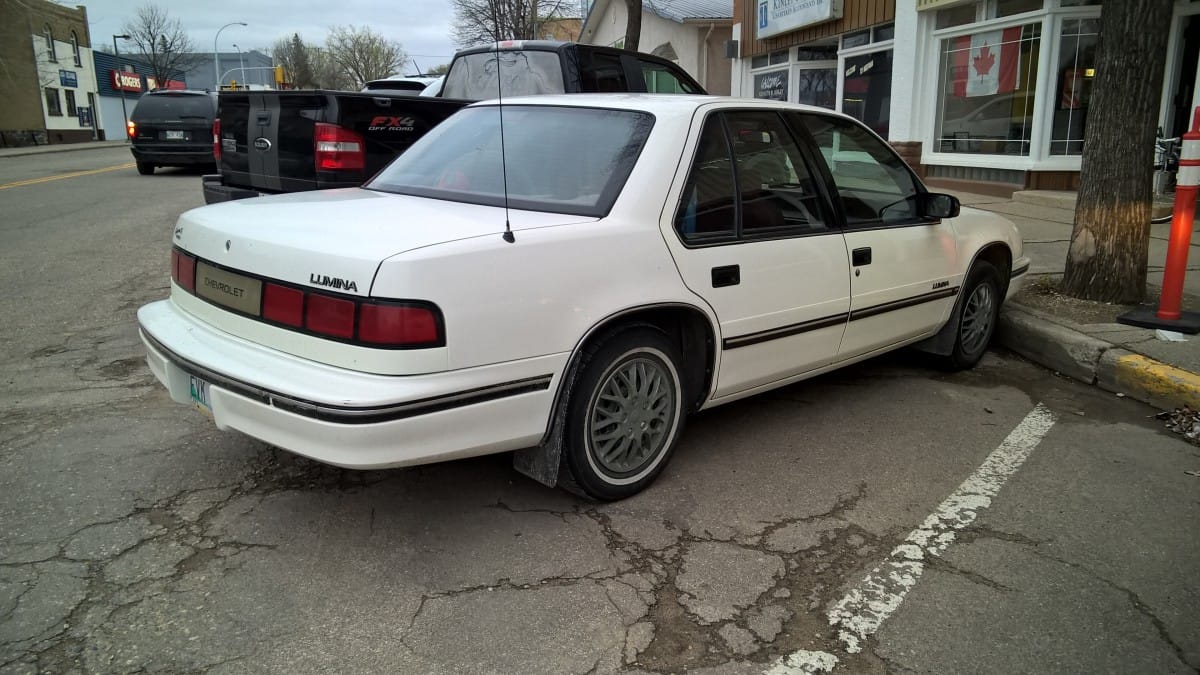

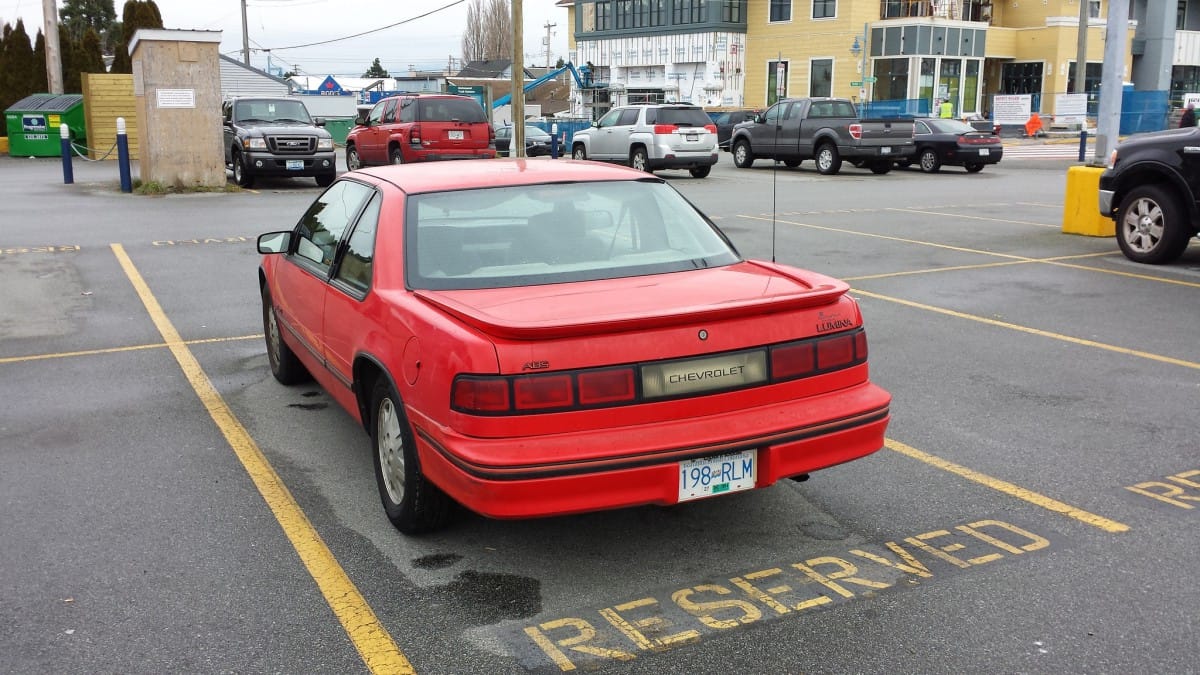

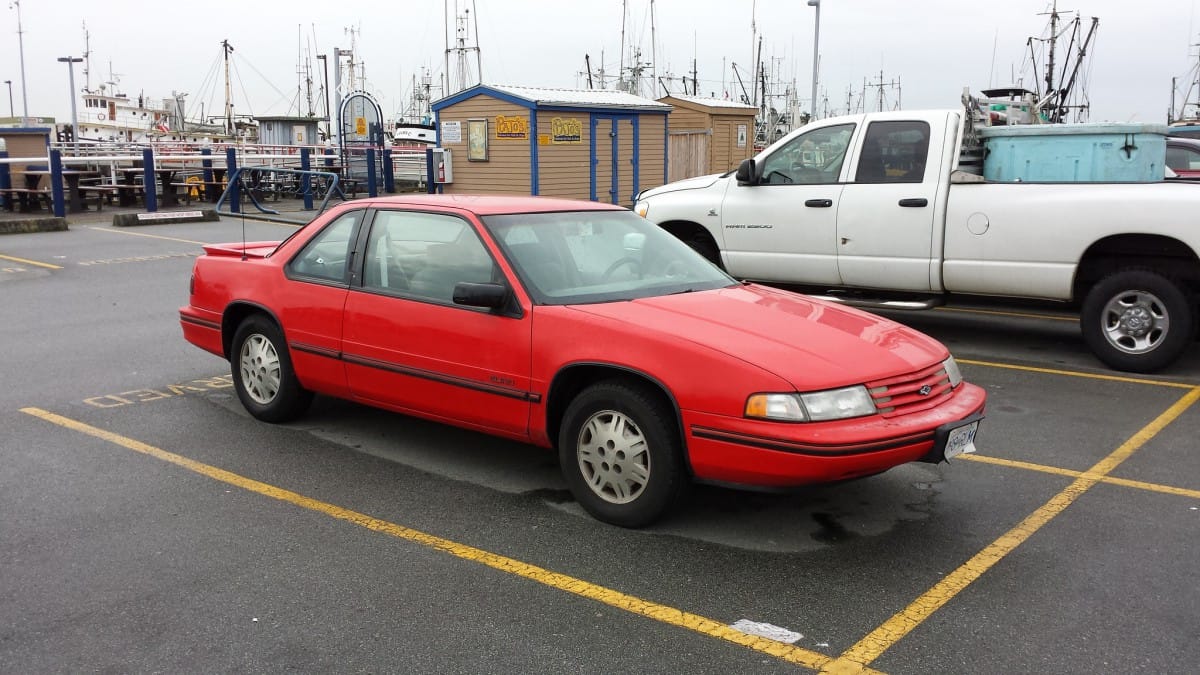

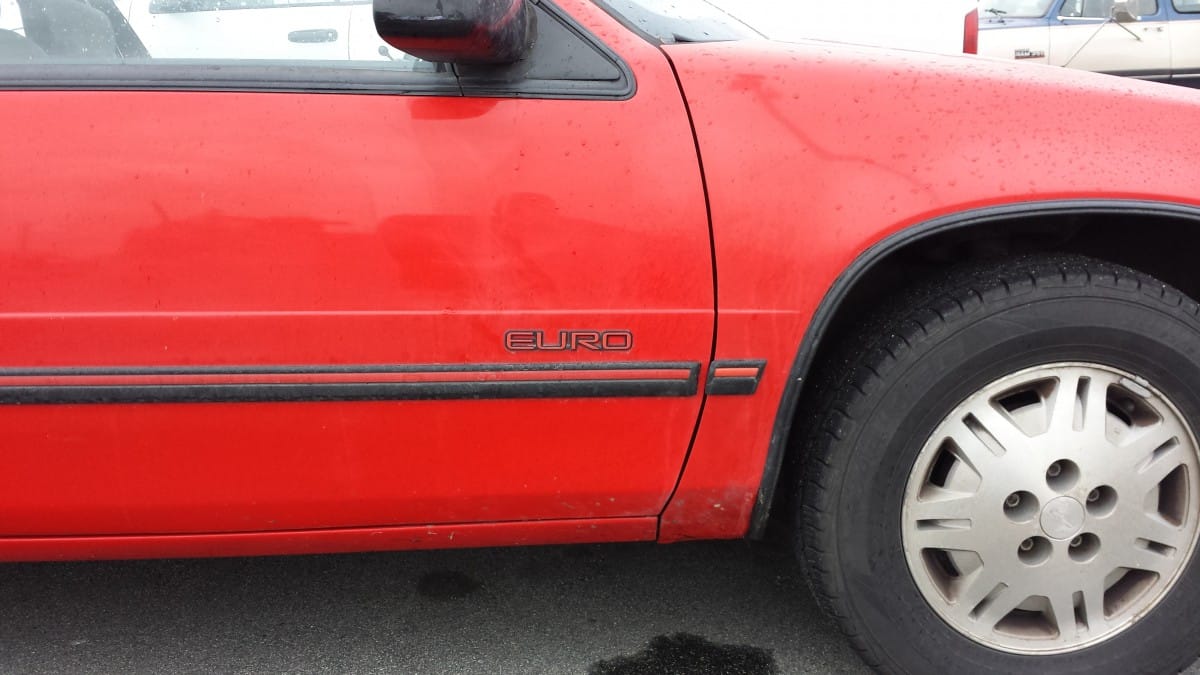

A very special thanks to Curbsiders “A Guy In Vancouver” (red Euro coupe) and “Matthew with two T’s” (white base sedan) for their excellent Lumina pictures, obtained via the Curbside Classic Cohort. Blue sedan photographed in the Lower East Side.
Related Reading:
Paul Niedermeyer’s more caustic take on the Lumina: CC: 1991 Chevrolet Lumina Euro – GM’s Deadly Sin #18
Curbside Classic: 1988-96 Buick Regal
Curbside Classic: 1988 Chevrolet Celebrity
The ‘Malaise Era’ seems to sum up GM from 1980 to 2009.
For the B/C bodies, 1971-76 were the warm-up act. At least the final 1977-96 fullsizers were good (overall). But I’d call the 2008 Malibu the first-EVER quality-feeling FWD offering from Chevrolet.
When you benchmark a competitor, you have to consider how that competitor might be when your model finally makes it to market. The first FWD Malibu used the then-current Accord as a benchmark…and when it came to market it was already obsolete.
At least today GM acts like they’ve got their game on and is building some great cars, like they did before the 1970’s. They should’ve been doing that all along.
Havent seen one of these Lumina the Chevrolet Luminas that washed up here were rebadged Holden Commodores bound for middle eastern markets or maybe they came in with South African immigrants, anyway a far cry from the US version.

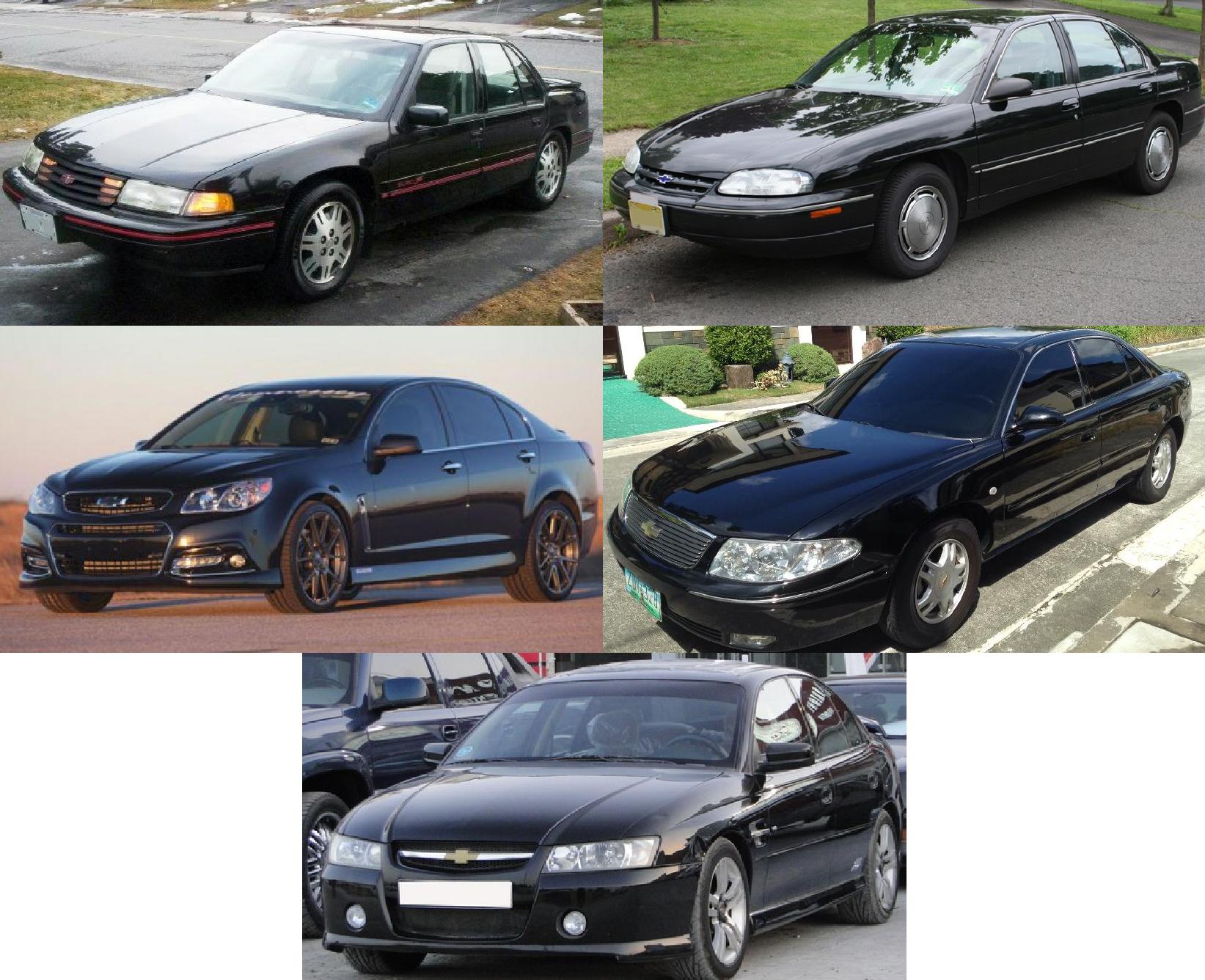

Holden used the Lumina name on some Commodore limited editions here. IIRC they were sold on some export markets as Chevy Luminas – sounds like they’d be better than the US original.
Taurus? Camry? Accord? Nah! We are GM, we can do it our way and it will be better!
To rental fleets in Florida. It’s like they used Disney in advertising to show “this is the car you’ll rent when you land at MCO to drive to Disney World.
You’d reserved a “Geo Prizm or similar”. This was the free upgrade. You would not accept the substitution when buying, but for a week it’s fine.
It’s like how more recently, rental fleets loved to “upgrade” you to a W-body Impala. I’ll stick with the Cruze or Focus thank you very much.
They don’t seem to understand that for some customers, small is beautiful.
The write-up here hits just about every point with these cars.
When the Lumina first hit showrooms, my aunt and uncle who had only ever owned Chevys (at that point, for nearly 50 years or more) considered replacing a lightly used Impala sedan with a “more economical” Chevy. They said that just looking at the interior they knew Chevrolet was not “thinking clearly” when their salesman touted the Lumina as THE replacement for their Impala. The still bought a new Chevy, but it was a Caprice.
A co-worker traded a VERY used Tempo for a nearly as used (up) Lumina in the mid 90s….what an underwhelming POS. As a “value-priced” car, the Lumina represents how little Chevrolet and GM VALUED it’s customers.
Somewhat in defense of the Lumina, the 2nd generation car looked decent enough, at least on the outside. I even prefer the companion Monte Carlo to the later (2000-2006) Monte.
BTW, aren’t there several websites devoted to the 3.1/3.4….as THE worst GM engine?
The 3.4 Twin Cam DOHC engine had it’s issues, namely it was a pain to work on and more complex plus it had a timing belt that required some training to get right with replacement. But saying the 3.1 was a bad engine is very inaccurate. The 3.1 was many in a long line of 60 degree pushrod V6’s that GM introduced in 1979 in the X-body cars for the 1980 model year. The 3.1 in the 1990-94 Lumina was actually a very good motor with loads of 200-300K mile examples still on the road running well.
The second generation Lumina was most certainly an improvement over the 90-94. Yes the base models went to lower cost drum brakes (just like the Taurus) but the later 1996 onward Monte Z34 and Lumina LS and LTZ re-instated the rear disk brakes as std fare.
The Lumina smacks of a product that no one was responsible for. I get the feeling that Chevrolet and GM’s corporate culture was about more about CYA rather than producing superior automobiles. It was probably a case of “the Lumina is doomed to mediocrity, at best, no matter how hard you work on that interior design or transmission.” Built to a price and it showed everywhere. It’s a perfect business school case study of muddy leadership from the top down leading to inferior products and probably a demoralized workforce.
This is exactly how GM was structured by the 80s. Executives were promoted quickly, resulting in constant management changes during each and every project. The result was that nobody was ever responsible for a new car from start to finish.
I know the A bodies get(far too much) criticism around here, but here lies a huge waste. Spend 7 billion to add 10 inches of length and 350 pounds to your midsize offering is a huge disaster of design. There was no more usable space. The money spent was not made back on incremental sales, in fact some of the old models were kept around to keep market share. A much lighter restyle of the A body could have kept it up to date and not destroyed the profits from it.
Toyota, for example has kept the Camry and the Corolla on the same platform now for 20 + years, while doing needed styling, power and safety updates every 4-5 years. Toyota is now what GM was and this is a much better system. There is no need to throw the baby out with the bathwater with a completely new platform. It is just too expensive. Already by the nineties, Gm was borrowing the money to do it and just taking too big a chance.
The Celebrity needed a fourspeed auto for the iron duke a more modern dash with airbags and that new cheap system that combined abs and traction control. The new body should have been stylish while being lighter, stronger and easier to assemble. Just good engineering. Nothing more, nothing less.
Completely agree. GM of that era would have been better off with J (Compact FWD), A (Midsize FWD), H (Large FWD) and B (Large RWD) platforms. Skip W, N, L, P90, Saturn and use the $$$ saved for refinements and continuous improvement.
ETA: Obviously Corvette, Camaro/FB and (some) Cadillacs were specialty cases.
I’d amend that and keep the Saturn car project but not the division; it would give room for the J body to move upmarket with the program that yielded the first Opel Vectra and fill in for the departing/nonexistent Ns. In both cases there would only be Chevy and Pontiac versions with the latter having a high level of standard equipment and noticeably sharper, sportier handling than the Chev.
Keeping the Saturn powertrains would have been a good move, their OHC I4 was much better than the Quad-4. Their 4 Speed Auto was decent as well.
GM had this strange fixation on tweener cars at that time, as if there were throngs of people who wanted a J-Car with four inches more wheelbase, or an A-Car with three inches more width. Meanwhile everything they made had the same Playschool grade interior trim and peeling paint…
As far as I’m concerned, the ancient A-bodies were tons better than these pieces of junk. Better styling, nicer interiors, more comfy seats and lighter with better gas mileage too! GM just never really learned from past mistakes did they? A $7billion boondoggle.
The W-body Lumina was for sure roomier inside with greater width and legroom and even better visibility compared to any A-body. I know because when we stuff me and 3 buddies into my friend’s 1995 A-body Buick Century there is noticeably less legroom and shoulder room and even headroom. Hop into his dads 1990 3.1 Lumina and we fit far better in that car and can stretch our legs out more. As stated in the article the A-body had a much more dated suspension, a far less rigid chassis and rode with less control. It is amazing the difference in suspension between those two cars despite the Century being a 5 year newer vehicle. The 90-94’s Lumina’s biggest weaknesses were the dash, the optional seats were lacking and a bit too firm and the rear disk brake slides were known to seize up if the customer didn’t regularly use the e-brake.
Toyota have watched GM come and go and seem to be carefully avoiding the pitfalls GM blundered into,, they have figured out how to milk badge loyalty by not building the occasional rubbish model and foisting it onto an unsuspecting public Camry like Corolla is something you can trust to keep going like a Chevrolet used to be before they got all big headed.
During my short commute I will see two or more Luminas along the way. Regardless of their shortcomings described here, they appear to be durable and have found some kind of following with those who want cheap and reliable transportation.
I completely agree. I knew a guy that traded his Lumina in with 310,000 miles. They still roll the northeast to this day. You also see a lot of Taurus from the day.
The A-Car was a much better bet as a cheap reliable beater than the W-Car in the 1995 – 2000 time frame.
From about 2005 on, as the W-Cars were sorted out, they got better (Although a H-Car with the 3.8L is still a better choice).
$7 billion???!!!
Yeah…
But remember the only division that didn’t get a version of the W-body was Cadillac (and GMC).
Oh and the program went way over the original timelines too. Pretty much a disaster from start to finish.
As I’ve said elsewhere, the GM10 is the Donald Trump’s hair of cars. It doesn’t matter whether it’s real or not, the vast sums of money spent on it should’ve yielded much better results.
I have very mixed feelings about these first generation Luminas. On one hand, they were indeed inferior to the Taurus in most respects. In particular, the exterior styling was already old upon introduction, with the interiors extremely dated looking, and powertrain wasn’t impressive in most respects.
That said, while it does lool a bit awkward from some angles, I still find this Lumina a reasonably attractive vehicle, externally. The fact that it came later and was redesigned earlier makes it seem less ancient and boring at the time it left than it’s siblings. Additionally, the horrible looking 1995-2000 Lumina makes the 1990-1994 look a whole lot more appealing.
Also, in reference to the Disney advertisements, I believe the Lumina was proclaimed “The Official Car of Walt Disney World” at its launch. Likely related to GM’s sponsorship of The World of Motion and later Test Track attractions at Epcot since 1982.
I always kind of liked the styling of the original Lumina. It was every inch a Chevrolet, and did not apologize for it. The large greenhouse was appealing to me, in particular. But then in any era, I have liked more traditional styling. The instrument panel was very early sixties Chevy in concept, only with some actual instruments.
The second generation was the deadly sin. The car lost its distinctive style and gained virtually nothing in return. A friend’s octogenarian parents bought one, their first new car since 1955. When the surving parent died, the car was pristine with very low miles. My friend (who had owned many Buicks) had zero interest in it. As did I.
I don’t know if I would call the second-generation Lumina a Deadly Sin. I remember seeing the second-generation Lumina for the first time at the Philadelphia Auto Show, which is held in early February.
This was months before the car was available at the dealers, and I thought it was a big improvement over the first-generation car, both inside and out. It just seemed more substantial and, overall, more “finished.”
Totally disagree about the 1995-2001 generation Lumina. Even Cr and Consumer guide said it was a better car than the then current Taurus, especially when it went on to the horrible jellybean fish face style. Everything from the dash to the suspension to the engine were much improved, the seats were more comfortable, it had more features like std dual front air bags and ABS was included on all but the basic models. It was also considerably more refined and more in tune with what everybody else was doing with rounder smoother styling. I have driven, owned and sold bucket loads of Lumina’s over the years. The next gen was a far superior car in every way and we much preferred it to the ugly ovoid 1996 Taurus.
Of course at the time the W bodies were developed the Japanese had GM on the run. They just did not know what to do and just floundered. Sad.
I never paid much attention to the Lumina sedans or coupes but I did like the van but on that brochure it says it debuted in ’90 and I could’ve swore it was a ’91 release year.
The Lumina cars nowadays here in Florida seem to be the bottom of the barrel selection when you go to one of the many used car/buy-here-pay-here lots and you know, the paint on most of these seem to have held up fairly well in the sun.
My mom’s boyfriend at the time in ’95 had the van and it’s much longer outside and roomier then it portrays from the outside for those that have never peeked inside one of those spaceship styled vans.
Spring 1989 was when the W body Lumina sedan was unvieled, at Chicago Auto Show. The ‘dustbuster’ vans were fall 1989 intro, and the coupes were a few months later, but they were all 1990 model years.
I have nothing good to say about these cars at all. The styling looked hideously out-of-proportion, with a sagging beltline and a nose and tail that were stretched out on a torture rack. It barely looked passable when it was drawn up in the 1980s, and it looked outdated as soon as the cars appeared. Some of the details like the segmented full-width taillights seemed to be weird for their own sake, and the whole thing reeked of a stillborn H-body design that was skewed, cut, and shrunk to fit the W platform. The interior was an unergonomic triumph of symmetry and straight lines over function. Gauges were illegible, controls were strewn all over the place. Performance was decidedly mediocre…barely an improvement over the Celebrity, which in all likelihood was a more durable car.
And what about safety? In 1990 the Taurus offered a driver’s side airbag, and by 1994 just about every real competitor had two…but the first-gen Lumina had none at all, which was inexcusable for the market segment it was in. If I recall correctly, the initial crash test result for these cars was so bad that the seatbelt literally snapped in half! The seatbelts themselves were the cut-rate GM “passive restraint” solution, 3-points mounted to the doors with the premise that people would keep them fastened all the time and slip under them as they climbed inside…in reality, the only place I ever saw them fastened like that was in GM dealership brochures. Better hope a door doesn’t pop open in a crash, because then you’d be without any protection at all…and given the mediocre dynamics of the Lumina, I wouldn’t trust one to keep you out of a collision in the first place.
The 1995 version was better in most ways, and if anything it offered dual airbags and was more pleasant to look at. It was the car that should have debuted in 1990 or earlier…but of course, that didn’t happen, did it?
The first-gen cars were never competitive with the Taurus, and there was no reason why anyone with half a brain would buy one (or want to buy one) at all unless they were a bean counter with a rental fleet. Indeed, to me the first-gen Lumina epitomizes General Motors at its absolute nadir of corporate arrogance and myopia. “We won’t even try to build a good car, but tough shit: We’re GM. We own the market. What else are you gonna do? Not buy a Chevy?”
FWIU (and I had experience with a Geo Metro so equipped) those belts worked day-to-day and if the (supposedly beefed-up) door latch held would keep you safe in a crash, if you were short and/or driving a two-door model.
4-doors had the belts so far forward that tall people ran the risk of building so much momentum by the time they reached the seatbelt that it couldn’t keep them from hitting the dash…
And I tried leaving it buckled with the door open, once, for curiosity’s sake. Worked well enough getting out, but getting in the lap strap ended up running just below my knees!

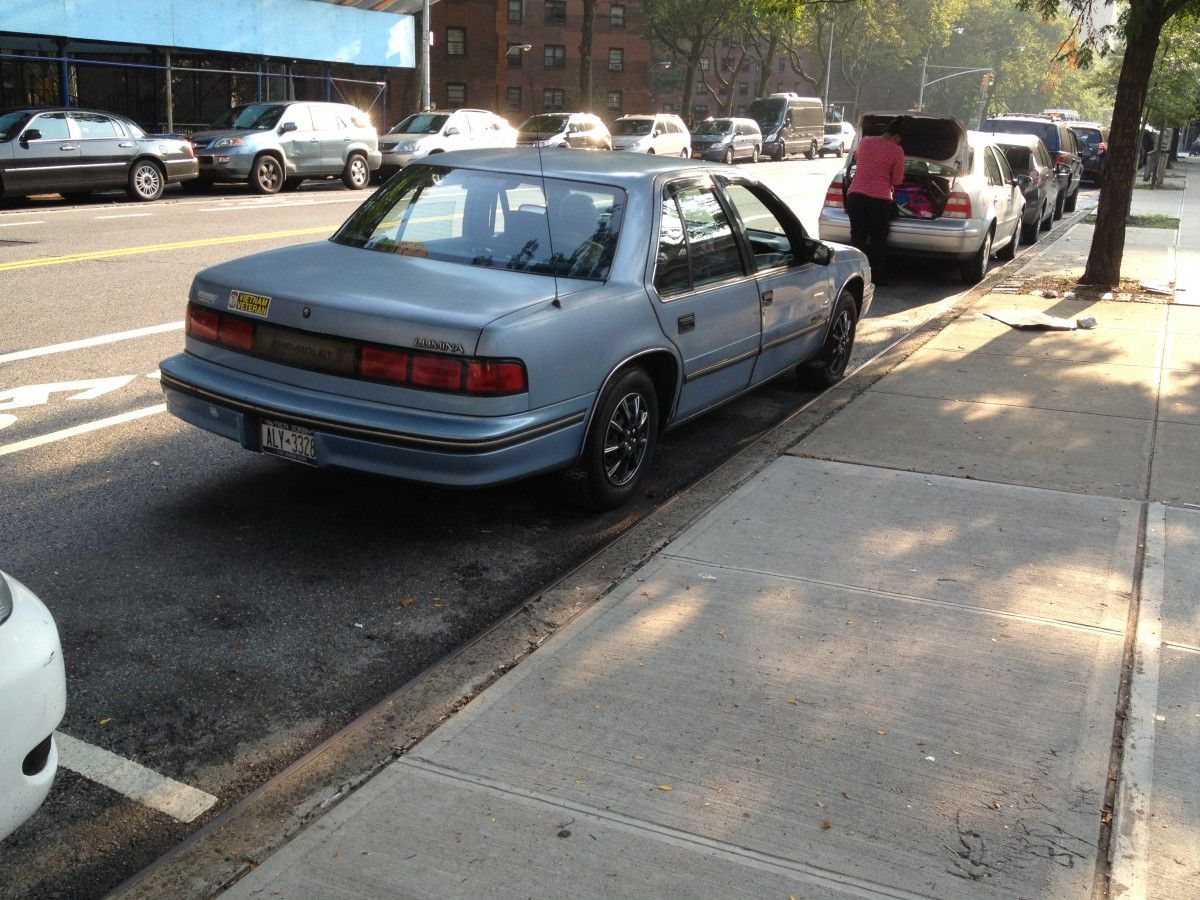

“Some of the details like the segmented full-width taillights seemed to be weird for their own sake,…”
