1953-1960 Mack B-20 with Fire Truck Grill Surround

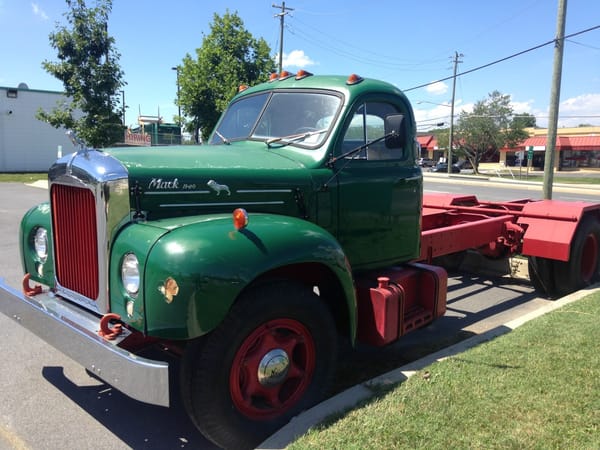

When I came upon this Mack B-20 truck in Gaitherburg MD, I couldn’t take my eyes off of it! The shape of the cab is so different from what we see today, and so…small! I would guess that overall it’s not all that much larger than a 2017 Ford F-350 dually (except for the longer wheelbase), but the look couldn’t be more different. It is a classically-beautiful design: bold in the front; big wheels to do the work; a subtle, small and minimalist cab that one internet commenter said “you wear like a pair of pants”; and it’s all business in the back with a two range axle. With such large wheels and muscular flanks, and a small and rounded cab, it’s like a muscle man wearing skinny jeans!
Paul has done an excellent job covering Mack trucks in the past (here and here), but I’ll try to add a unique angle. In the process of trying to learn more about this truck, I came up with an off-the-wall comparison to another vehicle that you would never imagine to be so similar, as its mission and (I assume) driving experience differ so greatly. And the most important question is why? Why do two vehicles with nothing in common look so similar?

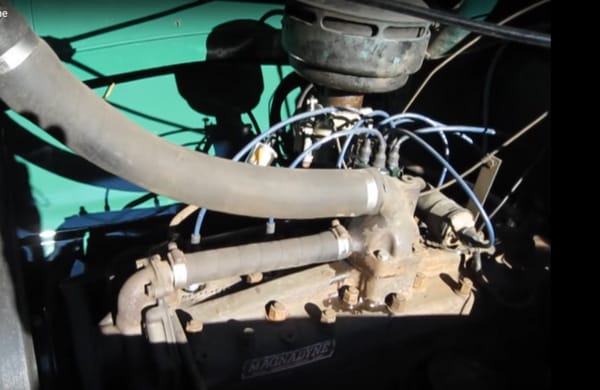

Mack Magnadyne EN291 Flathead I6 Engine
They both have an inline 6 cylinder engine, as a major part of the answer! (I’ll reveal the other vehicle further down). This Mack B-20 was the baby of the B-Series, and was delivered with the smallest and least powerful engine, a 291 CI (4.8L) flathead inline six with the tradename “Magnadyne”, making 107hp and 232lb-ft of torque.
Larger B-Series trucks were powered by larger gas and diesel sixes under the name Thermodyne, with sizes up to 707 CI (11.6 liters) for the inline six diesels and 864 CI (14.2 L) for the V8 diesel. And a big 855 CI Cummins diesel six was optional. No wonder the hood was so long. And the hood opened in the traditional way, from either side, hinged down the middle.

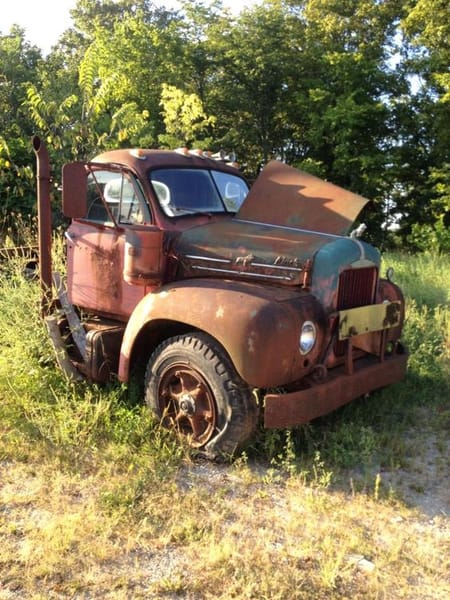

Now That’s Patina!

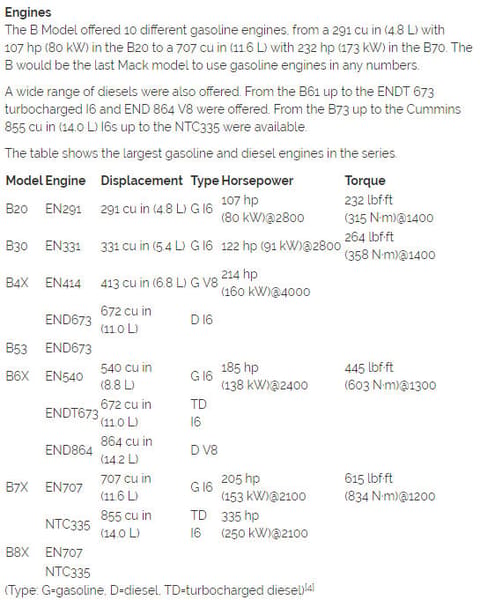

From the Mack Truck Section of Revolvy.com
Often times, we armchair analysts and critics of current cars say “all cars today look the same.” My response, strengthened by the analysis of this truck, is that more than we realize, form follows function. And ultimately the function of our vehicle designs is first and foremost to create an envelope to house the engine and the passengers.
Today, the vast majority of our sedans, crossovers and minivans are front-engine, front-wheel-drive format (excepting most Mercedes, most Cadillacs, all BMWs, and some Chryslers). And most of the Front-Front designs are transverse engined in a V-configuration (excepting 4 cylinder engines). Audi has longitudinal, V-configuration engines, Subaru has longitudinal, horizontally opposed engines, and Volvo even has a transverse inline six cylinder, but the design approach is still similar: short and wide sloping hood, leading to a steeply raked windshield. Trucks, body-on-frame SUVs, and coupes today diverge in design from sedans, crossovers and minivans, and have a more traditional design of front, longitudinal engine and rear-wheel drive.
Curbside Classic Bait: Can You Keep Yourself from Commenting on This Car?
But if we look backwards to the late 1930s through the late 1940s, there was a completely different “standard configuration” for both cars and trucks of front engine, rear wheel drive, and most engines in an inline design (excepting Ford). That configuration led to a very traditional looking hood line, long and narrow with a tall grill in the front. Think of any 1940 Buick, Oldsmobile, Ford or Lincoln, and you can see the hood shape in your mind’s eye. By the mid 50s, the V-8 became so popular that in due time, American cars would no longer need the long, tall and narrow engine bay required for long-stroke, inline configuration engines, but for the moment, the standard design and look for cars and trucks was similar to the 1940 Chevy Truck.

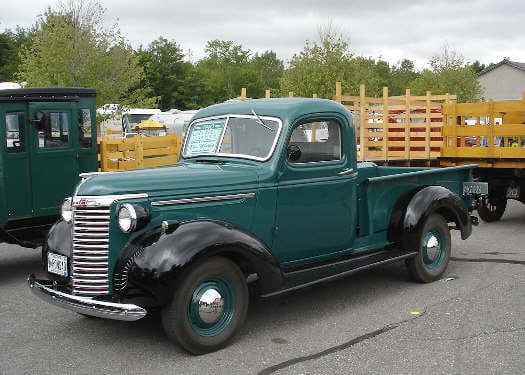

1940 Chevy Truck
By 1953, most car and small truck designs had moved on from this style of the long, narrow hood with a large upright grill, but big truck design tends to be evolutionary, rather than revolutionary (as Paul reminded me during the writing of this article), so the Mack B-Series didn’t radically alter the looks of its predecessors as much as modify them. Let’s look at the short lived Mack A Series of 1950-1953, and the longer lived Mack L Series of 1940-1953, for comparison sake.

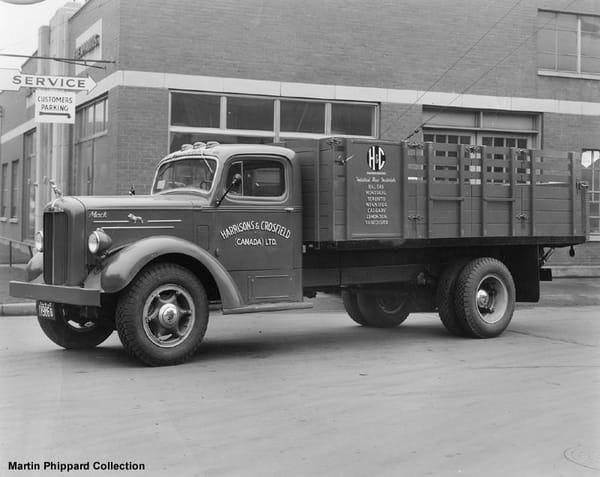

1950-1953 Mack A-Series

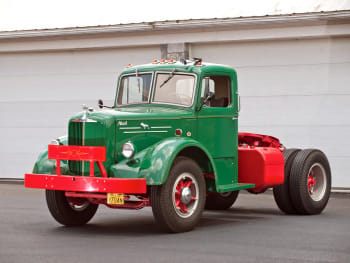

1940-1953 Mack L-Series (in the same color combo!)
The resemblance is there, especially in the grill, the hood-line, and the bulldog hood ornament, but it’s amazing how much the integrated headlights and fenders, and the smaller, rounder cab with more steeply raked windshield change the look. According to the forums on www.bigmacktrucks.com, the Mack B-Series featured a widened chassis frame in front for easier maintenance, a wider front axle for improved maneuverability, and rounded fenders with a sleek hood and cab. The B-Series came in many versions, from B-13 to B-8X, and models built with gas engines had even numbers (B-20, B-42, B-60) while diesel-equipped trucks had odd numbers (B-61, B73). The total production of the B-Series by 1966 was 127,000, but the B-20 made up only 1,113 examples from 1953-1960, the one I found is really quite rare.

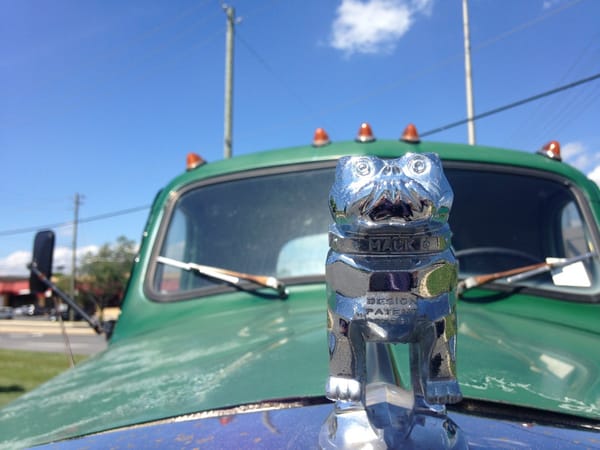

Mack the Bulldog, born in 1921!
It was English Soldiers who first referred to Mack Trucks as Bulldogs, given their tenacious and tough performance in World War I.
So That’s Why They Called It a Bulldog!

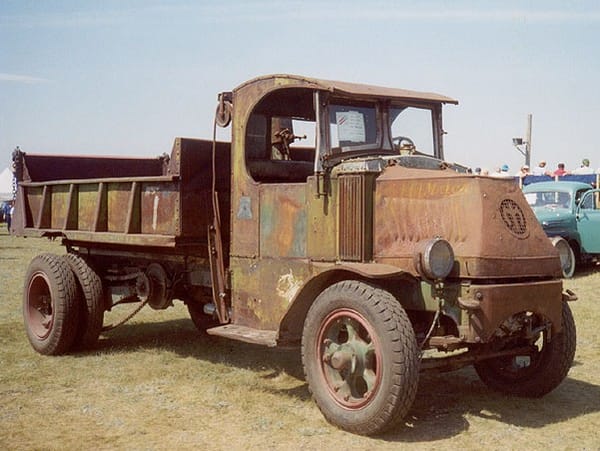

Although I think the looks of the truck to which they were referring, the Mack AC, clearly contributed the bulldog nickname.

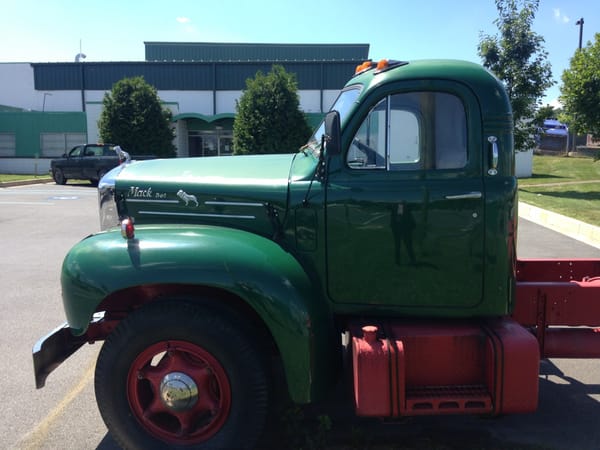

Just Enough Room to Drive
But back to the B-20: In the spirit of Paul’s post entitled Did The Lincoln Mark IV Have the Biggest Overhang Ratio Ever?, I ask has there ever been a truck with a smaller cab to hood ratio?
King Ranch Edition It Is Not

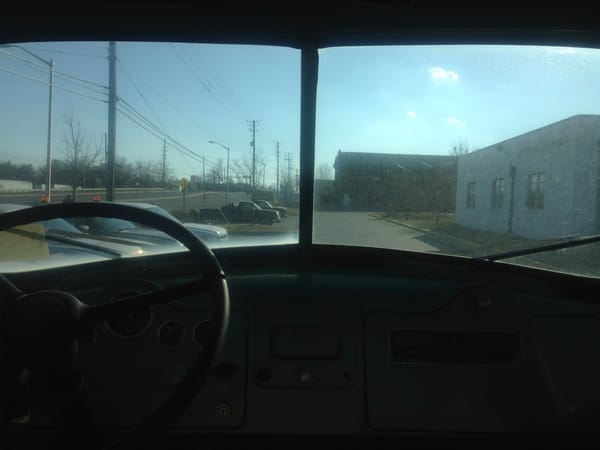

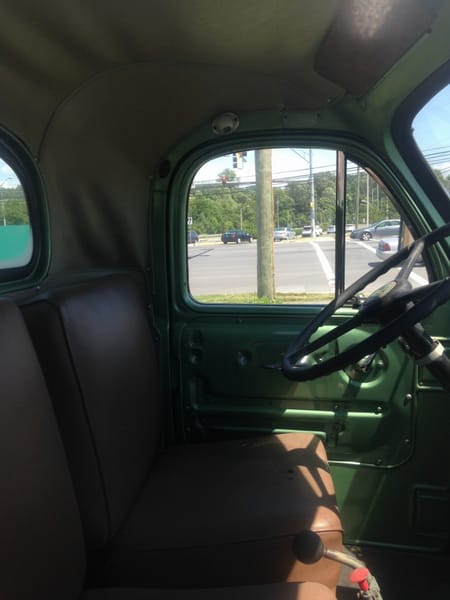

The B-20 cab was also quite minimalist. No heat or air conditioning, and you can see the road through the floor where the shifter rises from the transmission. Neither power steering nor syncro-mesh, nor suspension system in the seat. Just a basic working environment.
Ok, I’ve stretched out the reveal of my off the wall comparison long enough. The drum roll has begun to lose its power, and so without further explanation, I’ll share the vehicle the B-20 most reminds me of, another vehicle with an evolutionary design, with a long-stoke inline six engine: The Rolls Royce Silver Cloud I.

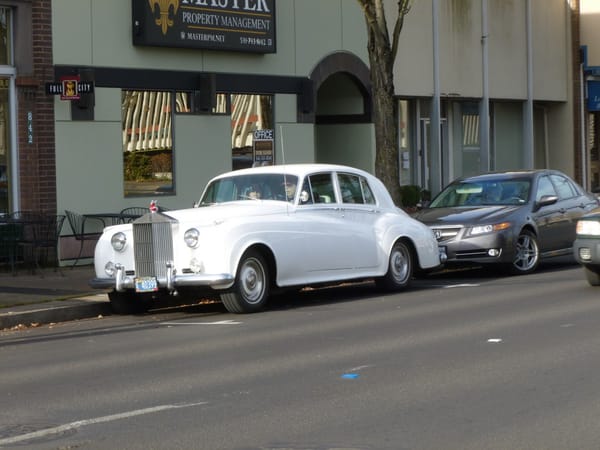

Rolls Royce Silver Cloud I (courtesy of Paul N.)
When You Squint, You Can See the Similarity!
Isn’t it amazing how much these incredibly different vehicles look alike? The Mack B-Series looks to me almost like a Rolls Royce with more modern, flush-mounted headlights. And, as the B-Series came out in 1953, and the Silver Cloud I in 1955, the Mack B-20 is obviously not copying the looks of the Roller. The B-20 at the time did not have the chrome grill surround, except on the fire truck version, and without the surround, the resemblance is greatly diminished. Nonetheless, the way the grill stands up, the hood-line flows back into the cabin, and the roundness of the roof-line are so much more similar than one would expect. And back to my theory as to why…

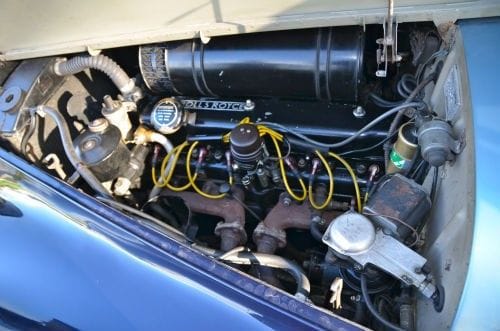

Rolls Royce 4.9 Liter Inline 6
That’s right, until the Silver Cloud II in 1959, the Rolls Royce Silver Cloud ran a long-stroke, overhead-valve inline 6 cylinder, which contributed greatly to its long hood and upright grill. The Silver Cloud engine traced its overhead valve lineage all the way back to the Rolls Royce Twenty of 1922-1929 which ran an OHV Inline Six of 3.1 Liters. The 4.9L as installed in the Silver Cloud I is listed by wikipedia to have 155hp at 4,000 rpm, as compared to the B-20’s horsepower peak of 2800 rpm. I would imagine the Silver Cloud to be a much different driving experience, despite the Silver Cloud’s live axle and leaf springs in the rear.
And so with no more similarities to share, I’m left only to present the rest of the pictures of this beautiful truck, and to wonder how any vehicle this functional came to be this beautiful…

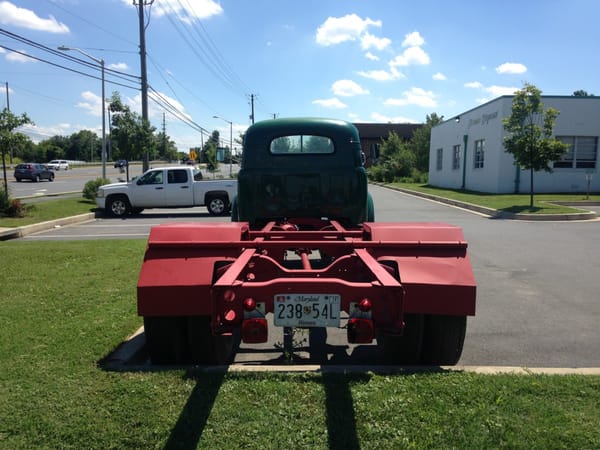

The Business End

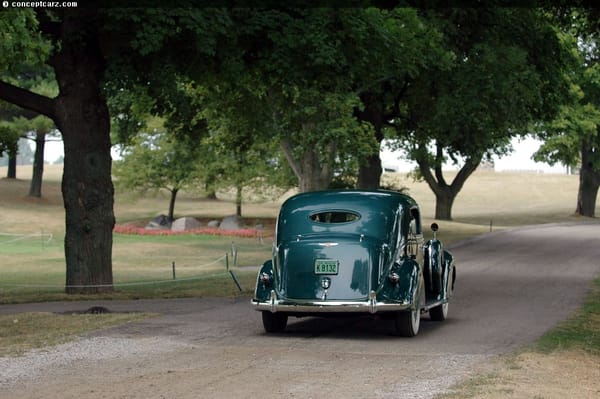

The back of the cab looks less modern and less British than the front to my eyes. No creased character lines like the Rolls Royce; more of a pre-war American look, like a 1938 Chrysler Imperial Limosine.
Now That’s How You Do a Bustleback!
Speaking of the business end, I just have to show more pictures of this beautiful truck for those who are interested.
I Count 16 Leaves…
Are any of our readers qualified to share more about the capabilities, professional uses and driving experience of this incredible truck?

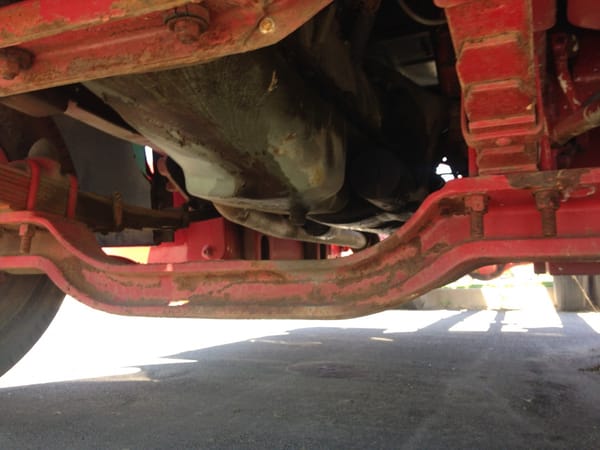

Front Drop Axle
I’m nearly done, just finding excuses for the final pictures…

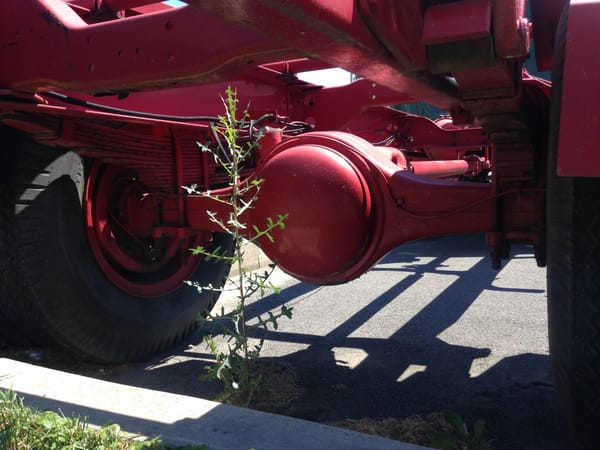

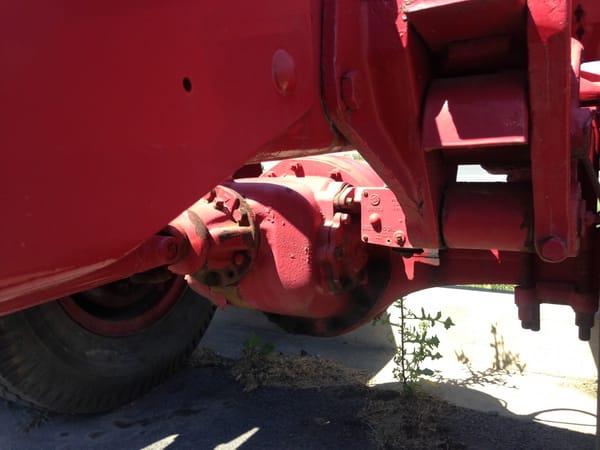

Reduction Gears?
I’m so curious to hear what Paul or anyone else can share about the functional design of these trucks…

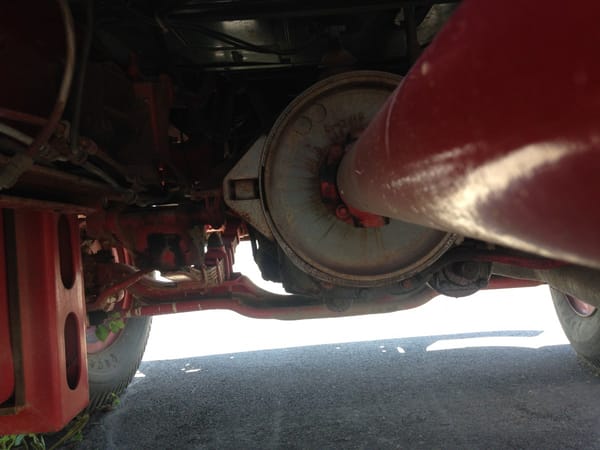

Transmission
Well our tour of this antique Mack truck is almost over. Please forgive my inadequacy to the task of presenting its capabilities, but I hope the pictures alone are worth the journey!

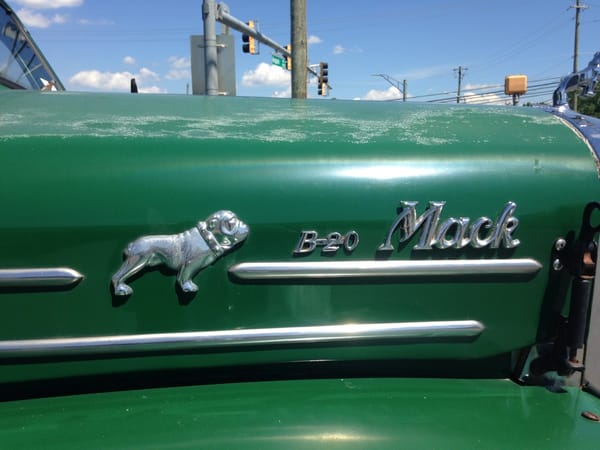

Woof Woof!
Happy Trails!
And so slip into these skinny jeans, give the engine a rev, pop the transmission in gear, wrestle that steering wheel, and see if you’ve got what it takes to drive the bulldog!
Related:
Wow, you crawled around on the ground to get pictures. Kudos for that! And kudos for finding such a rare beast.
Your comparison to a Rolls is a good one and delightfully unexpected. But you are correct as the styling of each was an evolution and their drivetrain helped dictate styling. Plus, both were definite workhorses in different senses of the word.
I have to bite on the hood to cab ratio. No doubt there are even better examples (I’m thinking 1970s era Kenworth but couldn’t find any pictures from the side) but here is a new International LT Series, customized on the International website. All I did was eliminate the aerodynamic stuff and use a day cab. Granted, this hood has a lot more slope to it.
What a rare and killer find. And such nice shape for its age. Thanks!
Great piece, Matt! Unless you had pointed out the visual similarities between this Mack and that Rolls, never in a million years would I have seen it – but I get it!
I love the functional aspect of this B-20… it is simply all-business, and I like it for that reason.
About the color scheme, I hope this truck gets some use in December!
“I ask has there ever been a truck with a smaller cab to hood ratio?”
You might look at Pete 389 conventionals. Their driver stereotype is a driver wearing skinny boot cuts.
Love these B-20’s. All this one needs is a stepside pickup bed and it would be a hit in Hollywood…
Cool truck! I caught some pictures of an old Mack at a small-town show a few years ago, but a look at the pictures shows it as a much heavier B-61 from the same era.
I had never made the Rolls connection before now, but it surely is there.
I don’t think I’ve ever seen a B20, the smallest of the B Series. I suppose I probably did back in the day and didn’t notice, but Macks were generally heavy duty trucks, not mid-size ones like this one.
You definitely took this to a place I would not have expected… 🙂
does a bull nose kw count for the cab to hood?
How about this one?

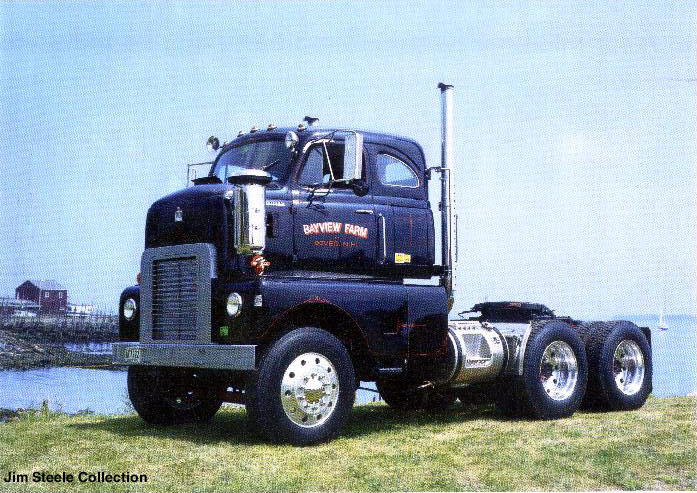

Well I think we’re getting to “large cab to hood” ratios, not small, but here’s one
B series Macks arent common here the short haul rail oriented industry had little use for big rigs the only place they got used was for logging, I never seen a B20, The oldest Mack Ive driven is a R model with 12 speed extended shift crash box so cant help with the driving experience either, nice find,
Back when i was an IT subcontractor for Renault / Mack in the late 1990’s, I would often get calls from the assembly plant in Australia during the night shift. The east coast of the United States and Australia / New Zealand were their core markets at that point.

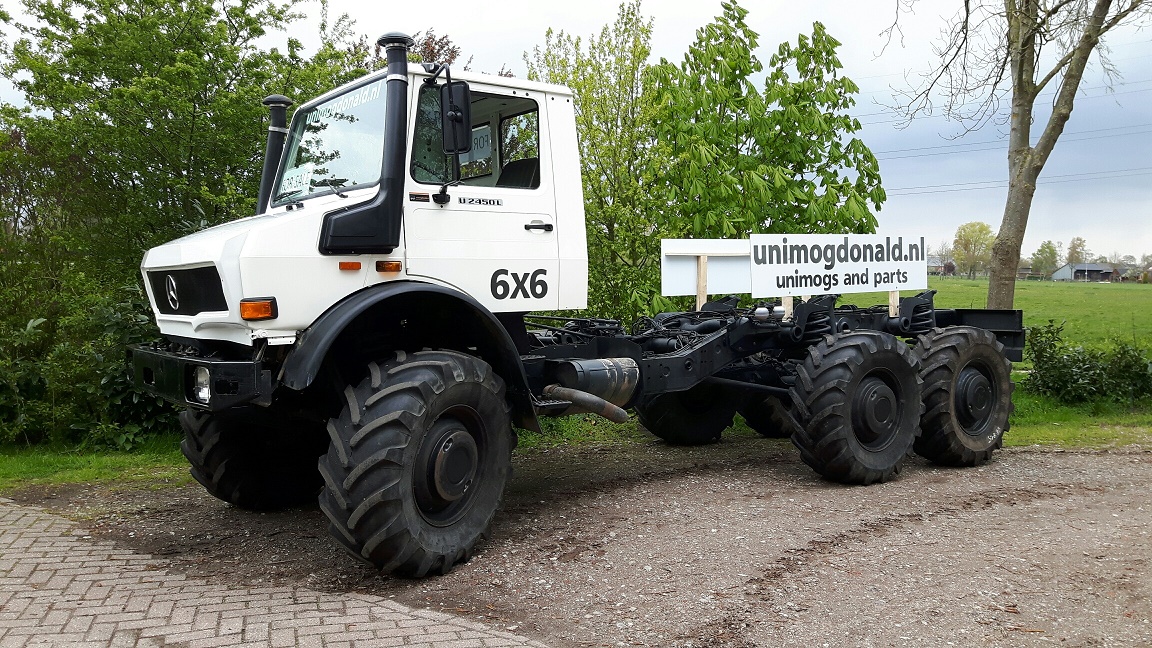

Unimog. Others are the MAN Ponton Kurzhauber and the Mercedes-Benz L-series. All of them are basically a crossover between a “real” conventional and a COE; the truck’s engine partly intrudes into the cab.

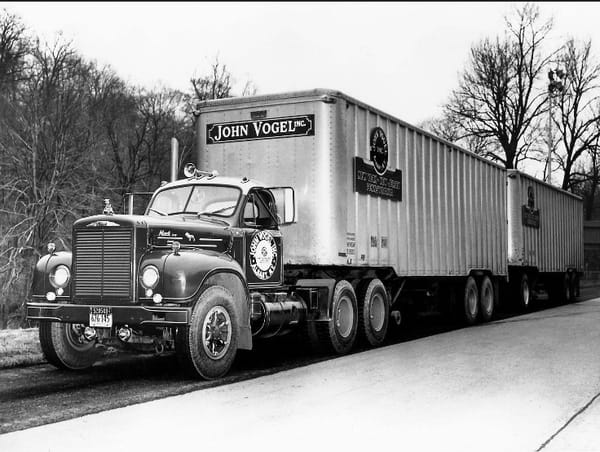

Great piece Mack Spencer ! I immediately recognized the John Vogel Mack from a book I still have somewhere. The Mack B-series were quite renowned here too in their days, they were also assembled in my country.

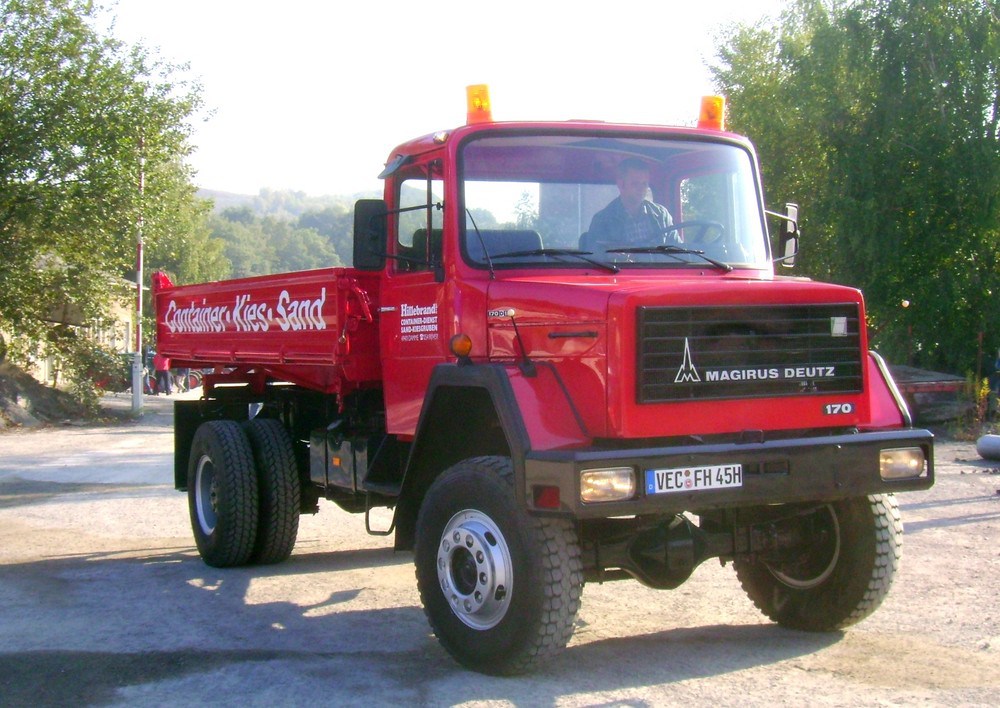

The Magirus-Deutz Eckhauber had a very short nose too, as long as it had the V6 engine, which didn’t intrude into the cab.
B-20…that’s one I hadn’t heard of before. I was quite aware of the B-61, although I’d never had opportunity to drive any of them.
Great article. The video of driving one with that small cab sure brings home visually the fact that most people are a lot bigger now than when the truck was originally designed and built.
My grandfather used to be a truck driver back in the day; his first truck was a late ’40’s GMC tractor. I don’t know if he ever drove an old B-model, but those did have the old-style auxiliary transmissions and he said those where a chore to drive. I’ve heard of people having to use two hands just to shift(!). And if they ever both came out of gear at once, it was game over. You would have to completely stop the truck, engage 1st gear in both transmissions, and start all over again.
Handling would not be for the faint of heart… That steering wheel is as big as it is so that the driver can have as much leverage as possible. Power steering back then was for luxury cars only!
As far as how they ride, I couldn’t tell you. But if they are anything like my old man’s F600, they ride like a buck board on a plowed field–that is to say, rough!!
