Ahead of the driver is a leather covered though not heated steering wheel and a set of large and easily readable dials; if you’ve been in any semi-recent Toyota the center display between the dials will be familiar too with various different piece of information available by just tapping a button on the wheel in any of four directions. The cruise control though uses Toyota’s excellent and intuitive standard stalk at the 4-o’clock position behind the wheel.

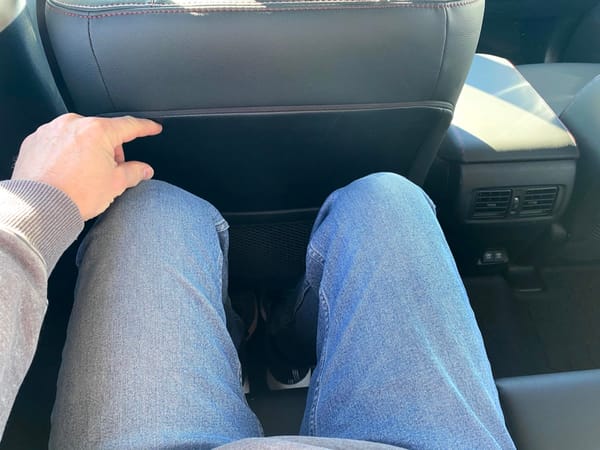

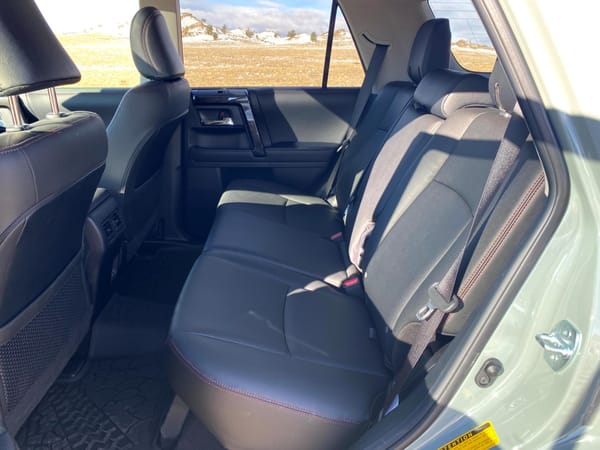

The back seat was roomy and comfortable with no reason that I wouldn’t be fine back there for hours on end. I’m 6’1″ with a 32″ inseam so somewhat representative of a decent cross-section of the market. The rear seatbacks both recline or fold forward in a 40/20/40 format for maximum versatility.

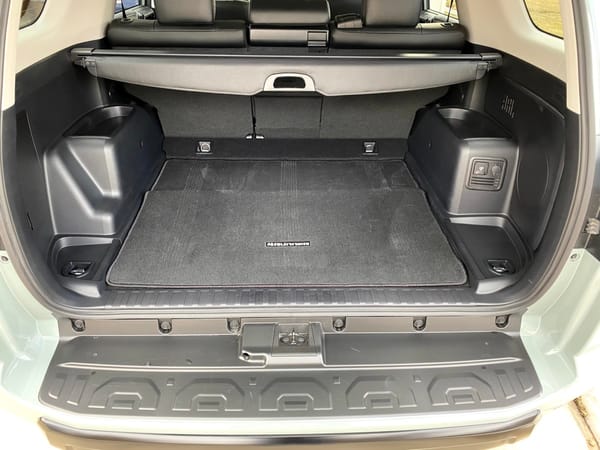

Cargo room is spacious and blessedly square to maximize the usable volume. The floor is at a comfortable height for loading items even if the bumper does project out a bit further than usually seen nowadays so a load would have to be hefted a bit further into the cargo area before being on the floor of it. No power tailgate here, just an electronic button to unlatch it and then it lifts using your own power. Closing it again is accomplished via one of two hand pockets in the bottom of it, just like the old days.
However there is a power window in the tailgate, something of a 4Runner trademark, that is nice to either get more ventilation flowing through or to carry longer items from the home improvement store. On some models of 4Runner (not this one) there is also a third row option which is a bit surprising, it ends up raising the cargo area by about 5″ or so when folded and when deployed uses up most of the available space while not offering significant room for the occupants. You’d have to really want a 4Runner specifically to opt for this but apparently there is a market for it.
Driving it in general is a reminder of how far and how civilized modern SUV’s, but especially CUV’s in comparison, have become. It isn’t uncomfortable, in fact it’s downright entertaining the way it leans and sort of wallows through turns, especially ones with a dip in the middle of them.
The way the weight transfers is entirely predictable and fun, however it doesn’t necessarily make for the fastest forward progress and is extremely different as compared to for example a Highlander or a Venza. Those really are far more car-like while this is much more truck-ish. Better to just go with it and enjoy the ride and its easygoing nature instead of trying to constantly hustle it. It isn’t a negative, just different and a bit of an outlier nowadays in that regard, which may well contribute to its appeal.
The most obvious reminder of its aged mechanical specification and BOF 4750lb heft though is the gas mileage. I drove it a total of 403 miles over a week’s time. That included a highway trip to Laramie and then a dirt road traverse bypassing an 8200-foot pass but encompassing around 20 miles before joining I-80 to Cheyenne and then back home via I-25 for an elapsed mileage of almost exactly 200 miles.

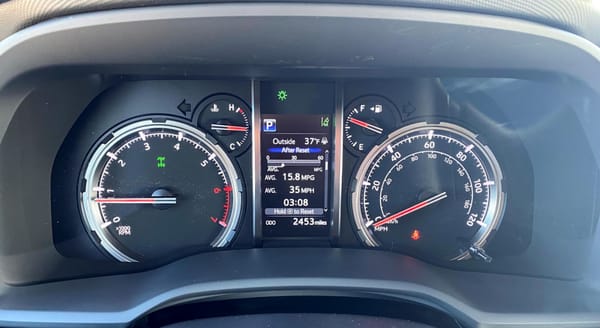

At the end of this the 4Runner was displaying a 16.8mpg average (after the trip to Laramie and the dirt leg it was right at 15.8 for the first 110miles, the downhill freeway afterward helped tremendously). For those familiar with the area it was Pumpkin Vine Road off 287 close to the CO/WY border and then right on Monument Road, I really should have gone left to go past Ames Monument but it was already too late by the time I figured it out. Next time…

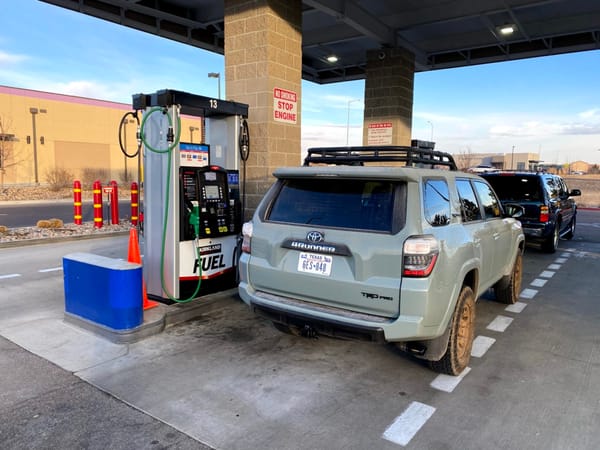

After refueling and confirming that the mpg calculation was in fact exactly correct I had occasion to visit south Denver with my son. So that’s another mainly freeway round trip of approximately 150 miles and then the remaining 53 allocated to in-town local typical mileage. At the end of the week the total mpg average was 17.4 which is a little better than the EPA’s estimated average of 17, with 16city and 19highway.
A more modern 8-speed transmission would likely help this by several mpg’s although clearly the sales numbers don’t seem to show any pressing need at this time. Note that I spent a decent amount of time at higher speeds, the displayed average speed for my stay with it was 39mph. If mainly an in-town or, as designed, offroad, rig, I’d expect a few mpg less. There’s no stop/start feature either which will likely make many readers happy.

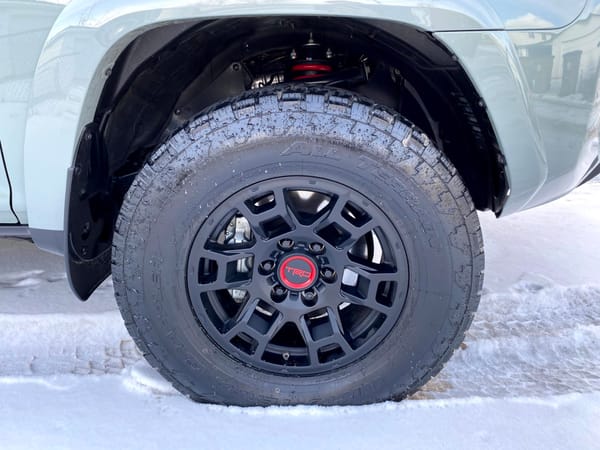

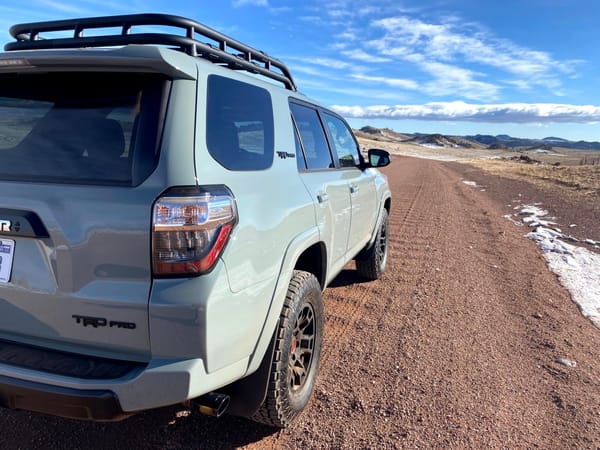

The wheels are 17″ flow-formed alloys painted black even though the dirt roads I was on coated them in what I can only say is a magnificent bronze-ish color. While similar to previous iterations this year they are lighter, stronger and deeper dished than before. Tires are 265/70-17 Nitto Terra Grapplers, which I was surprised to see on this as a factory fitment.
While long a favored tire among the Jeep set (along with the more extreme Ridge Grapplers), I had not had an opportunity to try them and was pleasantly surprised. Good on dirt as well as grippy in snow, they also were fairly quiet and gave good traction on dry roads. All-terrain tires have come a long way from the stereotypical loud knobbies of a couple of decades ago.
Of course as opposed to what some other offerings would suggest, it’s not all about electronic trickery when going off-road; along with the tires, a decent suspension is a must as well. In this case, a set of 2.5″ FOX brand internal bypass shocks (retuned this year) along with special TRD-tuned springs offer an extra inch of lift in the front for greater capability. The rears carry remote reservoirs and as a combination offers greater ground clearance than the other models (9.6″ here vs 9.0″ on SR5) while keeping the bumps outside and the comfortable ride inside. Well, mostly.
But really, even over washboard surfaces it was fairly smooth (smoother than a Wrangler for sure) and going into and out of various small gullies along with driving on various surfaces everything felt well put together and of a piece. On-road as well was as implied earlier predictable, smooth, and comfortable. But just in case a gully was deeper than anticipated or a rock larger, there is a large 1/4″ thick aluminum skid plate up front (with a logo, of course) to help protect the truck.

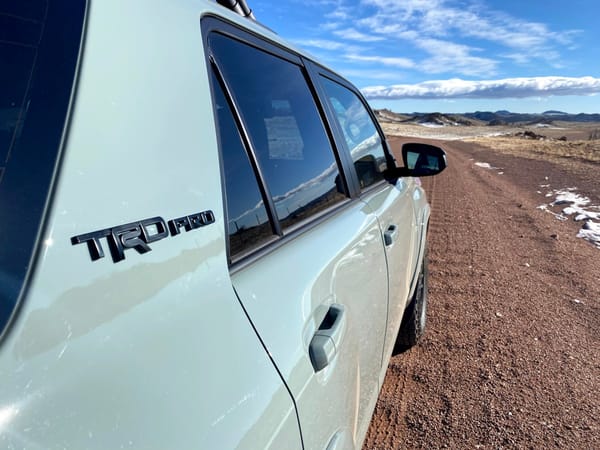

Beyond all of that, the TRD Pro package also includes the “TOYOTA” front grille, TRD Pro badging in black, a special shift knob and all-weather floor liners. While both high and low beams are LED this year, the fog lights are as well, in this case sourced from Rigid Industries as with the ones on other TRD Pro models.
Standard on all 4Runners is Toyota’s Safety Sense P package which consists of a PreCollision System with Pedestrian Detection, Dynamic Radar Cruise Control, Lane Departure Alert, and Automatic High Beams. I’ll admit I did not realize the Cruise Control was the Dynamic Radar (keeps distance) type until writing this, I’m somehow already used to the newer steering wheel that now incorporates the cruise control into its buttons rather than with the traditional lever as on this one. Curiously a Blind Spot Monitoring System is not included although with its upright stance and large windows it’s easy to see out if you just take a look…
While pricing for the basest 4Runner SR5 (with the same powertrain but RWD) starts at $36,590, the TRD Pro price of entry is somewhat more elevated at $50,470, with the other versions being at various price points between those. The only options on this one were Door Edge Guards for $79, TRD Pro Floor Mats (carpet, the rubbery winter ones are standard) for $169, Paint Protection Film at $695, a Cargo Mat for $100 and a roll-out Cargo Cover for $179. With the destination charge of $1,175 that comes to a grand total of $52,587 as pictured. All 4Runners are built in Japan.
That pricing seems to be in line with (or better than) many Jeep models as well as the upcoming Ford Bronco while being extremely capable, very durable, and no doubt extraordinarily reliable with a stellar reputation. No, if you’re looking for all of those attributes while willing to overlook or live with some of its limitations, a 4Runner of any stripe is an easy choice and likely a good value, especially long term.
It’s surprising (or not) how many older 4Runners are still on the roads here, my own neighborhood has literally several dozen encompassing most generations, it’s likely the most common single model nameplate. The TRD Pro version with its limited production and availability, albeit a higher price, is perhaps an even better choice for those that insist on more exclusivity and whatever cachet that might bring in addition to the enhanced capabilities.
Thank You to Toyota for sending us this 4Runner TRD Pro and a full tank of gas to tread lightly with. Happy Trails!
