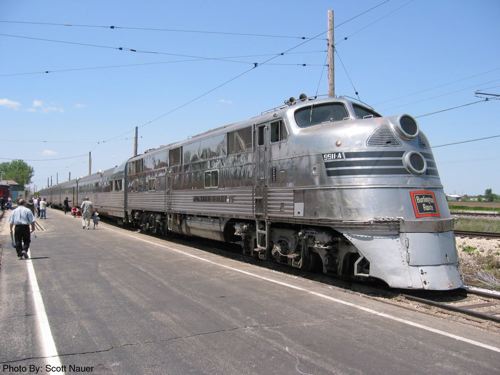

(first posted 5/23/2013) My fascination with trains has a particular focus on the birth and early years of what became the utterly dominant GM EMD two-stroke diesel-electric locomotives. My story of EMD’s early streamlined locomotives through the final “classic” E-9 is here. But I recently cracked open Alfread Sloan’s excellent “My Years With General Motors”, and found perhaps the best documentation yet of just how exactly GM came to be involved in this business, created the first successful high-power American diesel locomotive engine, and turned it into a near monopoly. Kettering’s breakthrough two-stroke diesel engine was of course also scaled down by him to create the equally dominant Detroit Diesel engine, which too came to dominate the bus market, and be highly competitive in the truck market, as well as the mid-sized “Cleveland” engines, equally predominant in submarine and other marine applications.
Rather than try to re-write the story myself, it’s really best heard in Sloan’s lucid writing. It’s a bit long. and maybe not everyone’s cup of tea, but it sure is mine.

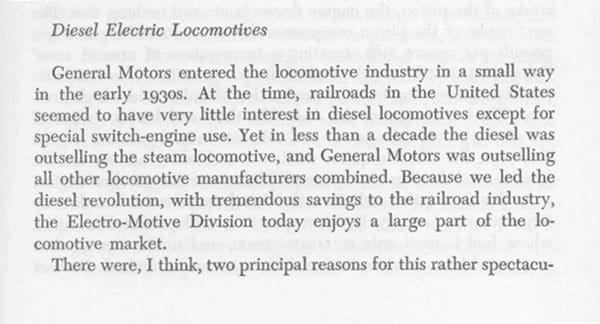

Diesel’s first engine
The first Winton 201 diesel engines – 1933 Chicago Century of Progress Fair
A story about deco diesel dreamliners, written in stately BS-free old-school prose. It’s like this post is made just for me – even before I got the banner ad of women who assure me that “We don’t like young men! We want YOU!” Geez, even the googlebots think I’m old!
When I was a young merchant mariner I spent a lot of time studying how these engines worked. I knew about normal four stroke engines and also about 2 stroke motorcycle engines, but a supercharged diesel like this was a new and fascinating beast. What blew my mind, however, were the Fairbanks-Morse Dual Opposed Piston Engines.
There was a lot of innovation taking place in the enging industry in the first half of the twentieth century and there were some amazing results.
I had the distinct pleasure of witnessing a Fairbanks-Morse opposed piston engine running a couple of years ago. Still very much in service keeping Illinois lowlands tillable by pumping Mississippi river groundwater over the dike.
If I recall correctly, it had been in service since at least the 1940s. It was about ten feet tall, fifteen feet long, and extremely loud, as you would expect.
I’ll never forget it.
Are they like the Doxford Engines??
Sort of. I’m not familiar enough with the Doxford-style engine to say for sure.
