Between 1964 and 1966, Ford was so busy selling Mustangs that they scarcely seemed to notice that they were falling behind in other segments of the performance market. In 1966, Ford finally got around to installing a big-block 390 engine in the midsize Fairlane, but Car Life found the automatic Fairlane GTA didn’t earn its racy stripes.
Introduced for the 1966 model year, Ford’s Fairlane GT and GTA (the “A” stood for “Automatic”) followed the standard mid-’60s muscle car formula: Take one off-the-shelf intermediate in two-door hardtop or convertible form; install an engine in the 400 cu. in. class; stiffen up the suspension; and add the usual cosmetic details, including chrome engine dress-up, GT stripes, a blackout grille, and moderately tacky simulated hood louvers. The brochure asserted that it would “twist the tail of any tiger,” with obvious reference to Pontiac’s contemporary “GTO Tiger” advertising theme.

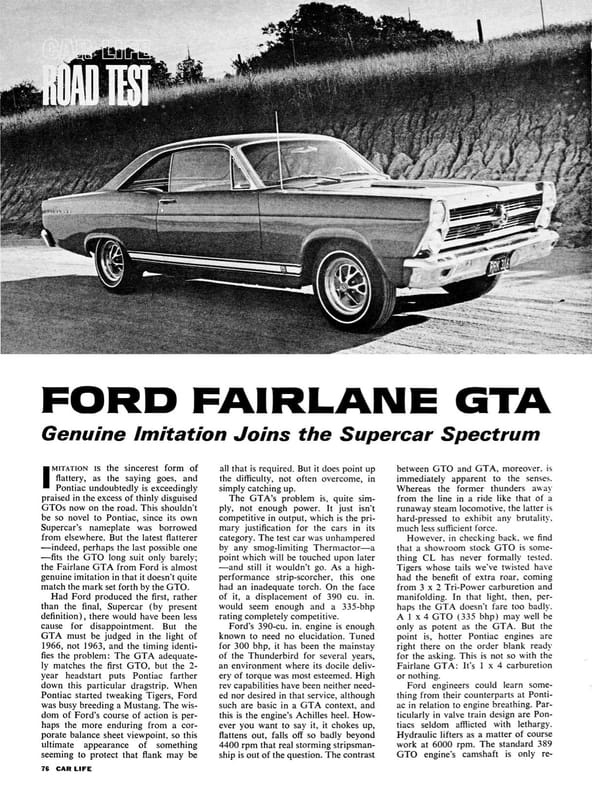

However, the editors of Car Life were not persuaded:
Had Ford produced the first, rather than the final, Supercar (by present definition), there would have been less cause for disappointment. But the GTA must be judged in the light of 1966, not 1963, and the timing identifies the problem: The GTA adequately matches the first GTO, but the 2-year headstart puts Pontiac farther down this particular dragstrip. When Pontiac started tweaking Tigers, Ford was busy breeding a Mustang. The wisdom of Ford’s course of action is perhaps the more enduring from a corporate balance sheet viewpoint, so this ultimate appearance of something seeming to protect that flank may be all that is required. But it does point up the difficulty, not often overcome, in simply catching up.
The GTA’s problem is, quite simply, not enough power. It just isn’t competitive in output, which is the primary justification for the cars in its category. The test car was unhampered by any smog-limiting Thermactor—a point which will be touched upon later—and still it wouldn’t go. As a high-performance strip-scorcher, this one had an inadequate torch.

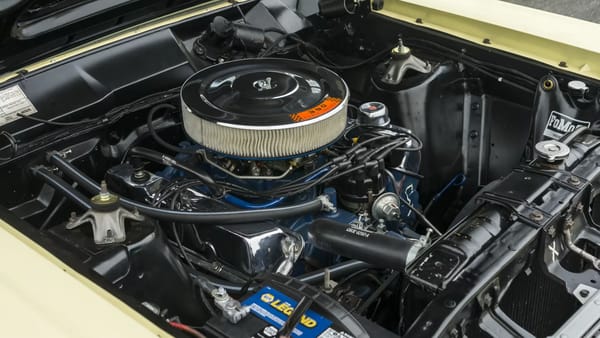

The 390 cu. in. (6,381 cc) FE-series V-8 was found in countless Ford vehicles of this era, but in 1966, the 335 gross horsepower S-code version was exclusive to the Fairlane GT/GTA and the related Mercury Cyclone GT, sporting a slightly warmer camshaft — 270° duration, 40° overlap, 0.4809-inch lift — and a Holley four-barrel carburetor.
On paper, the S-code 390 was a close match for the 389 cu. in. (6,372 cc) engine that was standard on the Pontiac GTO, which rated the same 335 gross horsepower and slightly more torque (431 lb-ft to 427 lb-ft). In the real world, Car Life found the Ford engine a big disappointment:
Ford’s 390-cu. in. engine is enough known to need no elucidation. Tuned for 300 bhp, it has been the mainstay of the Thunderbird for several years, an environment where its docile delivery of torque was most esteemed. High rev capabilities have been neither needed nor desired in that service, although such are basic in a GTA context, and this is the engine’s Achilles heel. However you want to say it, it chokes up, flattens out, falls off so badly beyond 4400 rpm that real storming stripsmanship is out of the question. The contrast between GTO and GTA, moreover, is immediately apparent to the senses. Whereas the former thunders away from the line in a ride like that of a runaway steam locomotive, the latter is hard-pressed to exhibit any brutality, much less sufficient force.
Their GTA test car’s lackluster 3.6-second 0 to 30 mph and 8.6-second 0 to 60 times bore out the lack of muscle. The data panel alleges a best quarter-mile time of 15.4 seconds at 87 mph, but I suspect a typographical error: The trap speed is plausible, but given the 16.7-second 0 to 90 mph time they recorded, I’m 90 percent sure the ET was actually 16.4 seconds. Which meant the GTA was not actually a Supercar, at least by Car Life‘s contemporary definition.
The editors suggested that the S-code Fairlane might be a match for a base GTO, which they admitted Car Life had never tested. Motor Trend had, however, first in February 1965, then in May 1966, and their base engine GTO test cars, both with two-speed automatics and 3.23 axles, would have blown the doors off this Fairlane GTA. (Both those cars managed 0 to 60 mph in 7.5 seconds or less with two aboard.)
Car Life grumbled:
Ford engineers could learn something from their counterparts at Pontiac in relation to engine breathing. Particularly in valve train design are Pontiacs seldom afflicted with lethargy. Hydraulic lifters as a matter of course work at 6000 rpm. The standard 389 GTO engine’s camshaft is only remotely warmer (273/289 duration, 54° overlap) than the GTA, but the 3×2 ’shaft is substantially thawed out (288/302 and 63°). The differences in valve sizes (1.92 in. intakes, 1.65 exhausts) also say something about Pontiac’s approach to manifold and head design.

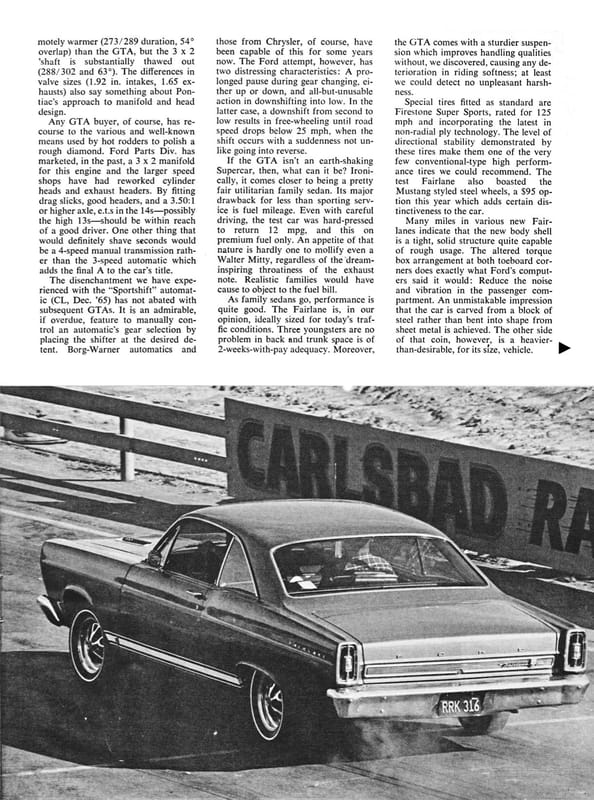

Any GTA buyer, of course, has recourse to the various and well-known means used by hot rodders to polish a rough diamond. Ford Parts Div. has marketed, in the past, a 3 x 2 manifold for this engine and the larger speed shops have had reworked cylinder heads and exhaust headers. By fitting drag slicks, good headers, and a 3.50:1 or higher axle, e.t.s in the 14s—possibly the high 13s—should be within reach of a good driver.
I think in this case calling the S-code 390 “a rough diamond” was being awfully generous. As the editors had noted earlier, this was 1966, not 1963, and having to delve into dealer parts counter or aftermarket DIY just to get competitive street performance was really missing the point of this whole genre. Also, there was plenty of speed equipment for the GTO as well, and the chances of a hopped-up 390 staying ahead of a hopped-up Pontiac 389 seem low.
Car Life thought performance would also be improved by ordering a Fairlane GT with the four-speed manual, having been none too impressed by the GTA’s “Sport Shift” (C6) Cruise-O-Matic, which was supposed to allow fully manual shifting if desired. CL remarked:
It is an admirable, if overdue, feature to manually control an automatic’s gear selection by placing the shifter at the desired detent. Borg-Warner automatics and those from Chrysler, of course, have been capable of this for some years now. The Ford attempt, however, has two distressing characteristics: A prolonged pause during gear changing, either up or down, and all-but-unusable action in downshifting into low. In the latter case, a downshift from second to low results in free-wheeling until road speed drops below 25 mph, when the shift occurs with a suddenness not unlike going into reverse.
Aside from the infirmities of the powertrain, the CL editors thought the Fairlane GTA might be a tad overbuilt:
Many miles in various new Fairlanes indicate that the new body shell is a tight, solid structure quite capable of rough usage. The altered torque box arrangement at both toeboard corners does exactly what Ford’s computers said it would: Reduce the noise and vibration in the passenger compartment. An unmistakable impression that the car is carved from a block of steel rather than bent into shape from sheet metal is achieved. The other side of that coin, however, is a heavier-than-desirable, for its size, vehicle.
I checked the 1966 Fairlane AMA specs, and the 3,500 lb curb weight Car Life listed in the data panel was off by about 80 lb as equipped. However, a curb weight of 3,580 lb was still a bit lighter than a 1966 GTO. At 206.4 inches overall, GTO was 8.4 inches longer than the Fairlane, but they were very similar in wheelbase and width — which are more closely correlated than length with vehicle weight — so it’s not surprising that they weighed roughly the same.

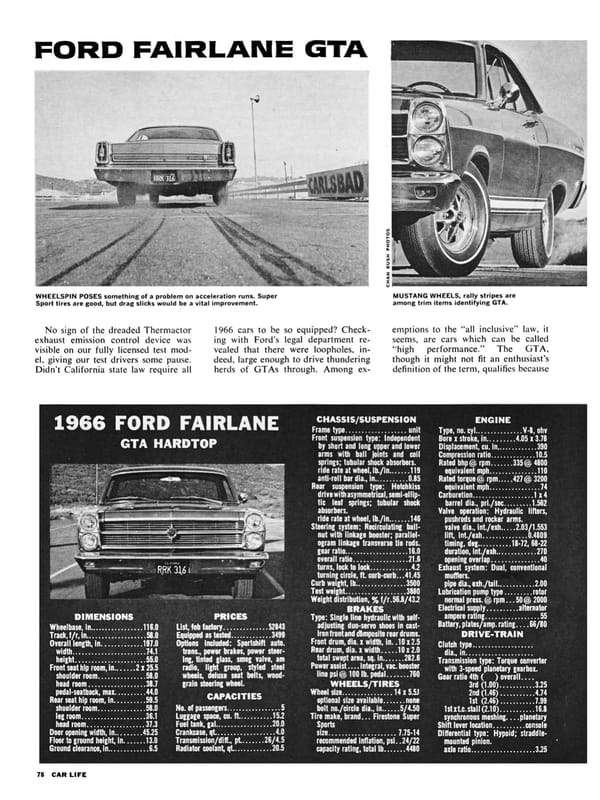

The caption of the top left photo reads, “WHEELSPIN POSES something of a problem on acceleration runs. [Firestone] Super Sport tires are good, but drag slicks would be a vital improvement.” The caption of the top right photo wrongly implies that the styled steel wheels were part of the GT/GTA dress-up package; they were an extra-cost option.
Like Road & Track, Car Life was based in Los Angeles, so most of their 1966 and later test cars were subject to California’s exhaust emissions standards. Ford initially met these requirements with the Thermactor system, which used an engine-driven pump to inject fresh air into the exhaust stream, reducing carbon monoxide and hydrocarbon emissions (while increasing oxides of nitrogen). However:
No sign of the dreaded Thermactor exhaust emission control device was visible on our fully licensed test model, giving our test drivers some pause. Didn’t California state law require all 1966 cars to be so equipped? Checking with Ford’s legal department revealed that there were loopholes, indeed, large enough to drive thundering herds of GTAs through. Among exemptions to the “all inclusive” law, it seems, are cars which can be called “high performance.” The GTA, though it might not fit an enthusiast’s definition of the term, qualifies because it is equipped with, among other things, a 4-barrel carburetor. Yet, the Galaxie 7-Litre tested last month doesn’t qualify as such, for some unexplainable reason. It begins to look as if California’s much vaunted anti-smog law may be honored only in the breach.
California’s early emissions standards were tied to the installation of suitable devices certified by the state’s Motor Vehicle Pollution Control Board, which had fairly broad authority to grant exemptions if suitable devices were not available. (The Legislature had gotten very testy about this, and had recently ordered that most such exemptions end by December 1, 1967.)
However, the AMA specifications for the Fairlane GT and GTA indicate that the S-code engine was supposed to have a Thermactor in California, as were the milder Y- and Z-code versions optional on other Fairlanes. That makes me think that Ford might actually have obtained an exemption on some other basis, such as not having enough Thermactor pumps to go around. Not having this device fitted from from the factory wasn’t great news for a California owner, since at this time, there was the risk that they might eventually be required to retrofit one after the fact.
Although the anemic performance likely crossed the Fairlane GT/GTA off the shopping lists of the enthusiast crowd, Car Life felt it wasn’t entirely without virtue:
If the GTA isn’t an earth-shaking Supercar, then, what can it be? Ironically, it comes closer to being a pretty fair utilitarian family sedan. Its major drawback for less than sporting service is fuel mileage. Even with careful driving, the test car was hard-pressed to return 12 mpg, and this on premium fuel only. [The overall test average was just 9.1 mpg.] An appetite of that nature is hardly one to mollify even a Walter Mitty, regardless of the dream-inspiring throatiness of the exhaust note. Realistic families would have cause to object to the fuel bill.
As family sedans go, performance is quite good. The Fairlane is, in our opinion, ideally sized for today’s traffic conditions. Three youngsters are no problem in back and trunk space is of 2-weeks-with-pay adequacy. Moreover, the GTA comes with a sturdier suspension which improves handling qualities without, we discovered, causing any deterioration in riding softness; at least we could detect no unpleasant harshness.
The GT/GTA suspension was actually quite stiff — the spring rates at the wheel were over 65 percent greater than a 289 Fairlane sedan — so it’s surprising that Car Life didn’t find it unpleasantly harsh. I guess the stoutness of the unit body paid off in that respect.

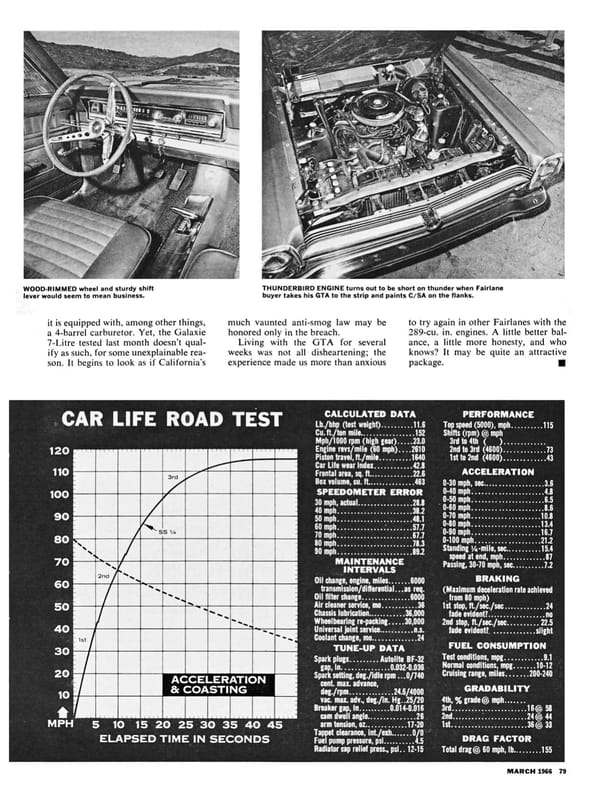

While the text makes no mention of braking, the data panel reveals a best deceleration rate of 24 ft/sec.² on the first stop from 80 mph, falling to 22.5 ft/sec.² on the second stop, which rated fair by contemporary domestic standards. For 1967, front disc brakes would become standard on the GT and GTA, a commendable upgrade.
CL concluded:
Living with the GTA for several weeks was not all disheartening; the experience made us more than anxious to try again in other Fairlanes with the 289-cu. in. engines. A little better balance, a little more honesty, and who knows? It may be quite an attractive package.
Total Fairlane GT/GTA production in 1966 was 37,342 cars, including 4,327 convertibles. That roughly equaled the combined total of the 1966 Oldsmobile 4-4-2 and Buick Skylark Gran Sport, but it was nowhere near the 96,946 GTOs Pontiac sold that year.
Personally, I like the looks of the Fairlane GT/GTA hardtop, and compared to the GM A-bodies, its shorter overhangs and stiff unit body have some appeal. As a performance car, though, it seemed like it just wasn’t trying very hard — lost, like so many ’60s Fords, in the wasteland between product planning and cost accounting.
The GTA was practical and it was cheap (in 1966, a sticker price of $3,499 with power steering, power brakes, automatic, radio, and styled wheels wasn’t bad at all), but when it came to the mixture of pizzazz and brawn that made cars like the GTO era-defining hits, the big-engine Fairlane just didn’t measure up.
