The 1964 Pontiac GTO didn’t just appear out of thin air; John Z. DeLorean had been working his way towards a genuine American GT for several years with the 1961-1963 compact Tempest. The ’61 arrived with one half of the future GTO’s 389 V8, including a four-barrel hi-po version. And there was the rear transaxle with independent rear suspension; DeLorean was a big IRS fan, although the Corvair’s borrowed swing axles were not really optimal.
But that was just the first act; for 1963, Pontiac ditched the expensive and rarely installed optional Buick 215 aluminum V8 and dropped in a reduced-bore version of the 389 V8. In an (initial) concession to appearances of modesty, it came with only a two-barrel carb, rated at 260 hp. But as the year progressed — with the GTO already waiting in the wings — a 280 hp four barrel HO version became available too.

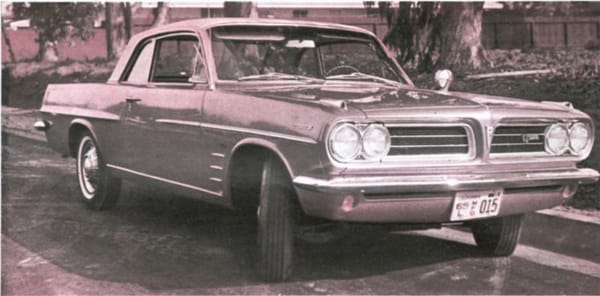

This CL review is of a 260 hp version backed by the two-speed automatic. Not exactly quite a full-grown tiger yet, but it was already showing its stripes.

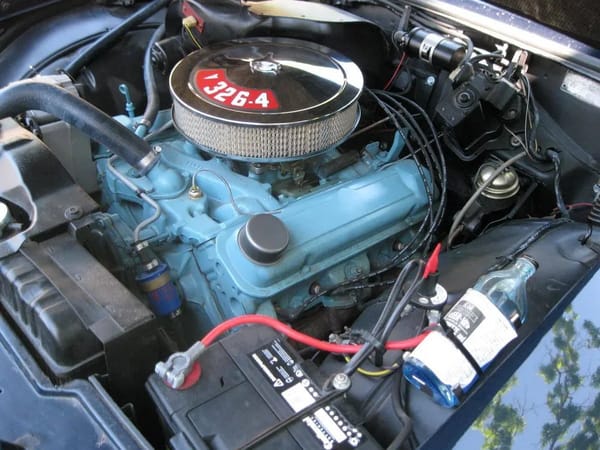

Actually the so-called 326 displaced 336.66 cubic inches. Why Pontiac advertised that it had 326 cubic inches is a mystery; GM’s edict that intermediates shall have no more than 330 cubic inches didn’t come out until 1964, so for ’64 the bore was reduced again to make it a genuine 326. But of course that rule was then totally flouted by the 389 GTO. Does any of this make sense?

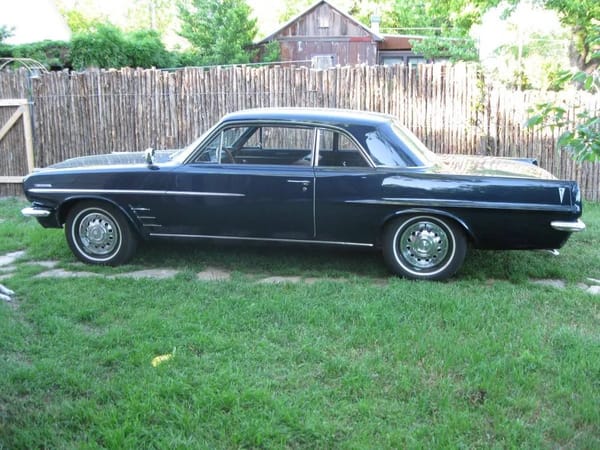

CL suggests that the Tempest LeMans was something of a 7/8 size budget Grand Prix; a logical call. The ’63’s longer and wider external sheet metal did elevate it visually into a genuine mid-sized car even if its internal body structure was still all very much the same; also largely shared with the Corvair. CL suggests that after driving it for a while, no one will ask why Pontiac didn’t just drop in the 389 as the 326 has more than enough beans to spin the rear wheels on command.

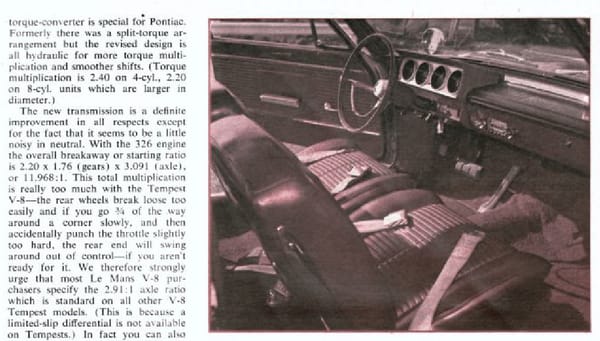

The two-speed torque converter automatic had a lot of Powerglide DNA in its case, but there were some changes from the ’61’-’62 “Tempest-Drive” version. The unit shifted more smoothly and was deemed an improvement over the previous version, having ditched its torque-splitting top gear function.
Total torque multiplication with the 3.09 rear axle was too much for the skinny 6.50-15 tires, resulting in excessive wheel spin. Hitting the throttle even lightly three-quarters of a way through a turn caused the rear end to swing out of control. A higher (lower numerical) axle ratio was recommended. Contrary to popular belief thanks to a famous movie scene, a limited slip differential was not available. The presumed reason the ’62 Corvair’s Positraction unit wasn’t used is because a larger and stronger differential had to be used with the V8.

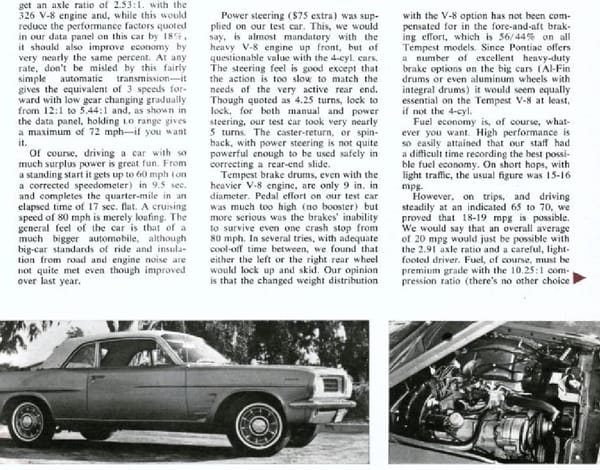

“Of course, driving a car with so much power is great fun“. 0-60 came in 9.5 seconds, not exactly a stellar number, but reasonably quick for the times. A version with the three-speed manual was tested by Popular Science as part of a comparison test, and it was faster with a brisk 8.1 second 0-60 time. The specs showed that car having a 3.90:1 rear axle, although the brochure does not show that as optional.
Of course the 280 hp four-barrel 326 HO version that came later in the year was faster yet, with a 0-60 time of just under 7 seconds and the 1/4 mile in 17 seconds (Car Life test). That 0-60 time is very much in ’64 GTO territory, even if the 1/4 mile ET isn’t quite.
At a cruising speed of 80 the Tempest felt like it was “loafing“. It conveyed the sense of a larger car, although its ride and road/engine noise didn’t quite, undoubtedly due in part to its unibody construction.
The power steering was too slow, with some 5 turns lock-to-lock. The 9” brake drums should have been upgraded; they were marginal.

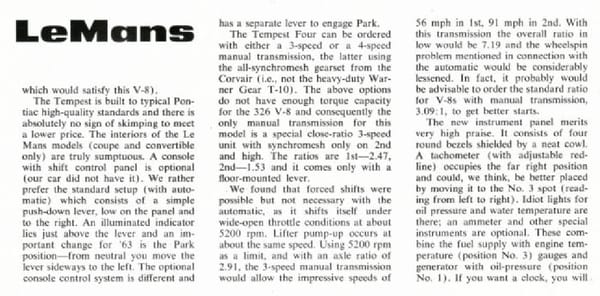

The four speed manual (borrowed from the Corvair) was not strong enough to use with the V8, so a three-speed was the only manual gearbox available, but with such a torque-rich engine in a relatively light car, the lack of the extra gear was probably not really an issue except for racing. As it was, the three-speed was a bit marginal and there were reports of damage from enthusiastic shifting.

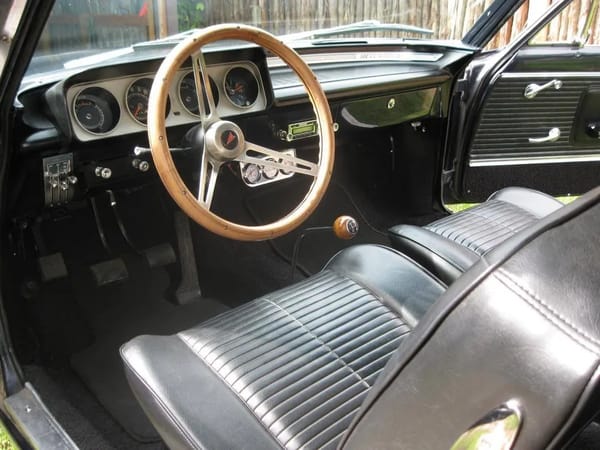

The instrument panel was new for ’63 and attractive in appearance with four large round openings, but the details of its layout were not quite optimum. It’s a testament to the Corvair’s relatively roomy interior that essentially the same cabin was deemed quite suitable in that regard in the Tempest.

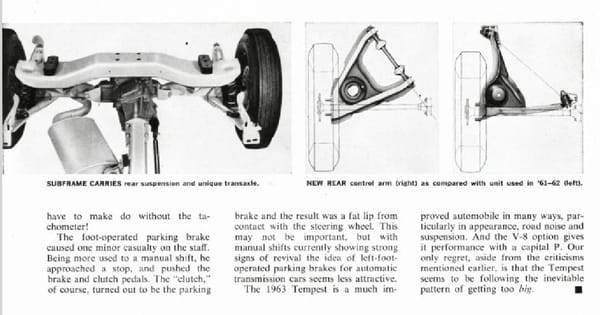

Very little or nothing was said about the revised rear suspension for ’63; it still used swing axles but now used L-shaped control arms instead of semi-trailing arms. This reduced toe-in changes as the camber changed. The Tempest had acquired a rep for its tricky rear end manners (snap oversteer when exceeding its limits); the ’63 version was a minor improvement but did not go far enough. A camber-compensating spring like the ’64 Corvair had would have been a good start.
CL made no real mention of the Tempest’s handling; maybe because its vices were already known and they didn’t want to rub it in further? Or perhaps they just didn’t drive it in the kind of conditions where the rear end was likely to act up.
The final verdict was positive, although there was some discomfort with the Tempest’s seemingly inevitable external growth. Well, that too was just the warm up act for the ’64 Tempest and all the new GM A-Bodies. They were headed for growth, but most of all, lots of performance increases, starting with the GTO. The ’64-up GM A-Bodies would be the beginning of the biggest change in GM’s long history, as these cars and their successors would eventually muscle out the large cars for sales superiority. So yes, the ’63 Tempest was more than just a warmup act for the GTO; it was a the beginning of a revolution.
Related CC reading:
Automotive History: 1963 Days – Popular Science Tests the Hot Compacts
Vintage Car Life Road Test: 1964 Pontiac GTO – “Honest In Performance”?
Ate Up With Motor has a very in depth look at the ’61-;63 Tempest:
Magnificent Kludge: The ‘Rope-Drive’ 1961–1963 Pontiac Tempest
The service manual axle ratio availability chart (https://pontiac.oldcarmanualproject.com/manuals/1963/1963%20Tempest%20Shop%20Manual/05-Rear%20Axle%20and%20Propeller%20Shaft/image3.html) confirms that axle ratios of up to 3.90 were available with the V-8, but anything (numerically) higher than a 3.09 was a special order.
Thanks. I just added a link at the bottom to your excellent post on the ’61-’63 “rope drive” Tempest.
I had two of these with 4 cylinders in my yard. Both drive shafts broke. One of the local wrecking yards with 4-5 Tempests had each driveshaft long gone. Unless someone reproduces the driveshafts, these cars can’t survive.
I wonder if a competent welder could modify a Porsche driveshaft with Pontiac yokes.
I very much doubt it. For starters, the Porsche shafts are much too short and substantially smaller in diameter than the Pontiac shafts.
One of the problems with sourcing a replacement Tempest driveshaft is that the shafts were different depending on the engine (four-cylinder vs. 215 vs. “326”), transmission (the automatic shafts were longer), and model year. So, a shaft from a ’61 manual-shift four-cylinder car is not going to fit a ’63 V-8 automatic, for instance.
Er, substantially LARGER in diameter, excuse me. The Pontiac shaft diameters ranged from 16.5 to 19.1 mm, where the Porsche shafts were 20 mm for the 924 and 25 mm for the 928.
I have some minor pity for GM of the early 60s. They tried all manner of engineering feats – Rear air-cooled engines, transaxles, aluminum engines, turbocharging, etc, etc – and most of it was met with a public response of “can we just have normal cars with bigger engines, please?”
Yes but during this time the rest of the automotive planet was progressing. There was indeed an awakening at the end of ’79 with an American generalization of fwds but looking at the N.-A. automobile fleet today with all these pick-up trucks and their ladder frames … we are almost back to the 40s.
The rest of the world also went down a lot of dead ends before it standardized on the modern FWD drivetrains. A lot of import technology didn’t work any better than American technology.
As a life long mechanic and many multiples of car ownership, the RWD platform has many advantages over the modern FWD platform. Like, better handling, better balance, less complexity, easier to service. No way on earth that you can drive the front wheels and design the best suspension and steering together.
No way on earth that you can drive the front wheels and design the best suspension and steering together.
Sure you can. Audi has been doing it for decades, and there’s been others too.
I wish I lived in the days where everything had longitudinal engines and big open engine compartments, no busting my knuckles changing transverse engine serpentine belts!
I don’t find FWD, or RWD or AWD to be “progressive” technology, which would be to imply that it renders one or the other obsolete, which is demonstrably false. It’s just technology, with its own list of pros and cons. The rest of the planet in fact perfected all forms of driven wheel technology, look at BMW, Mercedes or much of the JDM product we didn’t get here in the US. It was American manufacturers if anything that went all in on the lock stock and barrel wholesale adoption of FWD, from everyday cars where it makes sense like a Cavalier or Citation to prestige products like a Cadillac Deville where it was kind of frankly absurd, and ultimately hurt the reputations as the initial trendiness gave way to objective comparisons to its RWD (overseas)competitors.
Likewise pickup trucks. In terms of their engineering there are sound reasons pickups have ladder frames, There has been a lot of progress between a 40s Ford F1 and a modern day F150. Whether suburban Dad with white collar jobs need one is a different debate but as far as the product itself goes it is no more or less evolved than a FWD crossover (which actually have traits of 40s cars; they’re tall and are only distinguishable from each other by the grilles!)
Manufacturers didn’t adopt FWD en masse because it was trendy or faddish or “progressive,” they adopted it because it offered better packaging efficiency, which was vital for B-segment cars, very useful for C- and D-segment cars, and facilitated downsizing for better fuel economy of larger models. CAFE gave American automakers barely 10 years to improve their fleet average fuel economy by about 10 mpg — around 50 percent, in other words — and while cheaper gas prices and loopholes for trucks and SUVs made it seem less urgent, we’re now all paying for that environmentally. That was (and remains) far more important than whether a longitudinal FWD car allows easier spark plug changes or theoretically better steering feel.
The Tempest didn’t adopt a rear transaxle because DeLorean thought it would be neat (although I’m confident that he did), but because it allowed Pontiac to make a compact (which their dealers had desperately wanted) based on Corvair hardware (which the corporation was determined to do for reasons of production economy) without it just being a Corvair with Pontiac badges.
Matt is not wrong that all of these technologies have pros and cons, but the trends happened for specific, compelling reasons, and it’s silly to ignore that.
For the rest of the world no, but American automakers for a time certainly embraced the trendiness of FWD, “Contemporary as it is” for the 86 Deville marketing says it all. No doubt FWD was a boon to packaging in those small segments, to the point that cars like the Pinto and Vega really do seem like outmoded concepts, but FWD’s packaging benefit diminishes the higher up you go on in size where a transmission/driveshaft tunnel isn’t particularly intrusive anyway, especially as center consoles became standard equipment.
In reality it was much like you mention with the Tempest transaxle; for all the marketing speak about being contemporary with FWD downsized Cadillacs, in practice it facilitated platform sharing and engineering commonality with the rest of the high volume GM models taken to the extreme. GM themselves wanted FWD to seem trendy and progressive to an audience increasingly favoring the RWD heavy German brands as the true standard of the world. There simply wasn’t money in it to develop all new RWD platform and more efficient powertrains to the degree of FWD ones for a smaller segment of the market, Ford found that out the hard way with the MN12 platform.
Matt, the 1980s GM FWD cars really did make the most of the packaging benefits of FWD. All of them had leading edge space efficiency, low weight and fuel economy. There was no way any of them could have been equalled in those categories with a RWD platform.
Of course there were lots of RWD cars that may have had good qualities and were perfectly acceptable to the market but those were almost invariably other qualities, like dynamic ones from the Europeans or reliability from the Japanese. But none of them could match the qualities that the GM C and X/A bodies had in their strengths.
The problem with these kind of debates is that it’s rarely an apples to apples comparison; what was a priority for GM at the time was not one for Mercedes or Lexus.

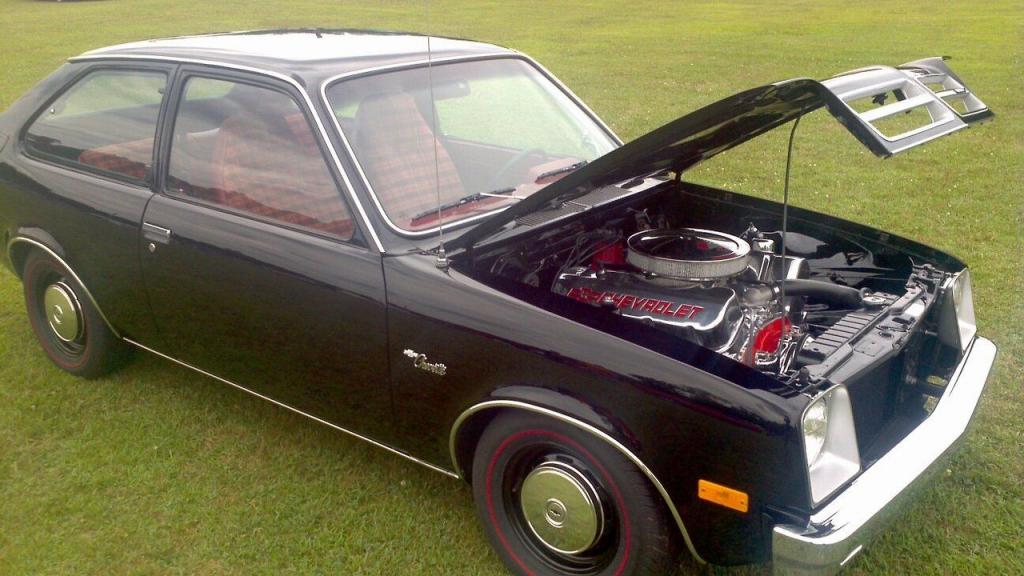

To conclude this debate without tail (rwd) or head (fwd) I personally will choose a current manual Civic over a perfect sleeper th400 Chevette anytime .
