Chrysler kicked off the classic muscle car era of the mid-’60s with their downsized ’62 Plymouth and Dodge when they dropped in their new high-output Max Wedge 413 V8 in those significantly lighter bodies. This would be the same formula used by the ’64 GTO, often attributed to be the first of its kind. There was just one problem: These 413 and 426 “R” engines were designed for racing; they had wild cams, special heads, ram induction, and didn’t really pick up their skirts until about 3500 rpm or so. This created a bit of a problem as buyers found their cars to be rather unsuitable for the weekday commute.
So for 1964, the same year the GTO arrived, Chrysler came up with the 426-S package, with its engine essentially the same as the tame 413 engine as used in a variety of big Chrysler cars, and standard in the Imperial, but with the larger 4.25″ bore. Its specialty was torque: 375 ft/lbs. of it at 3200 rpm and a peak hp rating of 365 @4800 rpm. It foreshadowed the 375 hp 440 that would replace it in 1967 as a milder counterpart to the street hemi and came to be one of the most potent street engines.

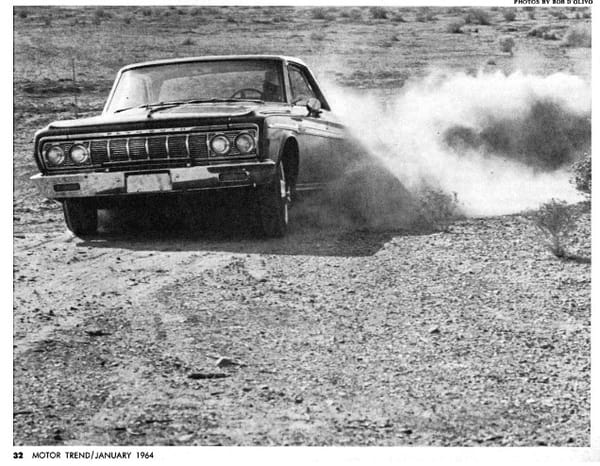

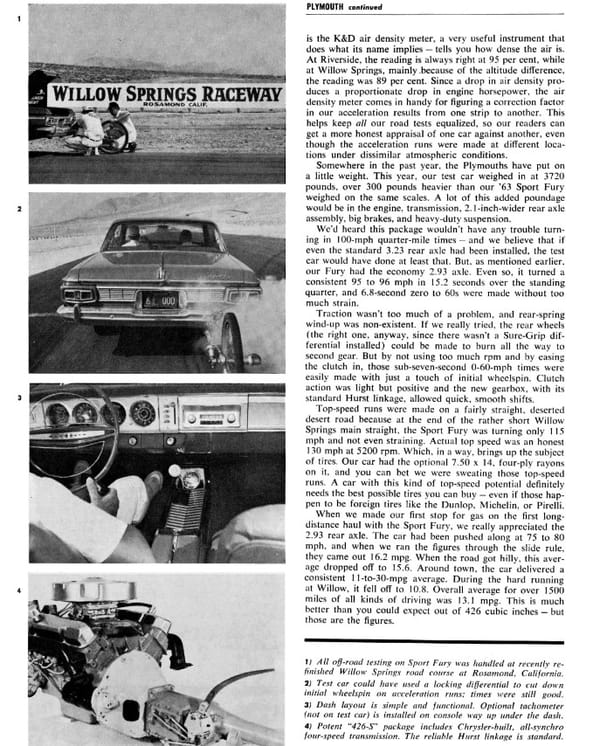

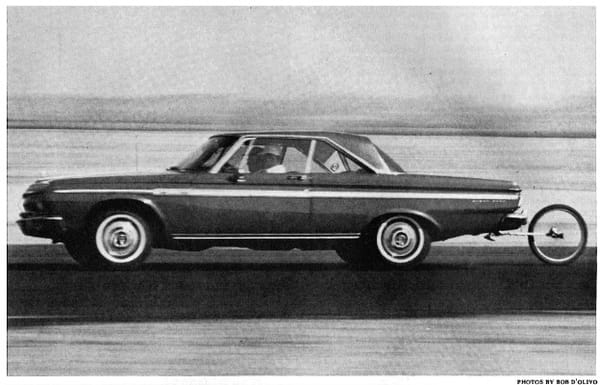

Motor Trend took the new 426-S Sport Fury with Chrysler’s new 4-speed manual to Willow Springs and found it to be a very quick but tractable car with excellent handling and brakes. Too bad they didn’t bring a GTO along for a direct comparison.

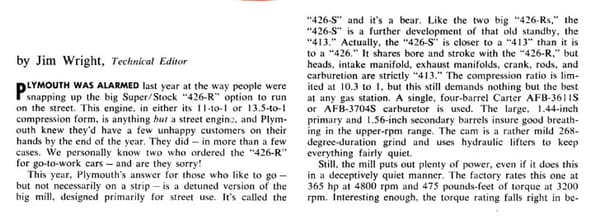

M/T notes that they personally knew of two who ordered 426-R equipped Plymouths in 1963 for daily driving, “and are they sorry!”

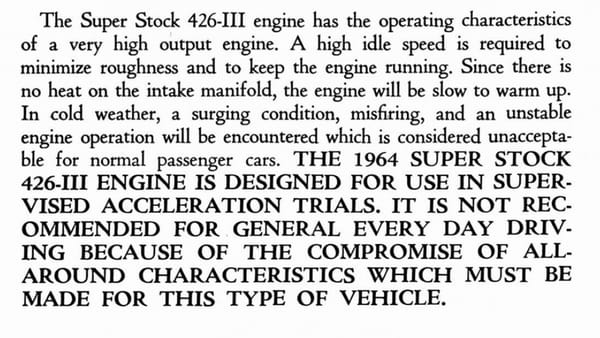

I found this disclaimer in the front of the 1964 Plymouth SS 426 III manual. It says it all.

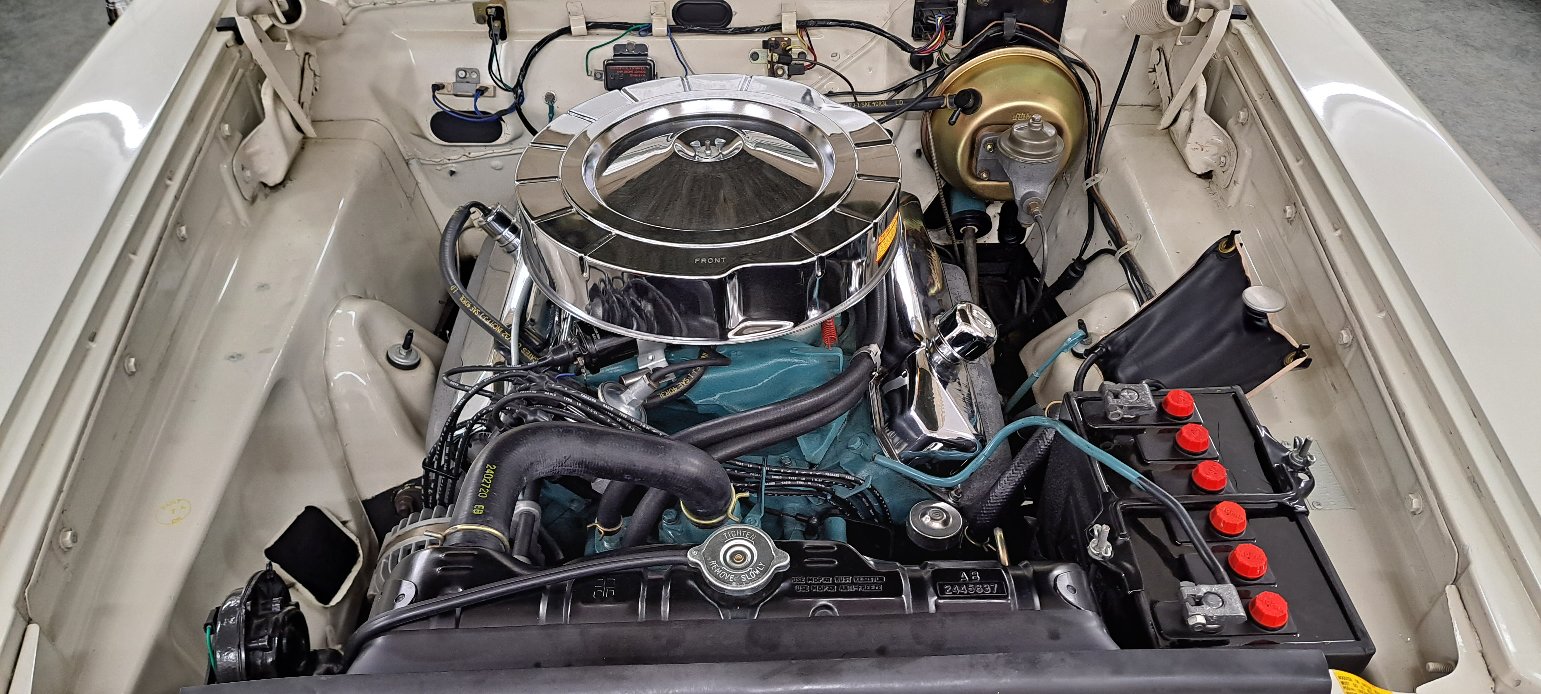

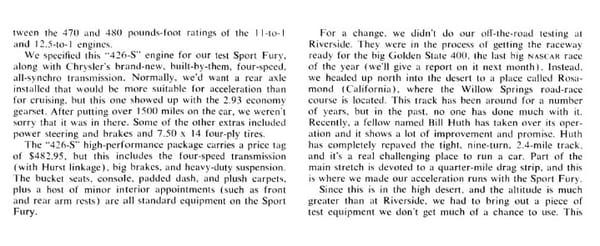

So Plymouth’s answer in the form of the 426-S, designed for street use, was a welcome and rather necessary addition for 1964. A single but big Carter AFB four barrel assured that this mill was still able to deliver good power in the upper rev band, just not like the ram-induction Max Wedges.
The rear axle that came was an economy oriented one with 2.93 gears. But the hefty torque of the 426 overcame that limitation quite well, and the Sport Fury spurted from 0-60 in 6.8 seconds and peeled off the 1/4 mile in 15.2 @95.5 mph. A faster rear axle would have improved those numbers, including a 100 mph trap speed. That’s quick, for a quite mildly tuned engine, and right up there in GTO territory, as long as it’s a genuinely stock one.
This ’64 Sport Fury weighed in at some 300 lbs more than the ’63 they tested the previous year. The ’64 restyle undoubtedly accounted for some of that, the tall-block 426 was heavier, the rear axle was 2.1″ wider, and it came with larger heavy duty brakes. But it was only some 180 lbs more than the ’62 413 Dart tested by Car Life. And as a frame of reference, it was some 250 lbs heavier than the ’64 GTO tested by Car Life.
In addition to acceleration testing, the Sport Fury was also wrung out to an “honest 130 mph at 5200 rpm”. Which made these testers a bit sweaty, considering the rayon 4-ply 7.50 x 14 tires. They recommended one of the European brands (Dunlop, Michelin, Pirelli) if one was going to utilize this car’s speed potential.
Fuel economy was surprisingly good, enhanced undoubtedly by the 2.93 rear axle. Even then, the testers were surprised to see 16.2 mpg after a long drive with lots of 75 – 80 mph speeds. In city driving, that dropped to 11-13 mpg. Overall mileage was 13.1 mpg; “this is much better than you could expect out of 426 cubic inches – but those are the figures.”

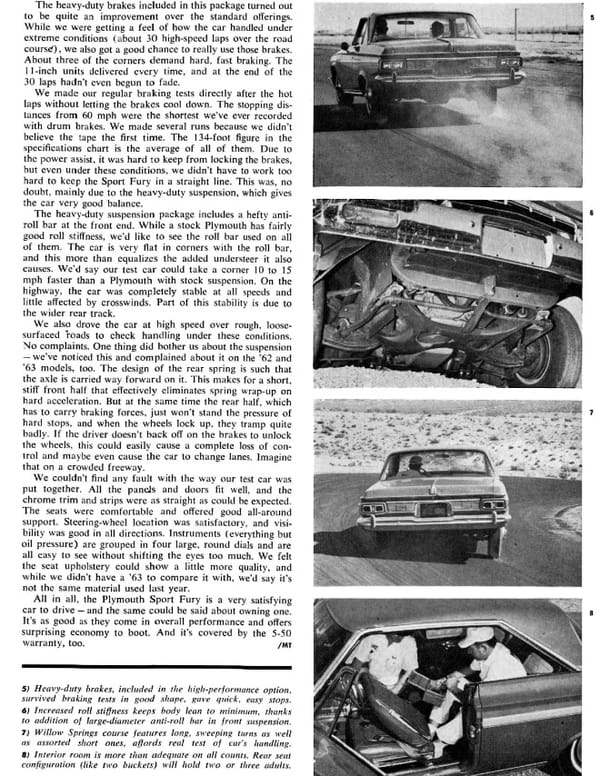

The heavy duty drum brakes included in the 426-S package resulted in the shortest stopping distances from 60 mph that M/T had ever tested, and that was directly after a couple of hot laps of the circuit. The heavy duty suspension included a heft front roll bar. That actually contributes to increased understeer, but the flatter attitude of the car in fast curves more than compensated for that. M/T speculated that the Plymouth was able to take corners some 1-15 mph faster than one without this suspension package. The wider rear track also contributed to increased stability.
There was one shortcoming: Chrysler located the rear axle well forward of the rear leaf spring centerline to reduce spring wrap-up on hard acceleration, but the downside is that there was severe axle tramp on braking. This had been noted before; it seems obvious which force on the rear axle Chrysler was favoring by doing that.
Assembly quality was deemed good, the seats were comfortable, the steering wheel position was satisfactory as was visibility. The round instruments placed directly in front of the driver gave good legibility, but a tachometer was not included in one of those four.

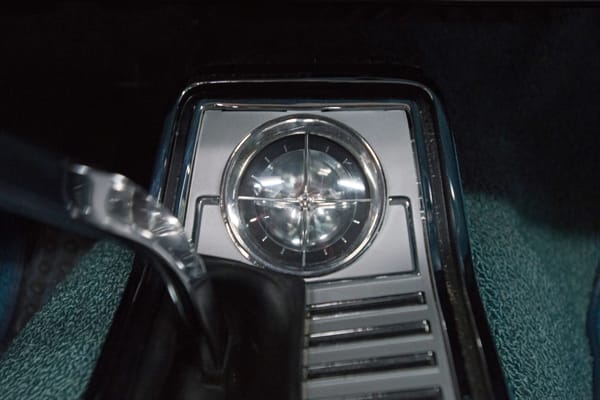

I noticed a round gauge on the console just ahead of the shifter in the photo, and assumed it was a tach, although there was no mention of it. A bit of searching brought up a rather puzzling set of answers. It appears that this “instrument” was a dummy unless one ordered one of the two other options for it (there is a already a clock in the dash):

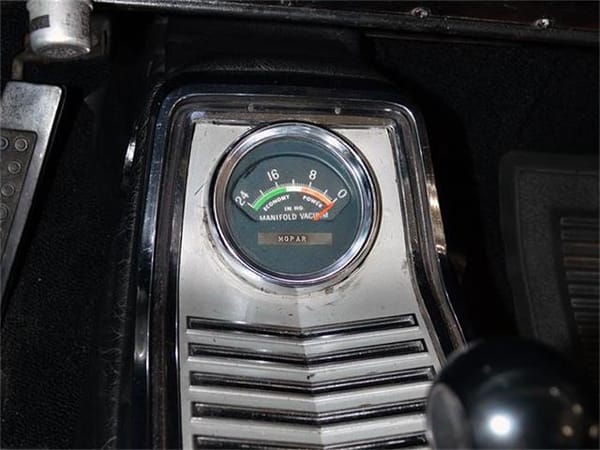

One of those options was a vacuum gauge.

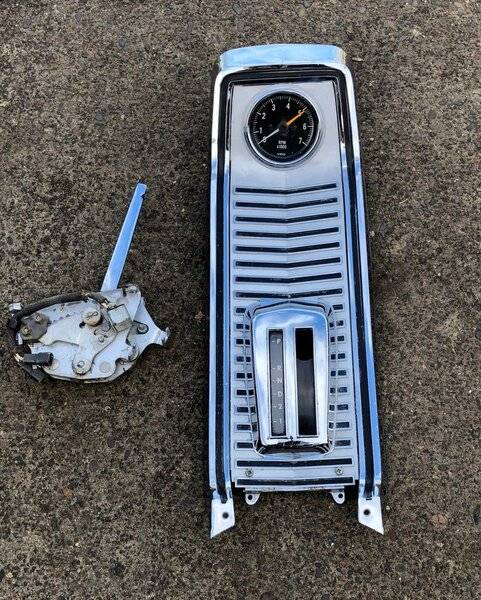

And the other was a tach, which of course like others of its kind, was mounted in an abysmal location for serious performance shifting.

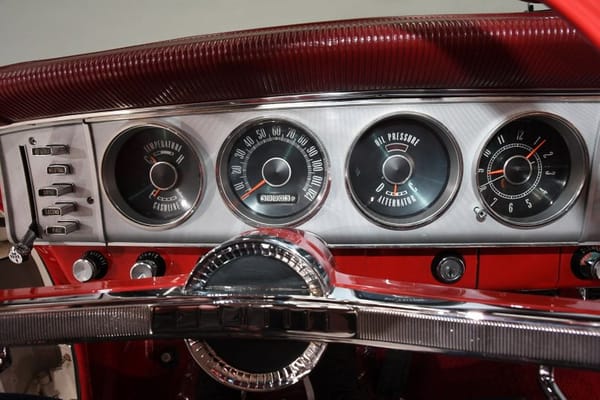

What a waste of those four big round instrument openings. Put the damn tach right there next to the speedometer and move the (mostly useless) clock to the console. It’s little stuff like this that makes you wonder just what Detroit was thinking back then.
Related CC reading:
Vintage Car Life Road Test: 1962 Dodge Dart 413 – The Max Wedge Legend Started Here
Vintage Car Life Road Test: 1964 Pontiac GTO – “Honest In Performance”?

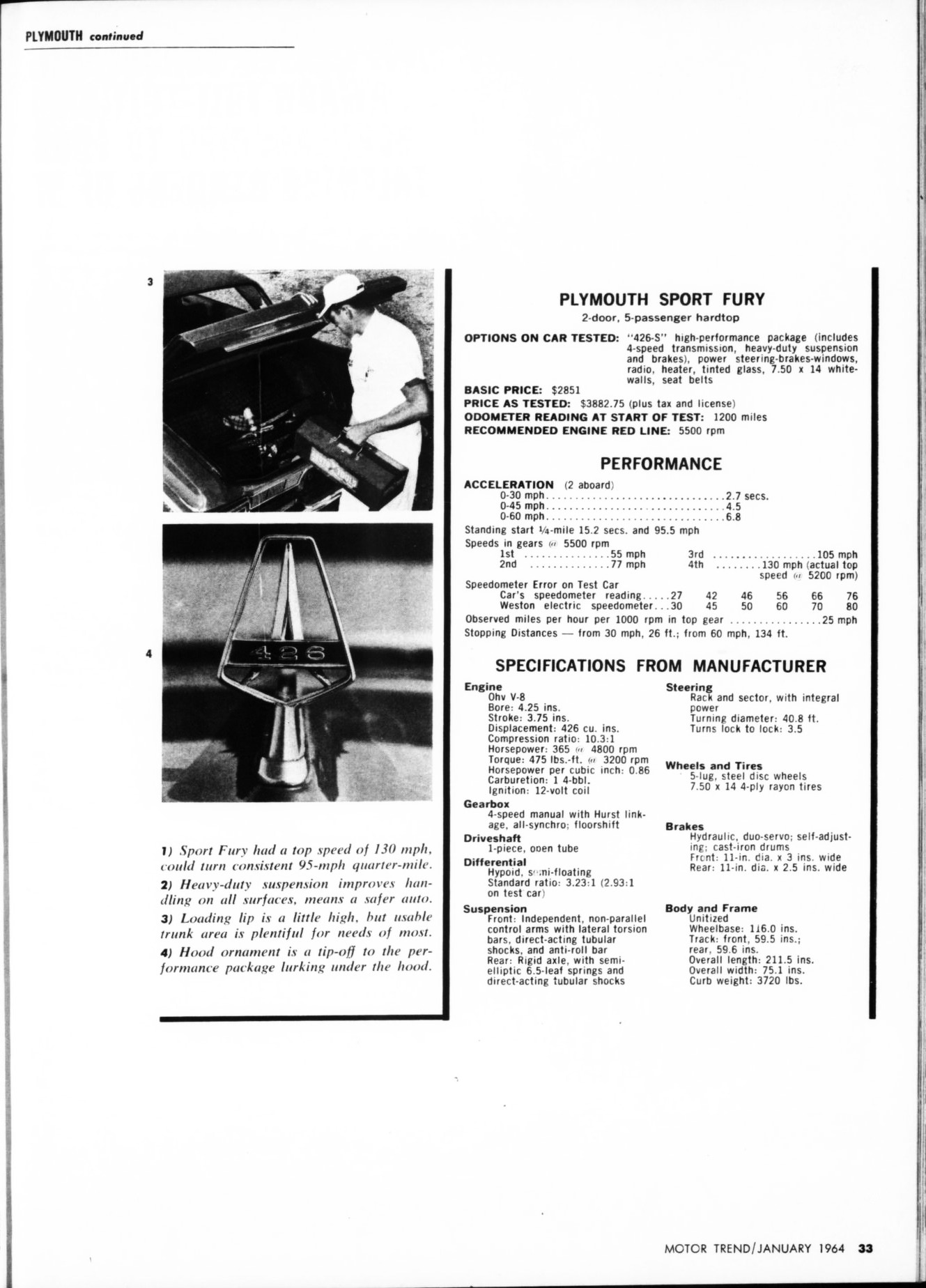

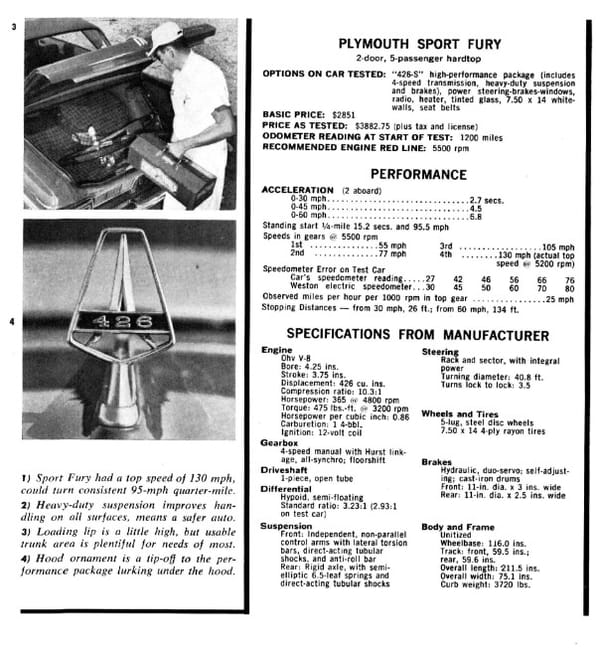

The text mentions the 134 foot stopping distance in the specifications chart. Is said chart available?
